Fontana Dax Brushed Gold Round Rain Shower Head FAQ
1.75 GPM Verification, MasterClean Nozzle Service & Swivel Alignment

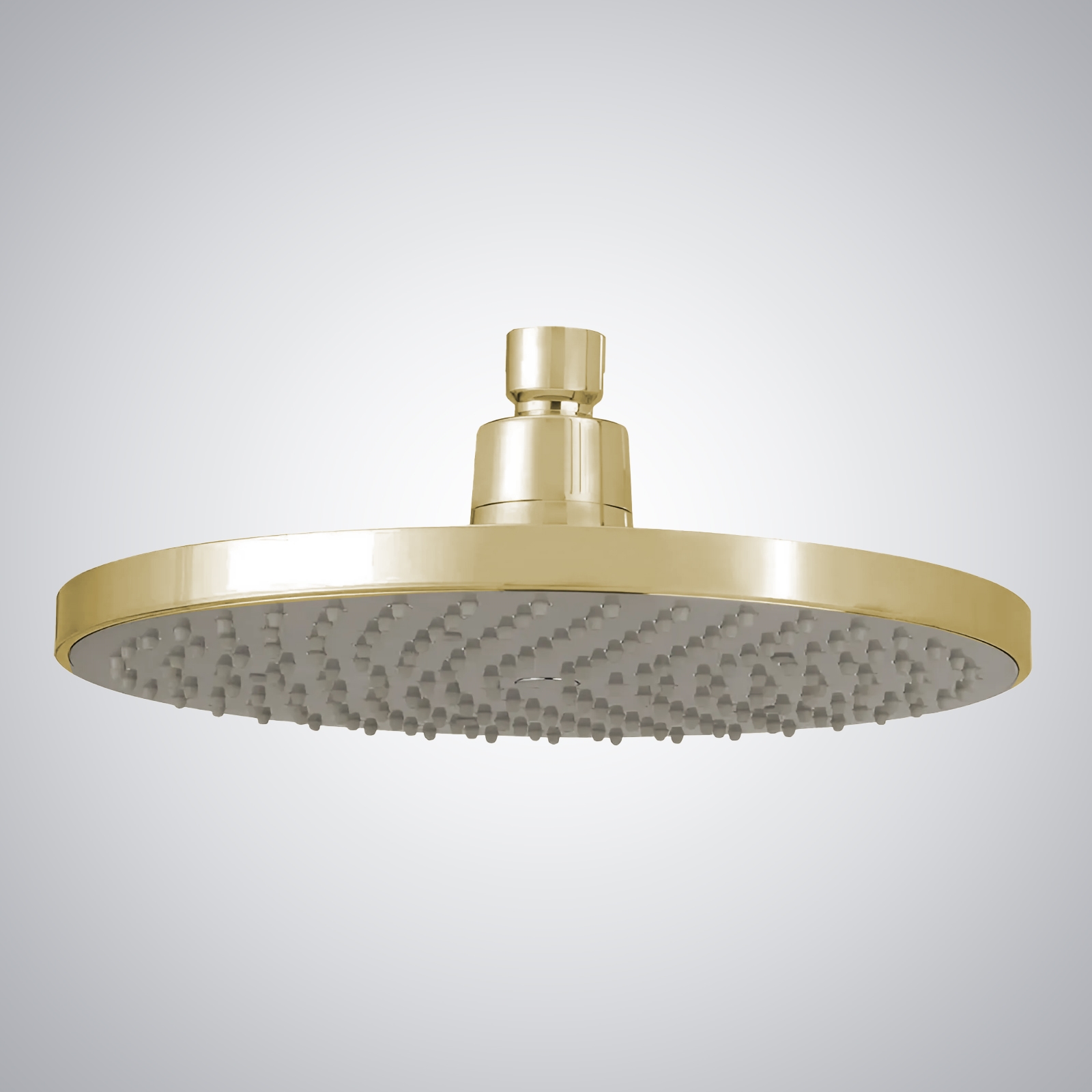

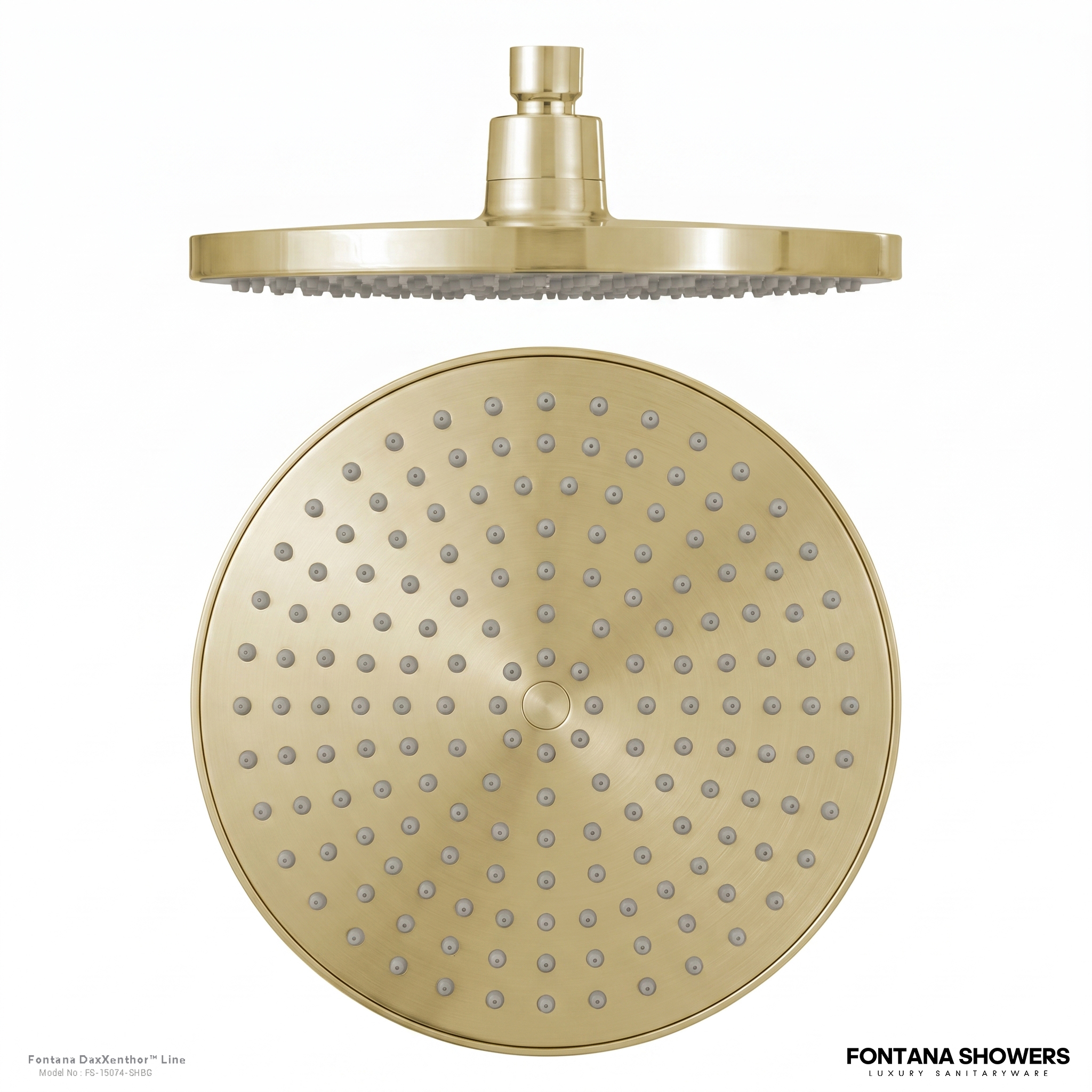

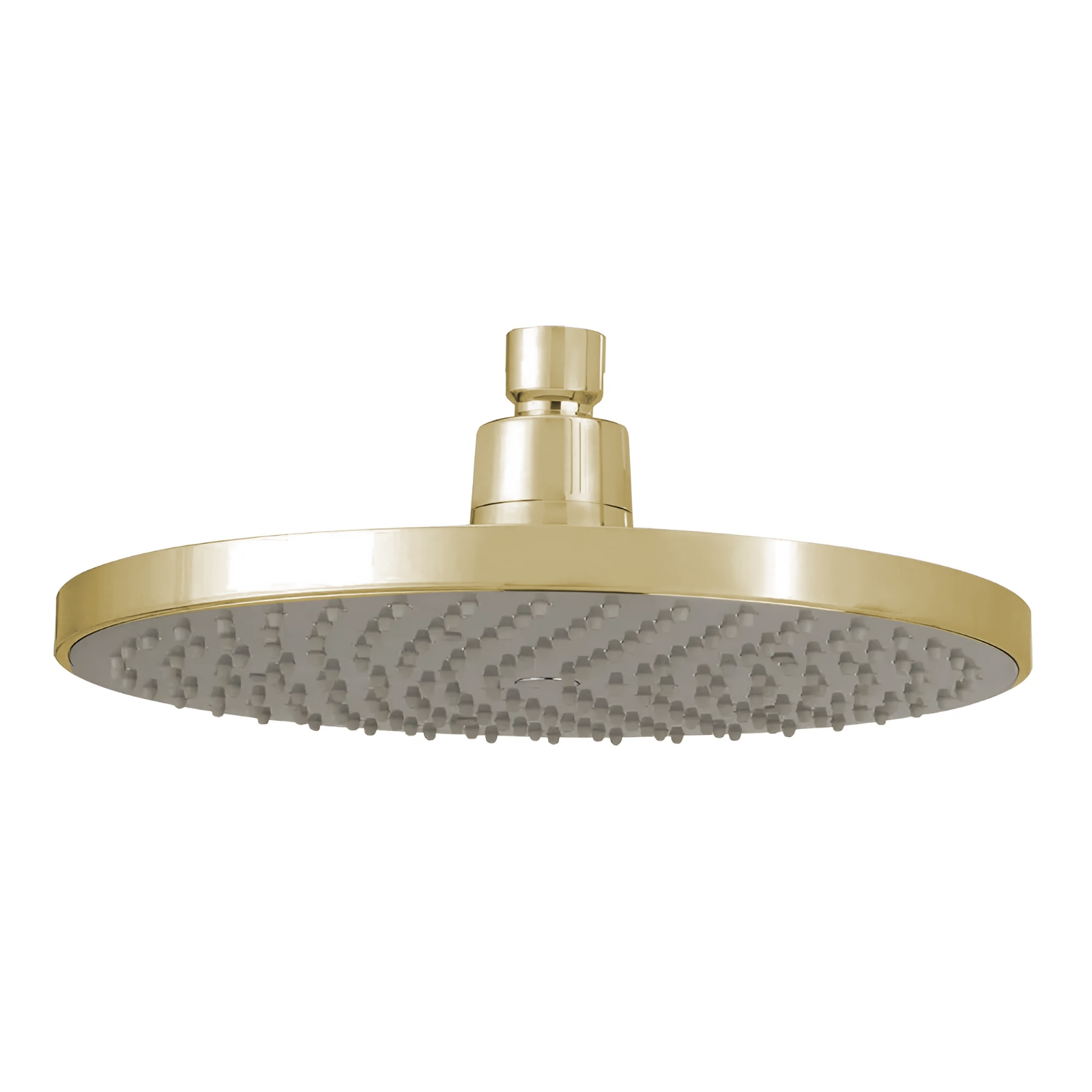

This brushed gold round shower head combines a 9.875-inch metal
spray face, single-function 1.75 GPM rainfall delivery, MasterClean
easy-service nozzles, an adjustable swivel joint, and a standard
1/2-inch NPT connection for wall- or ceiling-arm installations.
How should the 1/2-inch NPT supply connection be prepared before installation?
Flush the open shower-arm branch until pipe scale, solder residue,
construction debris, and excess sealing compound are fully removed.
Inspect the male NPT threads, apply approved sealant sparingly, and
support the shower arm while tightening the inlet connection.
How should the specified 1.75 GPM discharge be verified during commissioning?
Stabilize the system at normal dynamic pressure, purge trapped air,
and perform a timed volumetric collection test. Reduced output may
indicate branch pressure loss, debris at the inlet, mineral loading,
or restriction within the internal flow-control passage.
How should the MasterClean nozzle field be commissioned and maintained?
Confirm that every flexible nozzle produces a stable droplet stream
across the complete 9.875-inch spray face. Isolated weak outlets
should be gently wiped to release mineral deposits, followed by
additional flushing rather than aggressive chemical descaling.
How should the swivel joint be aligned without loading the finished body?
Complete and leak-test the threaded connection before adjusting the
ball-joint swivel. Position the spray face level for ceiling mounting
or at the required angle for wall mounting, avoiding excessive torque
through the brushed gold rim or nozzle plate.
