Fontana Dax Rose Gold Round Rain Shower Head FAQ
Spray-Face Leveling, 1.75 GPM Diagnostics & MasterClean Nozzle Recovery

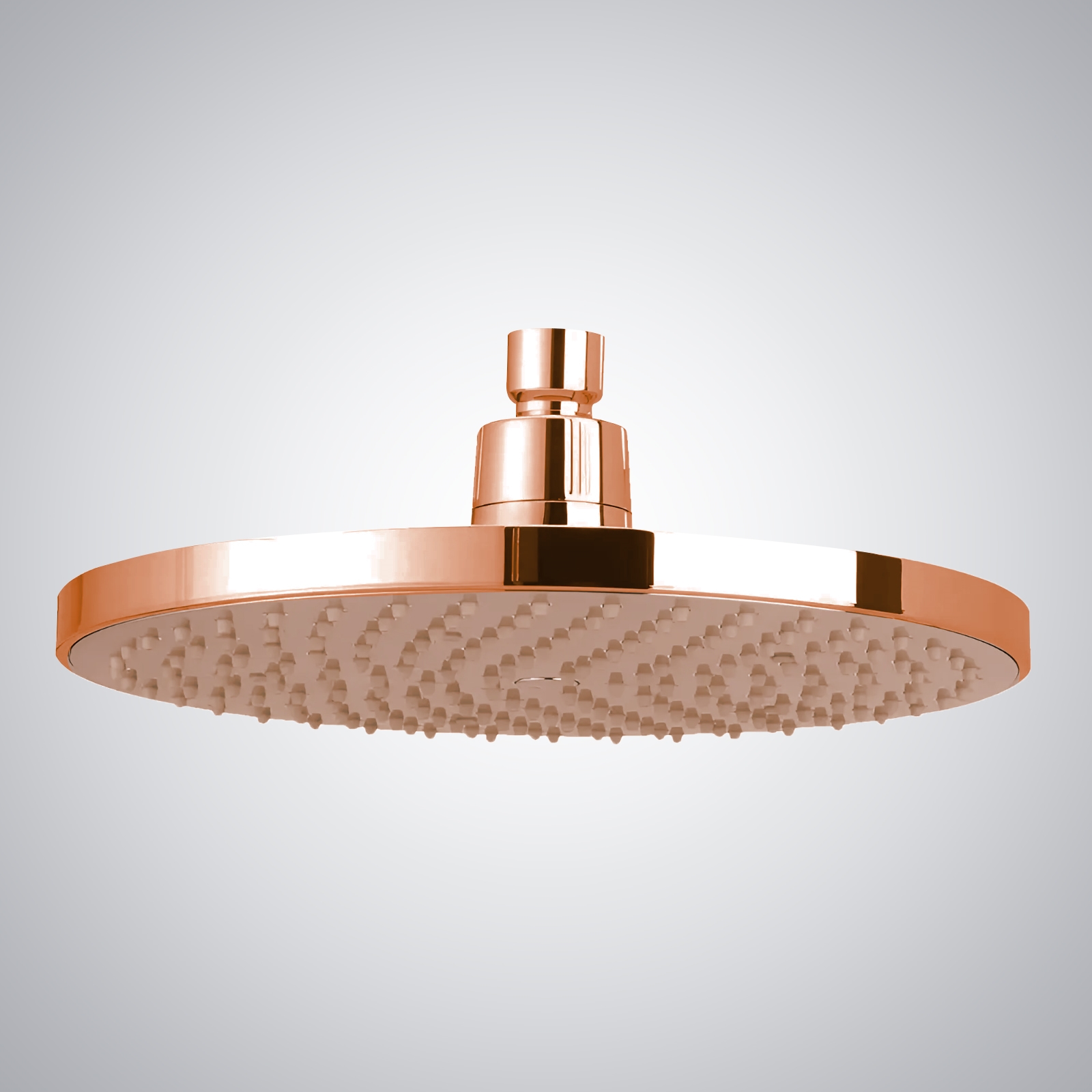

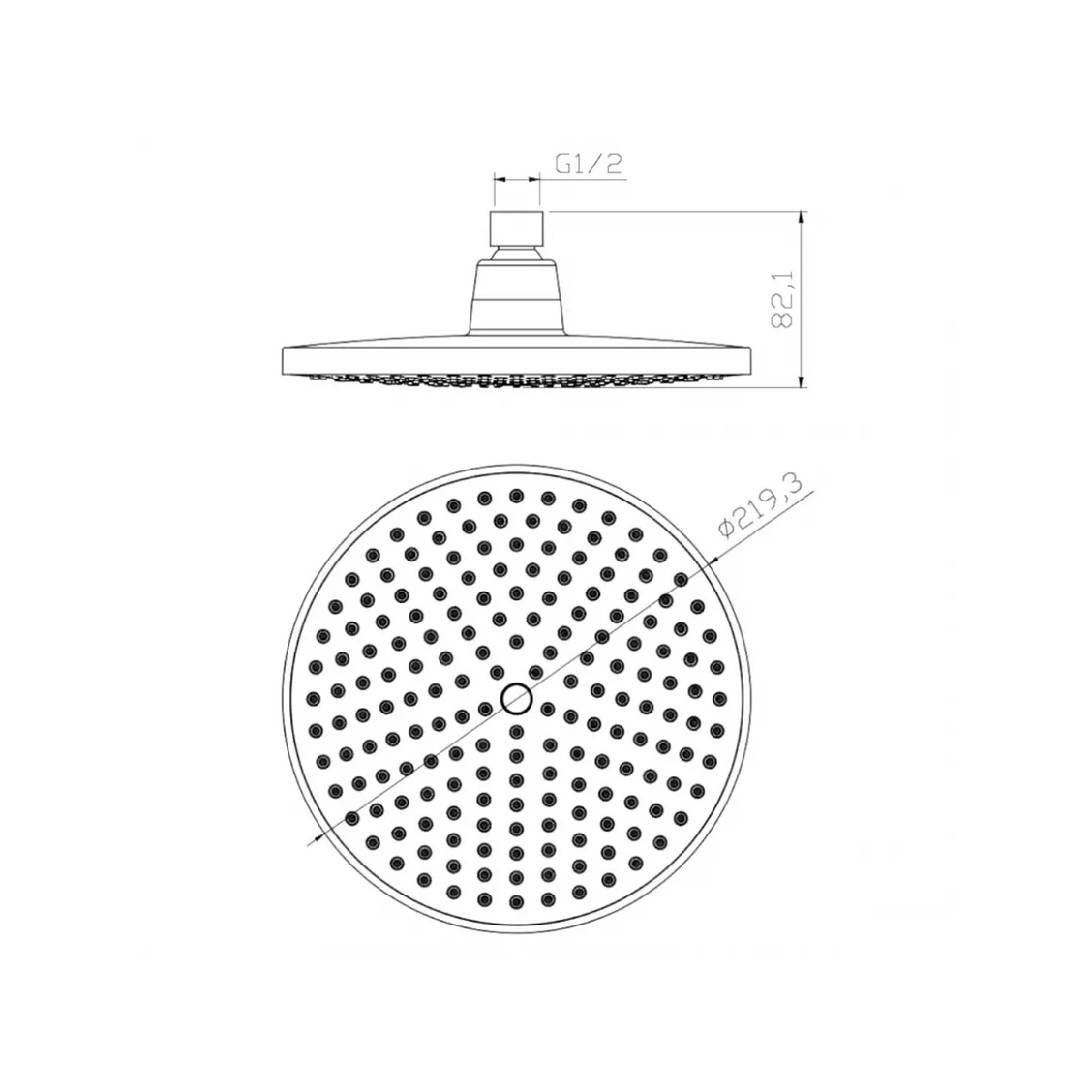

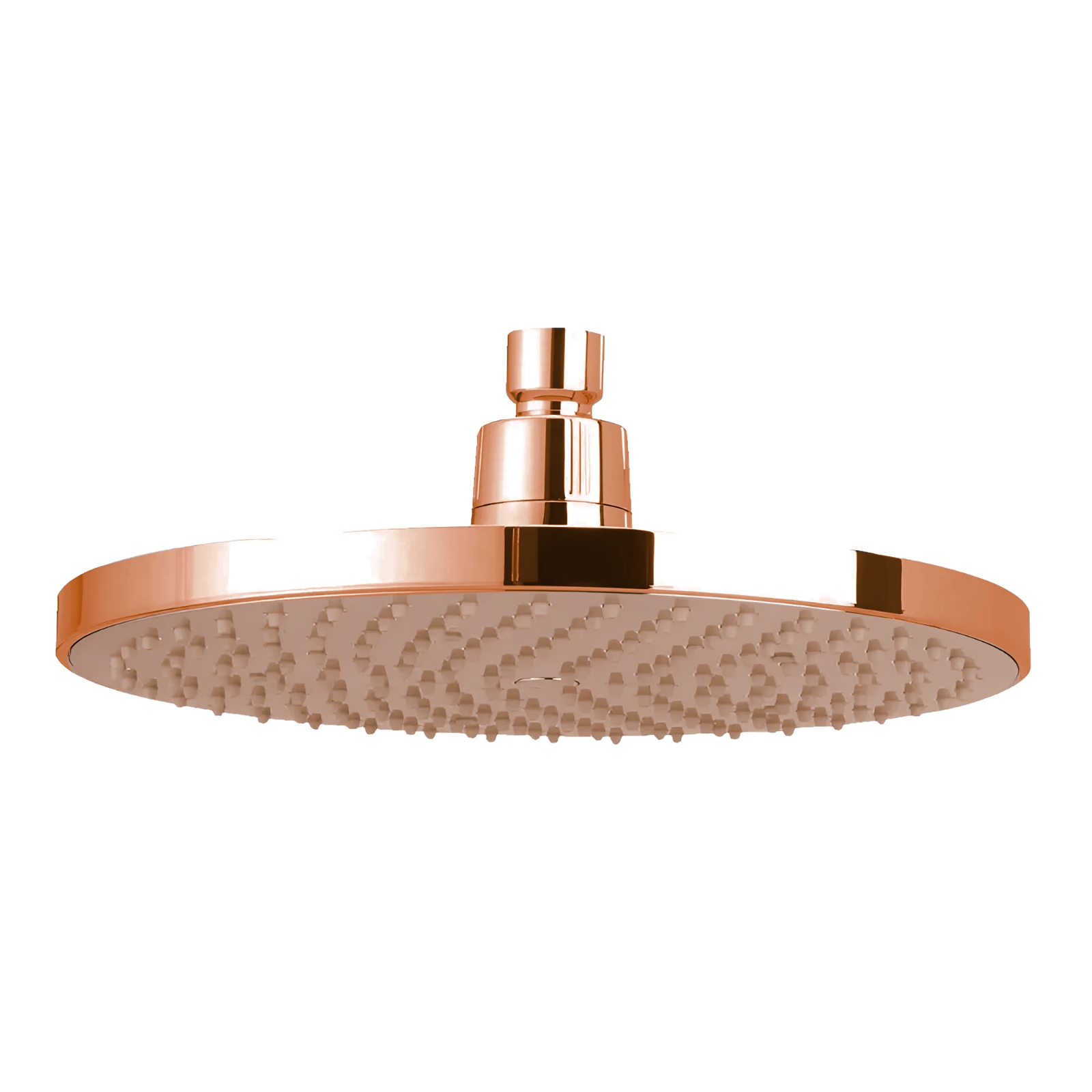

This Rose Gold round shower head combines a 9.875-inch metal spray
face, single-function 1.75 GPM rainfall delivery, MasterClean
easy-service nozzles, an adjustable swivel joint, and a standard
1/2-inch NPT connection for wall- or ceiling-arm installations.
How should the 9.875-inch spray face be leveled after the threaded joint is secured?
Secure and leak-test the 1/2-inch NPT connection before adjusting
the swivel. Reposition the spray face independently until it is
level and centered over the showering zone, confirming that the
head remains stable without drift when the supply reaches normal
dynamic pressure.
What installation condition can cause weak discharge at the perimeter nozzles?
Weak outer-zone delivery commonly indicates trapped branch debris,
insufficient dynamic pressure, excessive upstream pressure loss,
or partial obstruction within the inlet passage. Flush the branch,
inspect the connection for excess sealant, and retest before
servicing individual nozzles.
How should the stated 1.75 GPM flow rate be field-validated?
Operate the shower until temperature and pressure stabilize, then
collect the discharge for a measured interval and convert the
captured volume to gallons per minute. Testing should be completed
with other connected fixtures in their normal operating condition
to expose shared-line pressure loss.

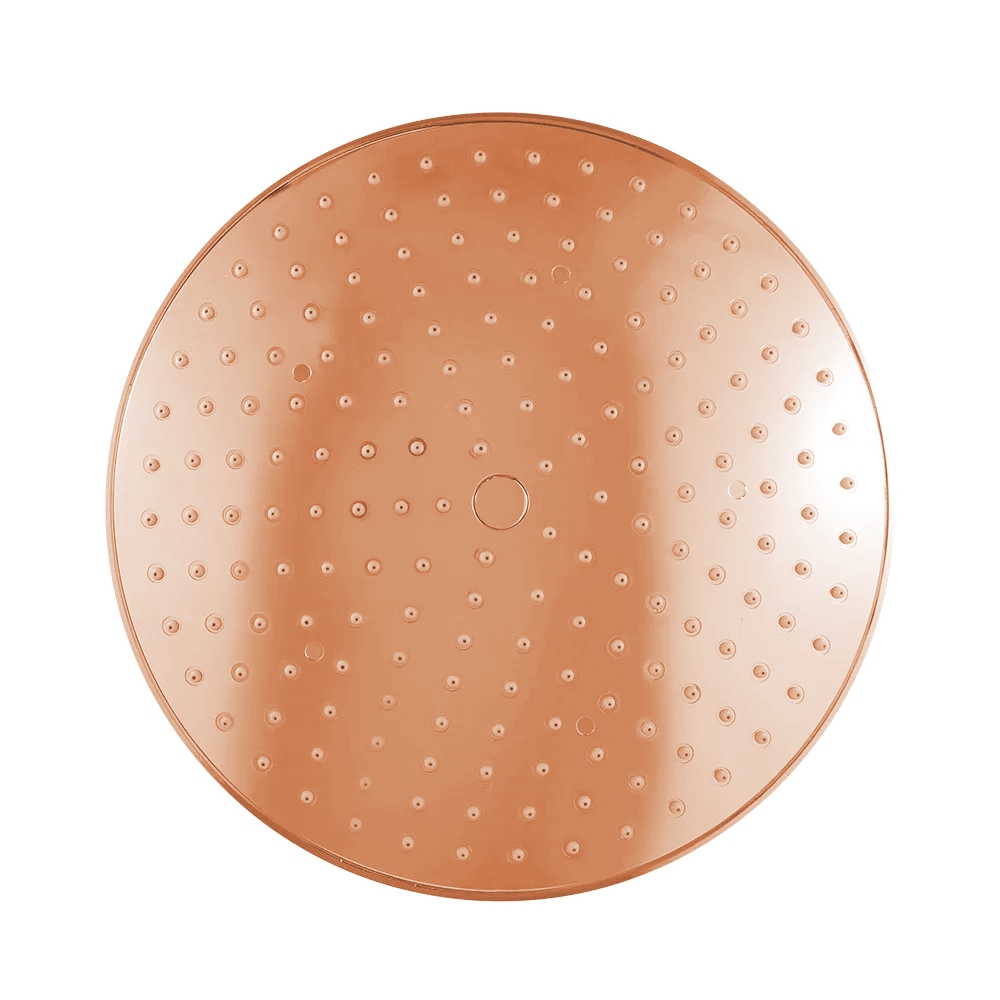

How should mineral restriction be removed from the MasterClean spray face?
With the water off, gently flex and wipe the affected elastomer
nozzles to release surface deposits without scratching the Rose
Gold body. Restore flow, observe the complete center-to-perimeter
pattern, and repeat branch flushing if inactive or directional
outlets remain.
