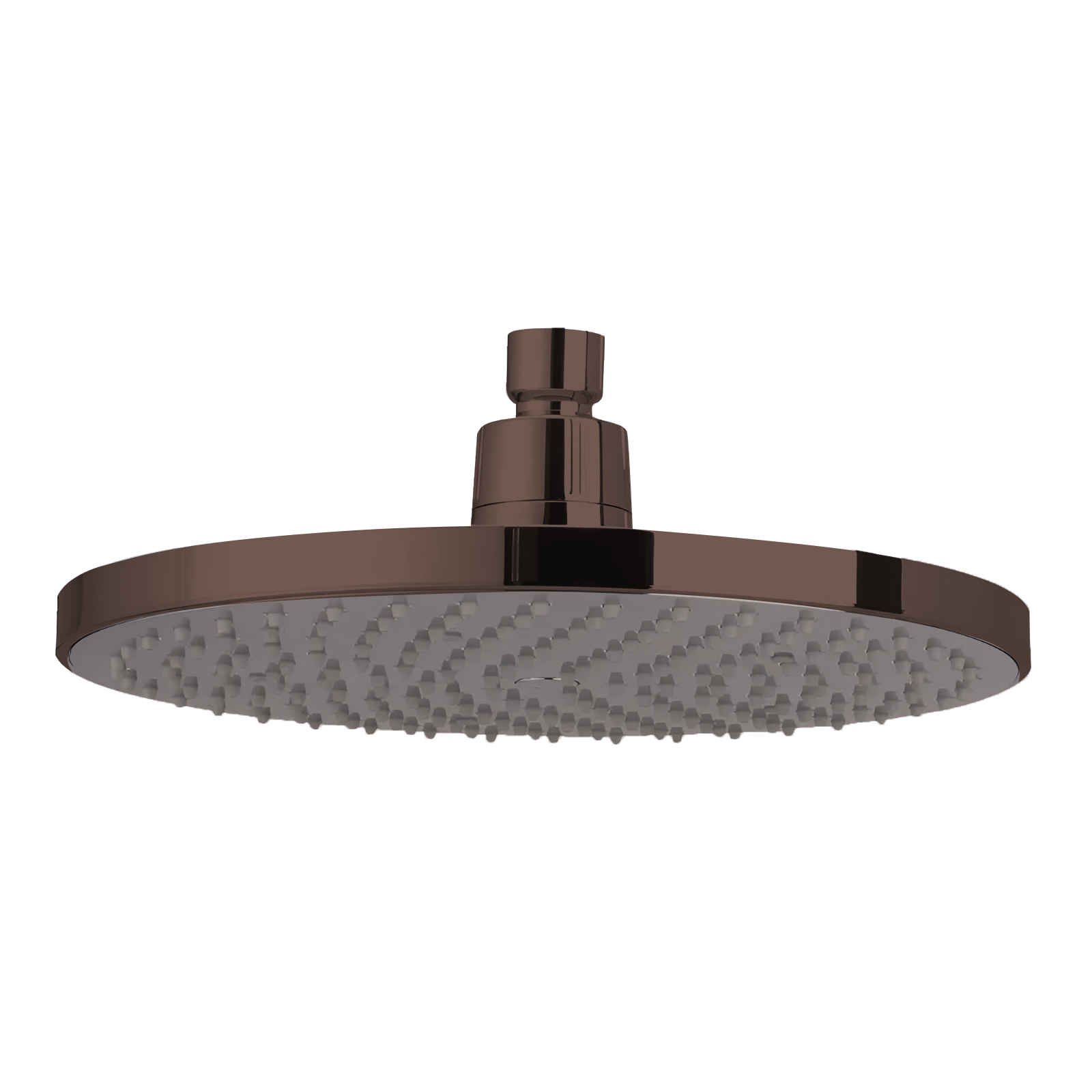

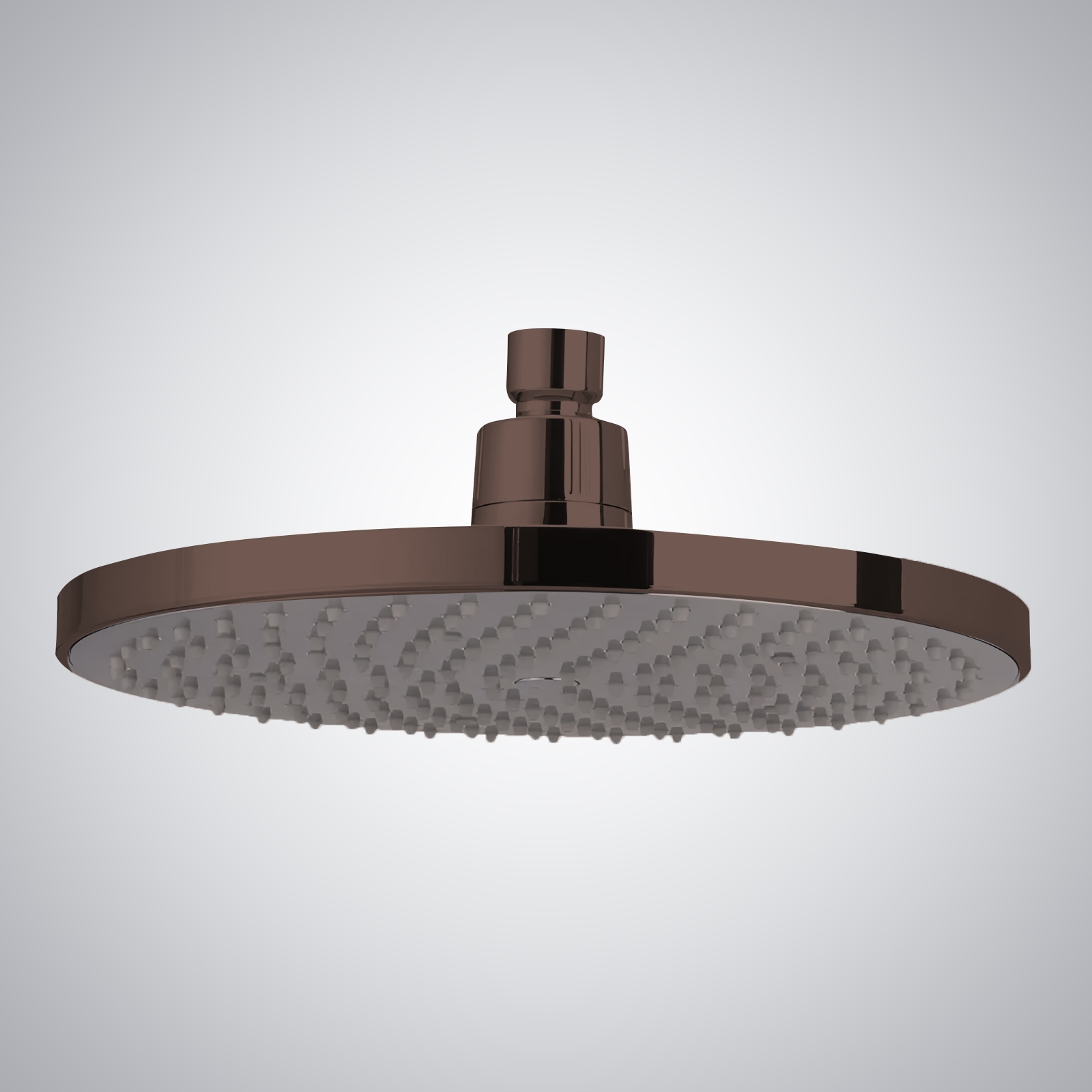

Fontana Dax Round Rain Shower Head with Master Clean Spray Face in Oil Rubbed Bronze Finish
Fontana Dax Round Rain Shower Head with Master Clean Spray Face in Oil Rubbed Bronze Finish

Alternative Views:



Availability: Project Pricing Available Request Quote
Product Code: FS-15074-SHORB
Request Quote

Description Technical Specs Extended Information


Chrome

Brushed Gold

Brushed Nickel

Gold

Rose Gold

Champagne

Matte White

Matte Black

Gun Metal Gray

Fontana Dax Round Rain Shower Head with Master Clean Spray Face in Oil Rubbed Bronze Finish

Immerse yourself in the pinnacle of showering luxury with the Fontana Dax Round Rain Shower Head with Master Clean Spray Face in Oil Rubbed Bronze Finish. Crafted with meticulous attention to detail and engineered for superior performance, this shower head guarantees to elevate your daily shower routine into an unparalleled rejuvenating experience. Boasting a sleek and contemporary design, the Fontana Dax Round Rain Shower Head with Master Clean Spray Face in Oil Rubbed Bronze Finish showcases an exquisite finish that adds an element of sophistication to any bathroom decor. Its rounded shape and master clean spray face ensure a consistent and pleasurable showering experience, devoid of mineral buildup and obstructions. Engineered for durability and lasting performance, this shower head is constructed to endure the rigors of time, making it a dependable fixture in your bathroom for years to come. Whether you're kickstarting your day revitalized or winding down in the evening, the Fontana Dax Round Rain Shower Head with Master Clean Spray Face in Oil Rubbed Bronze Finish guarantees to immerse you in a calming cascade of water droplets, delivering the ultimate relaxation and revitalization.

Fontana Dax Round Rain Shower Head with Master Clean Spray Face in Oil Rubbed Bronze Finish Features:

  • Brand Name: FontanaShowers®
  • Model Number: FS-15074-SHORB
  • Type: Shower Head
  • Style: Contemporary
  • Flow Rate (GPM): 1.75 GPM

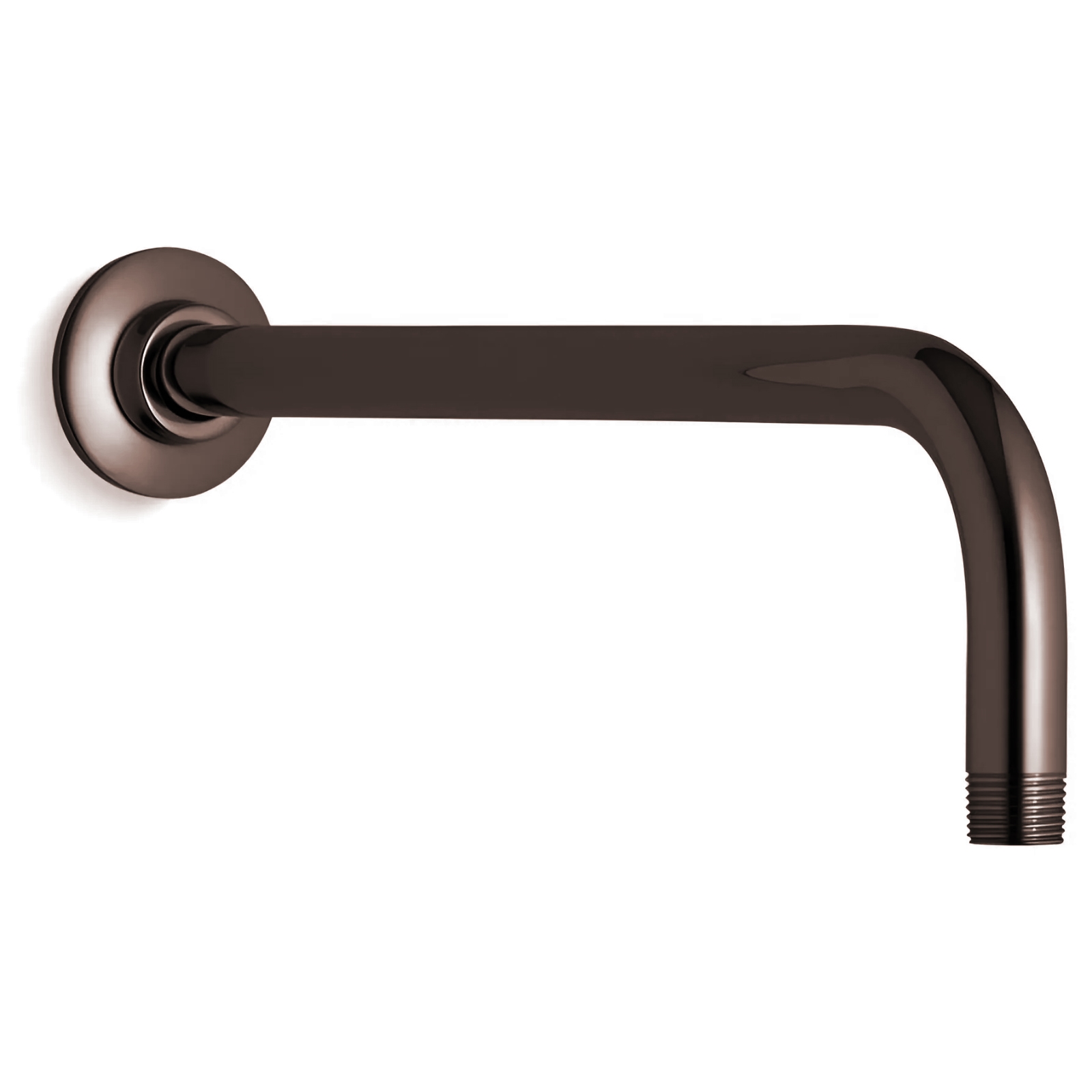

  • Shower Arm Included: No
  • Faucet Type: Shower Faucet
  • Material: Metal
  • Spec: Shower head available in Revit Families and BIM Object
  • Showerhead: Single Function
  • Shower Head Shape: Round
  • Spray Pattern: Rain
  • Spray Settings: 1
  • Water Efficient: Yes
  • Connection Type: NPT
  • Connection Size: .5 inch
  • Height: 2 inch
  • Width: 9.875 in
  • Finish: Oil Rubbed Bronze
  • Size: See options available in many Sizes

Features


Fontana Dax Oil Rubbed Bronze Round Rain Shower Head FAQ

Dynamic-Pressure Testing, Swivel Joint Loading & MasterClean Nozzle Service

This Oil Rubbed Bronze round shower head combines a 9.875-inch metal spray face, single-function 1.75 GPM rainfall delivery, MasterClean easy-service nozzles, an adjustable swivel joint, and a standard 1/2-inch NPT connection for wall- or ceiling-arm installations.

How should the shower branch be flushed before the Oil Rubbed Bronze head is installed?
Leave the 1/2-inch NPT shower arm open and run the supply until solder particles, pipe scale, thread-sealant residue, and other construction debris are fully discharged. Debris remaining in the branch can restrict the internal flow passage and create uneven rainfall across the spray face.
How should the threaded connection be tightened without loading the swivel assembly?
Apply approved thread sealant sparingly and tighten through the inlet connection rather than rotating the finished shower-head body. Complete the watertight NPT joint first, then reposition the spray face through the swivel so installation torque is not transferred into the adjustable joint.
How should the specified 1.75 GPM rainfall output be tested under operating conditions?
Stabilize the system at normal dynamic pressure, purge trapped air, and collect the outlet discharge for a measured time interval. Reduced flow may indicate supply-line pressure loss, undersized branch piping, residual installation debris, mineral loading, or restriction within the shower-head flow passage.

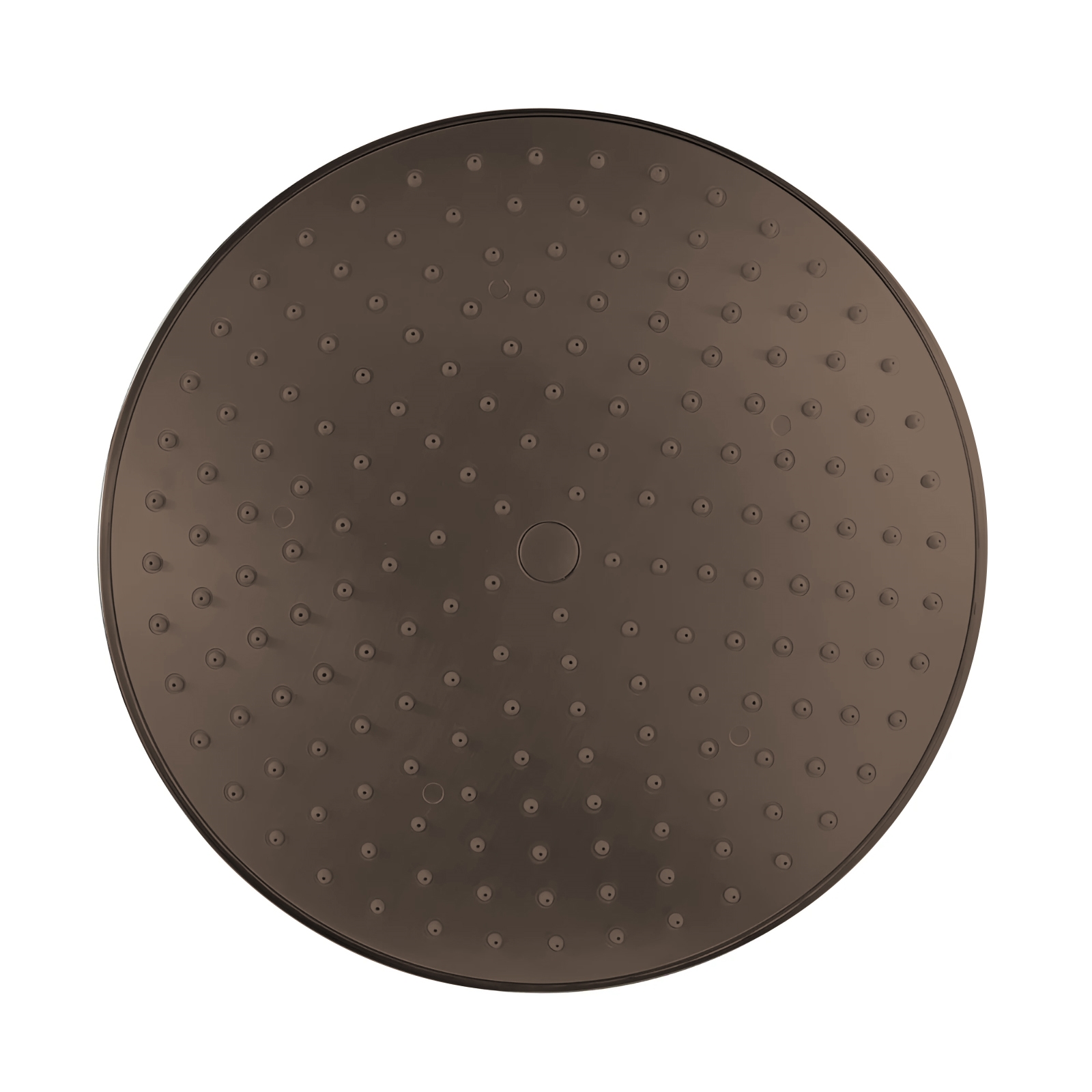

What confirms correct commissioning of the 9.875-inch MasterClean spray field?
Verify uniform rainfall from the center and perimeter nozzles without inactive outlets, concentrated streams, pulsing, or weak outer zones. Restricted MasterClean nozzles should be gently wiped, followed by additional branch flushing and a complete spray-pattern retest.
Fontana Dax Oil Rubbed Bronze Round Rain Shower Head with MasterClean Spray Face
Oil Rubbed Bronze
