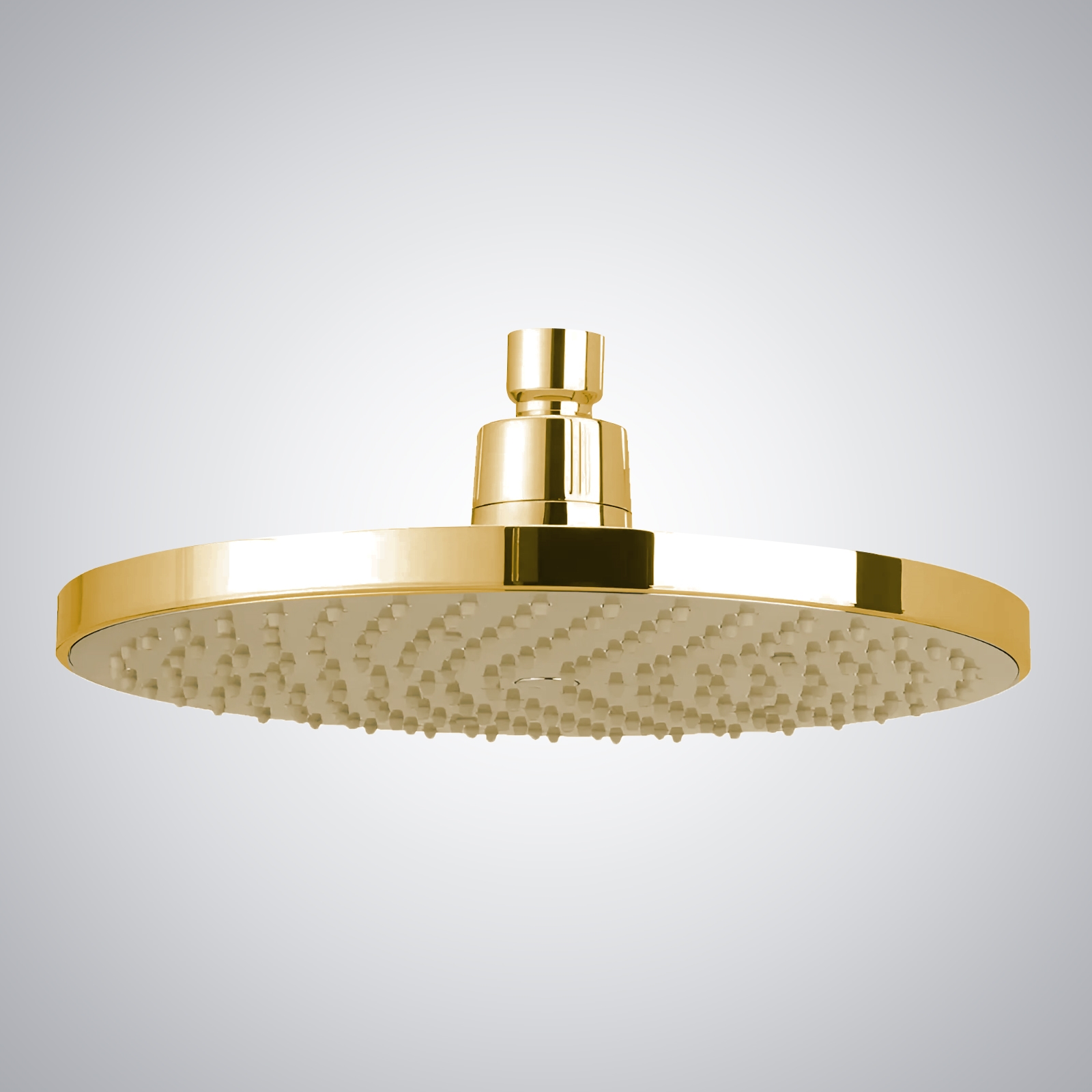

Fontana Dax Round Rain Shower Head with Master Clean Spray Face in Gold Finish

Immerse yourself in the pinnacle of showering luxury with the Fontana Dax Round Rain Shower Head with Master Clean Spray Face in Gold Finish. Crafted with meticulous attention to detail and engineered for superior performance, this shower head promises to elevate your daily shower routine into an unparalleled rejuvenating experience. Showcasing a sleek and contemporary design, the Fontana Dax Round Rain Shower Head with Master Clean Spray Face in Gold Finish boasts an exquisite finish that adds sophistication to any bathroom decor. Its rounded shape and master clean spray face ensure a consistent and pleasurable showering experience, free from mineral buildup and blockages. Designed for durability and long-lasting performance, this shower head is built to withstand the test of time, ensuring it becomes a reliable fixture in your bathroom for years to come. Whether you're starting your day refreshed or winding down in the evening, the Fontana Dax Round Rain Shower Head with Master Clean Spray Face in Gold Finish promises to envelop you in a calming cascade of water droplets, providing the ultimate relaxation and revitalization.

Fontana Dax Round Rain Shower Head with Master Clean Spray Face in Gold Finish Features:

  • Brand Name: FontanaShowers®
  • Model Number: FS-15074-SHPG
  • Type: Shower Head
  • Style: Contemporary
  • Flow Rate (GPM): 1.75 GPM
  • Shower Arm Included: No
  • Faucet Type: Shower Faucet
  • Material: Metal
  • Spec: Shower head available in Revit Families and BIM Object
  • Showerhead: Single Function
  • Shower Head Shape: Round
  • Spray Pattern: Rain
  • Spray Settings: 1
  • Water Efficient: Yes
  • Connection Type: NPT
  • Connection Size: .5 inch
  • Height: 2 inch
  • Width: 9.875 in
  • Finish: Gold
  • Size: See options available in many Sizes

Features


Fontana Dax Gold Round Rain Shower Head FAQ

1.75 GPM Verification, NPT Joint Sealing & MasterClean Spray Calibration

This Gold round shower head combines a 9.875-inch metal spray face, single-function 1.75 GPM rainfall delivery, MasterClean easy-service nozzles, an adjustable swivel joint, and a standard 1/2-inch NPT connection for wall- or ceiling-arm installations.

How should the 1/2-inch NPT branch be prepared before installing the Gold shower head?
Flush the open shower-arm branch until solder particles, pipe scale, construction residue, and excess sealing compound are completely discharged. Inspect the male threads and verify that the shower arm is rigidly supported before attaching the finished spray head.
How should the inlet connection be sealed without transferring torque into the swivel joint?
Apply approved thread sealant sparingly and tighten through the inlet connection rather than rotating the finished spray-face body. Complete the watertight NPT joint first, then use the swivel independently to establish the required rainfall angle.
How should the specified 1.75 GPM output be validated during commissioning?
Stabilize the system at normal dynamic pressure, purge trapped air, and perform a timed volumetric collection test at the outlet. Low delivery may indicate branch pressure loss, undersized piping, residual installation debris, mineral buildup, or restriction within the internal flow passage.
What confirms correct operation across the MasterClean nozzle field?
Confirm uniform rainfall across the complete 9.875-inch spray face without inactive nozzles, weak perimeter zones, pulsing, or directional streams. Restricted nozzles should be gently wiped, followed by additional supply flushing and a complete spray-pattern retest.

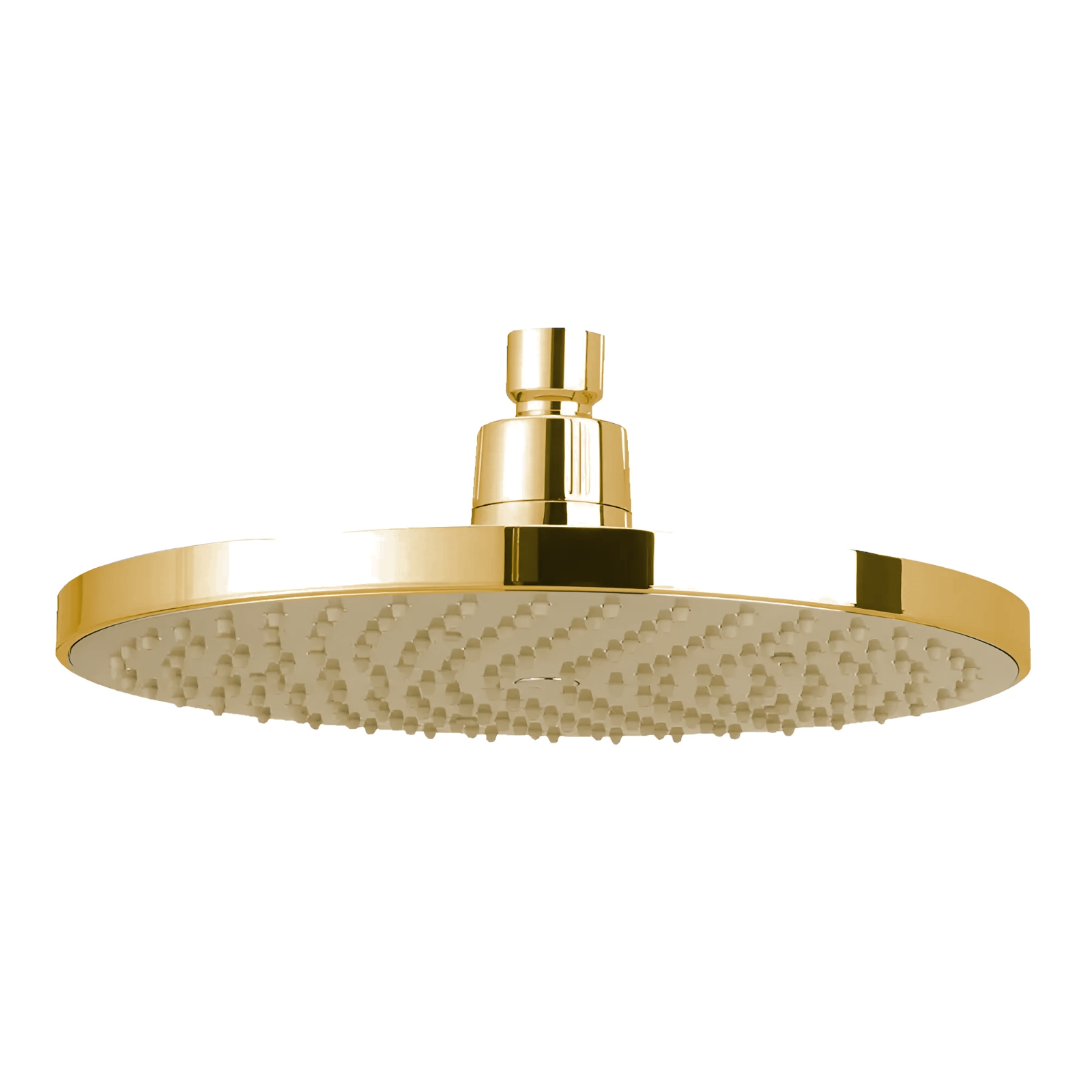

Fontana Dax Gold Round Rain Shower Head with MasterClean Spray Face
