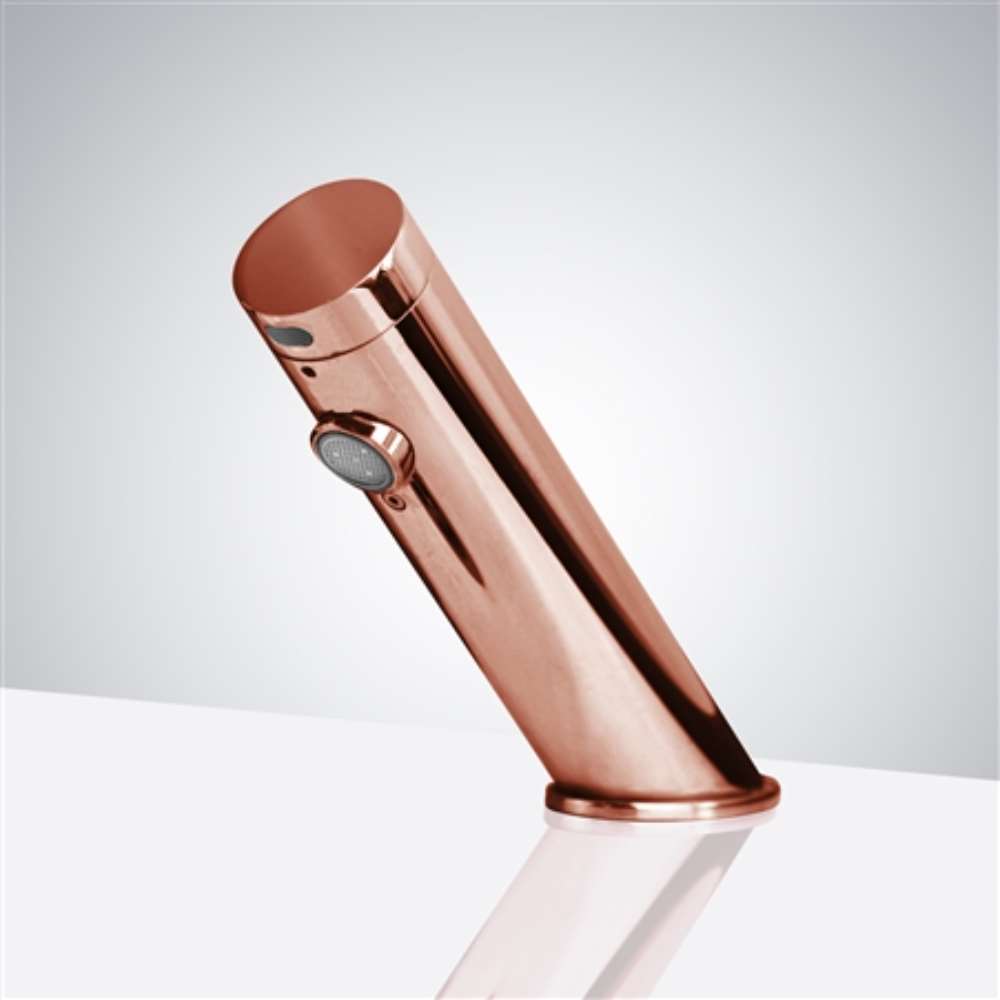

Fontana Dijon Rose Gold Finish Contemporary Automatic Commercial Sensor Faucet

Made from high quality stainless steel and is best fit for commercial applications; the Dijon Automatic Touchless Sensor Faucet bathroom faucet enhances any commercial restroom. The Fontana is equipped with a sensor override and a 60-second time-out feature to prevent floods.

The fontana® sensor faucet line is certified to meet ASME a112.18.1/CSA b125.1. Sensitive sensor with infrared ai smart-chip. Water-resistant solenoid enclosure. Can be installed easily in new or upgraded retrofit commercial restrooms. Sensor faucet for commercial use. The faucet incorporates rugged all-metal construction and reinforced internal supports to withstand continuous daily use, impact, and mechanical stress common in high-traffic facilities.

Fontana Dijon Rose Gold Commercial Automatic Sensor Faucet FAQ

Adjustable IR Sensing, 1.3 GPM Flow; AC/DC Power & 60-Second Safety Timeout

The Fontana Dijon FS-289GSDSF combines adjustable infrared sensing, solid-brass construction, dual AC/DC power, and controlled commercial water delivery.

How should the adjustable infrared sensing field be commissioned?

Complete sensor commissioning after the basin, mirror, lighting, backsplash, and surrounding accessories are permanently installed. Test repeated hand-entry cycles from normal washing positions and adjust the sensing distance where required. The optional remote can be used to reset, adjust, disable, or reactivate the sensing function without disturbing the faucet body.

How should the 1.3 GPM flow be coordinated with the 4-inch spout reach?

Verify the discharge strike point under actual operating pressure before project turnover. The approximately 4-inch reach and 3.5-inch spout height should position the stream inside the primary washing zone. The standard flow is approximately 1.3 GPM, while aerator configurations from approximately 0.5 to 1.5 GPM are available where project water-use requirements differ.

How should the 10–125 PSI pressure envelope and mixing option be commissioned?

Flush the supply piping before final connection and test the faucet under the building's normal dynamic pressure. The specified operating range is approximately 10–125 PSI. Where mixed water is required, commission the optional solid-brass temperature mixing or thermostatic mixing valve and confirm stable outlet temperature through repeated automatic cycles.

How should the AC/DC system, sensor override, and 60-second timeout be tested?

Verify the AC110V supply and DC6V backup circuit independently and retain service access to the control box, wiring, and water-resistant solenoid enclosure. Test the sensor override function, then maintain continuous detection long enough to confirm the 60-second automatic timeout intended to limit unintended extended water discharge.

Rose Gold

• Brand Name: FontanaShowers®
• Model Number: FS-289GSDSF
• Type: Touchless Bathroom Faucet
• Water Pressure: 0.5 - 7.0 KGS/cm, 10 - 125 psi
• Finish: Rose Gol
• Construction: Solid Brass
• Control Box : Included- Hardwired & Battery Operated
• Supply Hoses: Included
• Other Features: Vandal resistant
• Remote Control: Optional- Reset or Adjust the Sensing Distance or turn off/on
• Flow Rate: Built in Aerator Available from .5 GPM - 1.5 GPM
• Flow Rate Special: Customizable can be provided for any Water Flow Requirement
• Sensor Range: Adjustable
• Mounting Hardware: Included
• Power Supply: AC110V And DC6V
• Batteries Included: No
• Mixing Valve: Water Temperature Mixing Valve Available
• Mixing Valve Material: Solid Brass Thermostatic Mixing Valve Available
• Mixing Valve: Water Temperature Mixing Valve Available
• Mixing Valve Material: Solid Brass Thermostatic Mixing Valve Available
• Mixing Valve Material: Solid Brass Thermostatic Mixing Valve Available
• Usage: Commercial
• Spout Height: 3-1/2"
• Overall Height: 7"
• Spout Reach: 4"
• Flow Rate: 1.3 GPM
• Touch-free operation ideal for commercial use applications in public restrooms, restaurants, office buildings, public facilities, and hospitals. Fits all standard US plumbing.
