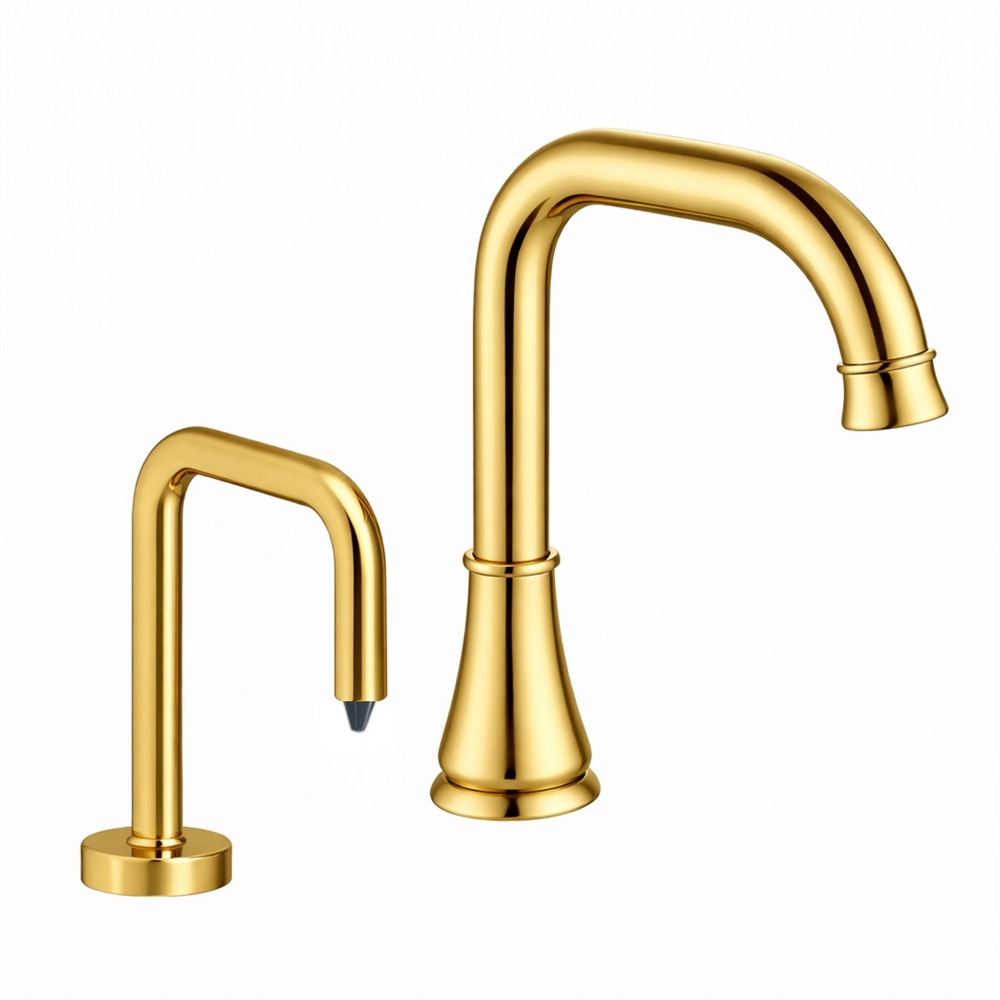

Fontana EdgeRivo Gold Touchless Bathroom Faucet and Soap Dispenser Set

The Fontana EdgeRivo Gold Touchless Faucet & Soap Dispenser Package is specifically designed for commercial toilet areas, as the combination offers top-notch automatic sanitation, improved water control, and modern beauty. This installation is in the gold color-plated finish; therefore, it gives a deluxe visual impression and at the same time functions as a better sanitation measure that cuts down on human contact in crowded places. The body made of solid brass endows the product with great strength, life span, and resistance to corrosion. A deck-mounted infrared sensor gestured the automatic switching on of water flow, which is aided by a digital plug-and-play microprocessor for reliable and quick performance. With a range of 2" to 6" for detection and the quick 0.6-second response time, the faucet is operational immediately as soon as hands come over it. A 2-second delay in turn-off time has been applied so as to avoid splashing, while the 60-second maximum running time is set for the purpose of supporting water conservation. It is a contactless faucet system with soap and water sync. The unit built for rigorous commercial outlines operates with a vented pressure system of 1 to 100 PSI, and a dependable 6-volt magnetic solenoid valve is used for determining the flow rate. The battery is said to last as long as 200,000 operations, which helps in controlling the outages and maintenance intervals. A built-in 50-mesh particle filter provides additional protection by restricting debris accumulation. This is fitted with a 2.2 GPM aerator; in addition to that, there are optional 1.0 GPM and 0.5 GPM flow settings. The installation is made easy with a 1/2" NPT male supply inlet and a 2-hole deck-mounted configuration. The built-in automatic foam soap dispenser integrates hygiene hand washing, and ADA compliance assures accessibility among commercial uses.

• Brand Name: FontanaShowers®
• Model Number: FS10703GL
• Finish: Gold
• Type: Touchless Faucet With Soap Dispenser
• Style: Contemporary
• Installation Type: Deck Mounted
• Material: Brass
• Number of Holes: Two Holes
• Battery life expectancy: 200,000 cycles
• Solenoid valve: 6 Volt magnet latching
• Working Water Pressure: 1 PSI -100 PSI
• Supply Inlet Size: 1/2" NPT Male
• Sensor type and Location: Active Infrared, Deck mount
• Sensor Microprocessor: Digital, Plug and Play
• Sensing Range: 2" to 6"
• Response Time: 0.6 Second
• Shut-Off Delay Time: 2 seconds
• Maximum Running Time: 60 Seconds
• Particle filter size: 50 Mesh
• Aerator: 2.2 GPM. Optional 1.0 GPM, 0.5 GPM
• Automatic Dispenser: Yes
• Dispenser Feature: Foam Soap Dispenser
• Dispenser Application: Hygiene Hand Washing
• Compliant: ADA
• Uses: Commercial
