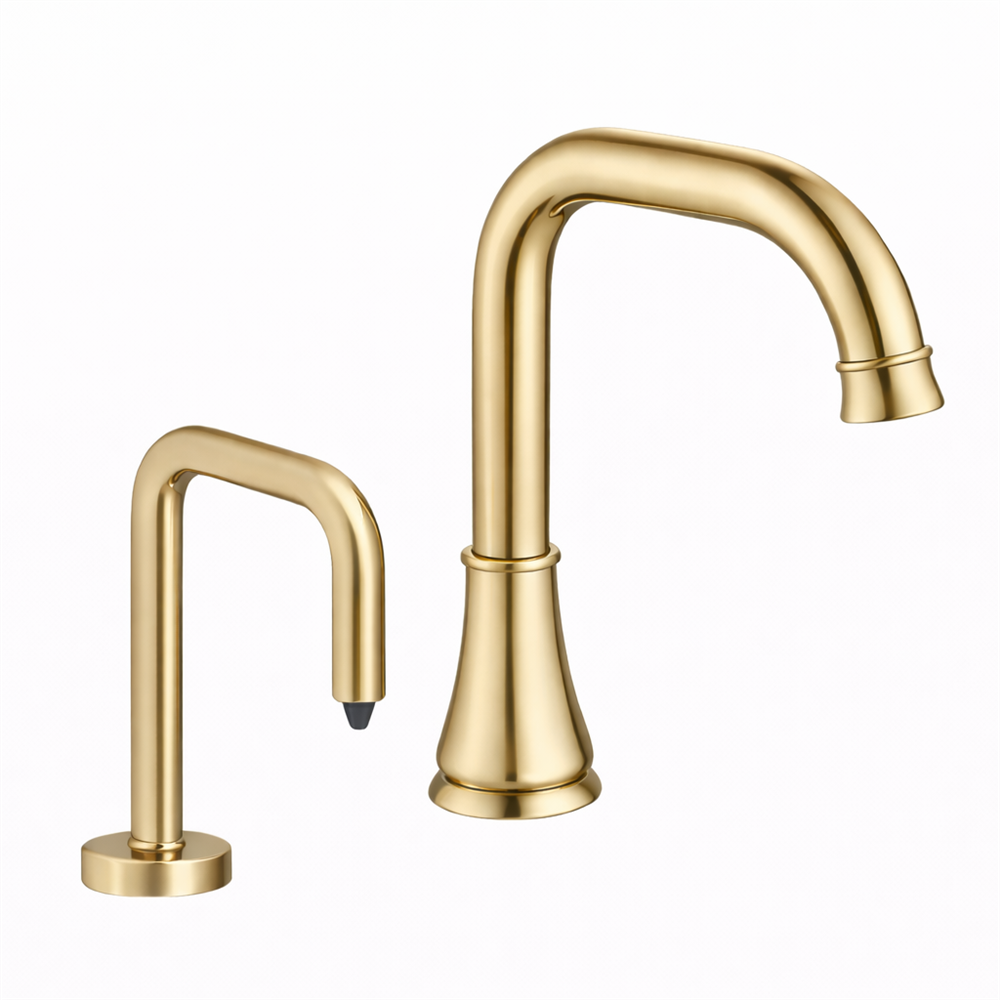

Fontana Nexara Champagne Contact-Free Faucet and Soap Dispenser Set

The Fontana Nexara Champagne Contact-Free Faucet and Soap Dispenser Set is a great package for premium hands-free hygiene, effective water control, and modern styling, all for commercial restrooms. With an elegant champagne finish, this deck-mounted fixture gives a touch of luxury and, at the same time, minimizes the number of surfaces that would be touched, thereby enhancing hygiene in the busy areas. It is a smart sensor faucet with coordinated soap dispensing. The sensing range of the sensor is from 2" to 6", and it has a very fast response time of 0.6 seconds, meaning that water flow will start as soon as hands are detected. A 2-second delay for turning off helps to reduce splashing, and a running time of up to 60 seconds helps in conserving water. The system is built to be reliable for commercial use, and it can work under a wide range of water pressure from 1 PSI to 100 PSI. It has a 6-volt magnet latching solenoid valve that is very reliable for controlling the water flow. The battery life is up to 200,000 cycles, which will mean that you will not have to do maintenance on it as often. There is a 50-mesh particle filter that has been built into the system to help keep it free of debris, which can otherwise cause performance to be hindered. The features include an aerator that dispenses water at a rate of 2.2 gallons per minute, while at the same time, there are options for flow rates of 1.0 gallons per minute and 0.5 gallons per minute, which can be selected to make the faucet even more efficient.

• Brand Name: FontanaShowers®
• Model Number: FS10703CP
• Finish: Champagne
• Type: Touchless Faucet With Soap Dispenser
• Style: Contemporary
• Installation Type: Deck Mounted
• Material: Brass
• Number of Holes: Two Holes
• Battery life expectancy: 200,000 cycles
• Solenoid valve: 6 Volt magnet latching
• Working Water Pressure: 1 PSI -100 PSI
• Supply Inlet Size: 1/2" NPT Male
• Sensor type and Location: Active Infrared, Deck mount
• Sensor Microprocessor: Digital, Plug and Play
• Sensing Range: 2" to 6"
• Response Time: 0.6 Second
• Shut-Off Delay Time: 2 seconds
• Maximum Running Time: 60 Seconds
• Particle filter size: 50 Mesh
• Aerator: 2.2 GPM. Optional 1.0 GPM, 0.5 GPM
• Automatic Dispenser: Yes
• Dispenser Feature: Foam Soap Dispenser
• Dispenser Application: Hygiene Hand Washing
• Compliant: ADA
• Uses: Commercial
