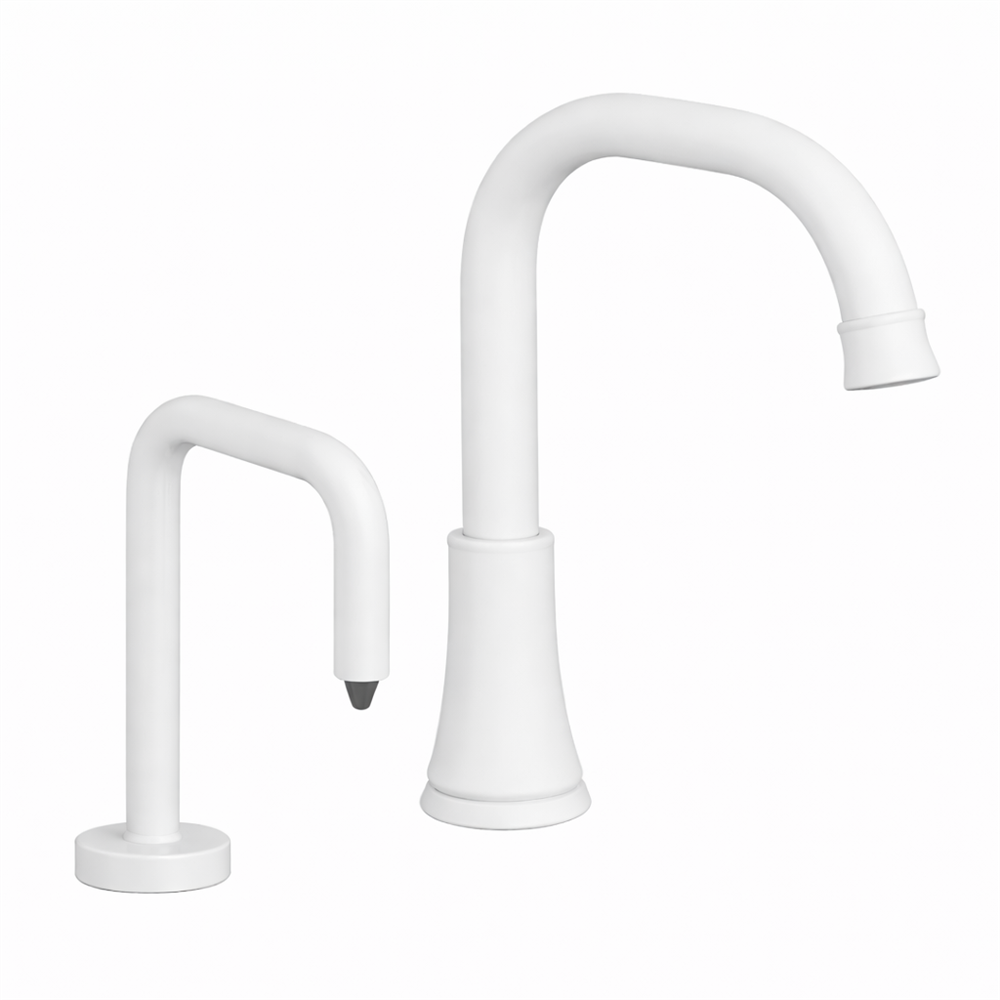

Fontana Verano Matte White Motion-Activated Faucet with Matching Soap Dispenser

The Fontana Verano Matte White Motion-Activated Faucet with Matching Soap Dispenser is made for commercial bathrooms to provide a combination of modern design, clean hands-free, and controlled water use. This fixture, mounted on the deck, comes in pure white and brings about a simple, minimalist style while at the same time reducing physical contact for better sanitation in areas of high traffic flow. It is an automatic hygiene faucet and soap module. The sensing range is between 2" and 6" with a fast 0.6-second response time; hence, when hands are detected, the water flow starts instantly. To be more precise, the system, which is built primarily for businesses,s works very well under a huge water pressure range from 1 PSI to 100 PSI and comes along with a 6-volt solenoid valve, which is a magnetic latching type, thus the water control will be consistent. The batteries that come with the operation last for a maximum of 200,000 cycles, which translates into a decrease in the maintenance requirements in the long run. Besides that, there is a 50-mesh built-in particle filter, which also assists in preventing the buildup of debris, and it thus prolongs the smooth operation of the system. A 2.2 GPM (gallons per minute) aerator is fitted into the faucet, together with the flow options of 1.0 GPM or 0.5 GPM for increasing efficiency. The 1/2" NPT male supply inlet and the two-hole deck-mounted pattern are the means through which installation is supported. The built-in automatic foam soap dispenser encourages washing of hands, but the ADA compliance makes sure that the dispenser is installed in a way that it is accessible to everyone, thus this is a safe product for use in commercial environments.

• Brand Name: FontanaShowers®
• Model Number: FS10703MW
• Finish: Matte White
• Type: Touchless Faucet With Soap Dispenser
• Style: Contemporary
• Installation Type: Deck Mounted
• Material: Brass
• Number of Holes: Two Holes
• Battery life expectancy: 200,000 cycles
• Solenoid valve: 6 Volt magnet latching
• Working Water Pressure: 1 PSI -100 PSI
• Supply Inlet Size: 1/2" NPT Male
• Sensor type and Location: Active Infrared, Deck mount
• Sensor Microprocessor: Digital, Plug and Play
• Sensing Range: 2" to 6"
• Response Time: 0.6 Second
• Shut-Off Delay Time: 2 seconds
• Maximum Running Time: 60 Seconds
• Particle filter size: 50 Mesh
• Aerator: 2.2 GPM. Optional 1.0 GPM, 0.5 GPM
• Automatic Dispenser: Yes
• Dispenser Feature: Foam Soap Dispenser
• Dispenser Application: Hygiene Hand Washing
• Compliant: ADA
• Uses: Commercial
