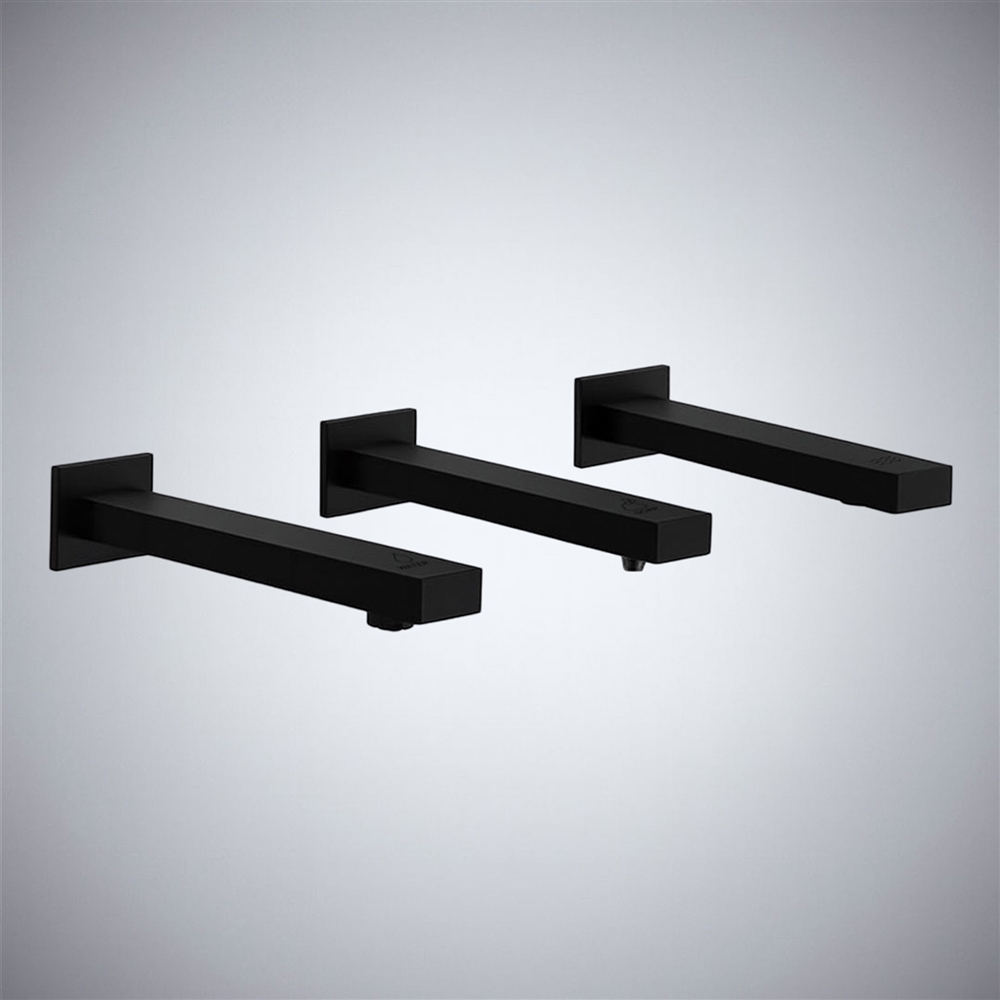

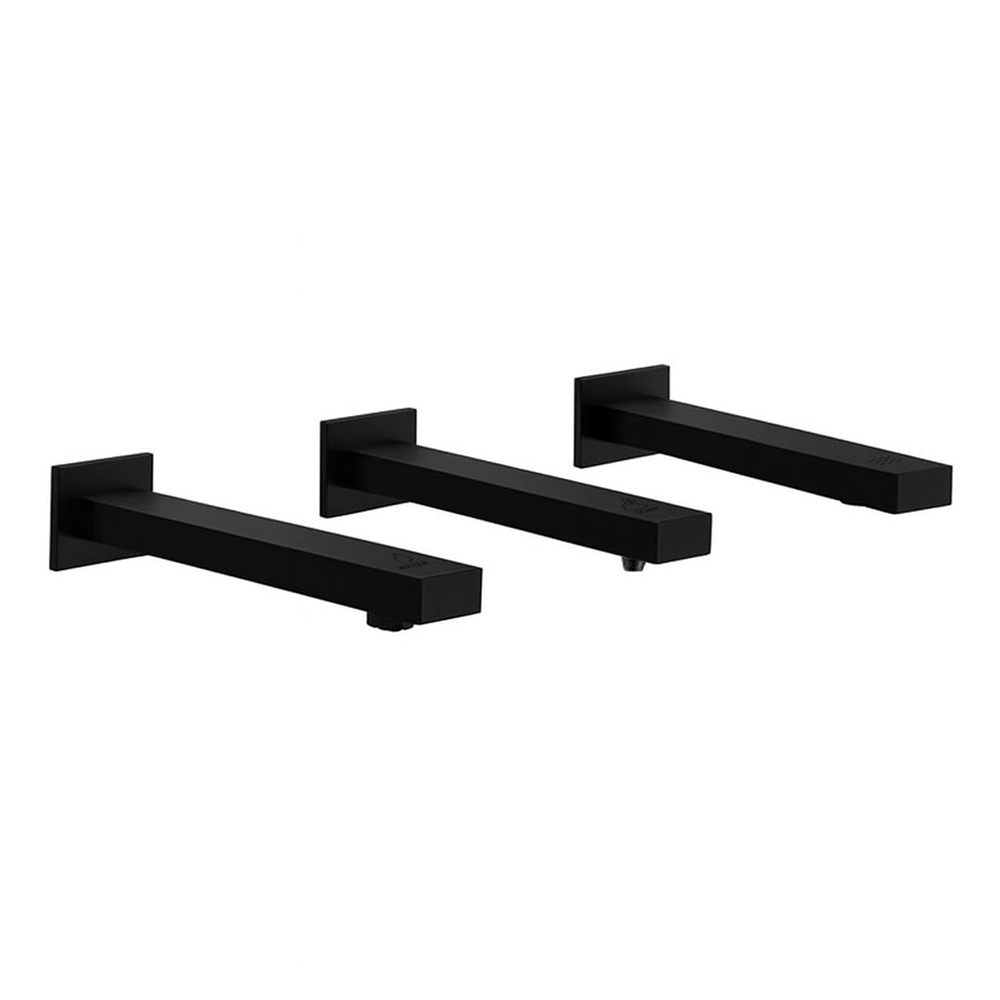

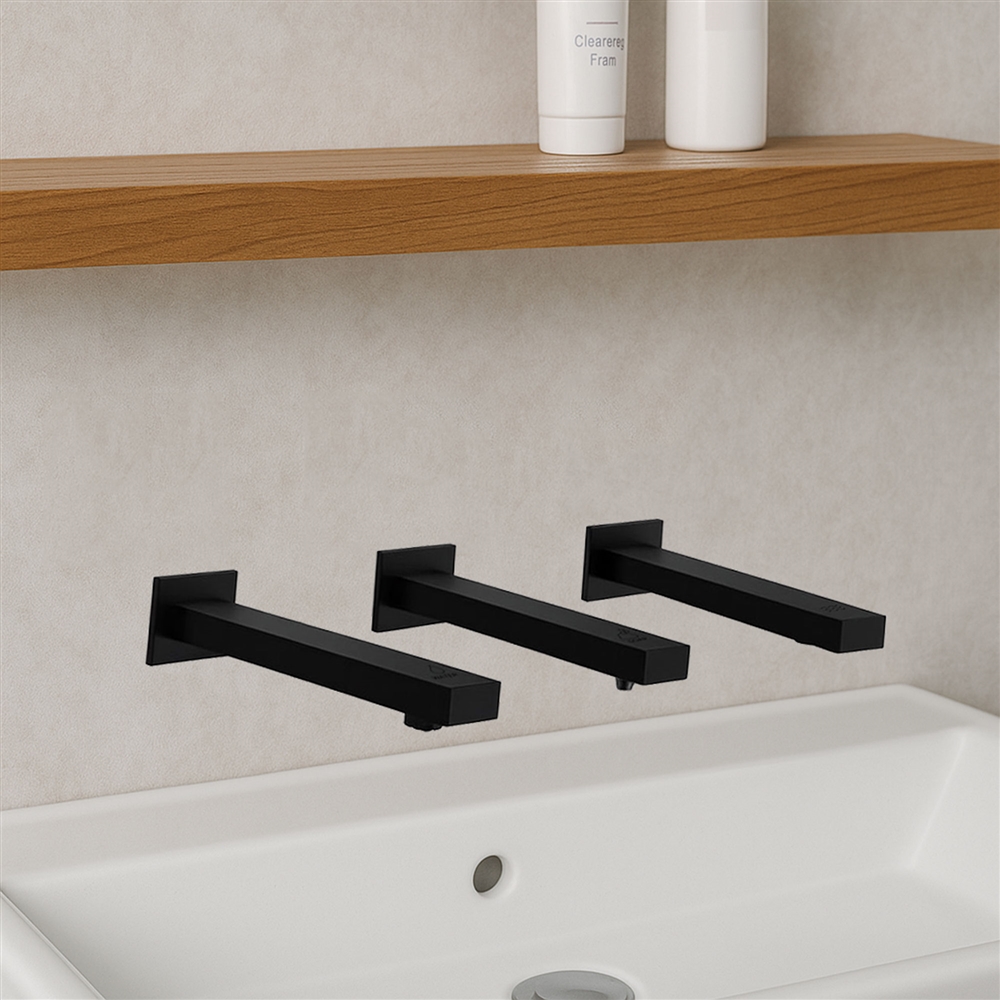

FontanaAquaFusion Matte Black 3 in 1 Automatic Faucet – Soap Dispenser, Water Tap & Dryer
The FontanaAquaFusion™ Matte Black Touchless 3-in-1 System is a wall-mounted fixture that combines an automatic faucet, soap dispenser, and high-speed dryer (or "air-knife"). It offers every user convenience and versatility in modern commercial restrooms. With a matte black polished finish, the solid brass construction provides the benefit of this material's durability, along with a beautiful modern style that will offer flexibility with many spaces. The faucet uses a ceramic valve, which creates a dependable and leak-free operation under 0.05–0.6MPa at water temperatures between 0.1–50°C. The dispenser has a 1L capacity - less refilling in busy facilities - and the high-speed dryer uses a brushless motor, achieving 38,000 RPM for a maximum airflow speed of 90m/s - it is effective enough to dry hands in 10–15 seconds at a reasonable sound level of 75dB. The infrared sensors automate a touchless operation for all three functions, and the built-in HEPA filter improves cleanliness by providing cleaner air. The unit is efficient and supports both AC and DC power, can operate on new or renovated projects, and meets ADA compliance standards. The FontanaAquaFusion™ Matte Black unit is built with durability, style, and proper technology by having all functions in one complete piece of equipment.
Bold 3-in-1 Sensor Faucet Combo
- Brand Name: FontanaShowers®
- Model Number: FS9901MB
- Finish: Matte Black
- Feature: Touchless Faucet, Soap Dispenser & Dryer (3-in-1)
- Main Material: Solid Brass-Metal
- Valve Material: Ceramic
- Installation Type: Wall Mounted
- Surface Treatment: Polished
- Motor: Brushless (for dryer)
- Voltage: 220–240V / DC6V (AC & DC Compatible)
- Frequency: 50Hz
- Total Power: 1300W
- Standby Power: 1W
- Water Pressure (Faucet): 0.05–0.6 MPA
- Operating Temperature (Water): 0.1–50°C
- Soap Volume Capacity: 1L
- Sensing Distance: 16–32 cm
- Dryer RPM: 38,000
- Hand Dryer Air Speed: 90 m/s
- Dryer Temperature: 30–40°C
- Noise Level: 75 dB
- Filter: HEPA
- Hand Dryer Dry Time: 10–15s
- Tap Height: Water Tap: 20 mm | Dispenser: 20 mm | Dryer: 20 mm
- Tap Width: Water Tap: 40 mm | Dispenser: 40 mm | Dryer: 46 mm
- Tap Depth: Water Tap: 220 mm | Dispenser: 220 mm | Dryer: 240 mm
- Motor Case Height: Water Tap: 145 mm | Dispenser: 307 mm | Dryer: 290 mm
- Motor Case Width: Water Tap: 116.5 mm | Dispenser: 90 mm | Dryer: 210 mm
- Motor Case Depth: Water Tap: 85.5 mm | Dispenser: 106 mm | Dryer: 190 mm
- ADA Compliant
|
|
|
 |
|
 |
|
