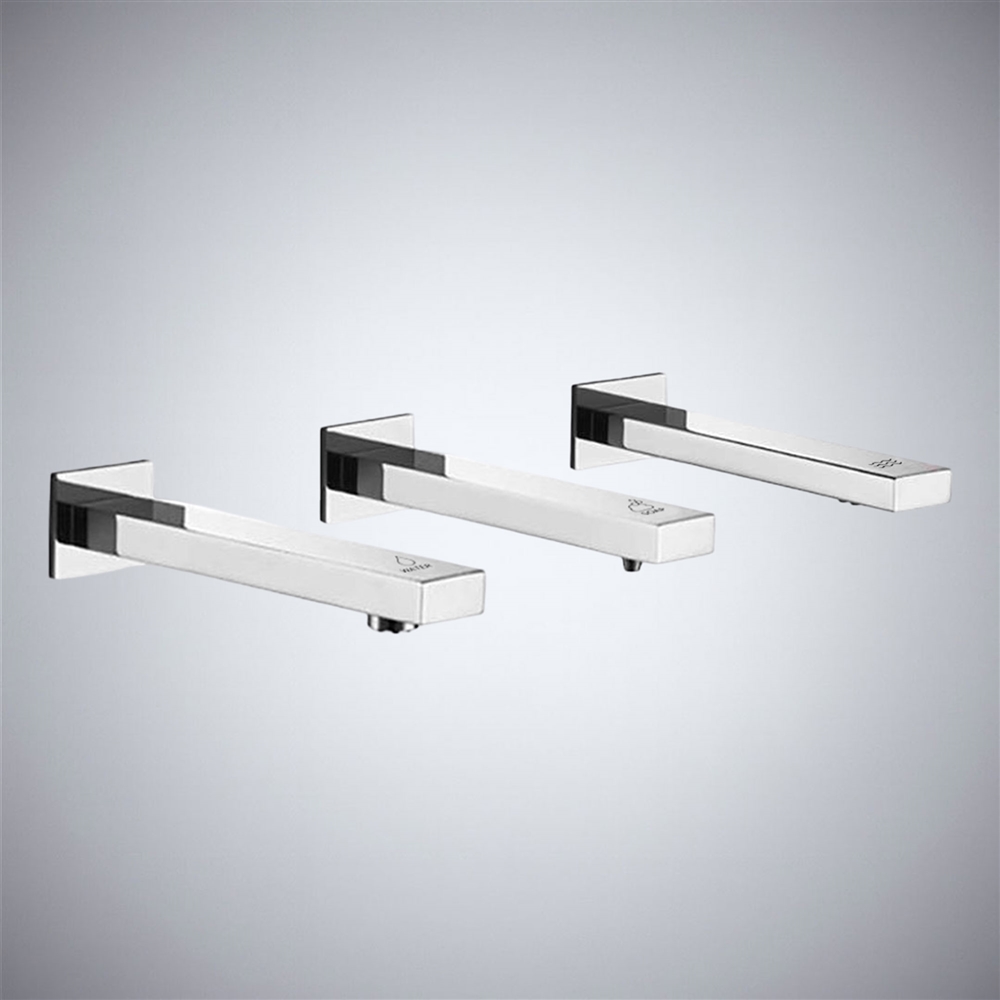

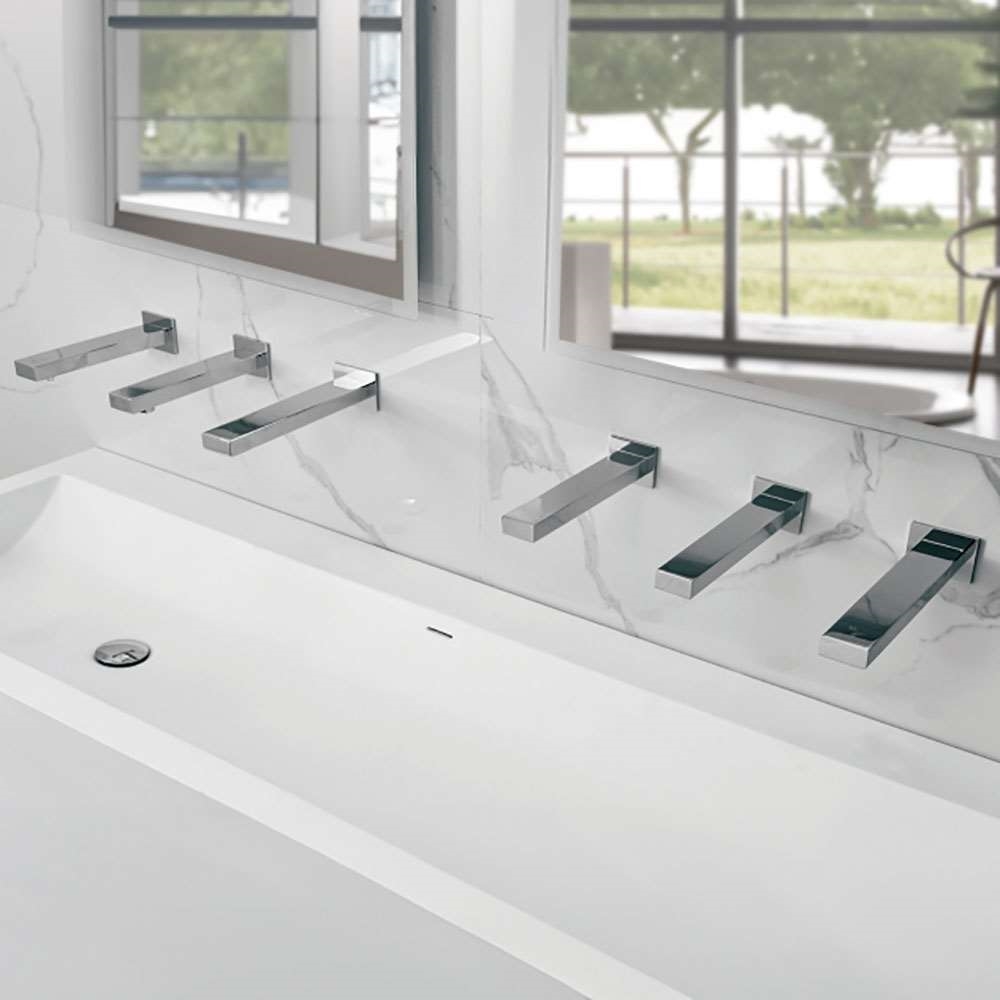

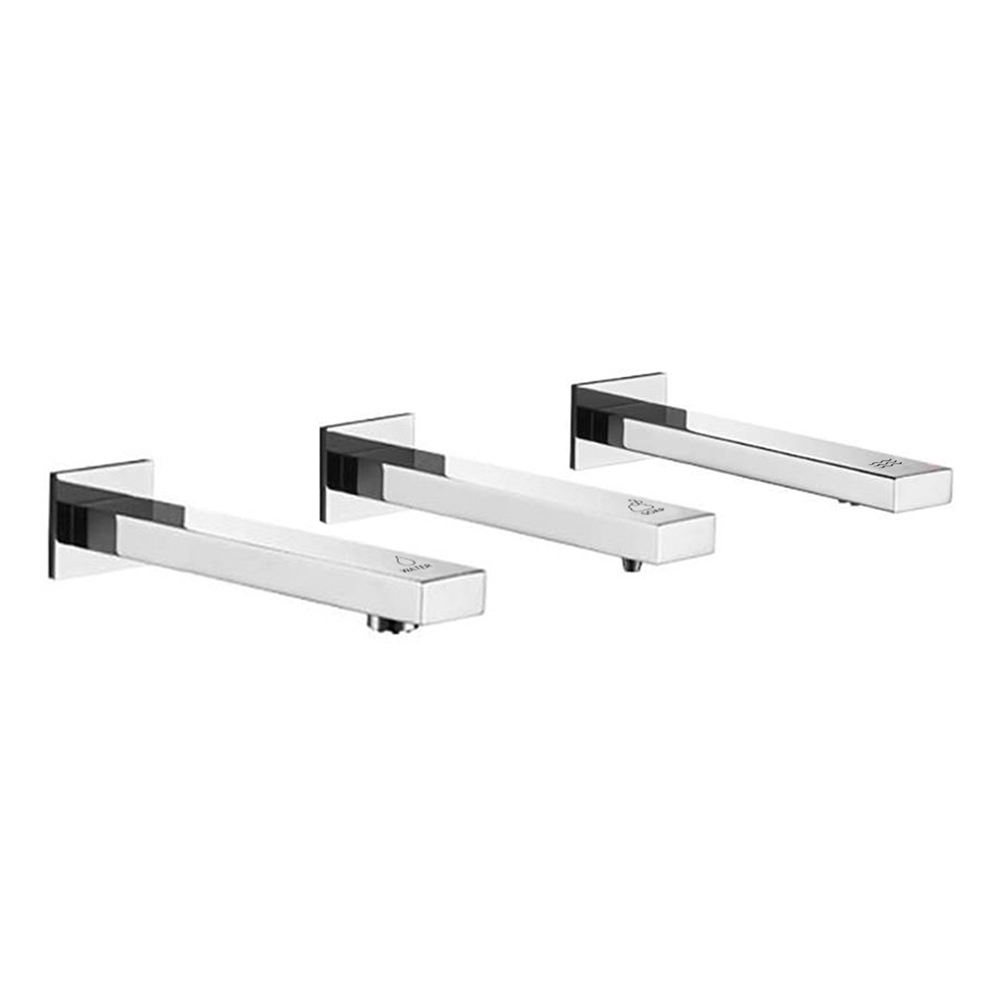

FontanaTriFlow Chrome 3 in 1 Touchless Combo – Automatic Soap Dispenser, Water Tap & Hand Dryer
The FontanaTriFlow™ Chrome Trio is a state-of-the-art 3-in-1 wall-mounted fixture that combines a touchless faucet, automatic soap dispenser, and hot air hand dryer into one smooth, modern package that is sure to fulfil the requirements of the new generation commercial bathroom. Built with solid brass and polished chrome, it will provide a solid and clean appearance that is sure to improve the appearance of modern interiors. The hot water faucet features a ceramic valve for superior reliability and is guaranteed to be lead-free and leak-free under standard pressures of 0.05-0.6MPa and standard water temperatures (0-50°C).
The integrated soap dispenser has a 1L capacity to allow for a limited number of refill intervals needed in heavily trafficked environments. The brushless powered hand dryer functions at 220-240V and 1300W and can greatly improve the effectiveness of cleanliness and drying time by using air at 38,000 RPM and speeds of 90m/s to dry hands in 10-15 seconds. The built-in air dryer operates at a comfortable sound level of 75 decibels, which is very pleasant while keeping hygiene top of mind. Each function is driven by infrared sensors and features a HEPA filter that cleans the air blown onto hands and maintains cleanliness and hygiene. Perfect to meet ADA requirements. In addition to the brilliance and power, it is an effective way to manage space, especially in new builds or renovations where there may not be room for three items, as they are better together as one item/form. Finally, the FontanaTriFlow™ Chrome Trio will deliver an effective experience to management, luxury for guests, and convenience for maintenance in a sophisticated package.
Chrome 3-in-1 Sensor Combo
- Brand Name: FontanaShowers®
- Model Number: FS9901CH
- Finish: Chrome
- Feature: Touchless Faucet, Soap Dispenser & Dryer (3-in-1)
- Main Material: Solid Brass-Metal
- Valve Material: Ceramic
- Installation Type: Wall Mounted
- Surface Treatment: Polished
- Motor: Brushless (for dryer)
- Voltage: 220–240V / DC6V (AC & DC Compatible)
- Frequency: 50Hz
- Total Power: 1300W
- Standby Power: 1W
- Water Pressure (Faucet): 0.05–0.6 MPA
- Operating Temperature (Water): 0.1–50°C
- Soap Volume Capacity: 1L
- Sensing Distance: 16–32 cm
- Dryer RPM: 38,000
- Hand Dryer Air Speed: 90 m/s
- Dryer Temperature: 30–40°C
- Noise Level: 75 dB
- Filter: HEPA
- Hand Dryer Dry Time: 10–15s
- Tap Height: Water Tap: 20 mm | Dispenser: 20 mm | Dryer: 20 mm
- Tap Width: Water Tap: 40 mm | Dispenser: 40 mm | Dryer: 46 mm
- Tap Depth: Water Tap: 220 mm | Dispenser: 220 mm | Dryer: 240 mm
- Motor Case Height: Water Tap: 145 mm | Dispenser: 307 mm | Dryer: 290 mm
- Motor Case Width: Water Tap: 116.5 mm | Dispenser: 90 mm | Dryer: 210 mm
- Motor Case Depth: Water Tap: 85.5 mm | Dispenser: 106 mm | Dryer: 190 mm
- ADA Compliant
|
|
|
 |
|
 |
|
