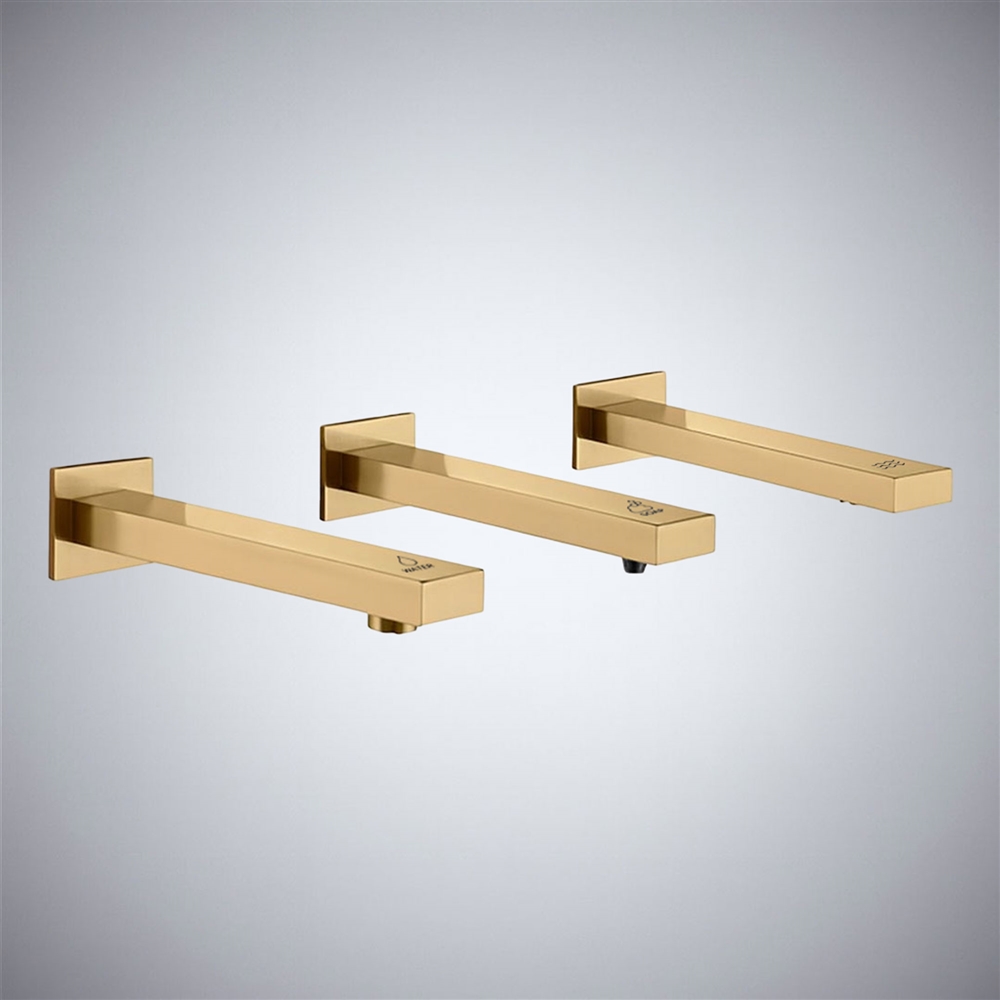

FontanaSwiftFusion™ Tap, Dispenser & Hand Dryer 3-in-1 Touchless Set in Champagne
The FontanaSwiftFusion™ Champagne 3-in-1 System successfully merges an automatic faucet, soap dispenser, and high speed dryer in a singular wall-mounted design for efficiency, luxury, and hygiene in modern commercial facilities. Made from solid brass and finished in a polished champagne colour, it is durable and adds a unique feature to contemporary decor. The faucet uses a ceramic valve, thus providing a reliable, leak free operation with a pressure range of 0.05–0.6MPa inlet and a water temperature range of 0.1–50°C. The automatic dispenser has a capacity of 1L thus it reduces the frequency of refill in high traffic environments. The high speed dryer uses a brushless motor powered by 220–240v 1300W and has a speed of 38,000 RPM with an airflow speed of 90m/s, and it dries hands in 10–15 seconds in a comfortable 75db. Infrared sensors below the countertop easily enable complete hands free operation for all functions of the 3-in-1 system; the HEPA filter also enhances air quality. Capable of AL, DC or battery for power, it is easier to adapt into different installation methods and systems. This System meets ADA Regulations, thus it is accessible to all as this is an elegant but practical and sanitary system suitable for a high-end commercial washroom.
3-in-1 Touchless Handwashing Station
- Brand Name: FontanaShowers®
- Model Number: FS9901CP
- Finish: Champagne
- Feature: Touchless Faucet, Soap Dispenser & Dryer (3 in 1)
- Main Material: Solid Brass-Metal
- Valve Material: Ceramic
- Installation Type: Wall Mounted
- Surface Treatment: Polished
- Motor: Brushless (for dryer)
- Voltage: 220–240V / DC6V (AC & DC Compatible)
- Frequency: 50Hz
- Total Power: 1300W
- Standby Power: 1W
- Water Pressure (Faucet): 0.05–0.6 MPA
- Operating Temperature (Water): 0.1–50°C
- Soap Volume Capacity: 1L
- Sensing Distance: 16–32 cm
- Dryer RPM: 38,000
- Hand Dryer Air Speed: 90 m/s
- Dryer Temperature: 30–40°C
- Noise Level: 75 dB
- Filter: HEPA
- Hand Dryer Dry Time: 10–15s
- Tap Height: Water Tap: 20 mm | Dispenser: 20 mm | Dryer: 20 mm
- Tap Width: Water Tap: 40 mm | Dispenser: 40 mm | Dryer: 46 mm
- Tap Depth: Water Tap: 220 mm | Dispenser: 220 mm | Dryer: 240 mm
- Motor Case Height: Water Tap: 145 mm | Dispenser: 307 mm | Dryer: 290 mm
- Motor Case Width: Water Tap: 116.5 mm | Dispenser: 90 mm | Dryer: 210 mm
- Motor Case Depth: Water Tap: 85.5 mm | Dispenser: 106 mm | Dryer: 190 mm
- ADA Compliant
|
|
|
 |
|
 |
|
