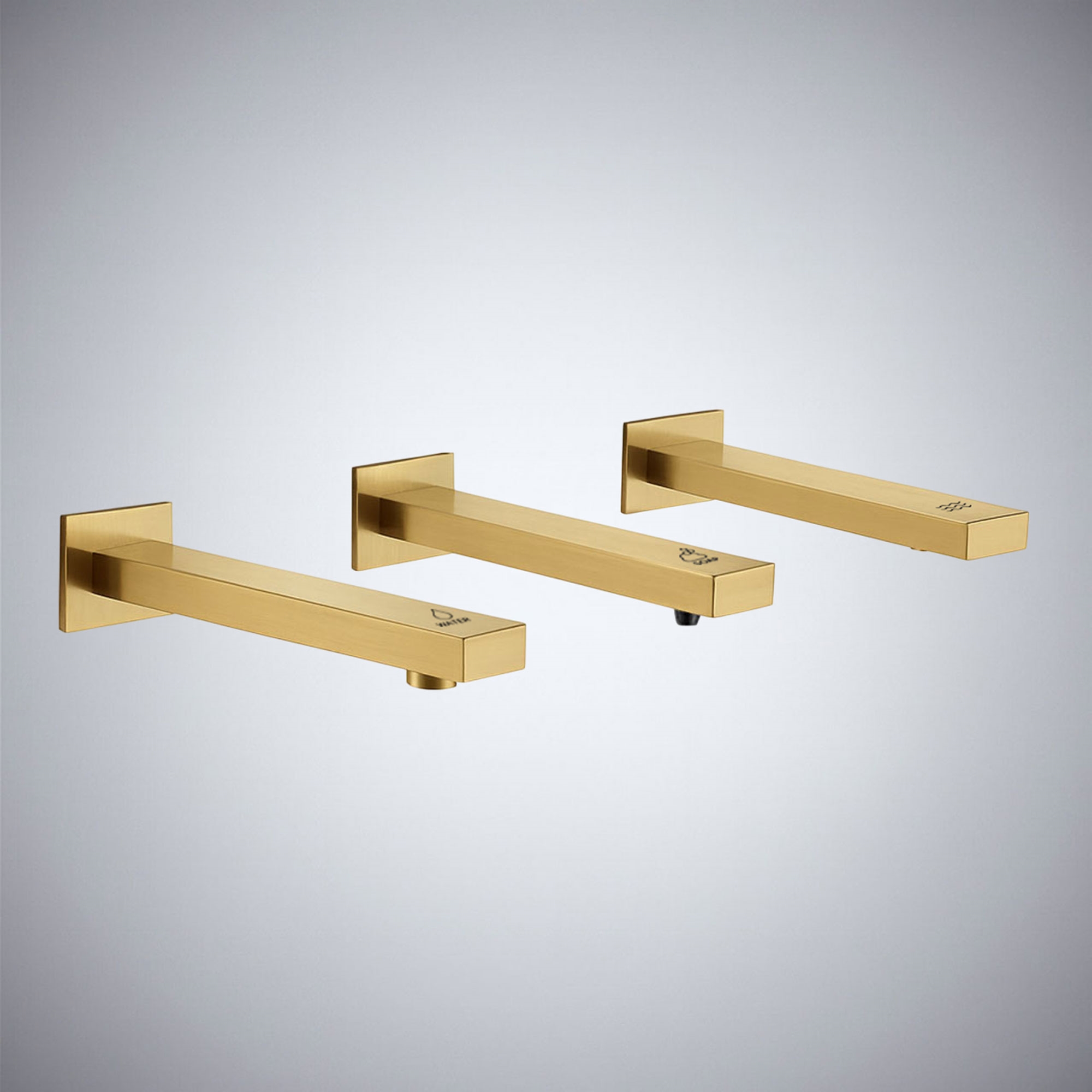

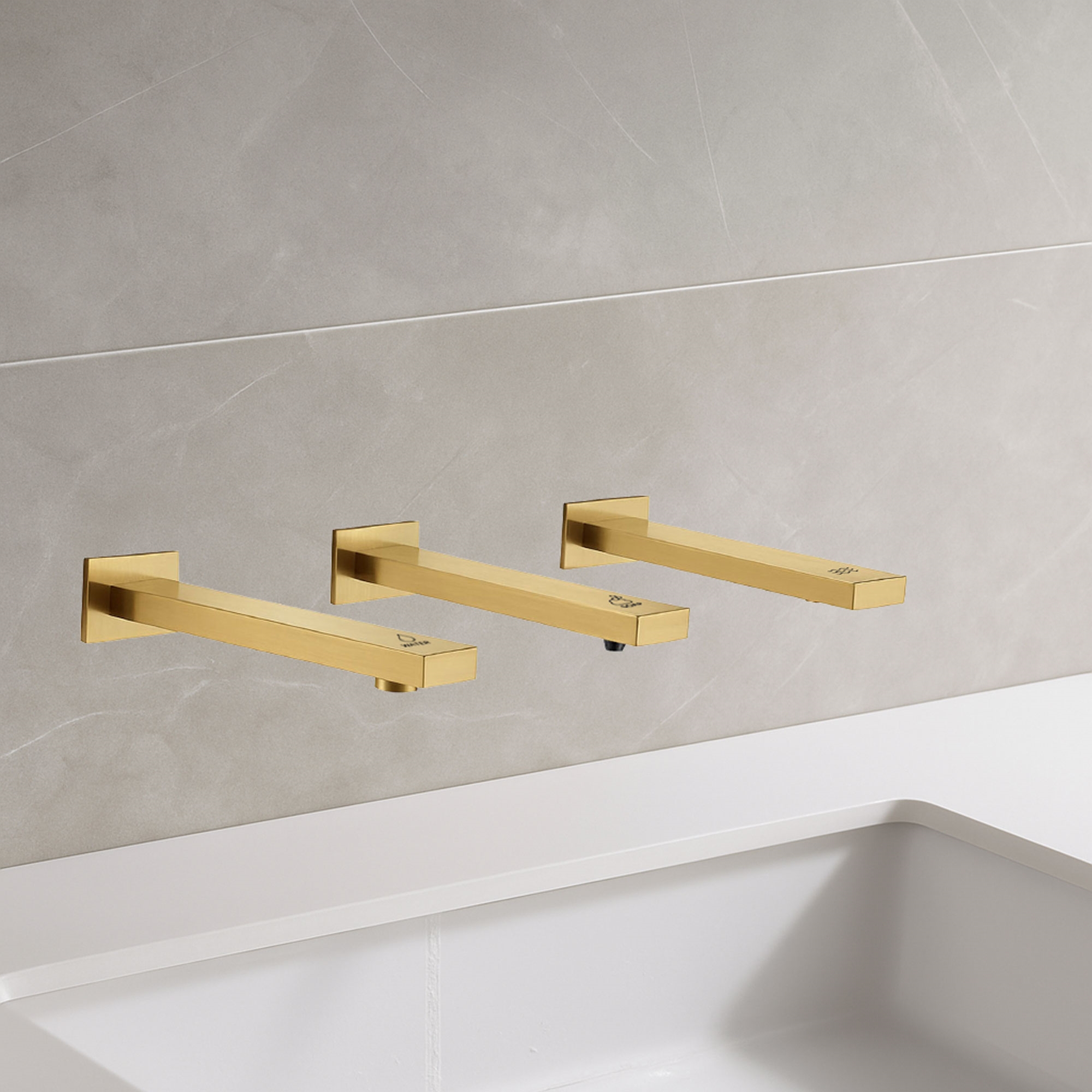

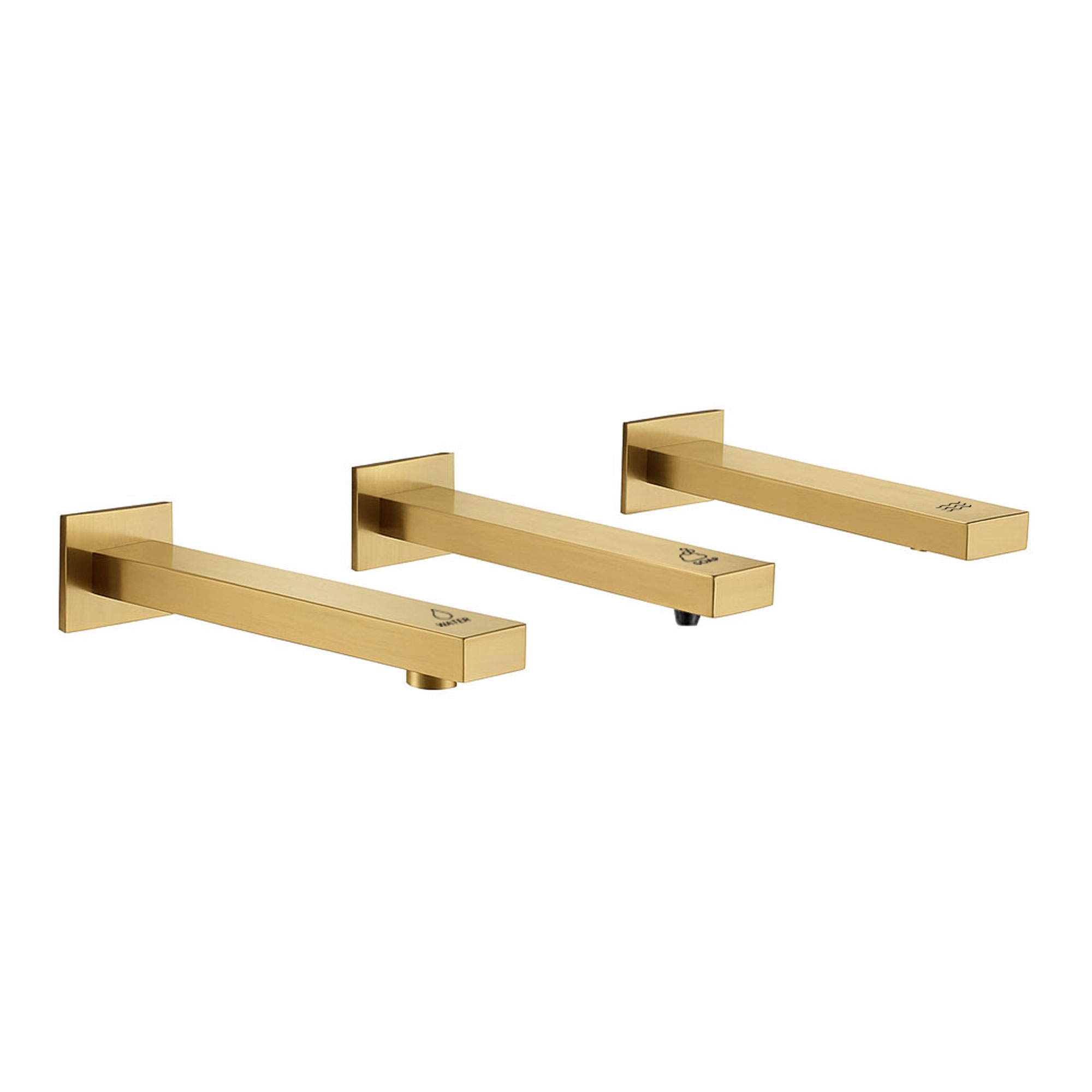

FontanaFusionSense™ Combo Touchless Faucet – Soap , Water & Hand Dryer in Brushed Gold
The FontanaFusionSense™ Brushed Gold 3-in-1 System integrates a touchless faucet, automatic soap dispenser, and high-speed dryer into a single exclusive wall-mounted piece unit, transforming your commercial washrooms with each category of use - efficiency and style. It's made of solid brass construction and polished brushed gold finish, it is both durable and luxurious, making it a statement piece in any modern space. This faucet features a ceramic valve providing long lasting leak-free integrity from 0.05–0.6MPa while delivering water ranging from 0.1–50°C in temperature. The soap dispenser has an impressive 1L internal reservoir, so filling will be less frequent because it is located in such high-volume traffic facilities. The dryer is operated by a brushless motor at 220–240V and outputs 1300W, reaching 38,000 RPM and providing air flow up to 90m/s, drying hands in 10-15 seconds at a controlled noise level of 75dB. Infrared sensors provide touch-free operation for all components, and an HEPA filter improves air quality. Operating compliant with ADA, this unit is accessible for individuals of all abilities, and can easily fit into any new projects or renovations due to its small wall-mounted size and its approximate dimensions of 53x33x20cm and mounted approximately 50cm above the counter. The FontanaFusionSense™ Brushed Gold system combines hygiene, sophistication and performance all in one complete package for everyday use in commercial washrooms and more.
3-in-1 Touch Free Wash Station
- Brand Name: FontanaShowers®
- Model Number: FS9901BG
- Finish: Brushed Gold
- Feature: Touchless Faucet, Soap Dispenser & Dryer (3-in-1)
- Main Material: Solid Brass-Metal
- Valve Material: Ceramic
- Installation Type: Wall Mounted
- Surface Treatment: Polished
- Motor: Brushless (for dryer)
- Voltage: 220–240V / DC6V (AC & DC Compatible)
- Frequency: 50Hz
- Total Power: 1300W
- Standby Power: 1W
- Water Pressure (Faucet): 0.05–0.6 MPA
- Operating Temperature (Water): 0.1–50°C
- Soap Volume Capacity: 1L
- Sensing Distance: 16–32 cm
- Dryer RPM: 38,000
- Hand Dryer Air Speed: 90 m/s
- Dryer Temperature: 30–40°C
- Noise Level: 75 dB
- Filter: HEPA
- Hand Dryer Dry Time: 10–15s
- Tap Height: Water Tap: 20 mm | Dispenser: 20 mm | Dryer: 20 mm
- Tap Width: Water Tap: 40 mm | Dispenser: 40 mm | Dryer: 46 mm
- Tap Depth: Water Tap: 220 mm | Dispenser: 220 mm | Dryer: 240 mm
- Motor Case Height: Water Tap: 145 mm | Dispenser: 307 mm | Dryer: 290 mm
- Motor Case Width: Water Tap: 116.5 mm | Dispenser: 90 mm | Dryer: 210 mm
- Motor Case Depth: Water Tap: 85.5 mm | Dispenser: 106 mm | Dryer: 190 mm
- ADA Compliant
|
|
|
 |
|
 |
|
