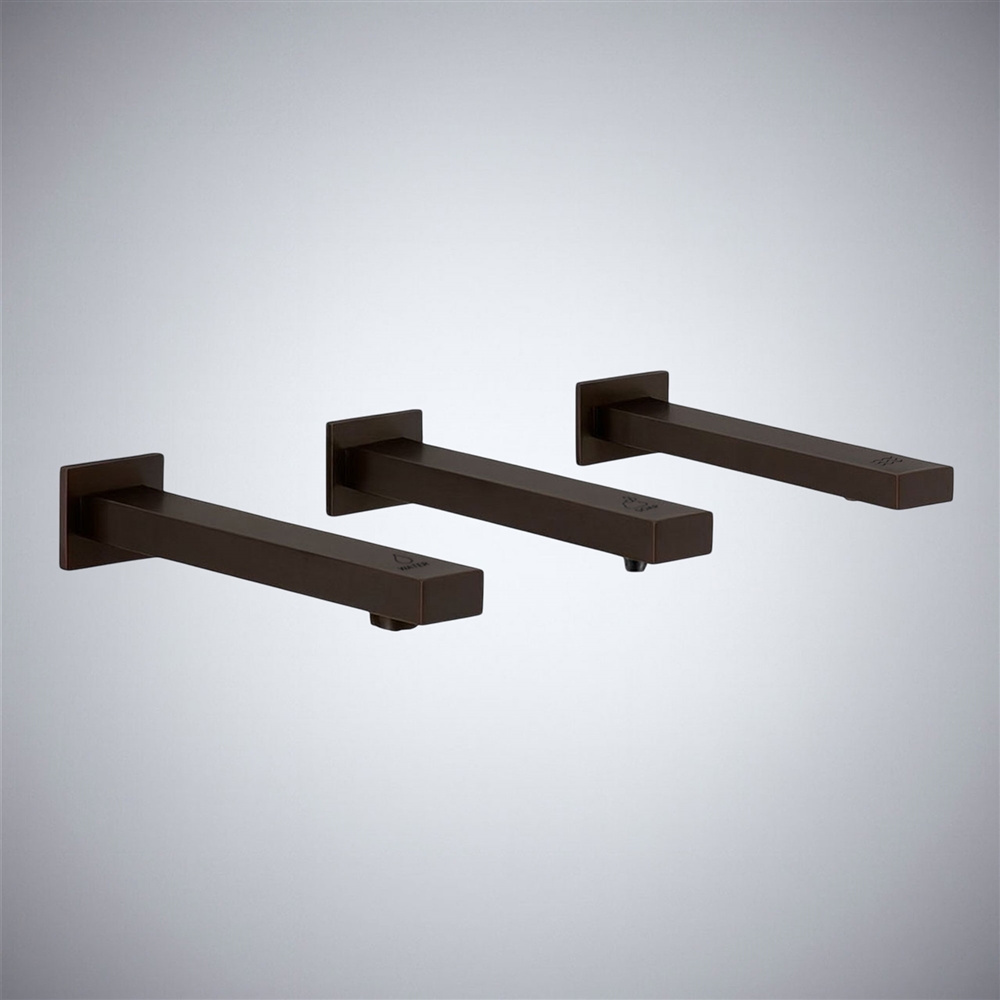

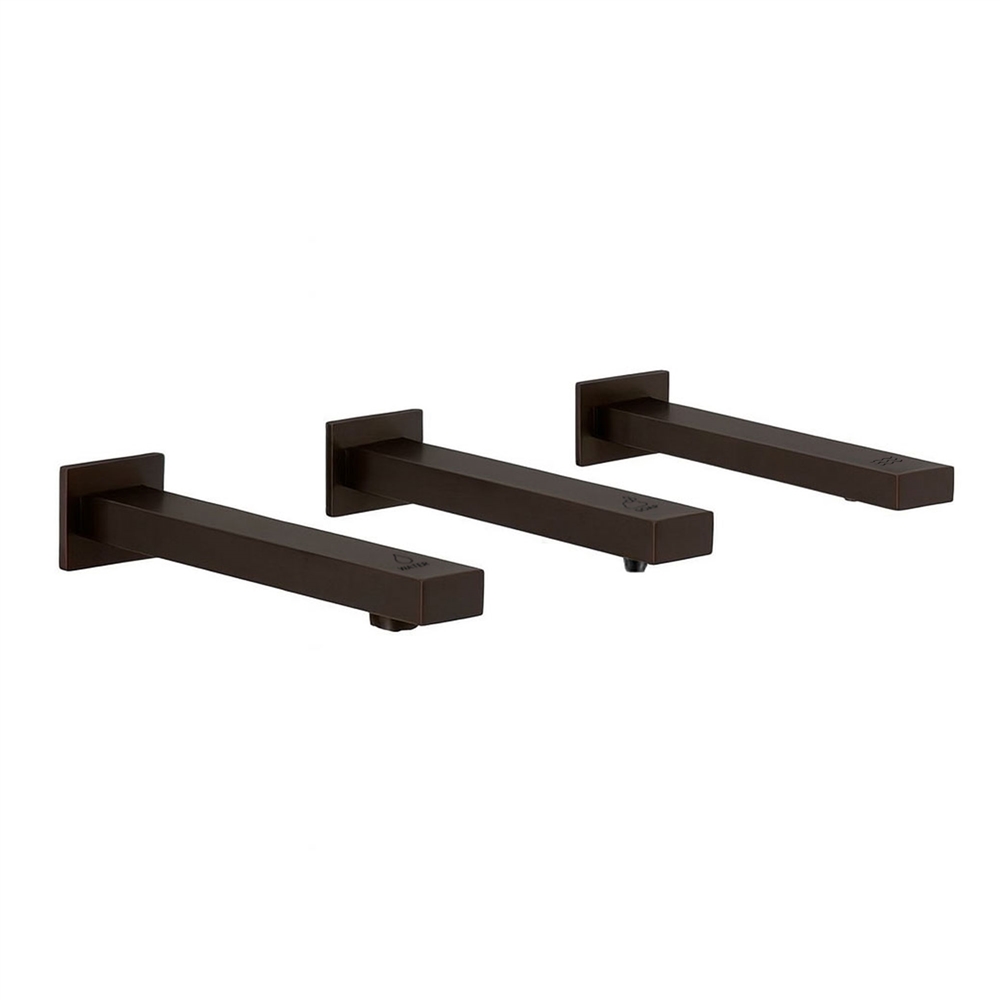

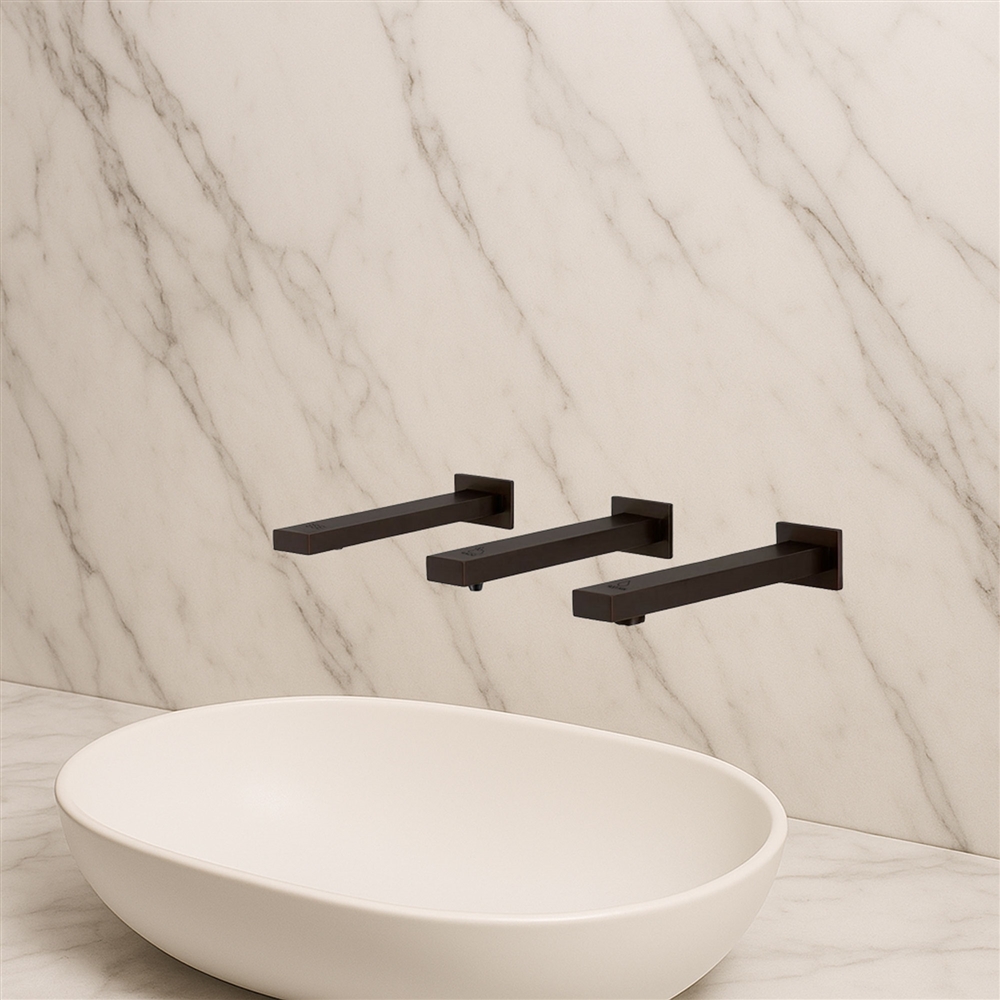

FontanaZenFlow Oil Rubbed Bronze 3 in 1 Hands Free Faucet With Soap Dispenser & Hand Dryer
The FontanaZenFlow™ Oil Rubbed Bronze Combo 3-in-1 System combines an automatic faucet, soap dispenser, and high-speed dryer into one convenient wall mounted unit - providing efficiency, cleanliness, and style to any commercial context. Made from robust brass with an oil rubbed bronze finish, this system delivers enduring performance to feature a glazed, rich, elegant touch to modern day interiors. The faucet has a ceramic valve that is designed for reliability, leak-free operation between 0.05–0.6MPa water supply pressures, and a broad range of water supply temperatures, 0.1–50°C. The soap dispenser holds 1L, providing exceptional service for refilling in heavy traffic areas. The dryer, with a brushless motor, runs at 220–240V and 1300W, achieving a powerful 38,000 RPM and air-flow up to 90m/s, which guarantees the drying process takes just 10–15 seconds, providing white, ambient noise at a comfortable 75dB. All operations are touchless thanks to infrared sensors and the integrated HEPA filter for improved air quality. The unit can be powered by AC or DC to meet site conditions, is ADA compliant, and integrates compactly for new or renovated spaces. In summary, the FontanaZenFlow™ Oil Rubbed Bronze Combo 3-in-1 System takes bathroom areas of extraordinary efficiency, blends the best of style and innovation, elevating any washroom environment, ultimately increasing the sustainability of restroom conscious finishing.
Classic 3 in 1 Wash Station
- Brand Name: FontanaShowers®
- Model Number: FS9901ORB
- Finish: Oil Rubbed Bronze
- Feature: Touchless Faucet, Soap Dispenser & Dryer (3 in 1)
- Main Material: Solid Brass-Metal
- Valve Material: Ceramic
- Installation Type: Wall Mounted
- Surface Treatment: Polished
- Motor: Brushless (for dryer)
- Voltage: 220–240V / DC6V (AC & DC Compatible)
- Frequency: 50Hz
- Total Power: 1300W
- Standby Power: 1W
- Water Pressure (Faucet): 0.05–0.6 MPA
- Operating Temperature (Water): 0.1–50°C
- Soap Volume Capacity: 1L
- Sensing Distance: 16–32 cm
- Dryer RPM: 38,000
- Hand Dryer Air Speed: 90 m/s
- Dryer Temperature: 30–40°C
- Noise Level: 75 dB
- Filter: HEPA
- Hand Dryer Dry Time: 10–15s
- Tap Height: Water Tap: 20 mm | Dispenser: 20 mm | Dryer: 20 mm
- Tap Width: Water Tap: 40 mm | Dispenser: 40 mm | Dryer: 46 mm
- Tap Depth: Water Tap: 220 mm | Dispenser: 220 mm | Dryer: 240 mm
- Motor Case Height: Water Tap: 145 mm | Dispenser: 307 mm | Dryer: 290 mm
- Motor Case Width: Water Tap: 116.5 mm | Dispenser: 90 mm | Dryer: 210 mm
- Motor Case Depth: Water Tap: 85.5 mm | Dispenser: 106 mm | Dryer: 190 mm
- ADA Compliant
|
|
|
 |
|
 |
|
