Constructed from good-grade brass and 304-grade stainless steel that guarantee nothing less than superb durability, strength, and anti-corrosiveness, the single-hole, deck-mount installation supports the maximum integration of style within minimalist interiors while keeping the installationer's life simple. Inside, it features a self-centering ceramic valve core for smooth regulation, an excellent dependable hot-and-cold water switch. Hands-free activation with intelligent sensor technology enhances hygiene while conserving water and energy in high-traffic zones. With the battery option as an alternate possibility, it provides the flexibility to keep the device always powered with backup power, whether in the house or in commercial places. Combining design, technology and longevity, FontanaShowers creates faucets which make daily usage a classy yet efficient experience. Commercial restroom specification language supports basis-of-design and schedule alignment.

FONTANAORVANTIS™ SERIES

FontanaOrvantis Touchless Faucet FAQs

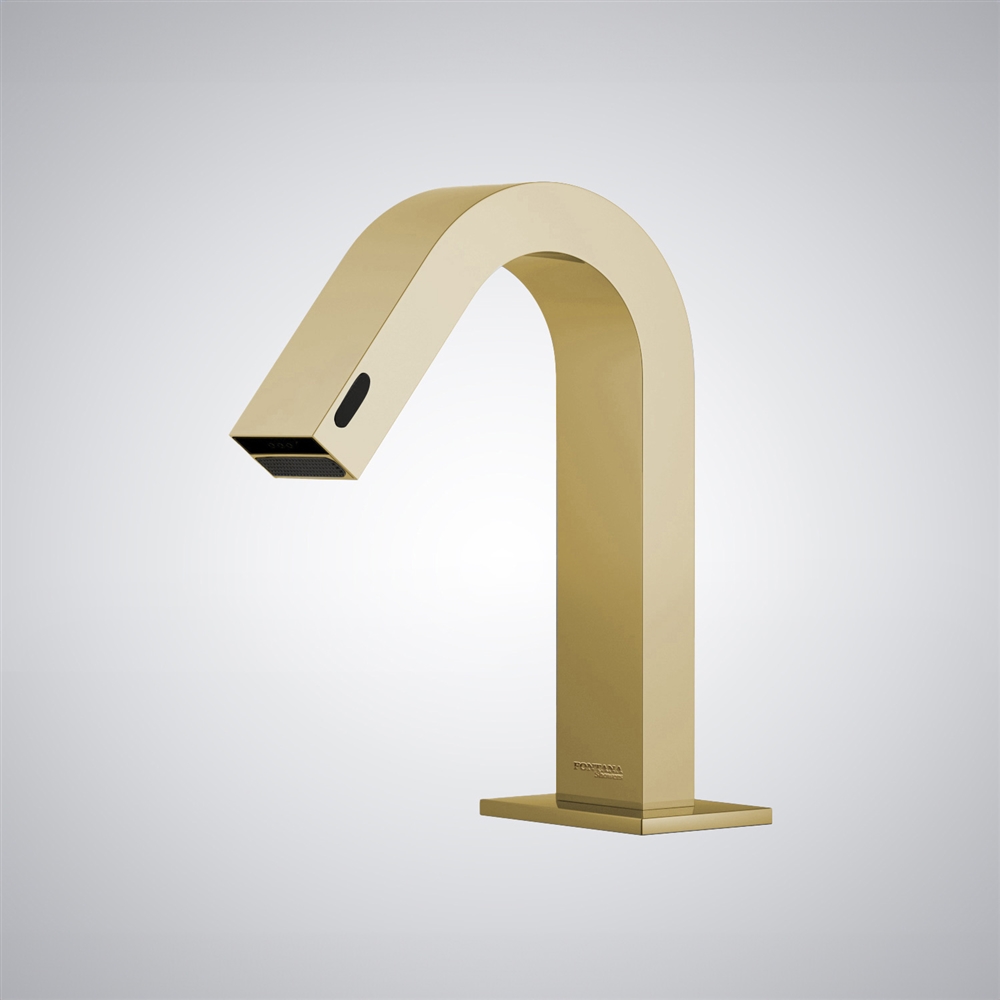

Deck-mounted automatic sensor basin faucet with brass and 304 stainless steel construction, ceramic valve control, hot-and-cold water capability, and flexible DC-AC power.

✥ Sensor-Zone Commissioning? +

Complete sensor testing only after the basin, backsplash, countertop, mirror, soap dispenser, and surrounding accessories are installed. Confirm normal hand entry activates water reliably without detecting reflective surfaces or movement outside the intended washing zone.

◇ Hydraulic Preparation Before Connection? +

Flush the hot and cold branch lines independently before connecting the faucet. Remove pipe scale, solder residue, thread compound, and construction debris, then verify that service stops and inlet filtration remain clear.

◯ Hot and Cold Supply Balancing? +

Check hot and cold dynamic pressures while water is flowing. Significant pressure imbalance can affect mixed-water temperature and discharge stability, so adjust the service stops as required before final commissioning.

↻ Continuous Flow Diagnostics? +

Clean the sensor window and remove reflective objects from the activation field. If water continues flowing, inspect the internal solenoid passages and ceramic valve assembly for debris, restriction, or incomplete seating.

⌁ Ceramic Valve Maintenance? +

The faucet incorporates a self-centering ceramic valve core. During scheduled servicing, inspect the valve and internal waterways for mineral accumulation or debris that could interfere with smooth regulation or positive shutoff.

⌂ Deck Installation Requirements? +

The FontanaOrvantis uses a single-hole deck-mounted configuration. Verify countertop stability, mounting-hole position, under-deck clearance, supply routing, and access to electronic components before securing the faucet.

⚡ Power Supply Configuration? +

The product supports battery or socket-powered operation with a DC-AC power configuration. Confirm the intended electrical arrangement and service access before completing sensor and valve commissioning.

⌕ Brushed Gold Surface Maintenance? +

Clean exposed surfaces with a soft damp microfiber cloth and dry afterward. Use diluted pH-neutral soap when needed and avoid abrasive pads, acidic descalers, bleach, ammonia, aggressive polish, or concentrated chemical cleaners.

‹ ›

Brushed Gold

Brushed Gold Brushed Nickel Gold Chrome Rose Gold Oil Rubbed Bronze Champagne Matte White Matte Black Gun Metal Gray

♧

5.91" Height Compact Profile

◇

Brass / 304 SS Durable Construction

⌁

Smart Sensor Hands-Free Activation

⚙

Ceramic Valve Controlled Regulation

◇

DC-AC Flexible Power
