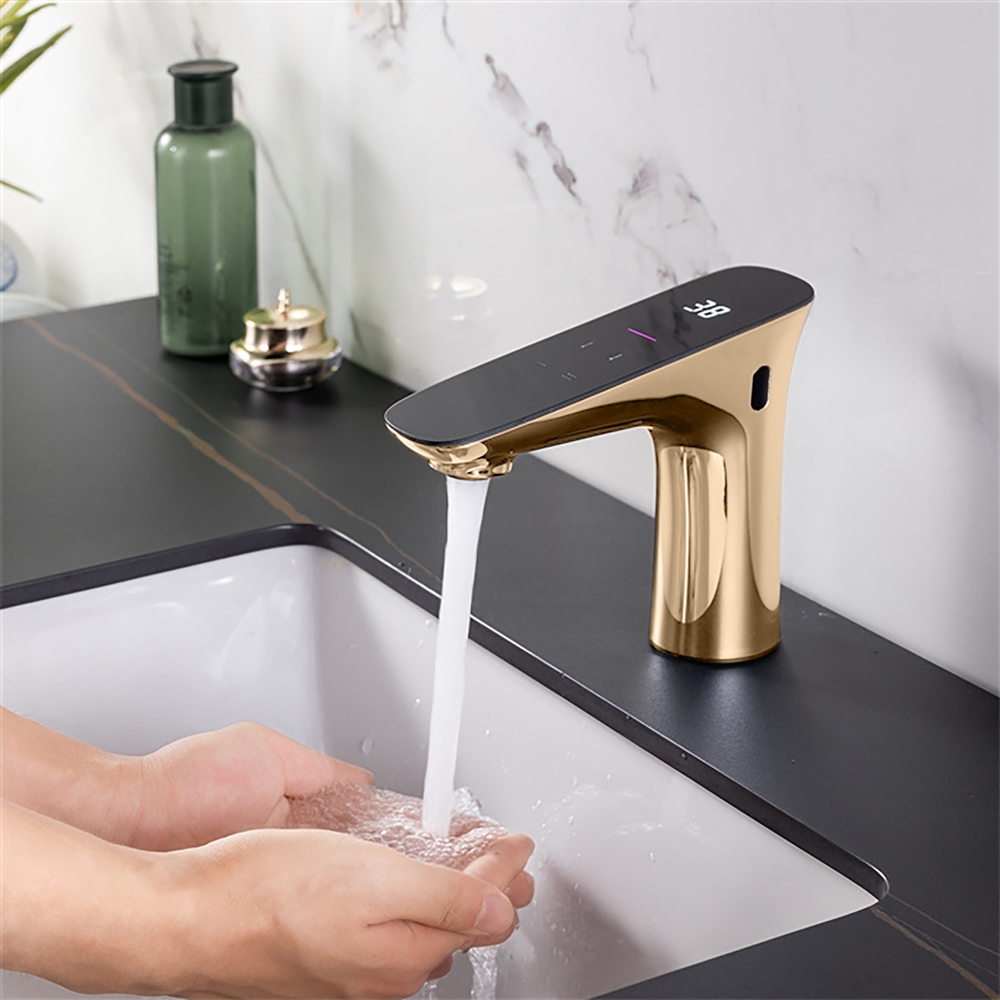

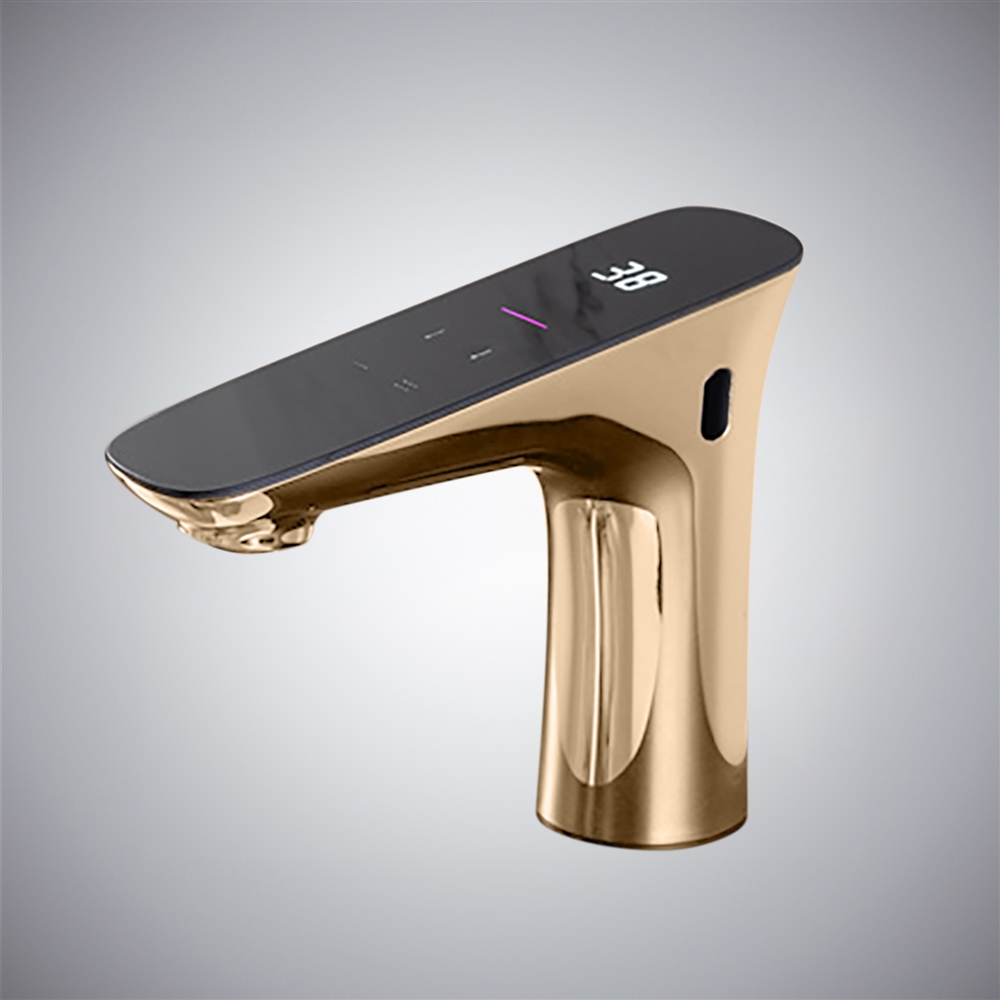

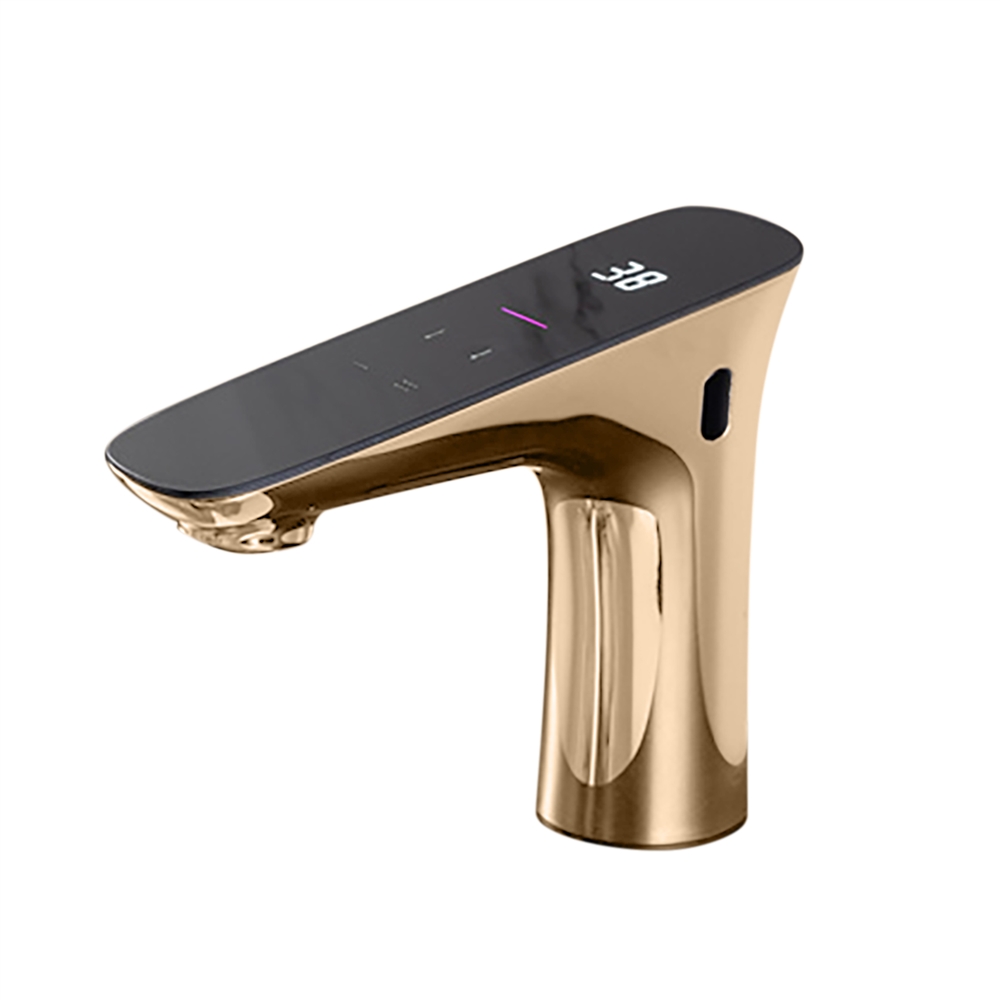

FontanaPrismaFlow Hand Touch LED Bathroom Faucet in Champagne

The FontanaPrismaFlow™ – Champagne Glow integrates luxury design with modern technology to beautify any bath or commercial space. Made of solid brass and elegantly finished in a champagne tone, our faucet promises durability and the sleek look and style characteristics of modern design. Our tapis for a single-hole deck mount faucet is simplicity in functionality and minimal appearance.

At the centre of the water tap is OLED touch-control, which provides an intuitive experience for more direct liquid control at a comfortable water temperature range of 25–45°C. Overheat protection is built in for everyday use. It is designed for functional performance with water pressure between 0.05 and 0.6 MPa, making it suitable for a wide variety of settings. The FontanaPrismaFlow™ displays signature shape and functionality to elevate any basins to unique features in your bath. Enjoy luxury homes, hotels or a high-end commercial setting with water saving that provides performance and style, all in a smart package.

FontanaPrismaFlow™ Champagne Smart Touch LED Faucet FAQ

OLED Temperature Control, Supply-Pressure Stability; Champagne Finish Protection

The FontanaPrismaFlow™ Champagne smart faucet combines solid-brass construction, single-hole deck mounting, an OLED touch-control panel, adjustable 25–45°C water temperature, built-in overheating protection, and operation across a 0.05–0.6 MPa water-pressure range.

How should the OLED temperature controls be tested during commissioning?

Operate the touch panel through its full 25–45°C adjustment range and verify the outlet temperature using a calibrated thermometer. Confirm that display changes correspond with actual water temperature and that the controls respond consistently without delayed or unintended input.

What hydraulic conditions can cause unstable temperature or flow?

Unequal hot and cold dynamic pressure, partially closed service stops, restricted supply hoses, or debris in the inlet passages can disrupt mixing performance. Flush both branches and verify pressure while the faucet is flowing before diagnosing the electronic control system.

How should the overheating protection be checked after installation?

Increase the selected temperature gradually while monitoring the displayed and measured outlet values. The control system should prevent operation beyond its intended safe range; abnormal temperature rise requires inspection of the supply arrangement, sensor feedback, and internal mixing components.

How should the Champagne finish and black OLED panel be cleaned safely?

Wipe both surfaces with a soft damp microfiber cloth and dry them immediately. Use diluted pH-neutral soap only and avoid abrasive pads, acidic descalers, bleach, ammonia, alcohol-heavy cleaners, metal polish, and concentrated disinfectants that may damage the finish or control-panel surface.

Champagne

• Brand Name: FontanaShowers®
• Model Number: FS7966CP
• Finish: Champagne
• Style: Contemporary
• Type: Touch Faucet
• Material: Brass
• Installation type: Deck Mounted
• Number of Holes for Installation: One Hole
• Function: Touch-activated faucet
• Water Temperature: 25-45 °C
• Panel: OLED Display touch control panel
• Safety: Overheat protection
• Water Pressure: 0.05-0.6 MPa
