How Should Touchless Faucet Sensor Reliability Actually Be Tested?
Reliability cannot be established by showing that a sensor detects a hand once. A commercial faucet must repeatedly satisfy sensing, timing, electrical, environmental, hydraulic and lifecycle criteria—and those controlled results should ultimately be judged against sustained field performance.
Commercial touchless faucet reliability should be validated as a complete system, not judged by a single successful sensor activation. Architects, engineers, contractors, and facility teams should consider sensing stability, electrical protection, solenoid response, hydraulic endurance, moisture resistance, power behavior, and lifecycle cycling together. For deeper specification guidance, review
how sensor, electronics, solenoid, and hydraulic components work together to determine touchless faucet reliability,
examine
commercial touchless fixture durability and field-performance considerations,
and compare
long-term reliability factors for commercial touchless faucets
when specifying fixtures where repeatable activation, environmental protection, pressure performance, serviceability, and lifecycle durability are critical.
Reliability is a system property
A touchless faucet can fail even when its sensor still detects a hand. Power instability, a sticking solenoid, moisture ingress, pressure stress, poor sealing, control drift, interference or an improperly defined activation zone can all produce unacceptable field behavior.
A meaningful reliability program must therefore evaluate the complete operating chain—not just the sensing component.
Test Planning
Start with acceptance criteria—not technology preference
Before testing, define what counts as a pass: sensing range, allowable variation, false-positive and false-negative behavior, activation and shutoff timing, power-failure state, leakage criteria, pressure limits, environmental recovery, interference resistance and post-cycle performance.
Reliability Principle
A successful activation is not a reliability test
A prototype that turns water on when a hand approaches has demonstrated basic functionality. It has not established long-term commercial reliability.
Reliability begins when the same completed system continues to meet defined performance limits across changes in target position, neighboring fixtures, illumination, moisture, temperature, humidity, pressure, repeated valve operation and lifecycle cycling.
|
Test Family
|
What Should Be Evaluated
|
Failure Mode Addressed
|
|
Test Family: Sensing Geometry
|
What Should Be Evaluated: Range, angle, repeatability, field of view and distance variation
|
Failure Mode Addressed: Missed hands or acceptance of unintended targets
|
|
Test Family: False Activation
|
What Should Be Evaluated: Pass-by traffic, basin targets, adjacent fixtures, cleaning activity and environmental changes
|
Failure Mode Addressed: Uncommanded water flow
|
|
Test Family: Interference
|
What Should Be Evaluated: Adjacent sensors, illumination, electrical interference and technology-specific coupling
|
Failure Mode Addressed: Cross-activation and unstable behavior
|
|
Test Family: Timing
|
What Should Be Evaluated: Opening, closing and automatic shutoff
|
Failure Mode Addressed: Poor user response or unnecessary run time
|
|
Test Family: Electrical
|
What Should Be Evaluated: Standby/active behavior, low voltage, power failure and recovery
|
Failure Mode Addressed: Unexpected or unsafe valve state
|
|
Test Family: Moisture / Environment
|
What Should Be Evaluated: Ingress protection, humidity, temperature and recovery
|
Failure Mode Addressed: Electronics degradation or unstable behavior
|
|
Test Family: Hydraulic
|
What Should Be Evaluated: Static pressure, dynamic conditions, sealing and water hammer
|
Failure Mode Addressed: Leaks, valve damage or unstable closure
|
|
Test Family: Lifecycle
|
What Should Be Evaluated: Repeated full activation cycles plus post-test sensing, sealing and flow checks
|
Failure Mode Addressed: Wear, drift and loss of sealing performance
|
|
Test Family: Field Validation
|
What Should Be Evaluated: Installed behavior across real commercial environments over time
|
Failure Mode Addressed: Failure modes not reproduced in controlled laboratory testing
|
Engineering Standard
A sensing-technology claim becomes commercially meaningful only when the entire faucet continues to meet defined sensing, electrical, environmental, hydraulic and lifecycle acceptance criteria.
~8 Years
Fontana ToF commercial field implementation
Hundreds
upon hundreds of deployed projects
Controlled
factory acceptance testing
Real Field
installation and operating exposure
10–30 cm
Sensing-distance criterion; 12 cm preset target
±10%
Documented distance-error criterion
<30°
Sensing-angle criterion
200,000
Lifecycle activation cycles with post-test checks
Scope: these values come from Fontana's finished sensor-faucet inspection procedure. They demonstrate acceptance criteria for a complete faucet and should not be represented as isolated qualification results for the ToF semiconductor.
Test Family 01

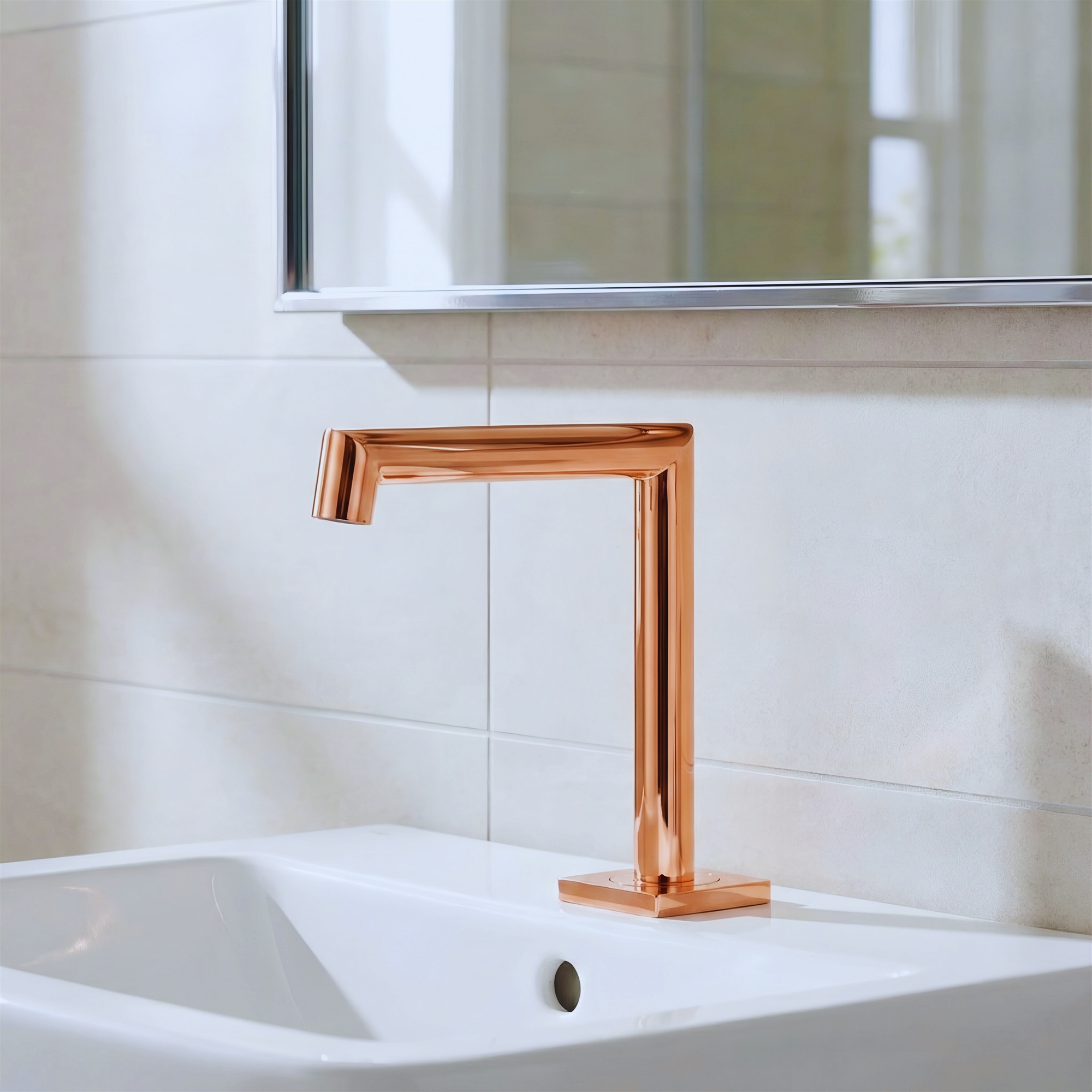

Test sensing geometry before anything else
The Fontana V3.0 procedure defines a 10–30 cm sensing distance, a 12 cm preset target, ±10% distance error and sensing angle below 30°.
This matters because sensor reliability starts with repeatable geometry: the faucet must detect the intended hand inside the intended region rather than merely demonstrate that some target can trigger it.
Detection Geometry
Range should be tested as a controlled zone—not as a maximum-distance contest
A longer sensing range can increase the environment the controller must reject. For faucet applications, the stronger reliability question is whether the intended handwashing zone remains stable and repeatable. See
why detection-zone control matters more than maximum sensor range.
Test Family 02

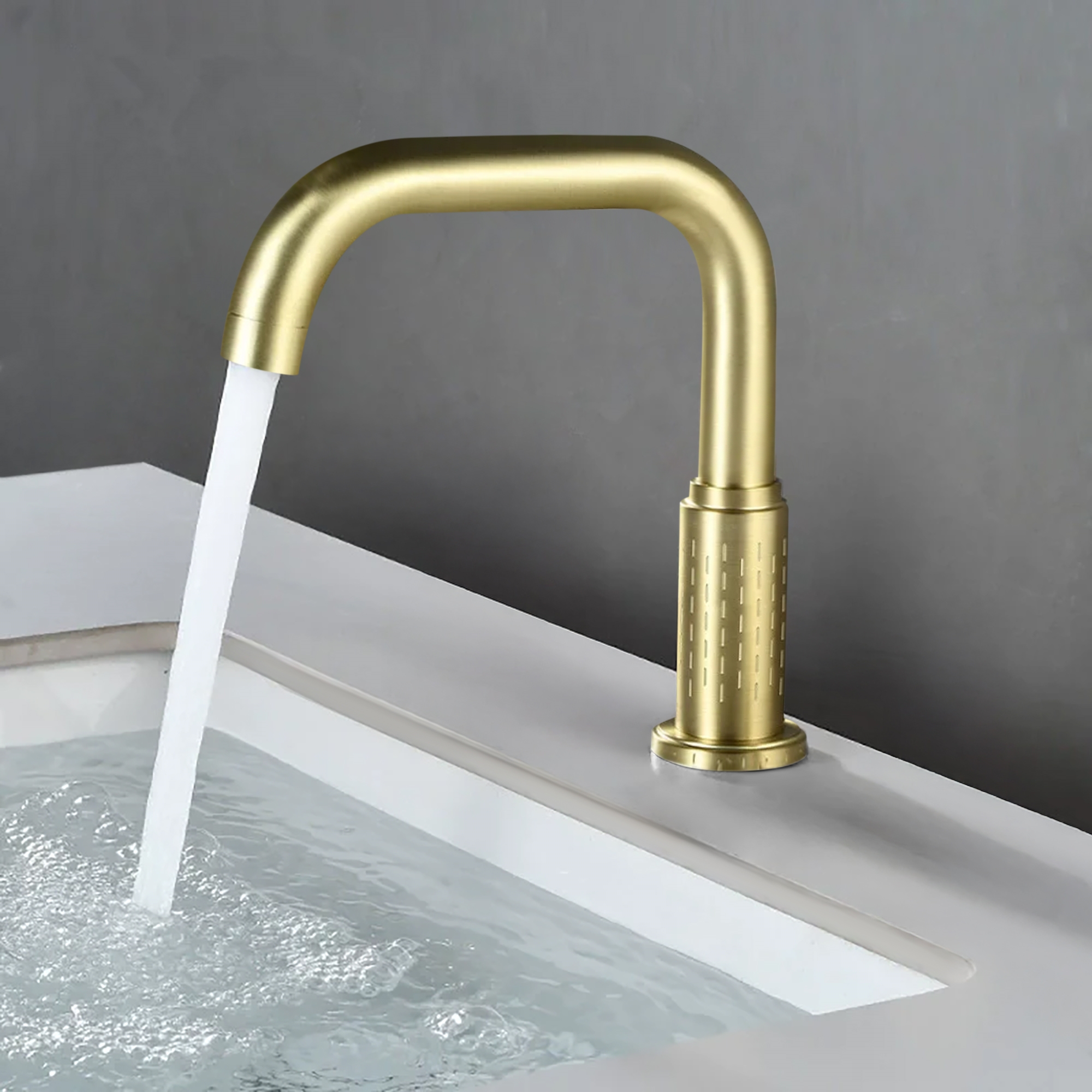

Count false positives and false negatives separately
A sensor that activates every time a hand approaches may still be unreliable if it also responds to drains, pass-by movement, cleaning activity or neighboring fixtures.
Likewise, a system with very few nuisance events can still be unacceptable if legitimate users are repeatedly missed. Both error directions should be measured. The mechanisms are examined in
false activations in IR, ToF and mmWave touchless faucets.
Test Family 03

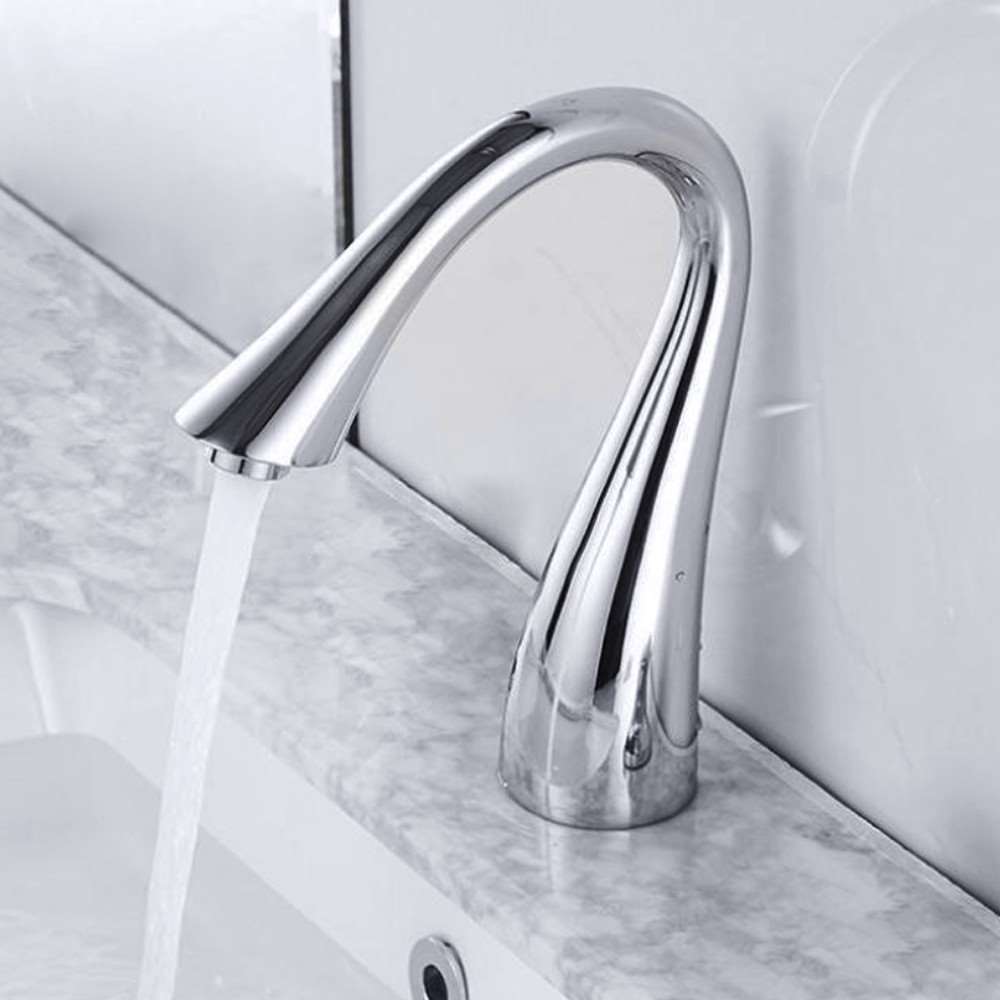

Test nearby-device and environmental interference
The Fontana procedure includes nearby-device anti-interference behavior and limits sensing-distance change under illumination to within ±10%.
These tests matter because a faucet operates inside a changing environment rather than a controlled sensing laboratory. Adjacent fixtures, room lighting, reflective surfaces and technology-specific interference mechanisms should be treated as normal test conditions—not exceptional edge cases.
Test Family 04

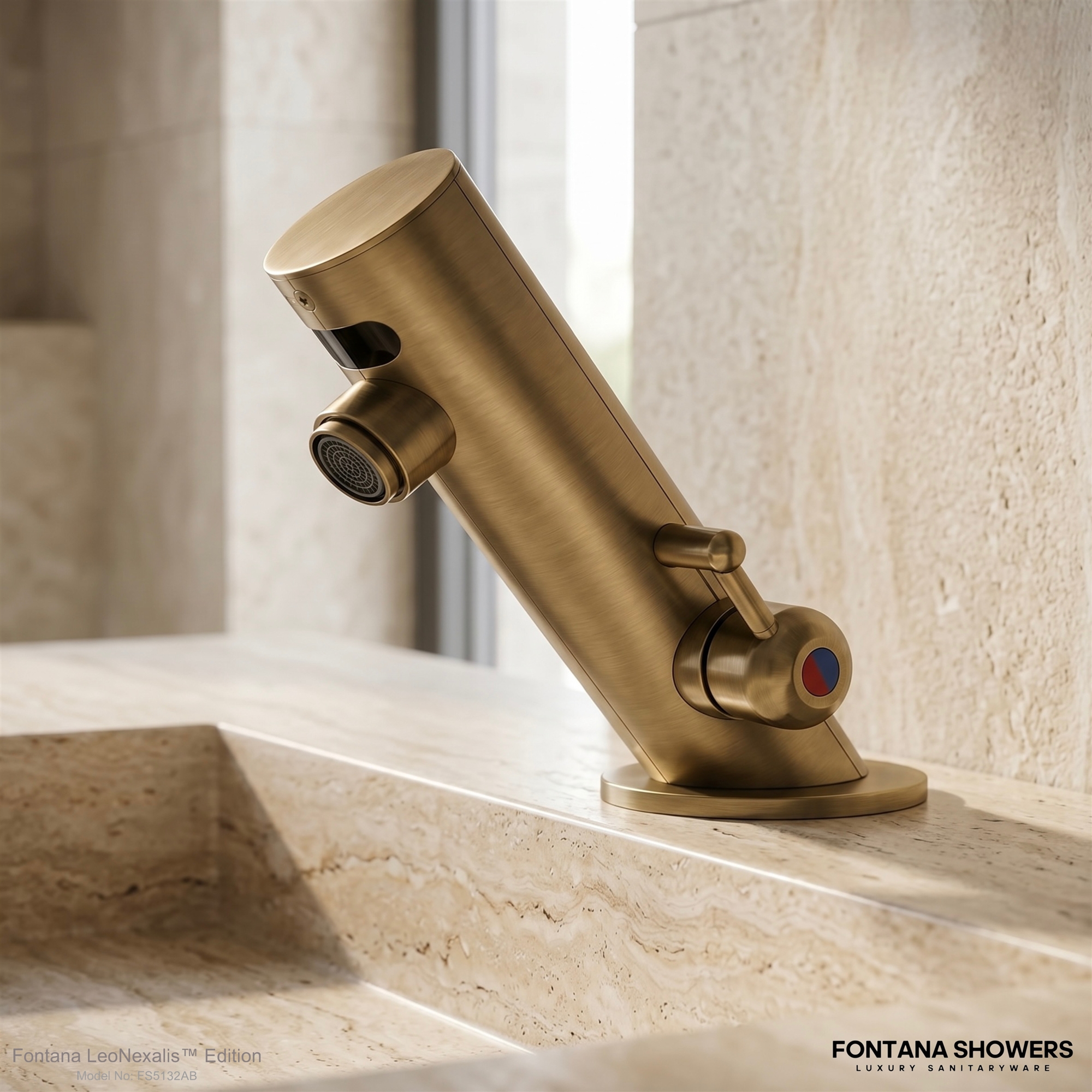

Measure complete faucet response—not sensor latency alone
The current factory record specifies opening within 1 second, closing within 1.5 seconds and automatic shutoff at 30 seconds ±10%.
These are system response criteria. They capture the practical outcome of sensor recognition, controller logic, electrical actuation, solenoid movement and valve behavior rather than treating semiconductor processing speed as the final user-visible metric.
Fail-Safe Behavior
Test what happens when power becomes abnormal
The factory procedure includes low-voltage closed-solenoid behavior and automatic shutoff or continued closed state during power failure. Reliability testing should establish the intended safe failure state before a product is deployed—not discover it after installation.
Test Family 05

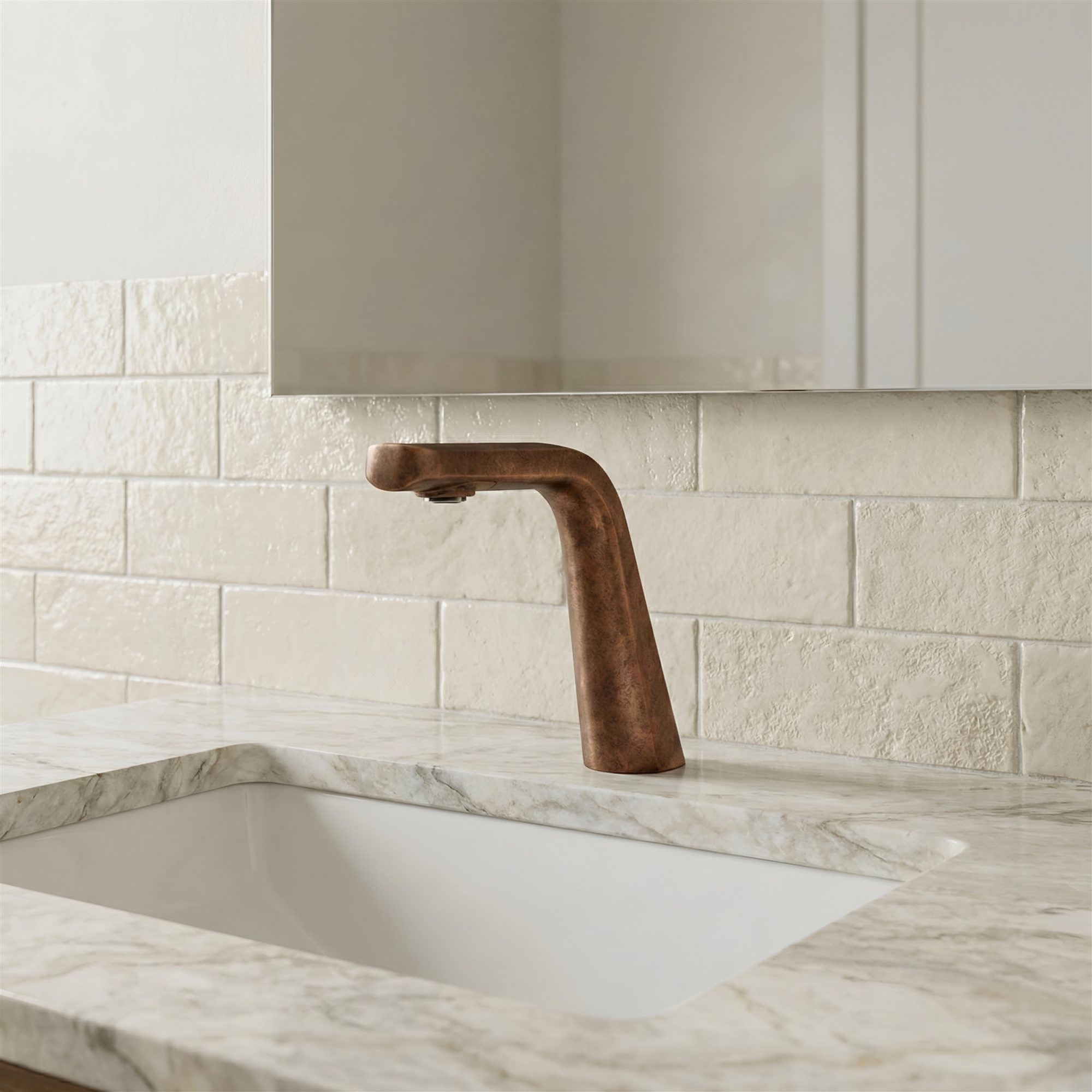

Wet and environmental exposure must be part of the test plan
The V3.0 record lists IP56 system/wiring protection and IP67 PCB/electronic waterproofing criteria.
It also records 55±2°C exposure for 4 hours, −10±3°C exposure for 4 hours, and 40±2°C at 95±2% relative humidity for 48 hours, followed by recovery and functional checks.
A restroom sensor should therefore be evaluated as electronics operating inside a wet electromechanical system—not as a protected desktop sensing module.
Test Family 06

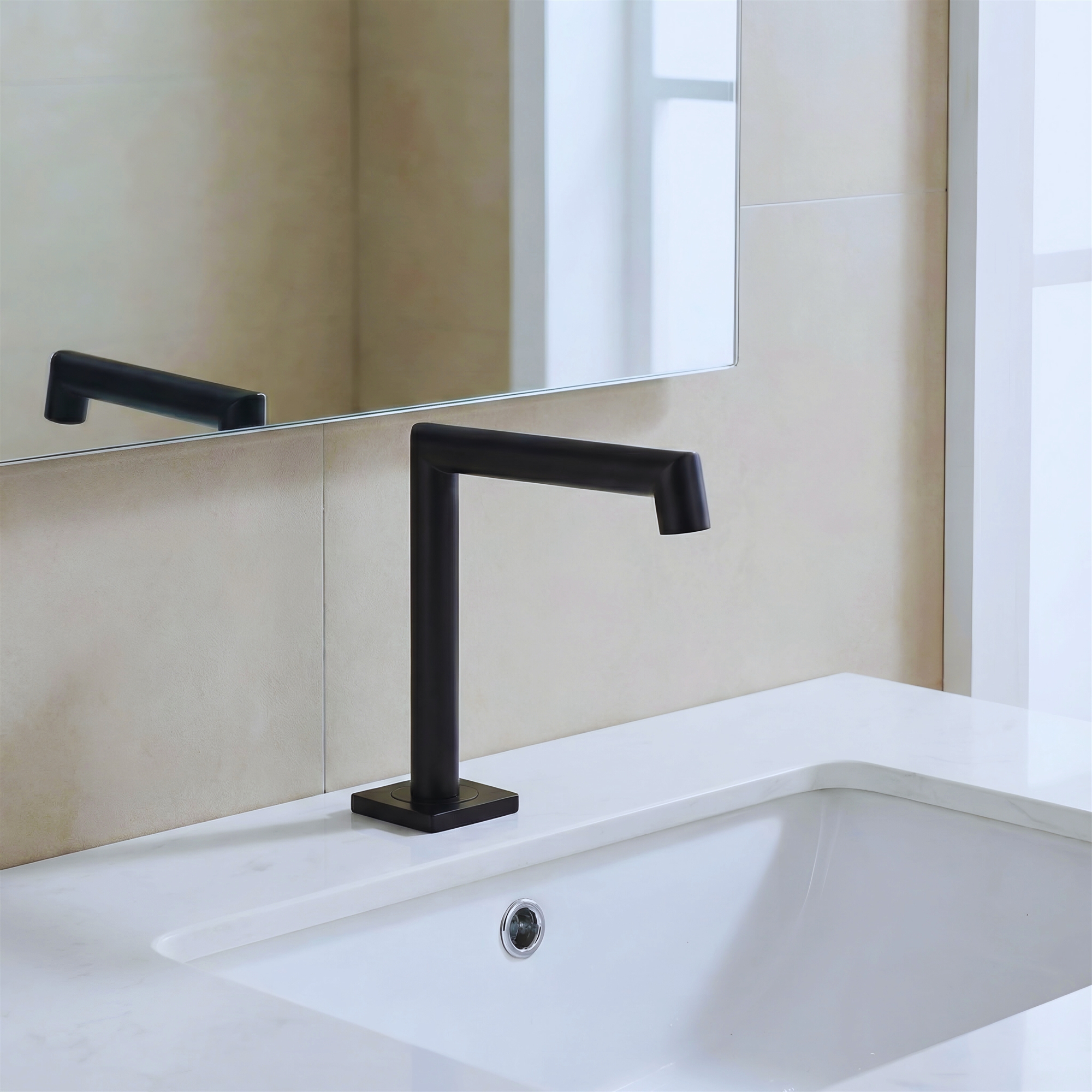

Hydraulic reliability cannot be separated from sensor reliability
The documented procedure includes static strength at 0.90±0.02 MPa, water-hammer criteria, 2.5 MPa closed-solenoid pressure for 60 seconds, and 1 MPa with the valve open and outlet blocked for 60 seconds.
These tests matter because the user does not experience the sensor in isolation. The user experiences whether the complete faucet opens, flows, closes and seals correctly under plumbing-system stress.
Test Family 07
Cycle count alone is not enough
The Fontana procedure includes a 200,000-cycle lifecycle test followed by sealing and flow checks.
Define One Cycle
The test must state what opening, flow and closing sequence constitutes a cycle.
Control Test Conditions
Pressure, power, water conditions and operating timing should be defined.
Verify After Cycling
Post-test sensing, sealing, response and flow determine whether the faucet still meets requirements.
Test Family 08

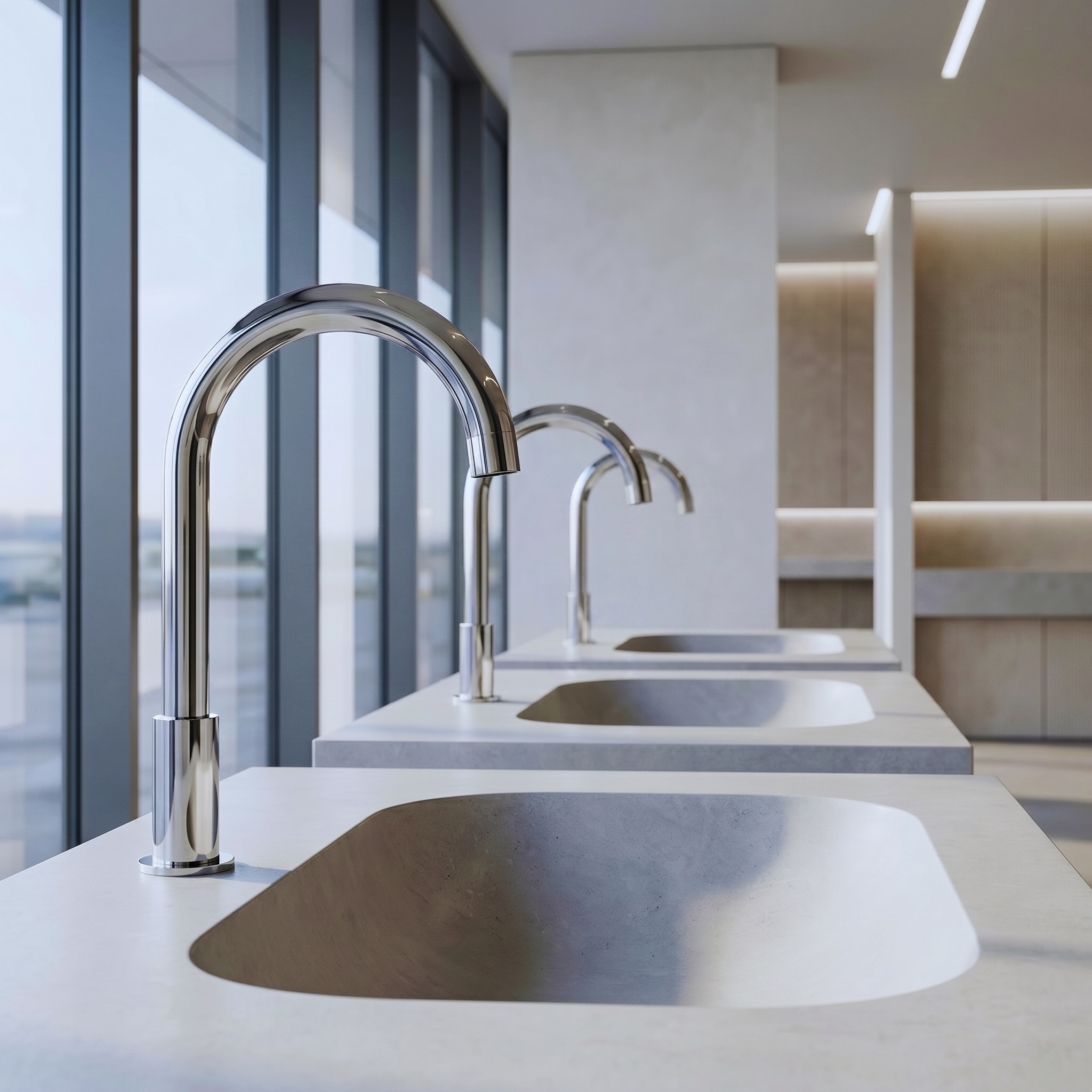

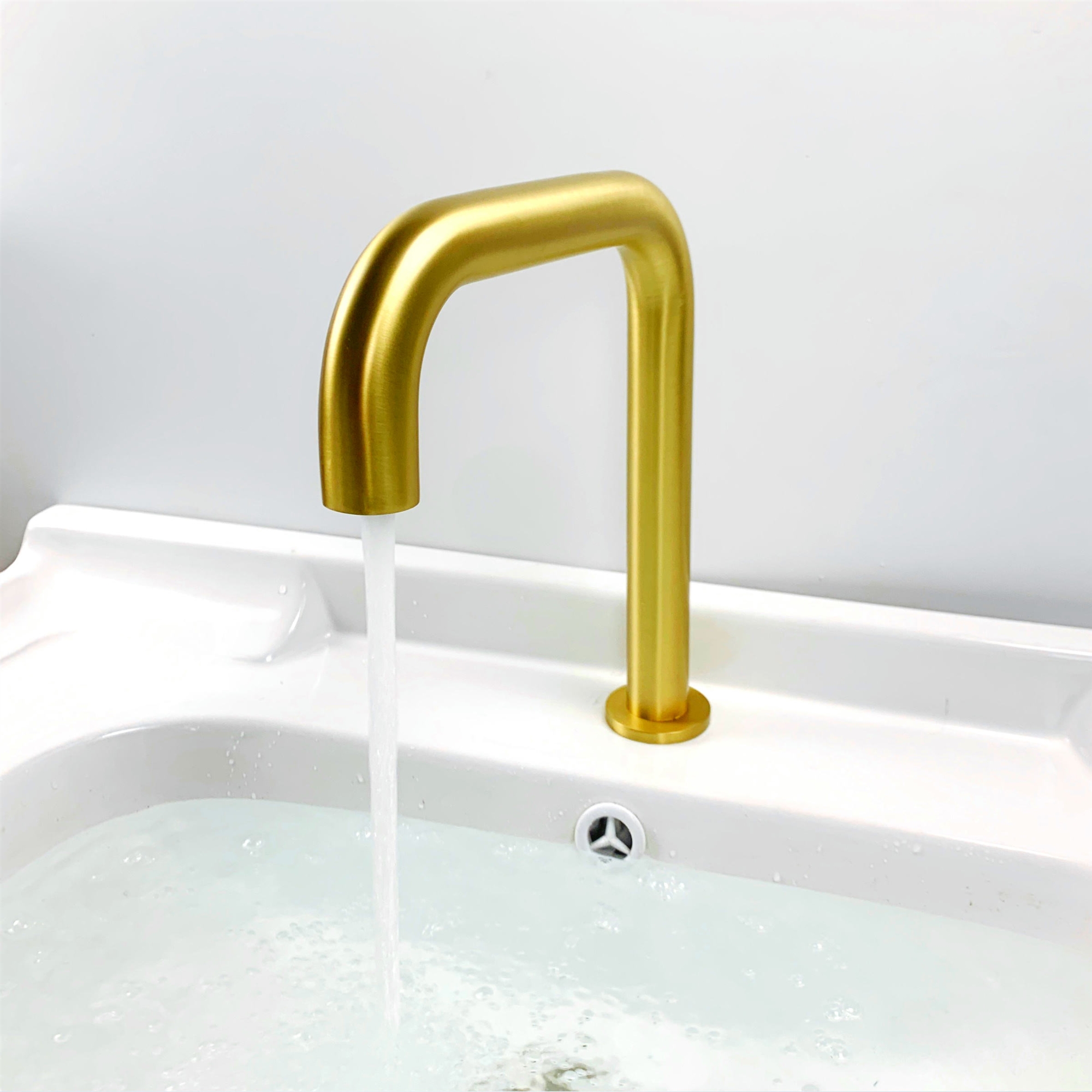

Field history is the long-duration validation layer
Controlled laboratory testing establishes whether a faucet meets defined criteria under repeatable conditions.
Field history answers a different question: whether that architecture continues to function across the installation variability that exists in real buildings over extended periods.
Fontana's ToF architecture has approximately eight years of commercial implementation across hundreds upon hundreds of projects. That history adds exposure to real basins, finishes, plumbing systems, users, maintenance practices and environmental conditions that cannot be fully recreated in a short proof-of-concept test.
Laboratory Evidence and Field Evidence Are Complementary
|
Laboratory Validation
|
Field Validation
|
|
Laboratory Validation: Controlled targets
|
Field Validation: Real users
|
|
Laboratory Validation: Known basin conditions
|
Field Validation: Wide variation in basin geometry
|
|
Laboratory Validation: Defined illumination or sensing environment
|
Field Validation: Changing building conditions and reflections
|
|
Laboratory Validation: Accelerated environmental exposure
|
Field Validation: Calendar-time exposure
|
|
Laboratory Validation: Accelerated lifecycle cycling
|
Field Validation: Years of normal operation
|
|
Laboratory Validation: Repeatable failure investigation
|
Field Validation: Unexpected field conditions
|
The strongest reliability argument uses both: controlled test evidence plus sustained field implementation.
Comparative POC Design
If comparing IR, ToF or mmWave, test the systems—not the labels
A meaningful comparison should hold non-sensor variables constant wherever practical and use the same faucet-level acceptance criteria for each implementation.
Same basin geometry
Same target paths
Same activation-zone requirement
Same wet / dry conditions
Same adjacent-fixture scenarios
Same false-positive criteria
Same false-negative criteria
Same lifecycle acceptance criteria
Same response-time criteria
Same power-state criteria
This matters especially when evaluating
whether mmWave can replace an established ToF faucet architecture.
A generic development board should not be treated as equivalent to a sensing system with approximately eight years of commercial deployment history unless the test is explicitly designed to separate implementation maturity from sensor physics.
Comparison Discipline
Do Not Confuse Sensor Maturity With Faucet-System Maturity
A sensor technology may be mature in one industry and still be emerging in commercial faucet activation. mmWave radar, for example, is well established in applications such as automotive sensing, occupancy detection and industrial monitoring, but broad commercial faucet deployment remains comparatively limited.
Comparative testing should therefore distinguish three separate questions: what the sensing physics can do, how mature the faucet implementation is, and whether the completed product satisfies the same reliability requirements under equivalent test conditions.
What the Fontana record does—and does not—prove
The documented criteria demonstrate validation applied to a finished Fontana sensor faucet under the V3.0 procedure.
They should not be presented as universal qualification of every ToF sensor or as an isolated semiconductor reliability report.
The strength of the evidence is that it connects the sensing architecture with the actual electronics, power behavior, controller logic, solenoid, valve, hydraulics and lifecycle requirements of the finished faucet.
Complete System Reliability
The sensor is only the first link in the reliability chain
Once the sensing decision is made, the controller, power architecture, solenoid, valve and hydraulic system still have to execute that decision correctly.
SYSTEM RELIABILITY
Technical Conclusions
Reliability Has to Be Proven at Multiple Levels
A credible touchless faucet reliability program begins with defined sensing and false-trigger acceptance criteria, continues through electrical, environmental, hydraulic and lifecycle testing, and then compares those controlled results with actual field behavior.
Fontana's documented V3.0 procedure provides a finished-product test framework, while approximately eight years of ToF deployment across hundreds upon hundreds of commercial projects adds a separate layer of field experience.
When alternative sensing architectures such as mmWave are evaluated, the same standard should apply. The comparison should measure completed faucet performance under equivalent conditions rather than comparing a mature production system with an unvalidated sensor prototype.
The engineering standard is repeatability under controlled testing plus stability under real commercial operation—not whether a sensor works once on a bench.
