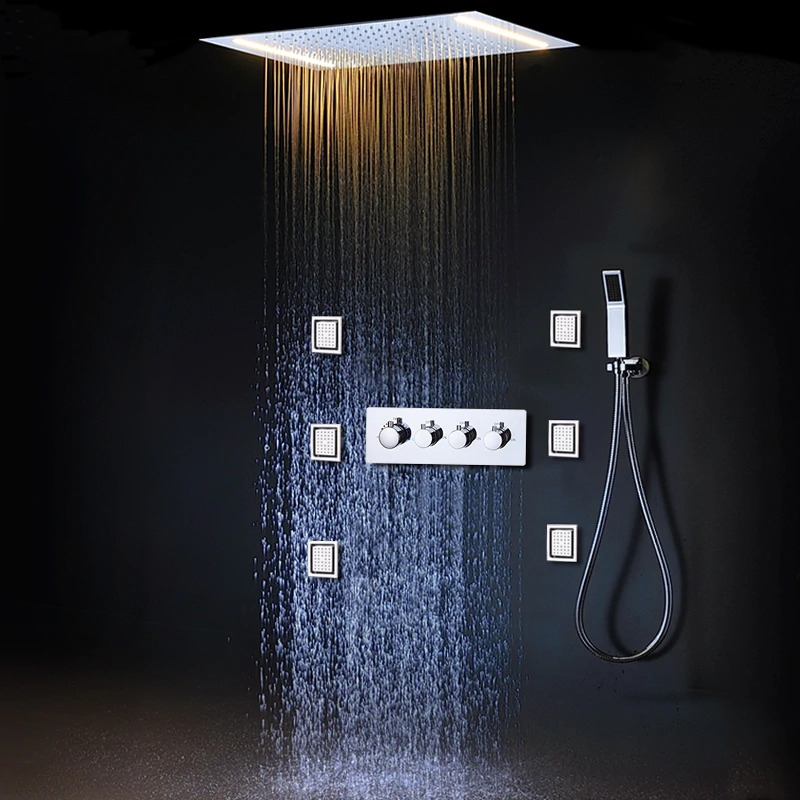

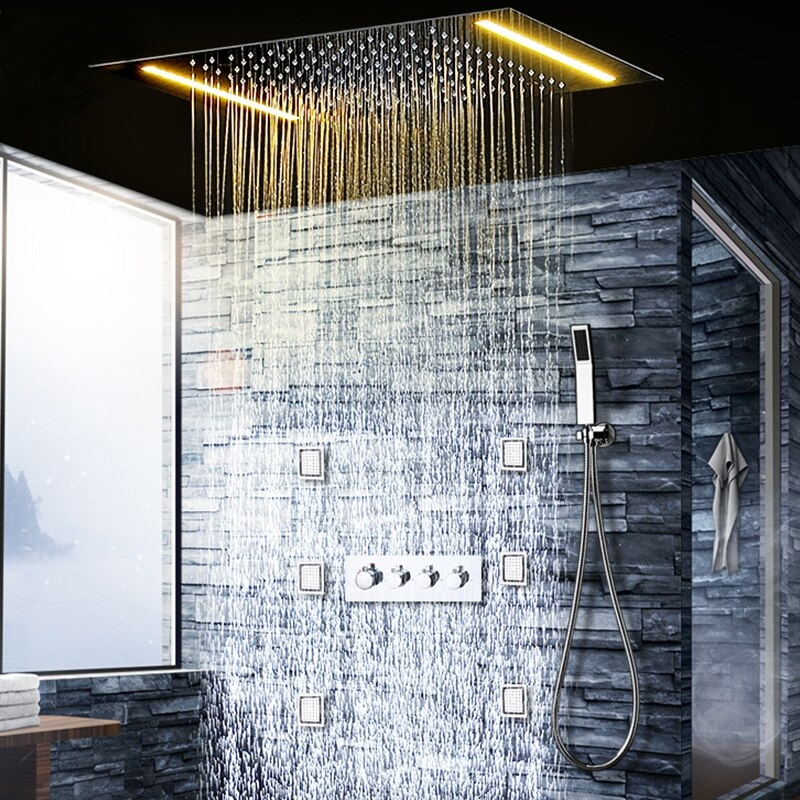

How to Install Fontana Deauville Luxury Bathroom Ceiling Shower Head With LED Lights, Hand Shower And Massage Body Jets In Chrome Finish | FS15052
Installation Instructions for Bathroom Shower Set
Visit Product Page

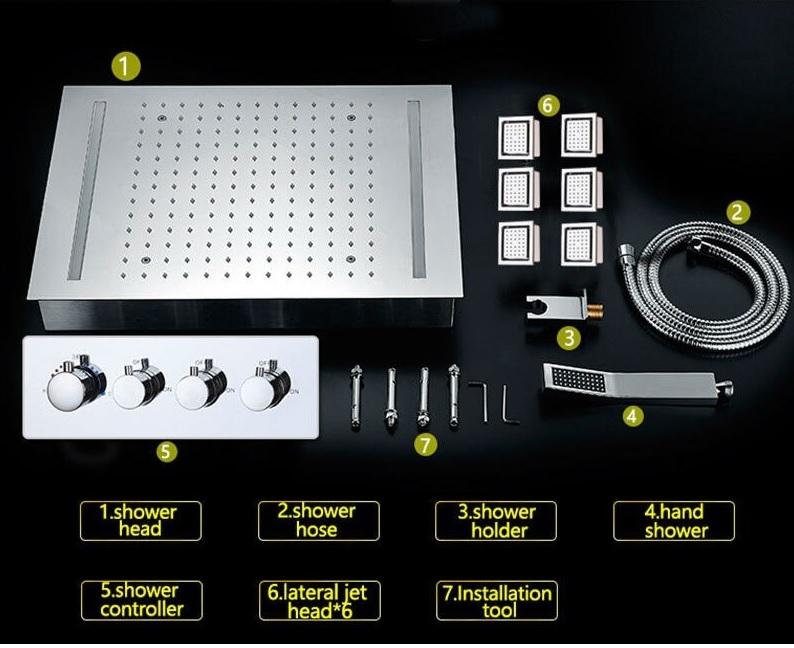

Before you begin, please read the installation instructions below. Observe all local building and safety codes.
Unpack and inspect the product for any shipping damages. If you find damages, do not install.
Please note all products must be installed by a professional and certified plumber otherwise warranty might be voided.
shower
Shower Head Installation Instructions
Step 1:
recessed
Step 2:
Step 3:
Step 4:
Step 5:
Step 6:
Step 7: (LED Control Box)
Step 8:
Step 9: (Connecting Circuits)
Hand Held Shower Installation Instructions
Step 1:
Step 2:
Hand
Held
Shower
Hand Held Shower
Handheld Shower
Step 3:
Handheld Shower
Shower Body Jets Installation Instructions
Step 1:
Step 2:
Body
spray
Remove the decorative plate (A) out of the body.
Remove the screws from the outlet face (B) and connector body (C) with the Allen key (D).
Body Spray Installation Instructions
Step 3:
Step 4:
Screw the threaded pipe (E) to the water supply fittings. Push the plastic box (F) into the wall through the threaded pipe (E). Then, install the decorative plate (I) into the plastic box (F). Make sure the position is correct according to the diagram.
Screw the connector (G) into the threaded pipe (E) with the Allen key (H). Install the connector body (C) to the connector (G). When finish installation, please check to make sure the connection is completed. Then, fix the screws into the body (C) with Allen key (D) and make sure the body (C), connector (G) and decorative plate (I) are tightened. Make sure the one side with the bulge is in the top position.
Body Spray Installation Instructions
Step 5:
Step 6:
Install the outlet face (B) to the body (C). Make sure the connection of body (C) and outlet face (B) are completed. Tighten the screw through the outlet face (B) into the body (C) with the Allen key (D).
Install the decorative plate (A) into the outlet face (B) tightly. Make sure the hole and the raised dot are in the correct position when you push the decorative plate (A) into the outlet face (B).

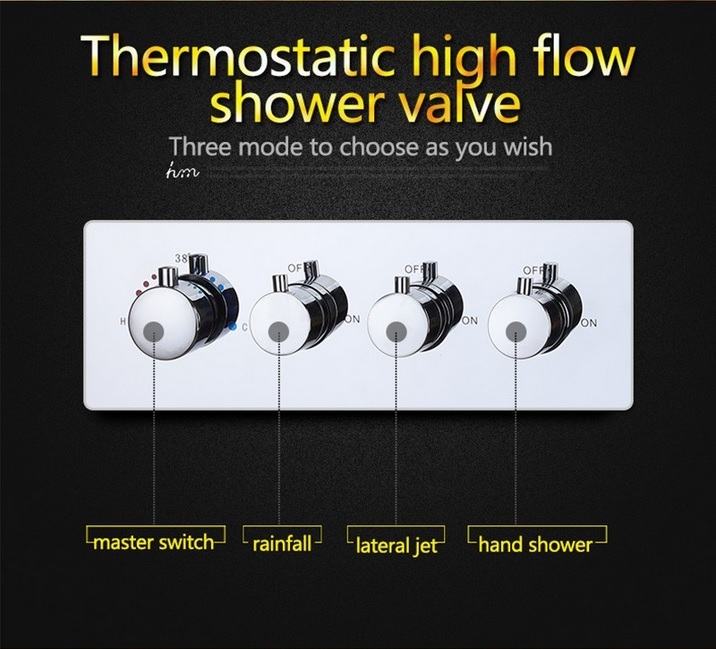

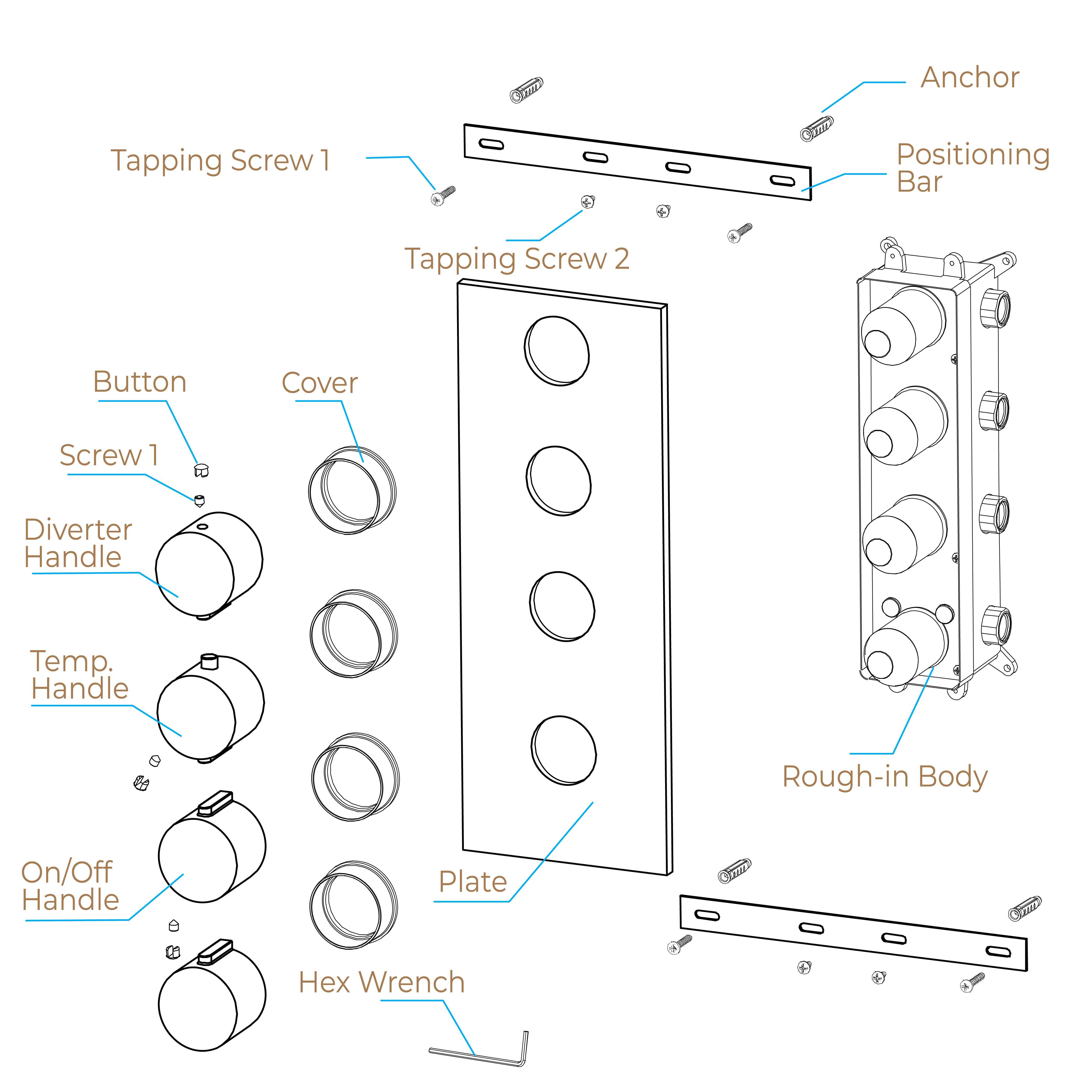

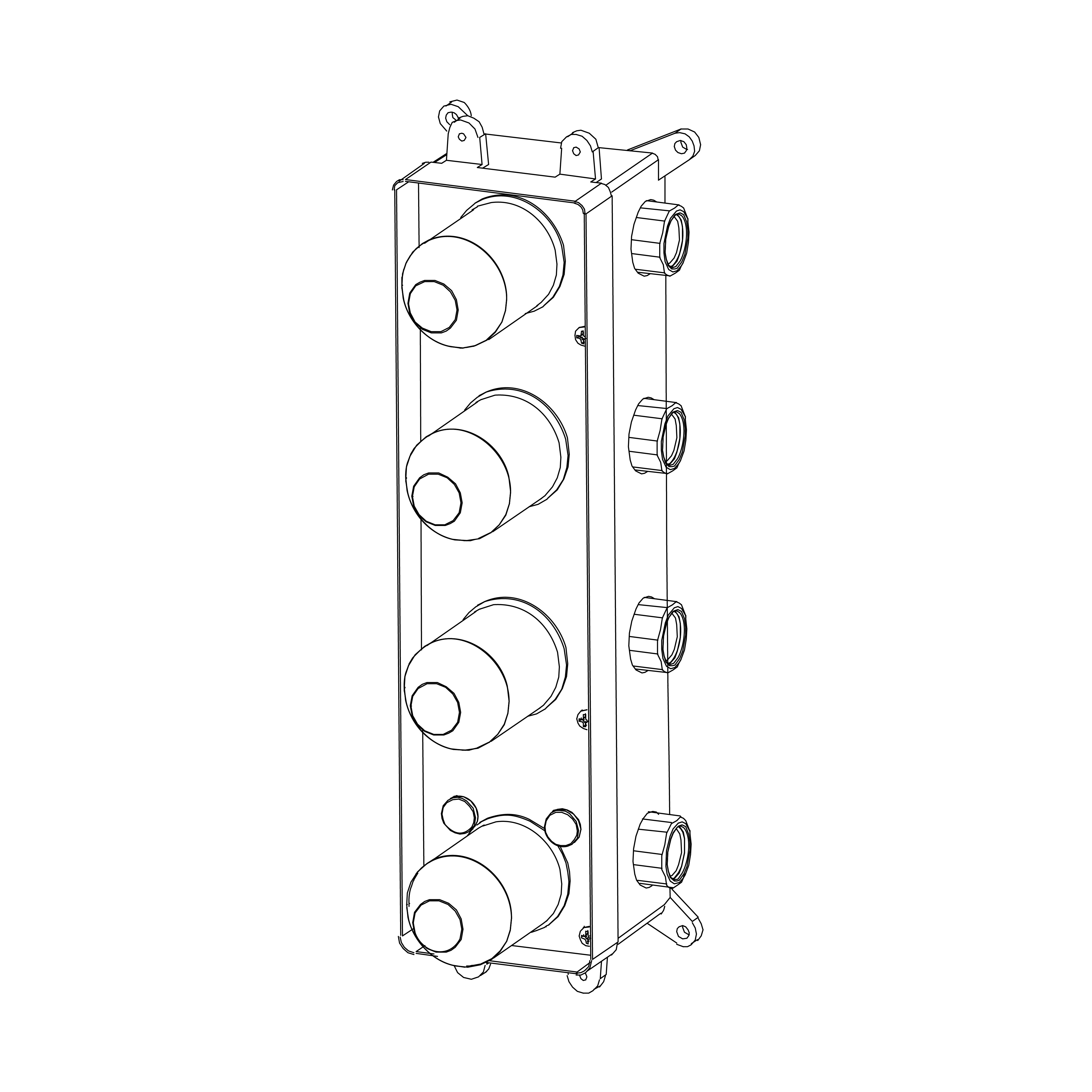

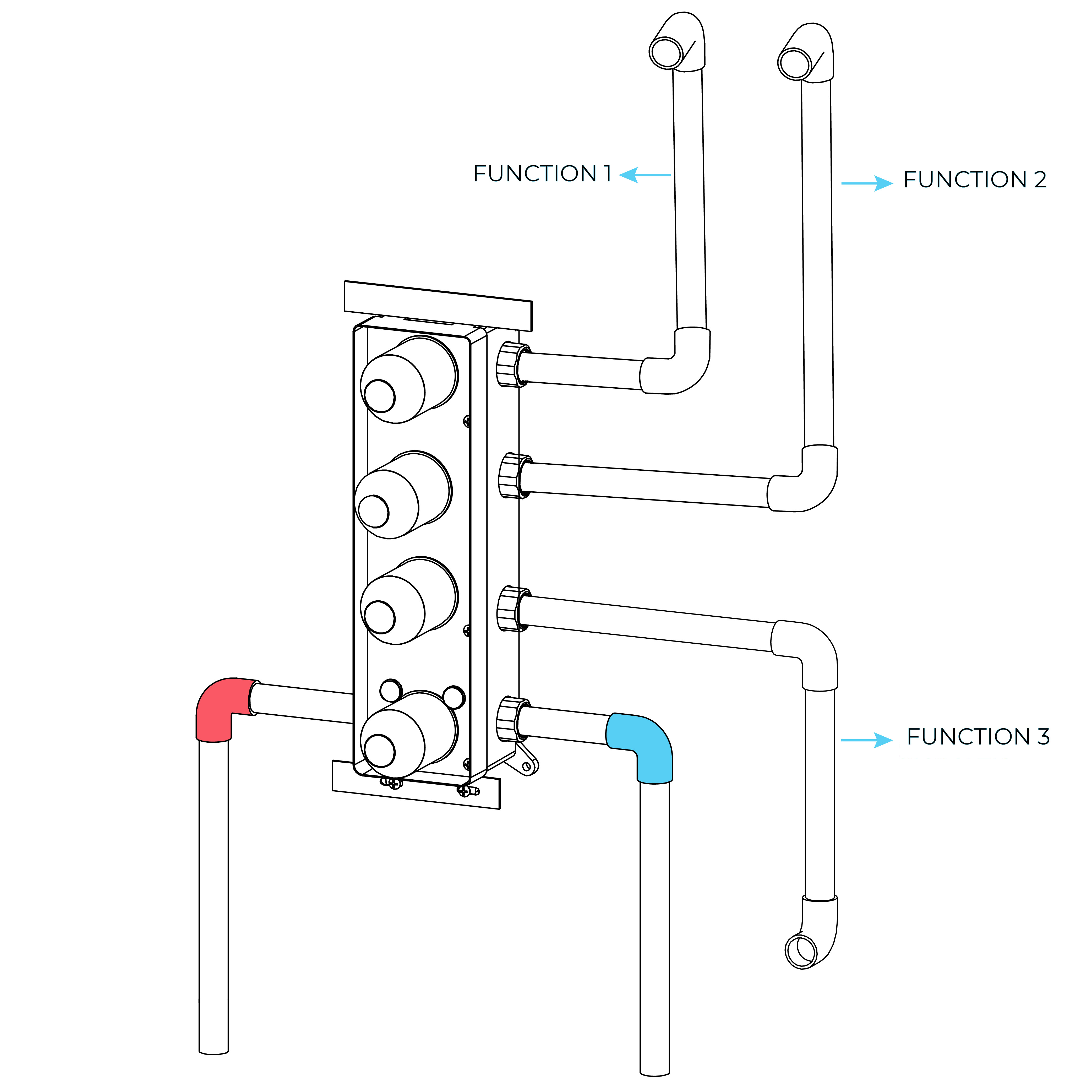

- Release 4 handwheel levers according to the above directions. - Take apart the embed valve, panel, and handwheel. - Dig the embed space for the pipe on the wall according to the specification of the valve. - Dig 4 holes according to the position of the screws. - Use a hammer to thwack the screws into 4 holes. - Fix the valve body with 4 screws. - Find out the expansion screw heads with washer and spring washer. Use copper sleeve wrench to lock the screw heads with the embed valve body. - After connecting all the pipes and before sealing the wall with concrete, confirm no leaking problem occur when you turn on the water. - Fix the decorative panel on the embedded valve body. - Screw the handwheel arms with the handwheels.
