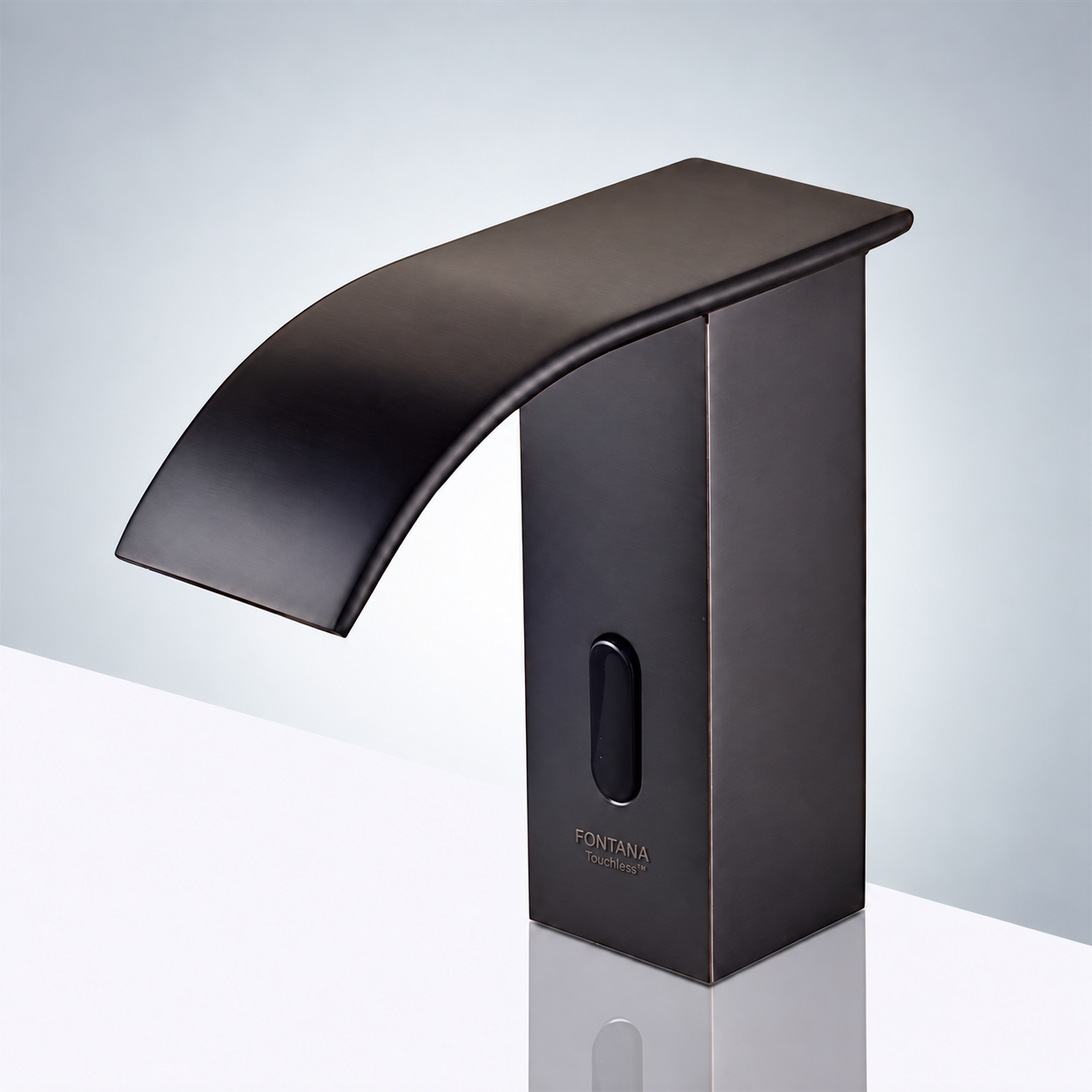

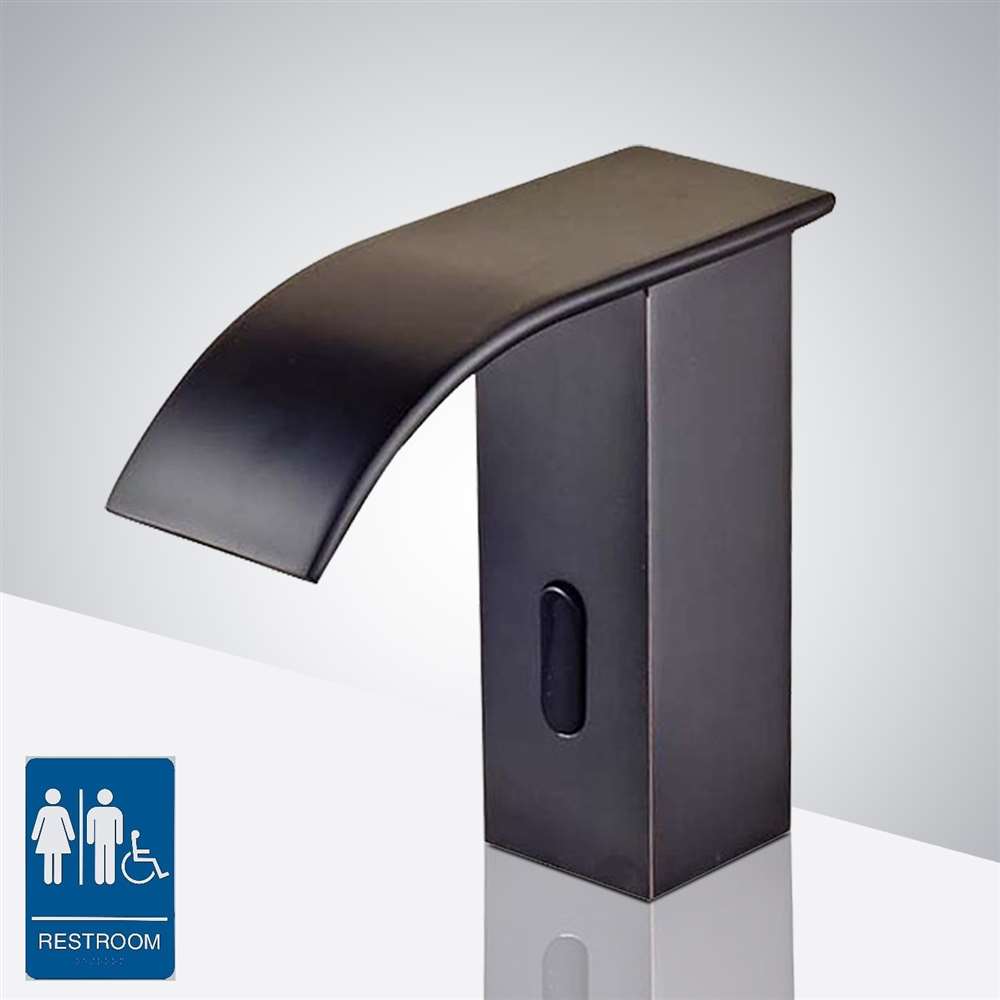

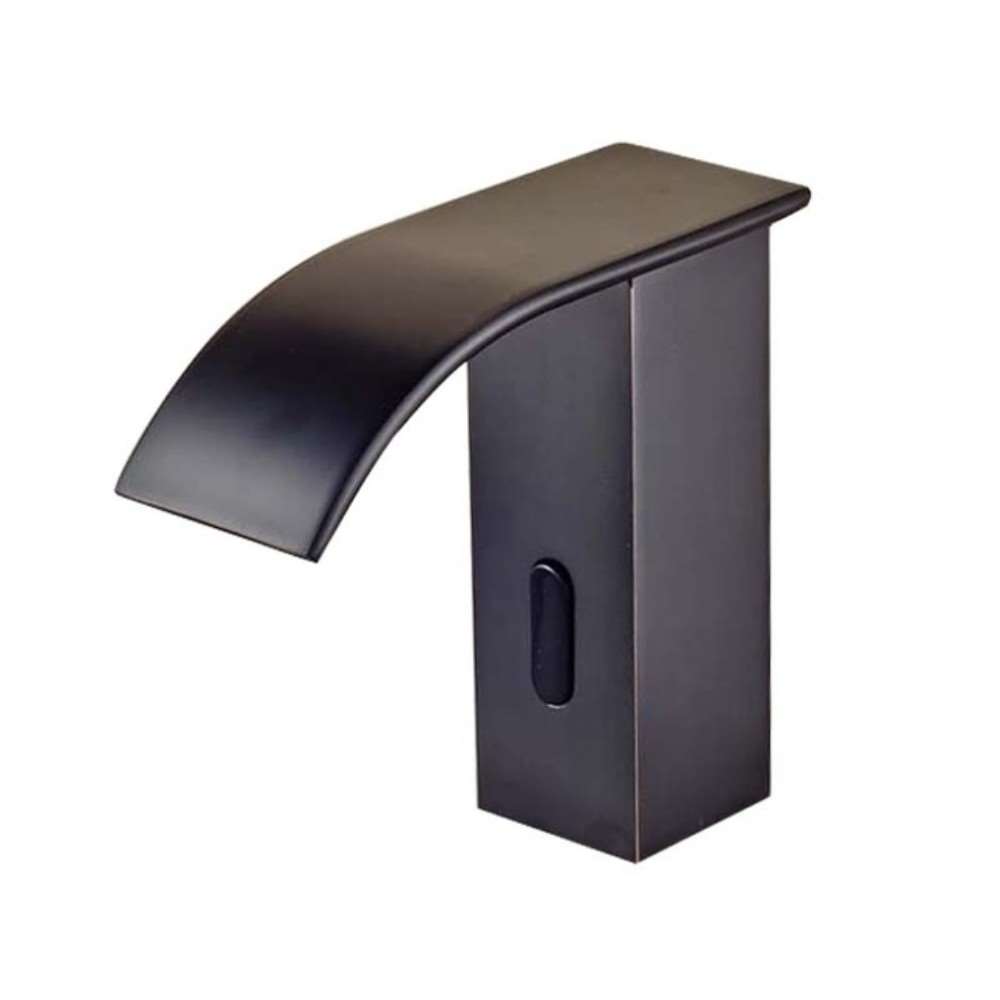

Fontana Matte Black Automatic Sensor Bathroom Faucet
Infrared Response Control, 0.05–0.8 MPa Pressure Compatibility & Commercial Brass Valve Engineering
Engineered for high-use commercial washrooms, this matte black brass faucet combines infrared activation with automatic flow control for hygienic, efficient hands-free operation.
How should sensor calibration account for reflective basin surfaces?
The infrared detection field should be evaluated after the faucet and basin are fully installed. Highly reflective surfaces can return infrared energy toward the receiver, so final commissioning should confirm reliable hand detection without unintended activation from the basin, countertop, or surrounding fixtures.
How does the 0.05–0.8 MPa pressure envelope affect hydraulic specification?
The faucet is specified for approximately 7.3–116 PSI supply pressure. Designers should verify dynamic pressure at the fixture during peak simultaneous demand because upstream friction losses can reduce available pressure and alter discharge performance even when static pressure remains within the specified range. :contentReference[oaicite:0]{index=0}
What hydraulic considerations apply to the stated 6-liter water-saving volume?
The automatic control architecture limits unnecessary continuous discharge by tying water delivery to sensor demand. Actual consumption per use depends on activation duration and supply conditions, so commissioning should verify shutoff response and flow behavior under the building's operating pressure. :contentReference[oaicite:1]{index=1}
Why is NSF/ANSI 61 material compliance significant for commercial specification?
NSF/ANSI 61 addresses health-effects requirements for materials and components contacting drinking water. For this brass electronic faucet, the stated compliance supports specification in institutional and commercial potable-water systems where material suitability is an important plumbing-design consideration. :contentReference[oaicite:2]{index=2}
Lower Calibration Complaints
