Hang the washbasin on the wall.
When AEC professionals plan, design, and coordinate, they should keep these things in mind:

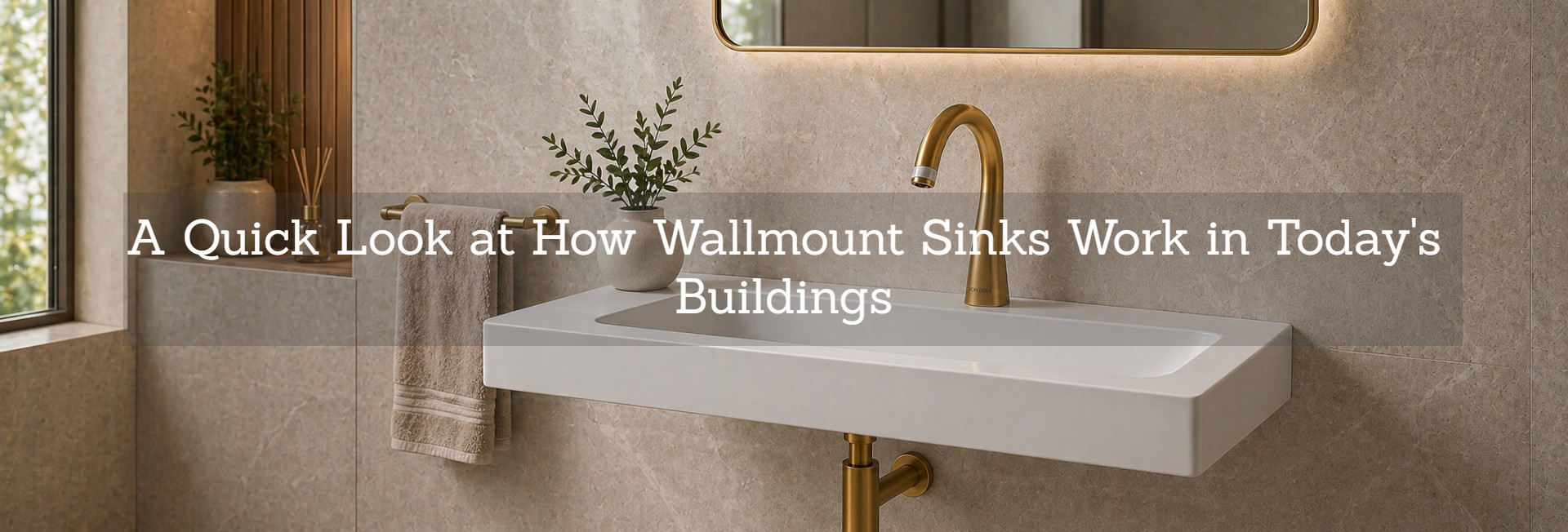

A Quick Look at How Wallmount Sinks Work in Today's Buildings
A washbasin that is mounted on the wall is a bathroom fixture. There are carrier systems that move all dead, live, and dynamic loads into the building structure. Some of these systems are hidden, while others are not.
Wall-mounted sinks
are mostly needed in public, institutional, and commercial buildings to make them easier to use, keep clean, save space, and be easy to care for over time. Wallmount sinks are not the same as vanity-mounted or pedestal fixtures because they are part of a plumbing, architecture, and structure system that works together. This means that they need to be put together in a lot of different places at first.
Wall-mounted sinks are great for places with a lot of people, like schools, hospitals, bus and train stations, and offices.
The area under the washbasin is open, which makes it easier for wheelchairs to get around, keeps the floor clean and cuts down on hidden areas that need to be cleaned.
Because of this, their performance depends on more than just the fixture.
It also depends on how well the wall assemblies, structural backing, plumbing rough-ins, and code-required clearances are all put together.
What buildings are used for and how well they work
Following the rules, codes, and making things easy to get to are all part of accessibility.
Standards for Plumbing and Fixtures
Most of the time, wall-mounted sinks have to follow the rules set by
ASME A112.19.2
and
CSA B45.1.
Read More
This tells you what the structure, materials, and performance of ceramic and vitreous china plumbing fixtures should be like.
When water efficiency is important
Read More
the fixtures must also work with faucets that use less water or have sensors that meet
EPA WaterSense
standards.
Local plumbing codes
Read More
may also say how long waste arms can be, how to vent them, and how to set up traps. The wall cavity has to be deep enough, and the carrier system has to be the right shape.
Putting together structures and systems for carrying things
Read More
On the other hand, wall-mounted sinks only use carriers that are attached to the wall to bring things into the building.
Most of the time, these carriers are made of heavy-gauge steel
Read More
and are attached to concrete, masonry, or wall studs. Choosing the right carrier is very important because it needs to be able to hold the weight of the fixtures, the water load, and the forces that the user puts on it while keeping everything in line for the life of the building.
When you do structural coordination
Read More
you check the distance between the studs, add steel backing where it's needed, and make sure that the wall assemblies work with ones that are rated for sound or fire.
Putting the system together and getting the plumbing ready
When you're roughing in, you have to be very careful with sinks that are attached to the wall.
- The hot and cold water supply stub-outs have to be in the right places for the taps and fixtures to work.
- The waste outlets on the trap and the carrier also need to be shaped and placed correctly.
- Pipes that are outside or hard to get to for service can have problems even with small changes.
More and more people are using wall-mounted sinks with faucets that don't need to be touched or that work with sensors.
- You might have to plug these into an outlet, use low-voltage wiring, or hide the control modules inside the wall.
- That's why it's important to hire electrical and controls consultants, especially in healthcare or high-security settings where access control and system redundancy may be needed.
- Choosing the right materials and how well they work
Choosing the right materials and how well they work
The materials you use to make wallmount sinks
Read More
will affect how long they last, how much it costs to keep them up, and how long they last.
Vitreous china and porcelain
Read More
are still the most popular materials because they don't soak up water, are resistant to chemicals, and are easy to clean.
People often put stainless steel sinks
Read More
in places like the back of a house, a lab, or on a bus where they need to be able to take a lot of abuse and vandalism.
Stainless steel wall-mount sinks
You should think about how often it will need to be cleaned
Read More
what cleaning products will work with it, and how well it will go with other finishes in the building when you choose a finish.
How to Get It Ready and Make Sure It Works
Read More
To put in wall-mounted sinks correctly, you need to check the carrier anchorage, the tolerances of the wall assembly and the order of the finishes.
How to Get It Ready and Make Sure It Works
|
The carriers must be straight and level before the wall is closed.
|
Before you can put in fixtures, you need to check the rough-ins and test the pressure.
|
|
The last step of installation should include
|
screws that can be tightened with torque, sealing that keeps water out at wall penetrations, and making sure there is enough room for everything.
|
|
Wall-mounted sinks often break
|
because they don't have enough support or the pipes aren't lined up correctly.
|
|
These issues
|
should be fixed with detailed shop drawings and meetings before installation.
|
|
How to Write Down Your Plans
|
Division 22 specifications should clearly explain what wallmount sinks are and include clear references to fixture standards, carrier requirements, and accessibility criteria.
|
|
This will help
|
make sure that the job gets done on time.
|
|
The drawings for the bathroom
|
should be bigger, and they should include rough-in measurements and notes on how to match the types and finishes of the walls.
|
When you use BIM-based workflows
you should model sinks that are mounted on walls so you can see how far apart they are, where the carrier goes, and how to get to the service.
This makes it less likely that problems will happen while building.
Final thoughts
It works much better when the wall-mounted washbasin is part of a bigger building system than when it is its own piece.
Some of these benefits
- are easier access, better hygiene, a longer life, and less work to keep up with.
- The architecture, structure, plumbing, and electrical fields all need to work together from the start for the project to go well.
- The paperwork needs to be correct and the specifications need to be clear for this to work.
Final thoughts
It works much better when the wall-mounted washbasin is part of a bigger building system than when it is its own piece.
Some of these benefits are easier access, better hygiene, a longer life, and less work to keep up with.
The architecture, structure, plumbing, and electrical fields
all need to work together from the start for the project to go well.
The paperwork needs to be correct
and the specifications need to be clear for this to work.
People who work in AEC
need to make sure that wall-mounted sinks are installed correctly so that they are safe for the people who live in the building and so that they keep working well over time.
People use them a lot
in airports, hospitals, outpatient clinics, universities, Class A office cores, and government buildings.
From a functional point of view
wall-mounted sinks are chosen to meet both regulatory and operational needs.
How to Write Down Your Plans
Division 22 specifications
- should clearly explain what wallmount sinks are
- and include clear references to fixture standards, carrier requirements, and accessibility criteria.
- This will help make sure that the job gets done on time.
- The drawings for the bathroom should be bigger
When you use BIM-based workflows
you should model sinks that are mounted on walls so you can see how far apart they are, where the carrier goes, and how to get to the service. This makes it less likely that problems will happen while building.
|
|
