Fontana Sierra Oil Rubbed Bronze Multi-Color Led Showerhead with Adjustable Body Jets and Mixer

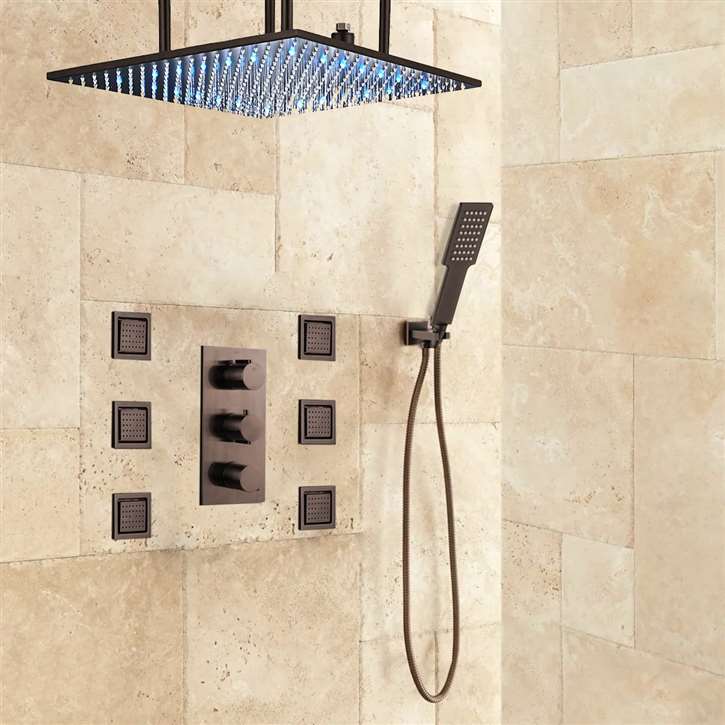

The Fontana Sierra Oil Rubbed Bronze Multi-Color Led Showerhead with Adjustable Body Jets and Mixer is manufactured using superior quality solid brass material. The Sierra shower head is square with a rainfall function that is available in sizes - 20" X 20", 24" X 24", 31" X 31", 40" X 20", and 40" X 40". The shower set comes with a ceiling mount showerhead, 6 body massage sprays, and a handheld shower to offer you complete showering convenience. The light oil-rubbed bronze finish on this ceiling mount rain shower head gives it a warm and inviting look. When the LED lights are activated the water glow enhances the bronze finish. Six body jets combined with a handheld shower provide all-over coverage for your bathing experience. Built-in hydro-powered device powers the LED lights, which provide visual shower temperature cues to reduce water waste. The lights will dim and brighten when you lower and raise the pressure so you can set the perfect mood, water, and lighting.

Fontana Sierra Oil Rubbed Bronze Multi-Color Led Showerhead with Adjustable Body Jets and Mixer Features:

Brand Name: FontanaShowers
Model Number: FS-6401RB
Material: Solid Brass
Finish: Light Oil Rubbed Bronze
Style: Contemporary Rain Showerhead
LED Power Source: Water Flow
LED Color: Blue, Green, Red
Installation: Ceiling Mount
Connection: 1/2" US standard
Included: Shower Arm, Body Jets
Shower Flow: Rainfall
Shower Head Sizes: 20" X 20", 24" X 24", 31" X 31", 40" X 20", 40" X 40
Number of Handles: Triple Handle

FontanaShowers®Product Warranty Information

Before you begin, please read the installation instructions below. Observe all local building and safety codes.
Unpack and inspect the product for any shipping damages. If you find damages, do not install.
Please note all showers must be installed by a professional and certified plumber otherwise warranty might be voided.

shower

Shower Head Installation Instructions

Shower Head Installation Instructions		Shower Parts

Shower Head Installation Instructions
Step 1:	shower	Step 2:

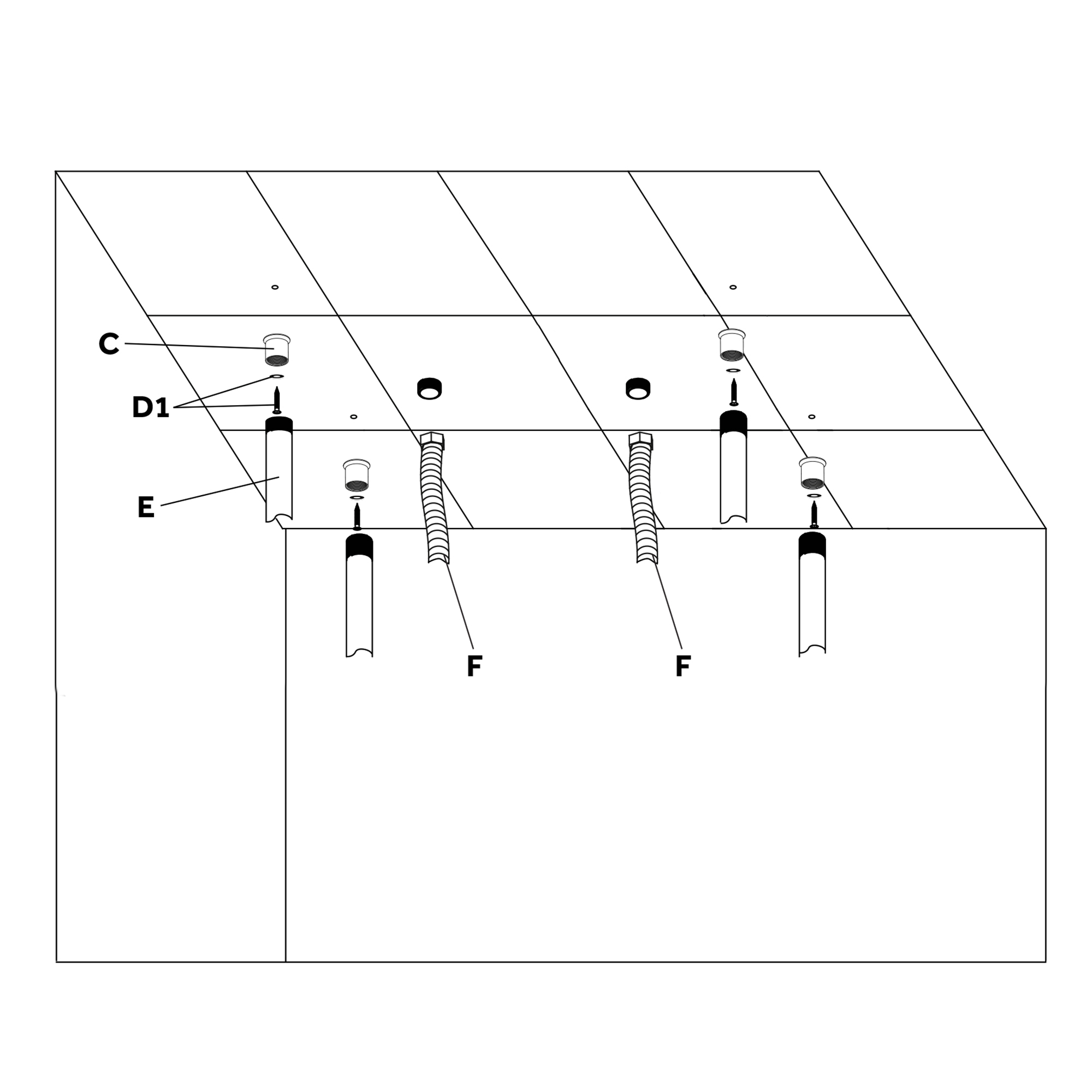

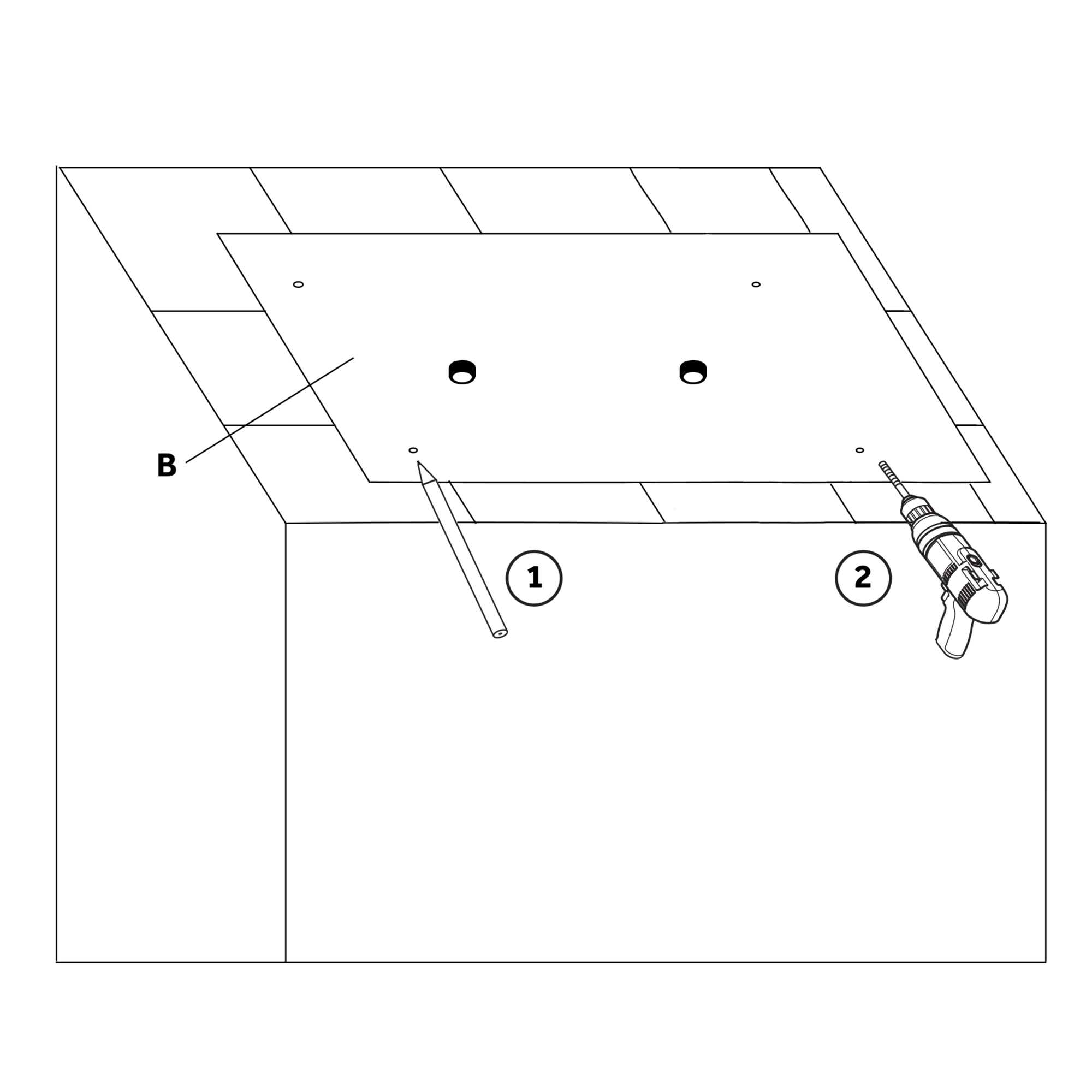

According to the template (B) mark the location of the mounting holes (1). Use a drill with a 6mm bit to drill mounting holes into studs or blocking.		Install the mounting brackets (C) with the tapping screws (D1). Thread the shower bars (E) onto the mounting brackets, and the inlet hose (F) onto the water inlet.
Shower Head Installation Instructions
Step 3:		Step 4:

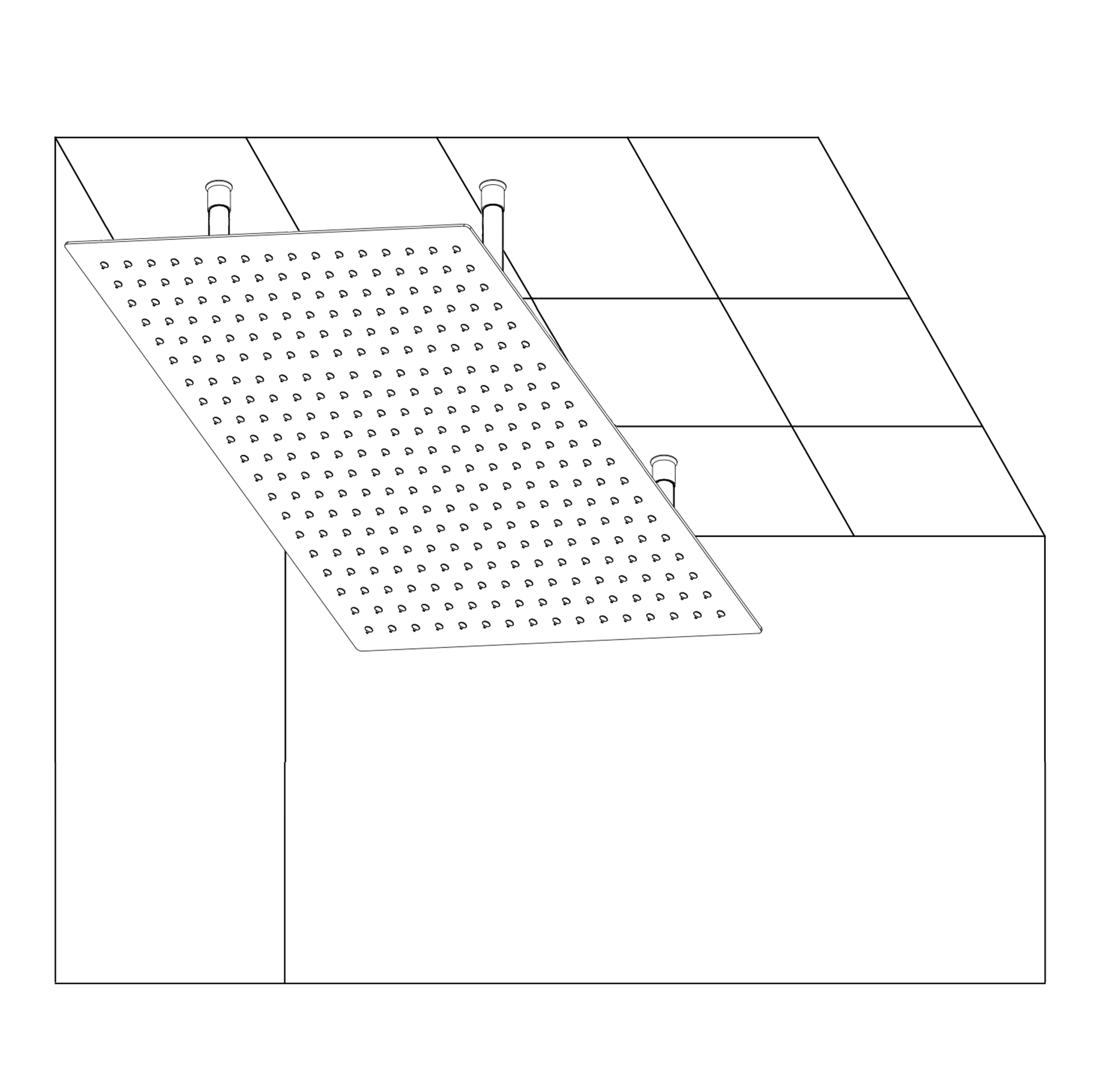

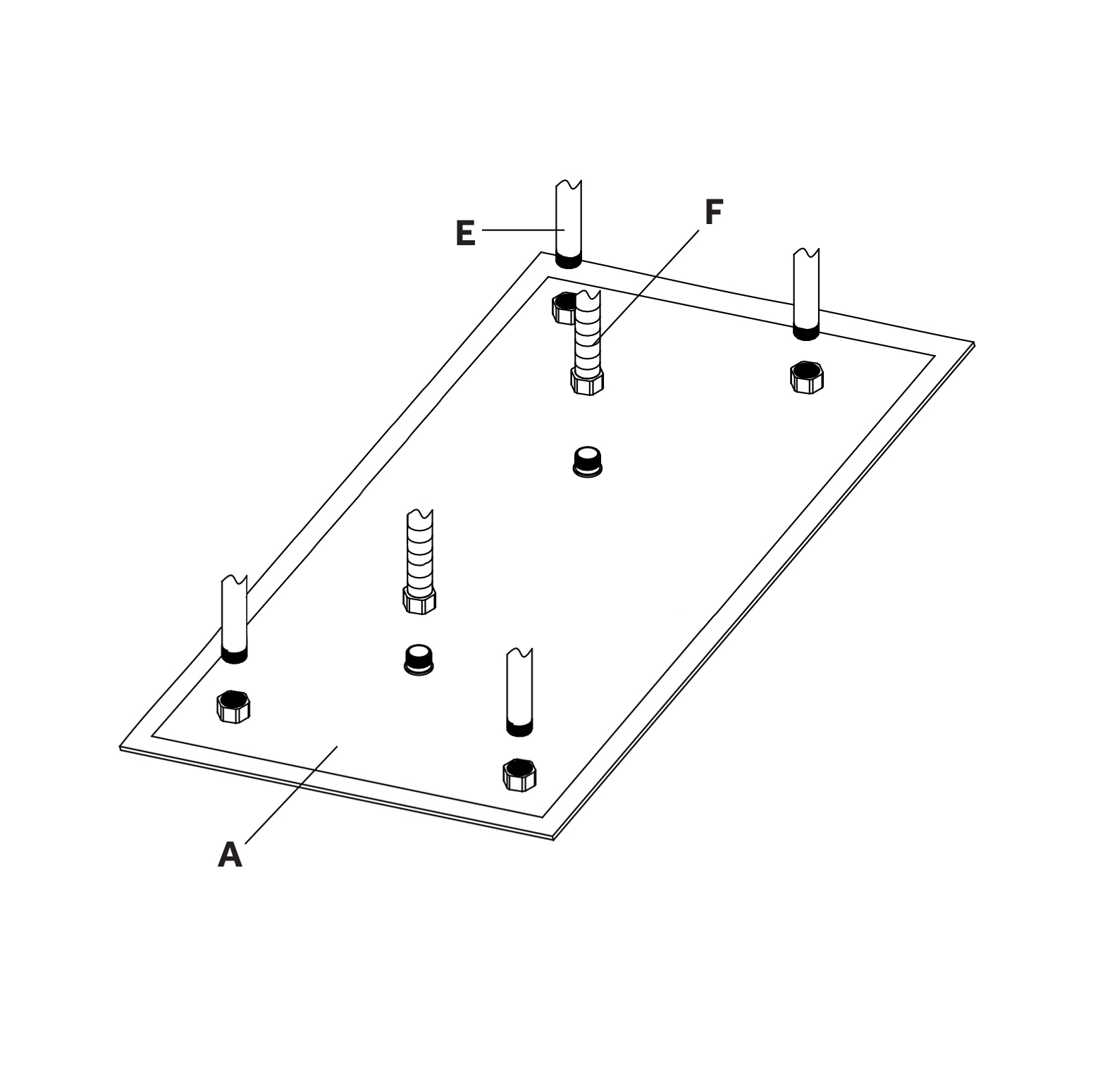

Attach the shower head (A) to the shower bars (E). Connect the inlet hose (F) to the showerhead.
Shower Head Installation Instructions
Step 5:

Shower Head Installation Instructions

Hand Held Shower Installation Instructions

Step 1:		Step 2:
	Hand Held Shower		Hand Held Shower
Handheld Shower
Step 3:

Shower Body Jets Installation Instructions

Step 1:		Step 2:
	Body sprays
Remove the decorative plate (A) out of the body.		Remove the screws from the outlet face (B) and connector body (C) with the Allen key (D).
Body Spray Installation Instructions
Step 3:		Step 4:

Screw the threaded pipe (E) to the water supply fittings. Push the plastic box (F) into the wall through the threaded pipe (E). Then, install the decorative plate (I) into the plastic box (F). Make sure the position is correct according to the diagram.		Screw the connector (G) into the threaded pipe (E) with the Allen key (H). Install the connector body (C) to the connector (G). When finish installation, please check to make sure the connection is completed. Then, fix the screws into the body (C) with Allen key (D) and make sure the body (C), connector (G) and decorative plate (I) are tightened. Make sure the one side with the bulge is in the top position.
Body Spray Installation Instructions
Step 5:		Step 6:

Install the outlet face (B) to the body (C). Make sure the connection of body (C) and outlet face (B) are completed. Tighten the screw through the outlet face (B) into the body (C) with the Allen key (D).		Install the decorative plate (A) into the outlet face (B) tightly. Make sure the hole and the raised dot are in the correct position when you push the decorative plate (A) into the outlet face (B).
Body Spray Installation Instructions

Shower Thermostatic Mixer Installation Instructions

Mixer Installation Instructions

Parts: 1. Rough-In Body x1 2. Anchor x4 3. Positioning Bar x2 4. Tapping Screw 1 x4 5. Tapping Screw 2 x4 6. Plate x1 7. Cover x3 8. Button x3 9. Screw 1 x3 10.Diverter Handle x1 11. Temperature Handle x1 12. Volume Handle x1	Shower Mixer

Step 1:		Step 2:
	Shower Mixer

Shower Valve Mixer Installation Instructions
Step 3:		Step 4:

Attach the positioning bar to the rough-in body (4,5) with tapping screws. Mark the location of the mounting holes.		Remove the rough-in body and drill pilot holes at the locations marked in the previous step. Insert anchors.
Shower Valve Mixer Installation Instructions
Step 5:		Step 6:

Attach the rough-in body to the wall.		Connect the rough-in body to the water supply pipes according to the diagram.
Shower Valve Mixer Installation Instructions
Step 7:		Step 8:

Finish the wall surrounding the shower with a thickness of 1/2"-1-1/2". a) Finished wall surface should not exceed the upper edge of the installation box.		If the tile exceeds the edges of the installation box, trim the tile as necessary to install the trim plate. b) Trim the tile around the installation box as necessary.
Shower Valve Mixer Installation Instructions
Step 9:

Remove the plastic guard and place the trim plate over the installation box. Install the screws covers, handles and buttons.
Shower Valve Mixer Installation
