Home > How to Install the Fontana Lenox Shower Set?

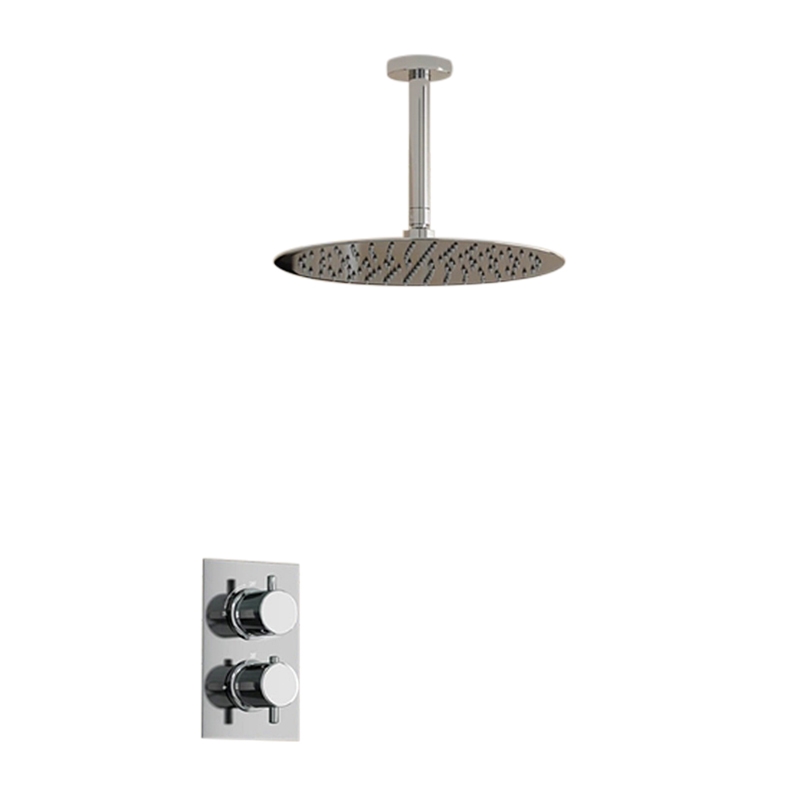

Fontana Lenox Shower Set Shower Ultra Thin Shower Head with Built in Thermostatic Valve Shower Mixer

This concealed thermostatic mixer valve shower set is a perfect addition to any bathroom. The thermostatic mixer valve gives you complete temperature control with a built-in anti-scalding device, so you'll never have to worry about a drop in temperature again. Chrome plated solid brass construction Built-in anti-scald device set to 38° Easy clean anti-lime scale rubber jets Minimum wall depth of 3.42" (87mm) required Minimum 1.0 bar water pressure.

Fontana Lenox Shower Set Shower Ultra Thin Shower Head with Built in Thermostatic Valve Shower Mixer Features:

  • Brand Name: FontanaShowers
  • Model Number: FS2961CM
  • Type: Shower Set
  • Style: Contemporary
  • Number of Handle: Dual Handle
  • Type: Fixed Rotatable Type
  • Surface Finish: Chrome
  • Feature: Thermostatic Mixer
  • Cold/Hot Water Control Type: Dual Holder Dual Control
  • Size: 8", 10", 12", 16", 20", 24"
  • Surface Treatment: Polished
  • Valve Core Material: Ceramic
  • Installation Type: Ceiling Mount
    		•  Fontana Lenox Shower Set Shower Ultra Thin Shower Head with Built in Thermostatic Valve Shower Mixer
    lenox-ceiling-mixer-shower-ultra-thin-chrome dimension-ceiling-mixer-shower-ultra-thin-bathroom
    FontanaShowers® Product Warranty Information FontanaShowers Product Warranty












    1. Ceiling arm mounting plate
    2. Olive
    3. Locking nut
    4. Ceiling trim
    5. Ceiling arm
    6. Emily fixed showerhead
    7. Fixing screws and wall plugs (not shown)

    dimension-ceiling-mixer-shower-ultra-thin-bathroom
    Fontana 16″ Oil Rubbed Bronze Round LED Rainfall Showerhead
    Fontana Lenox Shower Installation Resources
    Coordinate the Fontana Lenox Shower Set
    Plan the concealed controls, shower outlets, finished-wall depth and service access before completing the enclosure.
    Installation Guides
    All FontanaShowers Installation Guides Shower Installation Details
    Lenox System
    Wall Rough-In Dimensions Shower-Head Requirements
    Mixer & Valve
    Mixer Installation Hub Valve Rough-In Detail
    Components
    Handheld Installation Body-Jet Installation
    Technical Files
    BIM / Revit Library Architect Resources
    Project Support
    Installation & Maintenance Compliance Records
    ALL FONTANASHOWERS INSTALLATION GUIDES →

    Lenox Shower Installation Questions

    Why must the finished-wall thickness be calculated early?

    It controls the final relationship between the concealed valve, trim plate and handles and prevents recessed or projecting controls.

    Should supply lines be flushed before valve connection?

    Yes. Flushing helps prevent construction debris from obstructing the cartridge, check valves, filters or spray outlets.

    What service access should be preserved?

    Preserve access required for cartridges, controls and serviceable connections as directed by the model documentation and local code.

    What belongs in the final operational test?

    Test each outlet, control movement, temperature response and every visible or accessible connection for leakage.

    Fontana Lenox concealed shower-system installation planning


    The installation and illustrations provided are for informational purposes only.

    For detailed and accurate installation instructions, please refer to the

    product specifications or the corresponding BIM file.
