Installation Instructions

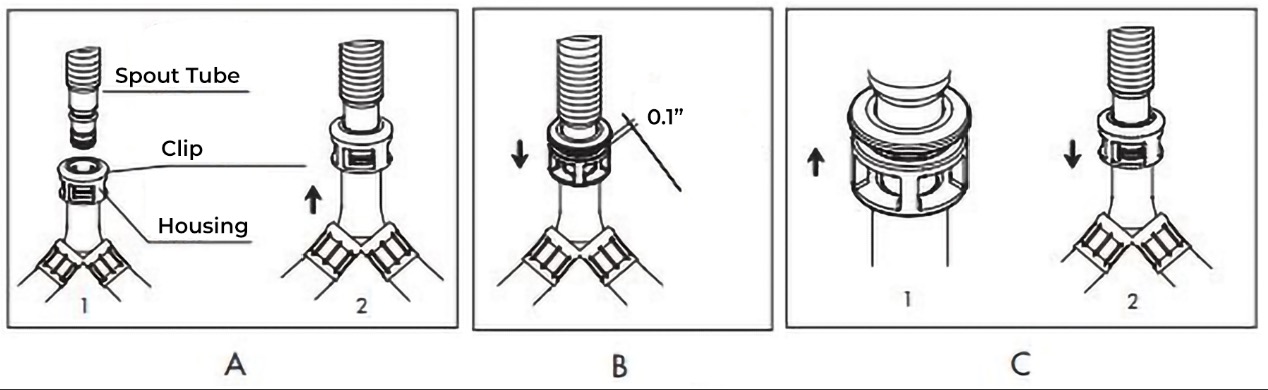

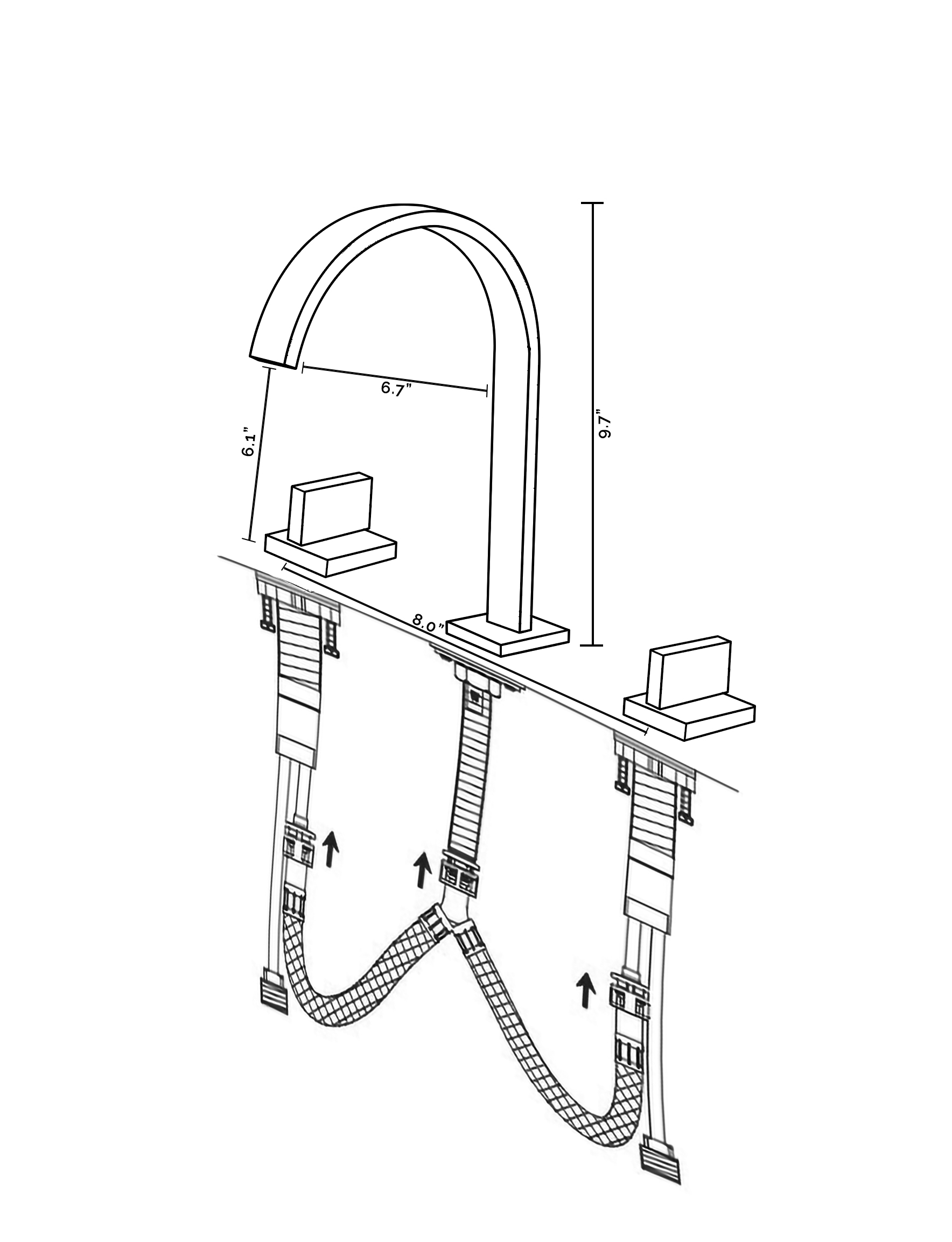

Install the quick connect hoses between the spout and the valves. Push onto the fitting to lock, pull down to check for a secure connection.NOTE: To install the quick fittings, follow these simple steps: - Push quick connect housing firmly upwards onto the spout tube until a click is heard.
- Pull down on quick connect housing. If you cannot pull off, the quick conned is secure.
To disconnect (C): Push up housing tight to clip. While holding the assembly together, push down complete assembly to release from spout tube.
|
