Fontana Lima Wall Mount Rainfall Shower System

The Fontana Lima Wall Mount Rainfall Shower System is manufactured using superior quality bronze and is available in 3 different finishes; light oil rubbed bronze, brushed nickel or chrome. The Lima system shower head is round with a rainfall function that is available in sizes - 8", 10", 12", and 16", 20". The shower system comes with a wall-mount showerhead, 6 body massage sprays, and a handheld shower to offer you complete showering convenience. The modern design handheld shower, and an easy-to-use mixer valve, both made from high-quality solid brass. Be sure, when it comes to new bathroom shower sets, FontanaShowers is offering shape, finish and styles you're looking for.

Fontana Lima Wall Mount Rainfall Shower System Features:

  • Brand Name: FontanaShowers
  • Model Number: FS17-BRONZE-SHOWER-SYSTEMS
  • Hand Shower Hose Length: 58-1/2"
  • Installation Type: Wall Mount
  • Finish: Light Oil Rubbed Bronze
  • Handle Type: Knob
  • Water Connection Included: Yes
  • Shower Arm Extension: 16"
  • Handle Material: Brass
  • Shower Arm Included: Yes
  • Spout Width: 3-1/2"
  • Shower Head Length: 7-7/8"
  • Ips: 1/2"
  • Spout Reach: 7"
  • Shower Head Ips: 1/2"
  • Hand Shower Style: Modern
  • Shower Head Swivel: Yes
  • Diverter Included: Yes
    		• Fontana Lima Wall Mount Rainfall Shower System


    Perlude Oil Rubbed Bronze1

    Hand-Held Shower

    Perlude Oil Rubbed Bronze3 Perlude Oil Rubbed Bronze4 Perlude Oil Rubbed Bronze5Perlude Oil Rubbed Bronze6Perlude Oil Rubbed Bronze7 Perlude Oil Rubbed Bronze8 Perlude Oil Rubbed Bronze9 Perlude Oil Rubbed Bronze10

    Thermostatic Mixer

    Perlude Oil Rubbed Bronze11

    Bodysprays

    Perlude Oil Rubbed Bronze12 Perlude Oil Rubbed Bronze13 Perlude Oil Rubbed Bronze14 Perlude Oil Rubbed Bronze15
    Fontana Lima Rainfall Shower Installation
    Install the Lima Wall-Mounted Rainfall Shower
    Coordinate wall support, shower-head projection, mixer rough-in, outlet routing and spray coverage.
    Installation Hub
    All Installation Guides Shower Installation Hub
    Rain Shower
    Rain Shower Requirements
    Lima Mixer
    Lima Mixer Installation
    Wall Rough-In
    Wall Rough-In Dimensions
    Valve
    Thermostatic Valve Detail
    Hand Shower
    Handheld Installation
    VIEW SHOWER INSTALLATION GUIDES →

    Frequently Asked Questions

    What should be confirmed before installing the Lima wall-mounted shower?

    Verify the head weight, wall support, arm projection, connection, valve configuration and intended spray location. Review Rain Shower Requirements

    How should rainfall-head projection be selected?

    Coordinate the actual arm and head dimensions with the intended standing area and enclosure boundaries.

    When should concealed piping be tested?

    Flush and pressure-test the supply and outlet connections before the finished wall restricts access.

    What should final testing include?

    Verify secure mounting, leak-free operation, temperature response and even rainfall coverage.

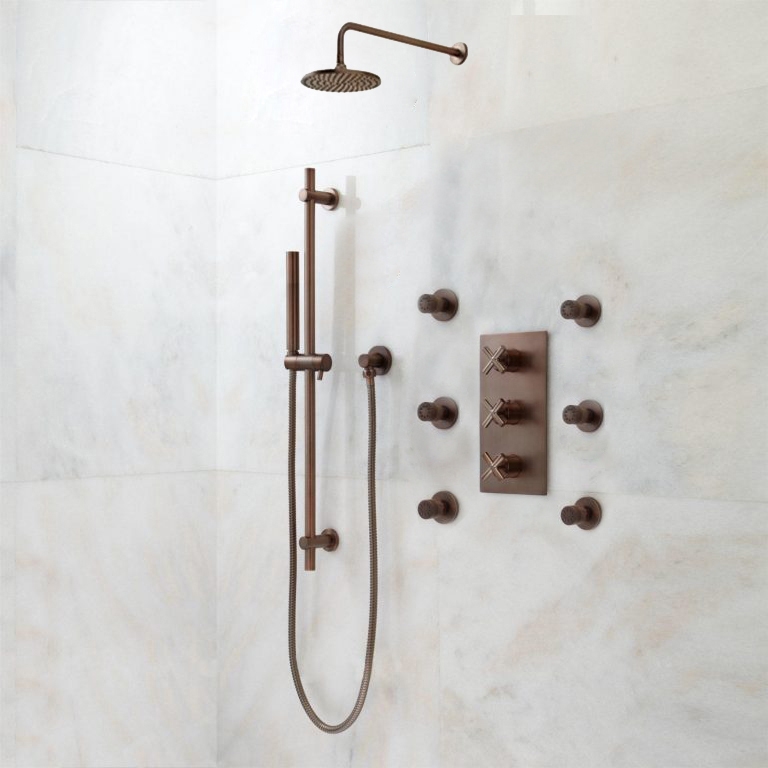

    Fontana Lima wall-mounted rainfall shower installation

    The installation and illustrations provided are for informational purposes only.

    For detailed and accurate installation instructions, please refer to the

    product specifications or the corresponding BIM file.
