Fontana Platinum Thermostatic Ceiling Mount Bathroom Rain Shower Set
This Fontana Platinum Quality Thermostatic Ceiling Mount Bathroom Rain Shower Set Provides a luxurious showering experience and is the perfect complement to any modern bathroom. An easy-to-use mixer valve, both made from high-quality solid brass. The Fontana Peru Quality Thermostatic Bathroom Rain Shower a modern design of smooth details and sharp edges. The warm, drenching water coverage is the result of a denser water pattern and larger droplets that retain their heat longer to soothe and revitalize. Be sure, when it comes to new bathroom sink faucets, FontanaShowers is offering shape, finish and styles you're looking for.
Fontana Platinum Thermostatic Ceiling Mount Bathroom Rain Shower Set Features:
|
Brand: FontanaShowers
Product Code: FS9594
Surface Treatment: Polished
Style: Contemporary
Material: Brass Main Body And zinc Alloy Handle
Operating Pressure: 0.05 Mpa-0.8 Mpa
Hot Water Temperature: 50℃-80℃
Security Stop: 38℃
Surface Finish: Chrome
Number of Handles: Five Handle
Valve Core Material: Ceramic
Color: Chrome
Material Analysis: Cu≥59%
Cold Water Temperature: 4℃-29℃
Temperature Range: 20℃-50℃
|
|
FontanaShowers® Product Warranty Information
- Before you begin, please read the installation instructions below. Observe all local building and safety codes.
- Unpack and inspect the product for any shipping damages. If you find damages, do not install.
- Please note all showers must be installed by a professional and certified plumber otherwise warranty might be voided.
|
Shower Set
|
|

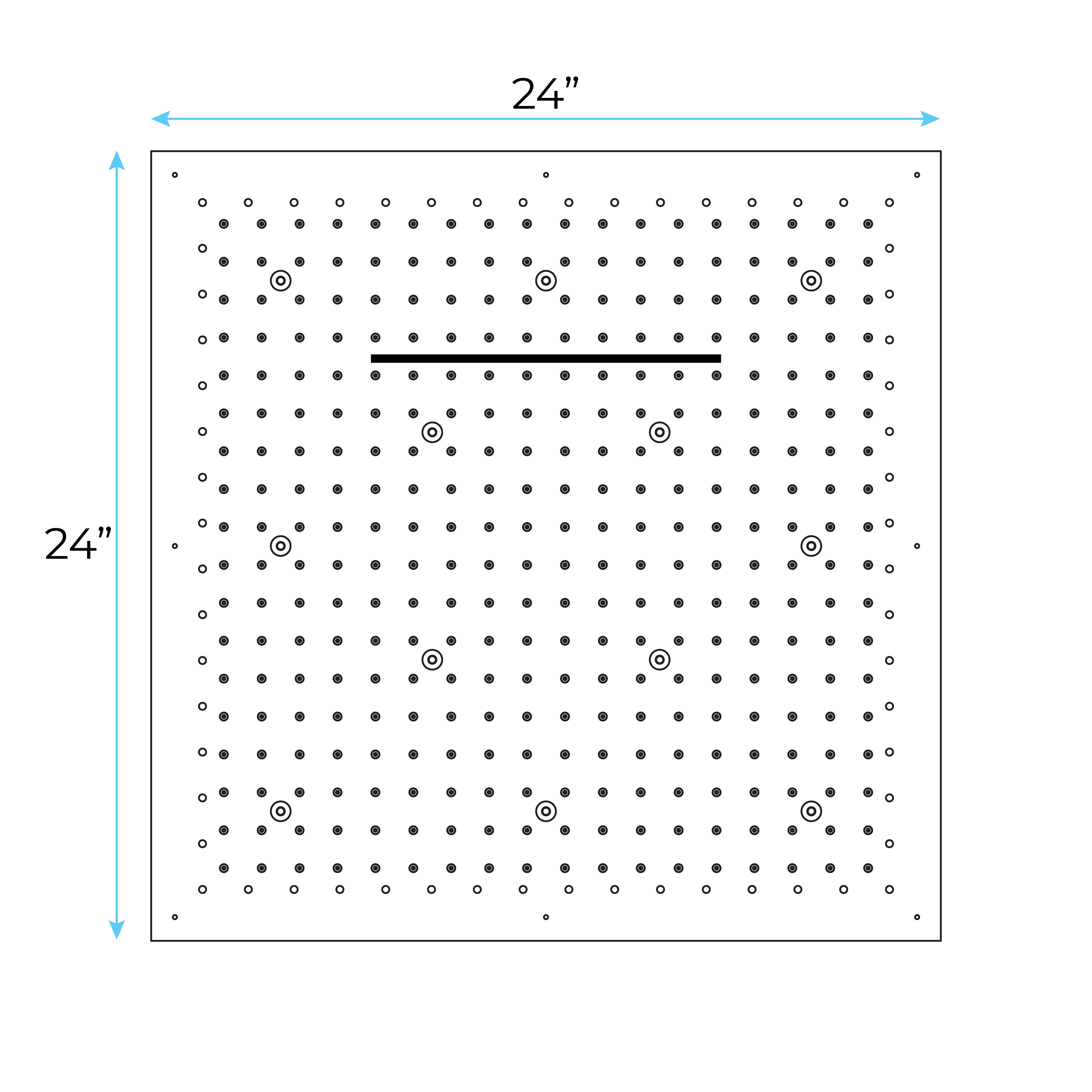

| | | Shower Size : | |
| |
Shower Head Installation Instructions
|
Step 1:
|
|
Step 2:
|
|
|
showerhead
|
|
|
|
Shower Head Installation Instructions
|
|
|
|
|
Step 3:
|
|
Step 4:
|
|
|
|
|
|
|
|
|
|
|
Shower Head Installation Instructions
|
|
|
|
|
Step 5:
|
|
Step 6:
|
|
|
|
|
|
|
|
|
|
|
Shower Head Installation Instructions
|
|
|
|
|
|
|
|
Hand Held Shower Installation Instructions
|
Step 1:
|
|
Step 2:
|
|
|
|
Hand
Held
Shower
|
|
Hand
Held
Shower
|
|
|
Handheld Shower
|
|
|
|
|
|
Step 3:
|
|
|
|
|
|
|
|
|
|
Shower Thermostatic Mixer Installation Instructions
|
Step 1:
|
|
|
Step 2:
|
|
|
Mixer
|
Valve
|
|
|
|
|
|
Release 4 handwheel levers according to the above directions.
Take apart the embed valve, panel, and handwheel.
|
|
Mixer Control Valve Installation Instructions
|
|
|
|
|
|
Step 3:
|
|
|
Step 4:
|
|
|
|
|
|
|
Dig the embed space for the pipe on the wall according to the specification of the valve.
Dig 4 holes according to the position of the screws.
|
|
|
Use a hammer to thwack the screws into 4 holes.
Fix the valve body with 4 screws.
|
|
|
Mixer Control Valve Installation Instruction
|
|
|
|
|
|
Step 5:
|
|
|
Step 6:
|
|
|
|
|
|
|
|
Find out the expansion screw heads with washer and spring washer. Use copper sleeve wrench to lock the screw heads with the embed valve body.
|
|
|
After connecting all the pipes and before sealing the wall with concrete, confirm no leaking problem occurs when you turn on the water.
|
|
|
Mixer Control Valve Installation Instruction
|
|
|
|
|
|
Step 7:
|
|
|
Step 8:
|
|
|
|
|
|
|
|
Fix the decorative panel on the embed valve body.
|
|
|
Screw the handwheel arms with the handwheels.
|
|
|
Mixer Control Valve Installation Instruction
|
|
|
|
|
|
Step 9:
|
|
|
Step 10:
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Mixer Control Valve Installation Instruction
|
|
|
|
|
|
Step 11:
|
|
|
Step 12:
|
|
|
|
|
|
|
|
Mixer Control Valve Installation Instruction
|
|
|
|
|
|
Step 13:
|
|
|
|
|
|
|
|
|
|
|
Fontana Platinum Ceiling Shower Resources

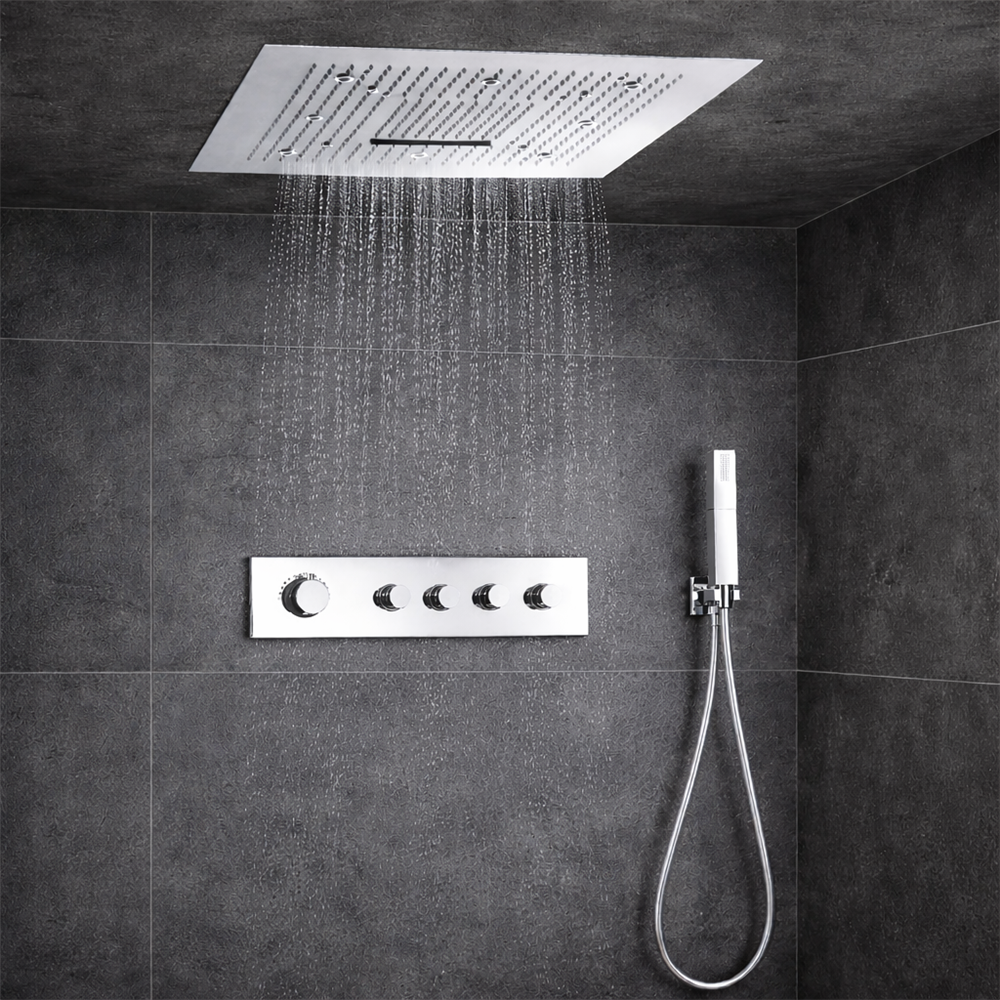

Install the Platinum Thermostatic Ceiling Shower
Coordinate overhead support, ceiling connections, thermostatic controls, rainfall delivery and service access.
Installation GuidesCeiling MountThermostatic ValveWater FunctionsTechnical FilesProject Support
Platinum Ceiling Shower Installation Questions
What must be coordinated above the ceiling?Coordinate structural framing, supply routing, fitting clearance, finished-ceiling depth and service access before enclosure. Can the ceiling finish support the shower assembly?No. Secure the assembly to suitable structural support rather than ceiling board, tile or suspended panels. When should overhead plumbing be tested?Pressure-test and inspect every concealed connection before ceiling closure and again under normal operating flow. Where can ceiling-mount planning be reviewed?Use the dedicated ceiling installation detail alongside the Platinum model documentation. Open Ceiling Details
|
|
|
