Fontana Round Thermostatic Mixer Shower Set with Optional LED Lighting

This versatile shower head comes in four different sizes: 8", 10", 12" and 16" so you can choose the right size to complement your bathroom. In addition to this, it comes in brushed nickel finish to blend with your style preferences. Optional LED lighting provides you with visual shower temperature cues to reduce water waste.

Fontana Round Thermostatic Mixer Shower Set with Optional LED Lighting Features:

  • Brand Name: FontanaShowers
  • Model Number: FS1261MS-G
  • Feature: Thermostatic Faucets
  • Type: Fixed Rotatable Type
  • GPM: 1.3
  • Water Flow Rate: 5 (L/Min)
  • Surface Finish: Chrome
  • Installation Type: Wall Mount
  • Cold/Hot Water Control Type: Dual Holder Dual Control
  • Number of Handles: Dual Handle
  • Finish: Gold
  • Valve Core Material: Ceramic
  • Surface Treatment: Polished
  • Style: Contemporary
  • Size: 8"
    		•  Fontana Round Thermostatic Mixer Shower Set with Optional LED Lighting
    FontanaShowers® Product Warranty Information FontanaShowers Product Warranty

    • Before you begin, please read the installation instructions below. Observe all local building and safety codes.
    • Unpack and inspect the product for any shipping damages. If you find damages, do not install.
    • Please note all showers must be installed by a professional and certified plumber otherwise warranty might be voided.
    		 shower

    Shower Head Installation Instructions
    Shower Head Parts Included:
    • Wall Mounting Arm
    • Locking nut
    • Wall trim
    • Shower arm
    • Showerhead Fixing screws
    and wall plugs (not shown

    Step 1: Step 2: Step 3:
    Wall Mount Round Showerhead Shower Shower
    Wall Mount Round Showerhead
    Step 4: Step 5: Step 6:
    Wall Mount Round Showerhead

    1. Remove the old shower head by using the channel lock pliers or monkey wrench. Be sure to turn the pliers counter-clockwise to loosen the old shower head. (Tip: Right is tight, left is loose.)

    2. Remove the shower arm by turning it by hand counter-clockwise. Make sure you remember to apply putty or tape to the new arm. (Tip: Using teflon tape is less messy)

    3. Apply teflon tape to the threading of the shower arm by wrapping it around the threads, go all the way around 3 or 4 times depending on the quality of the Teflon tape.

    4. Install the new shower arm by going clockwise by hand until it is tight, then put painters tape around the arm and tighten the arm with the channel lock or monkey wrench.

    5. Place Teflon tape around the threads on the shower head and then place the shower head onto the shower arm by turning the shower head clockwise after the shower arm is already in the wall.

    Thermostatic Mixer Installation Instructions


    Step 1:
    Mixer Valve


    Mixer Control Valve Installation Instructions
    Step 2: Step 3:



    Mixer Control Valve Installation Instruction
    Step 4: Step 5:




    How To Install The Shower Set With Showerhead, Hand Shower, And Shower Mixer
    Fontana Round LED Shower Installation
    Plan the Thermostatic Mixer Shower
    Coordinate the round LED showerhead, thermostatic mixer, wall rough-in, connected outlets and temperature commissioning.
    Installation Hub
    All Installation Guides Shower Installation Details
    LED Showerhead
    Rain Shower Requirements Ceiling-Mount Detail
    Thermostatic Mixer
    Thermostatic Rough-In Mixer Installation
    Other Outlets
    Handheld Installation Body-Jet Installation
    Commissioning
    Installation and Maintenance Compliance Records
    Product Guide
    Round Shower Guide BIM and Revit Files
    VIEW ALL INSTALLATION GUIDES →

    Round LED Shower Installation Questions

    What should be confirmed before installing the system?

    Confirm the showerhead mounting, mixer depth, inlet orientation and outlet routing using the exact product instructions. Open Product Guide

    Should the LED power method be verified?

    Yes. Confirm the model-specific lighting and power requirements before closing the ceiling or wall. Verify LED Requirements

    When should the mixer be calibrated?

    Calibrate after flushing and pressure testing, then verify temperature control and all connected shower functions. View Valve Rough-In

    Where are related installation guides?

    The installation hub connects this guide with mixer, showerhead, outlet and commissioning resources. Open Installation Hub

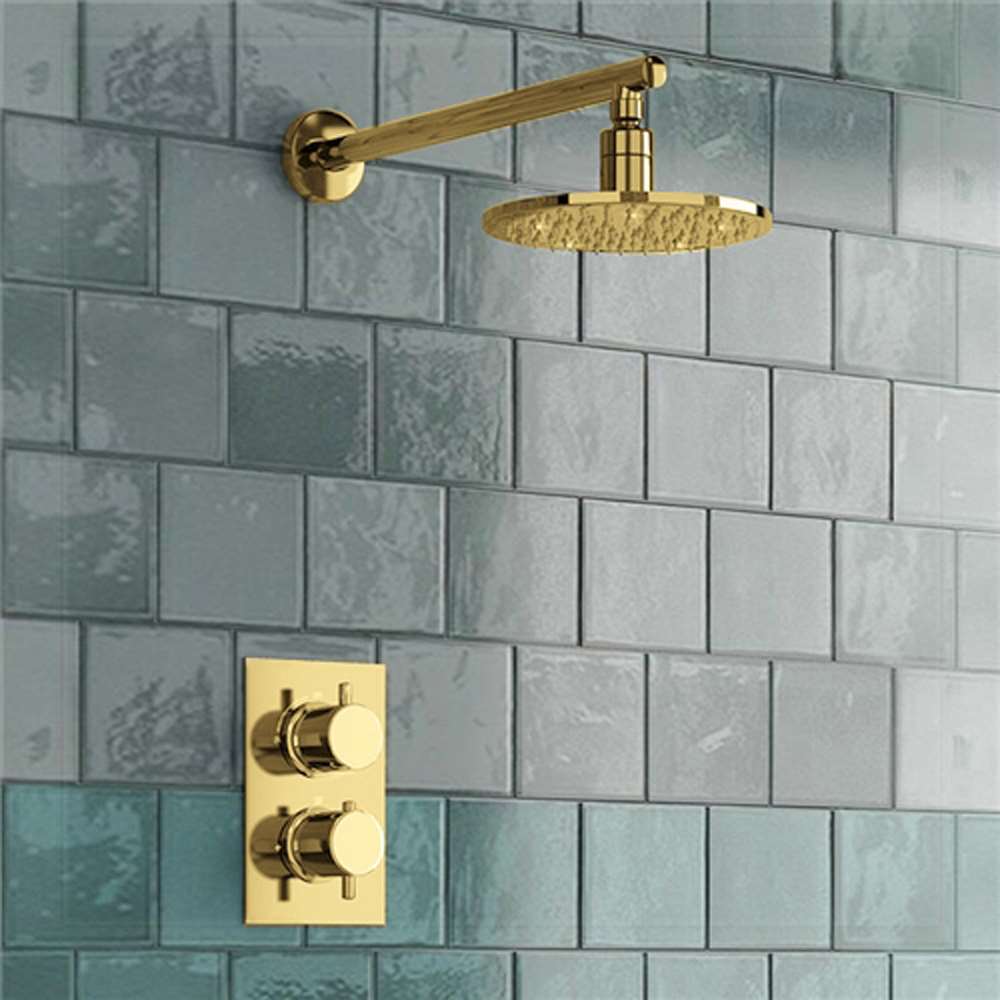

    Fontana round thermostatic LED mixer shower installation

    The installations & illustrations for Fontana Round Thermostatic Mixer Shower Set With Optional LED Lighting are for informational purposes only.
