How should the sensor detection geometry be commissioned for different commercial lavatory bowl profiles?

After the basin, countertop, mirror, soap dispenser, and backsplash have been permanently installed, verify the infrared detection field using shallow, deep, and offset hand positions. Confirm that the sensor consistently recognizes hand movement without activating from curved basin walls or reflective standing water.

Why should the control box location be evaluated before final plumbing connections are completed?

The electronic control box should remain accessible for diagnostics while being protected from condensate, cleaning chemicals, and accidental flooding. Proper placement improves maintenance efficiency and reduces service interruptions when replacing electronic or hydraulic components.

How should hydraulic response be evaluated during rapid consecutive activation cycles?

Operate the faucet repeatedly under continuous commercial usage to verify immediate valve opening, stable discharge, and complete automatic shutoff after every cycle. Monitor for pressure fluctuations, delayed response, residual dripping, or inconsistent flow caused by supply instability.

How can engineers confirm that the automatic faucet maintains water efficiency after commissioning?

Measure delivered water volume during multiple activation cycles under the building's normal operating pressure and compare the results for consistency. Establishing baseline performance allows future maintenance inspections to quickly identify aerator blockage, valve wear, or excessive consumption.

How should the optional thermostatic or mixing assembly be tested for commercial installations?

Balance the hot and cold supplies while water is flowing, then repeat testing with nearby fixtures operating simultaneously. Verify stable outlet temperature, balanced flow, and immediate recovery from temporary pressure fluctuations without noticeable temperature drift.

Why is branch-line flushing essential before energizing the electronic sensor system?

Flushing removes solder particles, pipe scale, thread sealant, and construction debris that could obstruct inlet filtration or damage the automatic valve assembly. Clean hydraulic conditions significantly improve long-term sensor reliability and valve performance.

What maintenance practices preserve the brushed gold PVD finish in commercial environments?

Clean the faucet using a soft microfiber cloth and a pH-neutral cleaner before rinsing and drying the entire surface. Avoid abrasive scouring pads, chlorine-based chemicals, acidic descalers, solvent cleaners, and metal polishes that may permanently affect the decorative finish or optical sensor window.

Which commissioning inspections verify complete FS-109BG-DP operational performance?

Confirm secure deck mounting, accurate sensor activation, stable hydraulic performance, automatic shutoff timing, leak-free plumbing connections, proper mixed-water operation where installed, consistent stream alignment, ADA accessibility, and reliable operation through repeated commercial-duty activation cycles.

Commercial Brushed Gold Touchless Automatic Sensor Hands Free Faucet

Alternative Views:

Retail Price: $1,122.72

Sale Price: $950.69

Savings: $172.03

Sale Price: $950.69

Availability: Usually Ships in 2 to 3 Weeks

Product Code: FS-109BG-DP

Hot & Cold Option:

Qty:

Description

Technical Specs

Extended Information

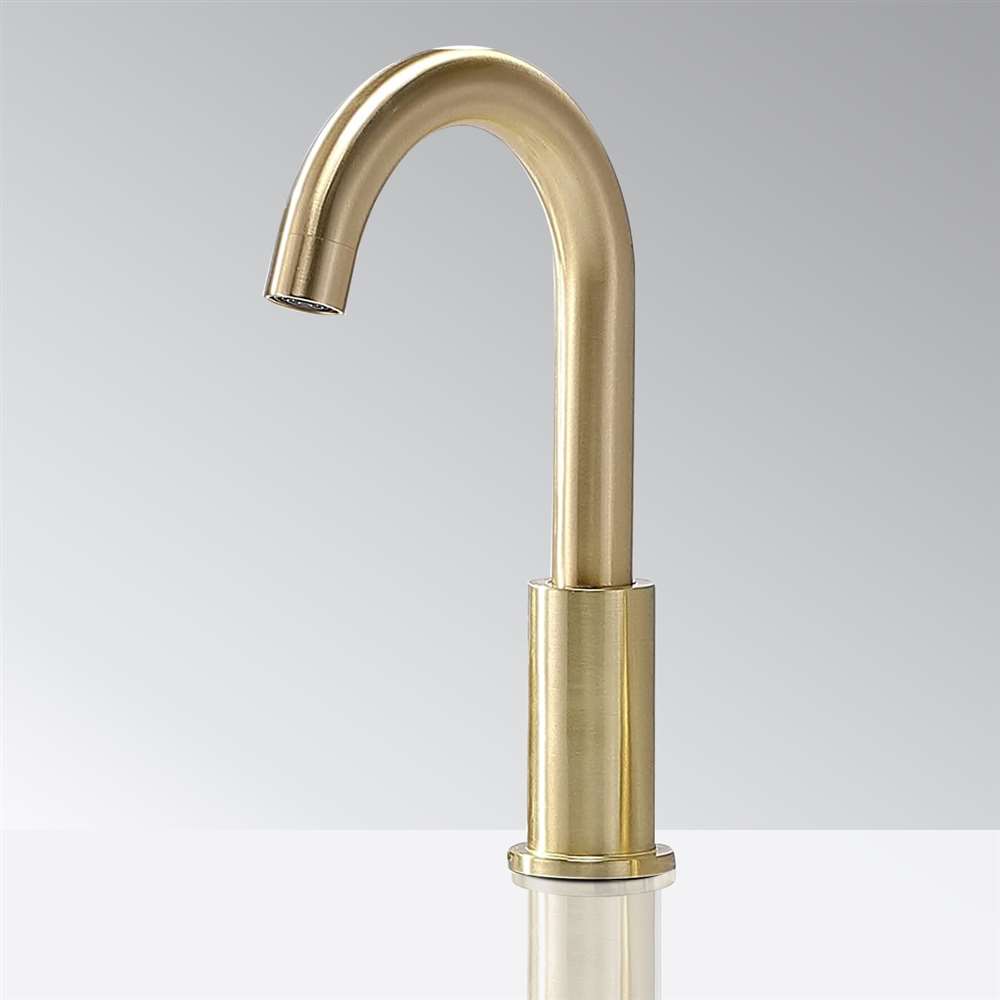

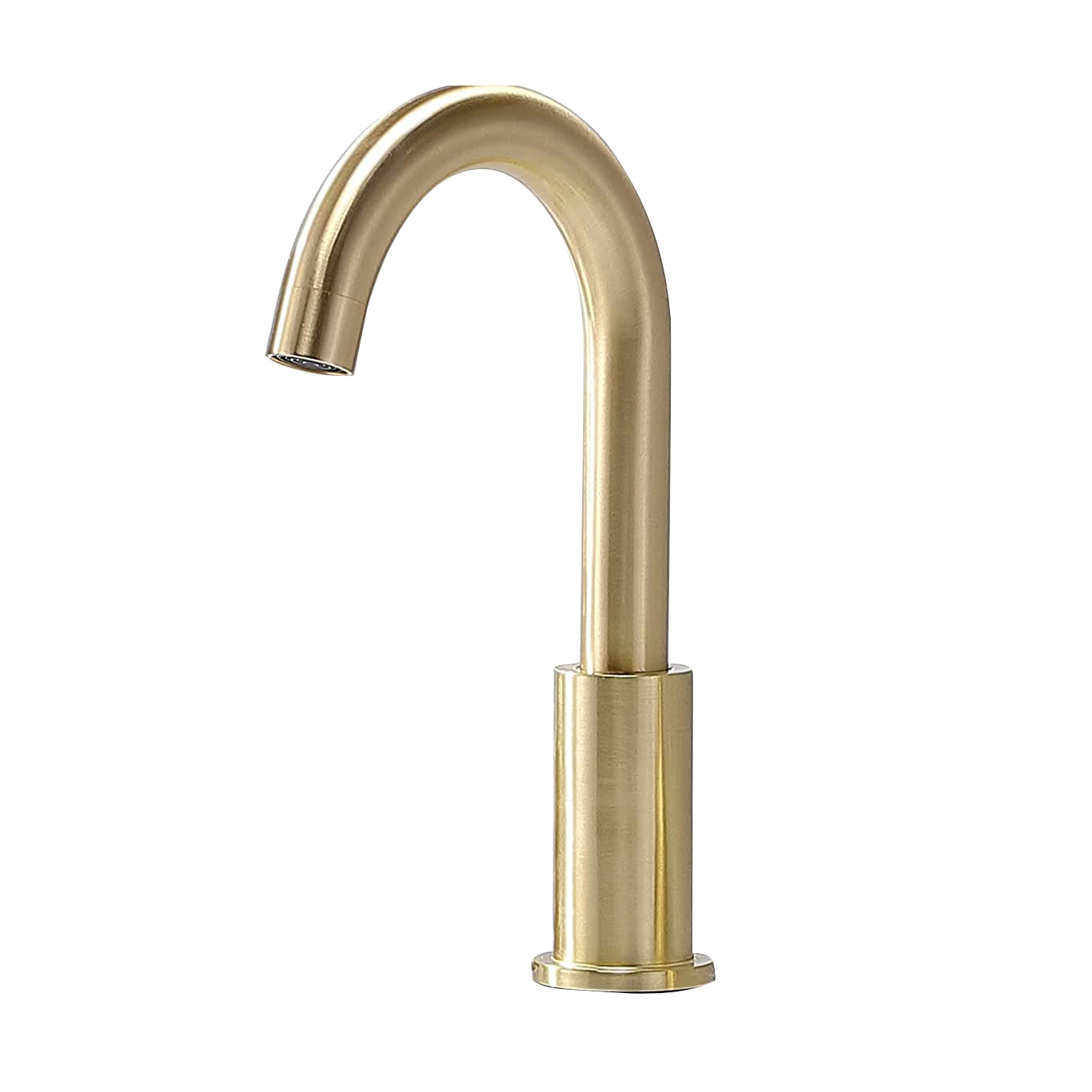

Commercial Brushed Gold Touchless Automatic Sensor Hands Free Faucet

No Touch Volume Sensor faucet in a class of its own. It has a gold finish which sets your restroom apart from others. The infrared sensors enable totally hands-free operation, effectively preventing the transfer of germs. This Fontana Commercial Brushed Gold Touchless Automatic Sensor Hands Free Faucet is compatible with all standard US plumbing. The faucet can be used in commercial locations, and is ADA Compliant, and has a 5-year warranty. This cast brass electronic faucet in reducing the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucet handles.

Commercial Brushed Gold Touchless Automatic Sensor Hands Free Faucet Features:

Brand Name: FontanaShowers®
Model Number: FS-109BG-DP
Type: Motion Sensor Sink Faucet
Style: Contemporary
Finish: Brushed Gold
Faucet Mount: Single Hole
Installation Type: Deck Mount
Material: Brass
Water Pressure: 0.05Mpa-0.8Mpa
Water Saving: Volume 6L Each Time
Usage: Commercial
Hands-free operation is ideal for commercial use applications in public restrooms, restaurants, office buildings, public facilities, and hospitals. Fits all standard US plumbing.

Features

Fontana Commercial Brushed Gold Sensor Faucet FAQ

Electronic Valve Protection, Detection Optimization & Maintenance Planning

The Fontana Commercial Brushed Gold automatic faucet integrates a cast brass body, electronic infrared sensing, and commercial-grade control technology to provide dependable touch-free operation in demanding public washrooms.

How should the electronic valve be protected during new plumbing installation?

Water lines should be thoroughly flushed before connecting the control assembly so solder residue, pipe scale, thread sealant, and construction debris cannot damage the solenoid valve or inlet filtration components.

Why should sensor performance be verified from multiple hand-entry angles?

Commercial users rarely approach the faucet identically. Testing from different positions confirms uniform activation throughout the usable washing area while preventing unintended operation beyond the basin.

What installation practice simplifies future electronic maintenance?

The control module, isolation stops, and flexible connectors should remain accessible beneath the countertop so electrical diagnostics, valve servicing, and filter maintenance can be completed without removing the faucet body.

How can maintenance personnel confirm reliable automatic shutoff?

Following repeated activation cycles, the faucet should demonstrate immediate flow termination, no residual dripping, stable infrared detection, unrestricted aerator discharge, and leak-free hydraulic connections under normal operating pressure.
