Fontana Commercial Gold Automatic Sensor Faucet FAQ
Control-Box Accessibility, Valve-Cycle Diagnostics & Deck-Seal Integrity

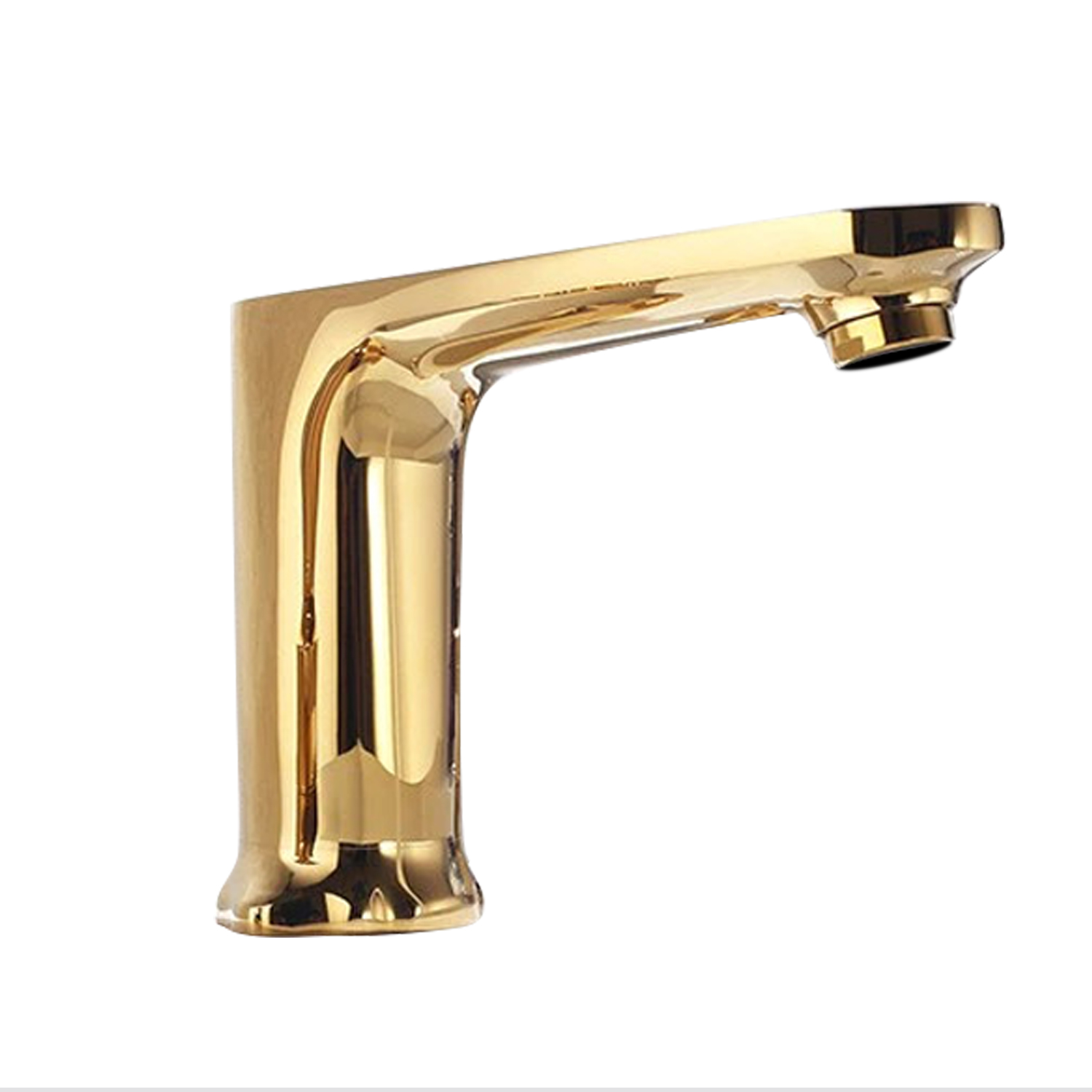

This Gold commercial motion-sensor faucet uses a brass single-hole body
and electronically controlled water delivery to support hygienic,
repeatable operation in hospitals, offices, restaurants, and public facilities.
Where should the electronic control assembly be located below the countertop?
The control box should remain above potential standing water, clear of drain components, and accessible without removing the basin so technicians can isolate power, inspect connectors, and service the valve assembly efficiently.
How can repeated short activation cycles affect the internal valve?
Excessive false triggers increase valve-cycle frequency and accelerate wear on the actuator and sealing components. Correct sensor alignment and removal of reflective interference reduce unnecessary mechanical and electrical loading.
Why must the mounting gasket remain evenly compressed around the faucet base?
Uniform gasket compression stabilizes the brass body and prevents water from migrating through the deck opening toward the sensor wiring, mounting hardware, and electronic control components below the basin.
What should be inspected when flow begins normally but gradually weakens?
The inlet screen, supply stop, flexible connection, and outlet aerator should be inspected for sediment or deformation before altering sensor settings, because electronic detection does not regulate restrictions within the hydraulic path.
