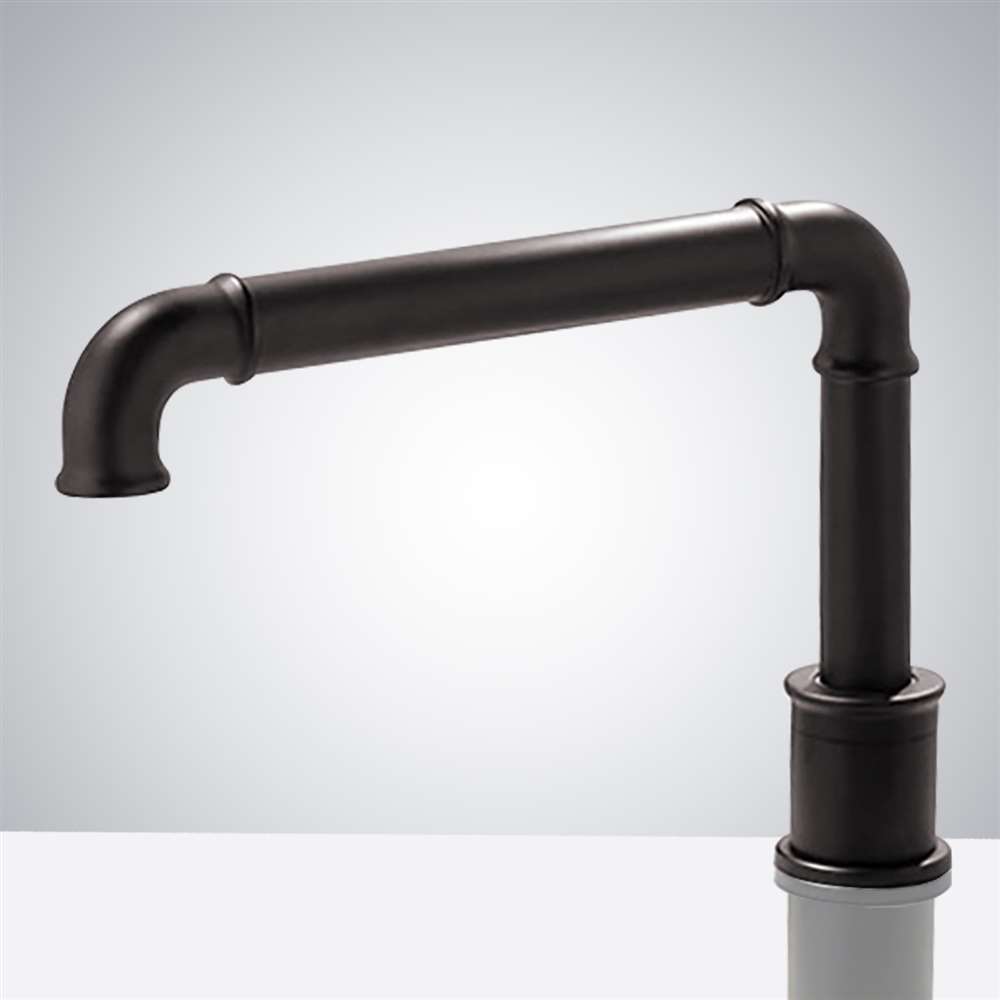

Fontana Commercial Oil Rubbed Bronze Touchless Faucet FAQ
Electronic Fault Protection, Infrared Field Control & Commercial Water Efficiency
This commercial touchless faucet combines adaptive infrared sensing,
cast brass construction, and electronically controlled flow management
to deliver dependable performance, reduced maintenance, and efficient
water conservation in public restroom environments.
How does the electronic controller prevent continuous water discharge if an object remains inside the sensing zone?
The controller incorporates a factory-programmed automatic safety shutoff that closes the motor valve after approximately 30 seconds of uninterrupted detection, preventing unnecessary water consumption and protecting the valve assembly.
Why should hydraulic pressure be measured under flowing conditions instead of static pressure?
Dynamic pressure testing confirms that sufficient flow remains available while the faucet is operating, allowing the electronic valve to maintain stable discharge without excessive splash or delayed shutoff during peak building demand.
How does the control module improve serviceability during commercial maintenance?
The electronic control box uses quick-connect wiring and modular plumbing connections, allowing technicians to isolate the solenoid, filter, or power supply without removing the deck-mounted faucet body.
Which technical characteristics support continuous commercial restroom operation?
The faucet features a cast brass body, Oil Rubbed Bronze finish, single-hole deck installation, adjustable 16–32 cm infrared sensing distance, G1/2 water connections, dual AC or 6V battery operation, approximately 1.2 GPM flow at 60 PSI, and a motor valve rated for approximately 500,000 operating cycles.
