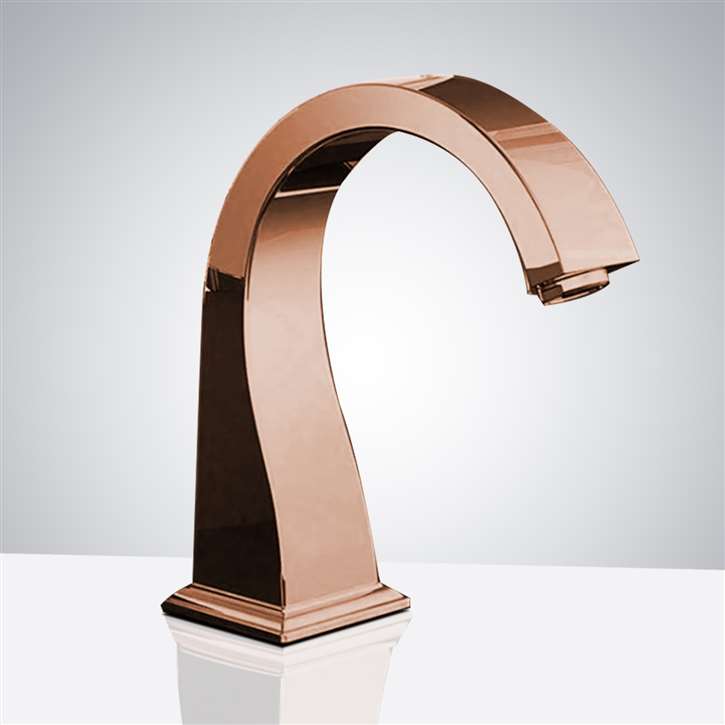

So if you're wanting to update your bathroom with a stylish and contemporary touch, then our Fontana Commercial Rose Gold Automatic Sensor Hands Free Faucet is the ideal option. It has a rose gold finish which sets your public restroom apart from others. The infrared sensors enable totally hands-free operation, effectively preventing the transfer of germs. This Fontana Commercial Rose Gold Automatic Sensor Hands Free Faucet is compatible with all standard US plumbing. The faucet can be used in commercial locations, is ADA Compliant, and has a 5-year warranty. This cast brass electronic faucet in reducing the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucets or handles. Overall, the low maintenance and precise design of Fontana touchless faucets make them an attractive and practical choice for architects and designers to choose our bathroom faucets in high end projects they help to reduce waste and conserve resources while also being convenient to use. Hardwired power option supports reduced maintenance staffing and predictable lifecycle cost.

Fontana Commercial Rose Gold Automatic Sensor Faucet FAQ

16–32 cm Self-Adapting Sensing, 1.2 GPM Flow; Below-Deck Mixing & 30-Second Safety Timeout

The Fontana FS-1096-RG combines self-adapting infrared sensing, cast-brass construction, AC/DC power, and controlled 1.2 GPM commercial water delivery.

How should the self-adapting 16–32 cm detection field be commissioned?

Complete final sensor commissioning after the basin, countertop, backsplash, mirror, and lighting are installed. Test repeated hand entry throughout the adjustable 16–32 cm field and verify opening within approximately one second. Check polished surfaces and nearby fixtures for reflected infrared signals that could cause false activation.

How should the below-deck manual mixing valve be balanced?

Flush the hot and cold branches before connecting the below-deck mixing valve. Establish the required discharge temperature under normal dynamic pressure, then perform repeated automatic cycles. Confirm temperature stability and preserve service access to the mixer, shutoff components, and quick-connect fittings for future adjustment and maintenance.

How should the 1.2 GPM hydraulic performance be validated?

Verify that the G1/2-inch inlet and outlet path is clear of construction debris before final commissioning. Operate the faucet repeatedly and confirm approximately 1.2 GPM or 4.5 LPM delivery without valve chatter, irregular discharge, or incomplete shutoff. Inspect quick-connect fittings and concealed joints for leakage under operating pressure.

How should the 30-second timeout and valve endurance functions be tested?

Maintain a target continuously inside the sensing field and confirm that the factory-set 30-second timeout terminates extended operation. Remove the target and verify normal closure within approximately two seconds. The motor valve is specified for up to 500,000 cycles, while the battery system is rated for approximately 100,000 cycles.

Rose Gold
