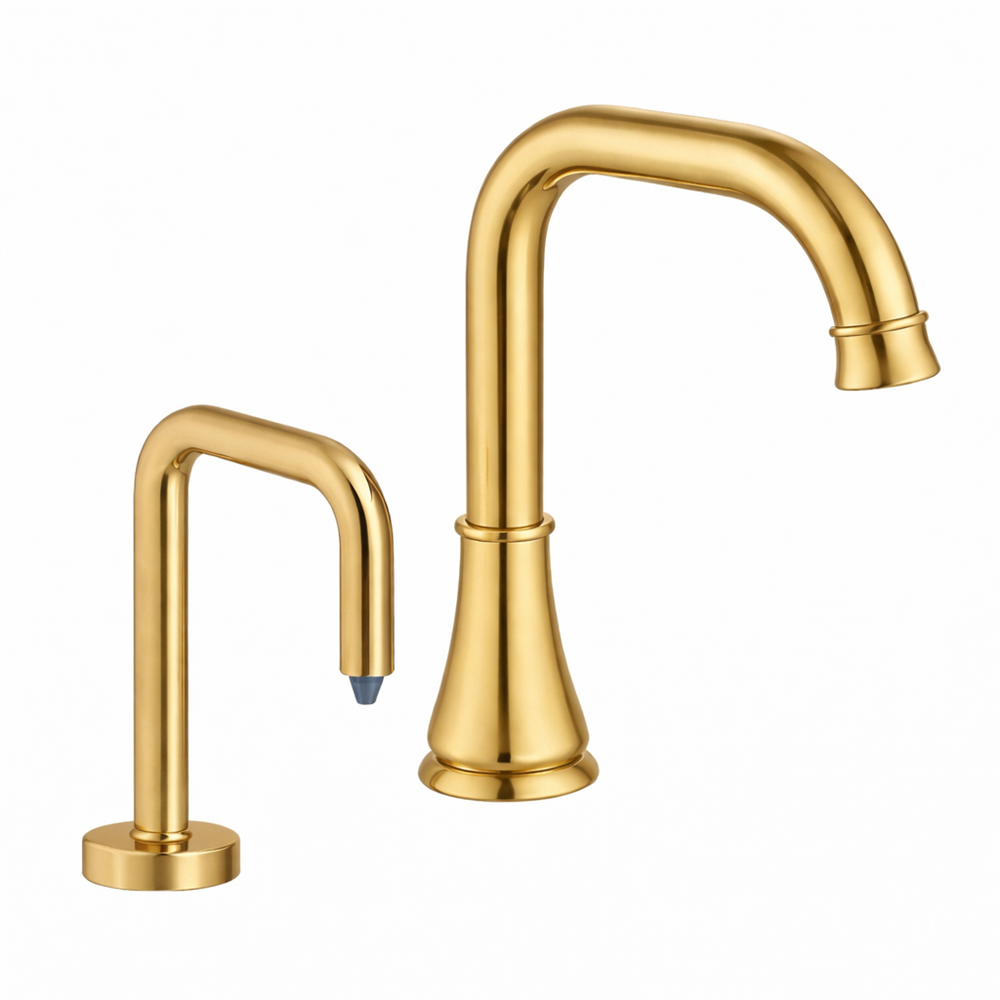

Fontana PureLynor Brushed Gold Hands - Free Basin Faucet with Soap Dispenser Combo

The Fontana PureLynor Brushed Gold White Touchless Basin Faucet with Soap Dispenser is a product that combines advanced hygiene, efficient usage, and modernity. Its trendy brushed gold finish, together with the pure white accent, makes this fixture a beautiful addition to your commercial restroom decor. It is a hands-free smart faucet withan internal soap module. The body is made of brass (a durable material), and this gives a long-lasting life as well as resistance to corrosion from heavy use. An active infrared sensor placed right on the deck ensures that touchless activation is very reliable, and this is backed up by a digital plug-and-play microprocessor, which gives the faucet stable performance. The sensing range is about 2" to 6", and the rapid 0.6-second response time means that as soon as hands are detected, the water flow starts. A 2-second shut-off delay is there to help minimize splashing, and the maximum running time of 60 seconds prevents wasting water. This is really commercial-demanding, the system can work even in extreme conditions from 1 PSI to 100 PSI water pressure, and it is equipped with an excellent 6-volt magnetic latching solenoid valve for consistent control. Battery life is very high; it can last as long as 200,000 cycles, which helps keep maintenance frequency down. The built-in 50-mesh particle filter contributes to the longevity of the system by trapping any debris that could accumulate inside it. This is supplied with a 2.2 GPM aerator, but there are optional sets of 1.0 GPM or 0.5 GPM flow for efficiency needs. Installation is made easy with a 1/2" NPT male supply inlet and a two-hole deck-mounted arrangement.

• Brand Name: FontanaShowers®
• Model Number: FS10703BG
• Finish: Brushed Gold
• Type: Touchless Faucet With Soap Dispenser
• Style: Contemporary
• Installation Type: Deck Mounted
• Material: Brass
• Number of Holes: Two Holes
• Battery life expectancy: 200,000 cycles
• Solenoid valve: 6 Volt magnet latching
• Working Water Pressure: 1 PSI -100 PSI
• Supply Inlet Size: 1/2" NPT Male
• Sensor type and Location: Active Infrared, Deck mount
• Sensor Microprocessor: Digital, Plug and Play
• Sensing Range: 2" to 6"
• Response Time: 0.6 Second
• Shut-Off Delay Time: 2 seconds
• Maximum Running Time: 60 Seconds
• Particle filter size: 50 Mesh
• Aerator: 2.2 GPM. Optional 1.0 GPM, 0.5 GPM
• Automatic Dispenser: Yes
• Dispenser Feature: Foam Soap Dispenser
• Dispenser Application: Hygiene Hand Washing
• Compliant: ADA
• Uses: Commercial
