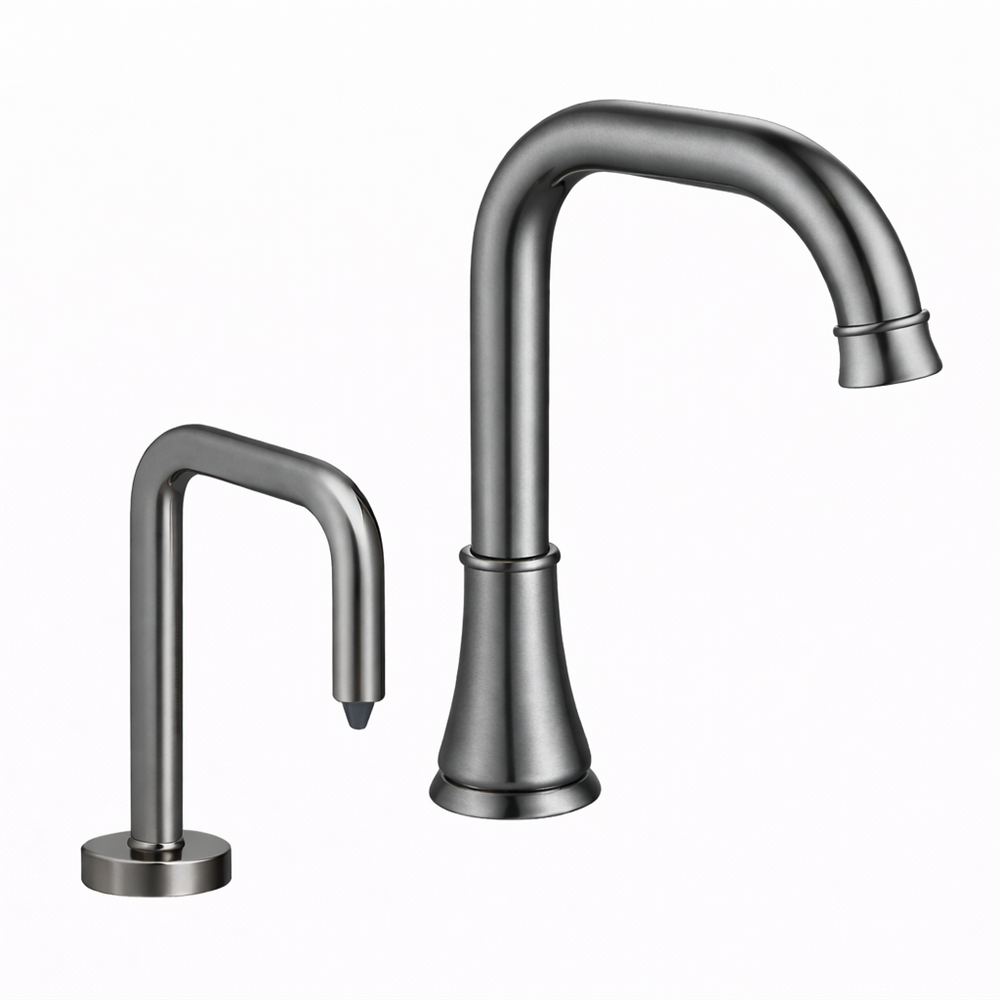

Fontana ZeroTouch Gunmetal Gray Wave-Control Faucet with Soap Dispenser

The Fontana ZeroTouch Gunmetal Gray Wave-Control Faucet with Soap Dispenser is designed not only to provide premium touchless diners but also to provide beautiful water control and to give a modern and contemporary style for commercial restroom spaces. It is an intelligent wash faucet with built-in soap control. The body is made of high-quality brass, which is another factor that contributes to its longevity and corrosion-free nature in the long run. Located atop the deck is a powerful infrared sensor that is backed by a digital plug-and-play microprocessor, leading to stable and very responsive performance. The sensing range being between 2" and 6" and the very quick response time of 0.6 seconds means the flow of water will start immediately as soon as hands are detected. Furthermore, the 2-second delay of shutting off helps prevent splashing, while the 60-second maximum running time allows for water conservation. With draining systems built for business reliability, the device works in a wide pressure range from 1 PSI to 100 PSI and comes with an extremely durable 6-volt magnet latching solenoid valve that guarantees. The lifespan of the battery is up to 200,000 cycles, which will, in turn, result in reduced maintenance needs. Moreover, the 50-mesh particle filter present inside restricts the accumulation of the debris and thus supports the smooth operation of the internal parts. A 2.2 GPM flow rate is standard with the faucet, plus an optional setting of either 1.0 GPM or 0.5 GPM for further efficiency. Along with a 1/2" NPT male supply inlet, a two-hole deck-mounted configuration is provided. An automatic foam soap dispenser is integrated, and it also makes hand washing more hygienic, while adherence to the ADA laws assures that everyone in the public can access it.

• Brand Name: FontanaShowers®
• Model Number: FS10703GMG
• Finish: Gunmetal Gray
• Type: Touchless Faucet With Soap Dispenser
• Style: Contemporary
• Installation Type: Deck Mounted
• Material: Brass
• Number of Holes: Two Holes
• Battery life expectancy: 200,000 cycles
• Solenoid valve: 6 Volt magnet latching
• Working Water Pressure: 1 PSI -100 PSI
• Supply Inlet Size: 1/2" NPT Male
• Sensor type and Location: Active Infrared, Deck mount
• Sensor Microprocessor: Digital, Plug and Play
• Sensing Range: 2" to 6"
• Response Time: 0.6 Second
• Shut-Off Delay Time: 2 seconds
• Maximum Running Time: 60 Seconds
• Particle filter size: 50 Mesh
• Aerator: 2.2 GPM. Optional 1.0 GPM, 0.5 GPM
• Automatic Dispenser: Yes
• Dispenser Feature: Foam Soap Dispenser
• Dispenser Application: Hygiene Hand Washing
• Compliant: ADA
• Uses: Commercial
