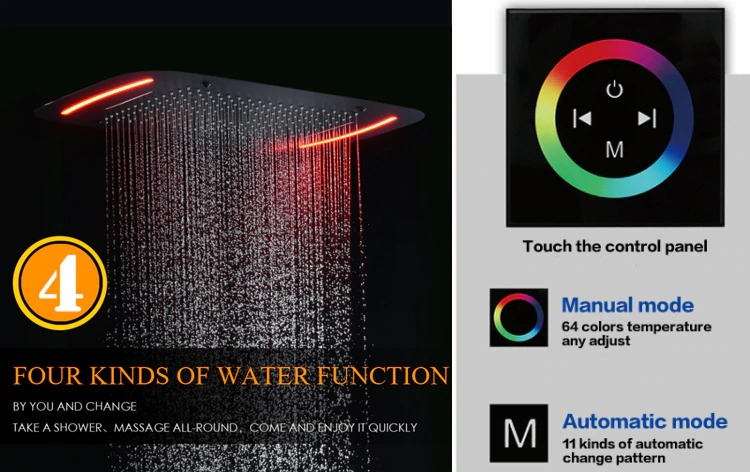

How to install Fontana Le Havre 71x43 cm Large Bathroom Shower Head With LED Touch Panel Controlled | FS15011
Installation Instructions for Bathroom Shower Set
Visit Product Page
Before you begin, please read the installation instructions below. Observe all local building and safety codes.
Unpack and inspect the product for any shipping damages. If you find damages, do not install.
Please note all products must be installed by a professional and certified plumber otherwise warranty might be voided.
shower
Shower Head Installation Instructions
Step 1:
Step 2:
shower
LED Shower Head Installation Instructions
Step 3:
Step 4:

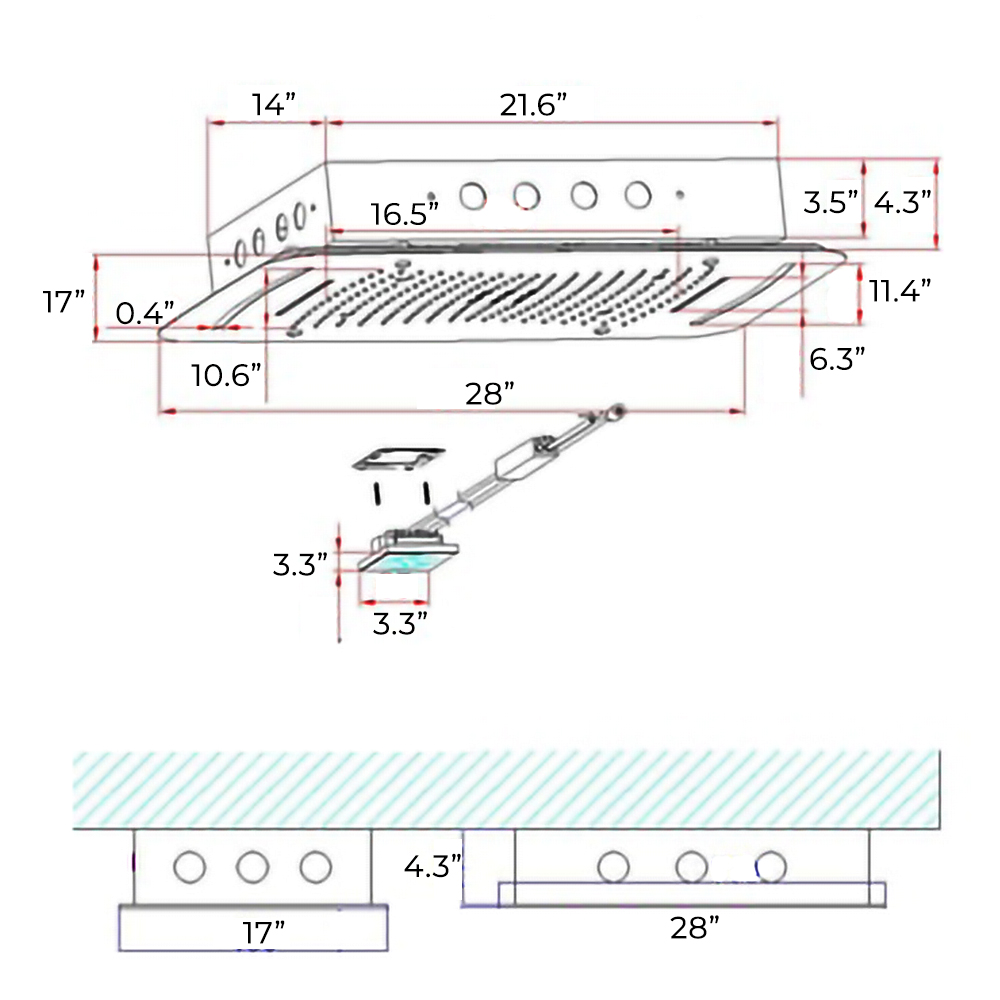

According to the dimensions and shape of the mounting bracket, determine the bracket location to be installed in the ceiling.
According to the 8 mounting holes on the mounting bracket, use an Electric drill to make the mounting holes.
Shower Head Installation Instructions
Step 5:
Step 6:
Using the two hexagonal nuts adjust the distance between the mounting bracket and the ceiling, and keep the mounting bracket on the level. Use an explosion screw to fix the mounting bracket on the ceiling, pay attention to the explosion screw, it can adjust the height and use level tool to adjust the mounting bracket to reach level.

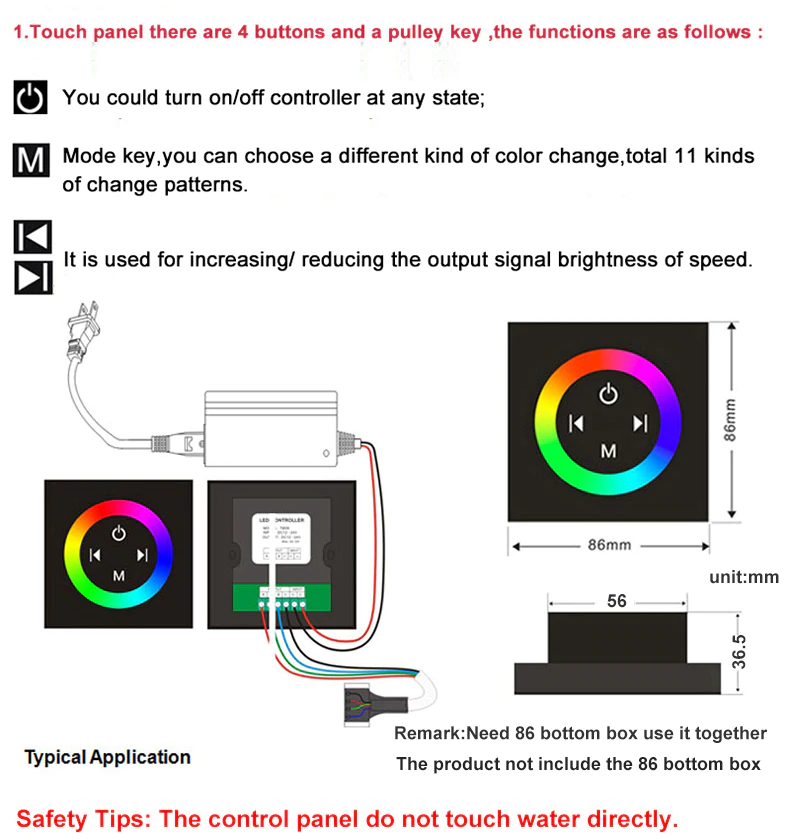

Connecting Circuits
Shower Head Installation Instructions
Step 7:
Step 8:
According to the chart shows: Raise the showerhead, Aim at the hole of the bolt, plug the bolt.

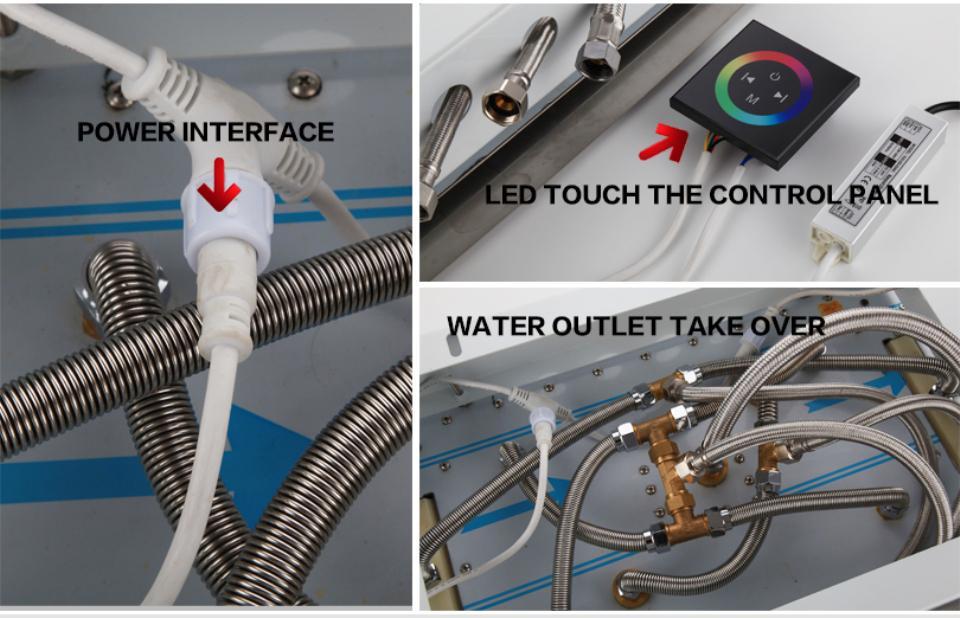

Use a Phillips screwdriver screw out the upper cover 4 screws, open the plastic waterproof boxes. Note: The same color line docking, brown line for line, the blue line is zero line. Use a Phillips screwdriver screw out the screws in plastic waterproof box wiring position, then put the fork terminal line connected, then fix it with a Phillips screwdriver.
Shower Head Installation Instructions
Step 9:
Step 10:
According to the circuit diagram as shown in step 5, then connect plastic waterproof case, please note that the same color of the wire when connecting circuit to docking.

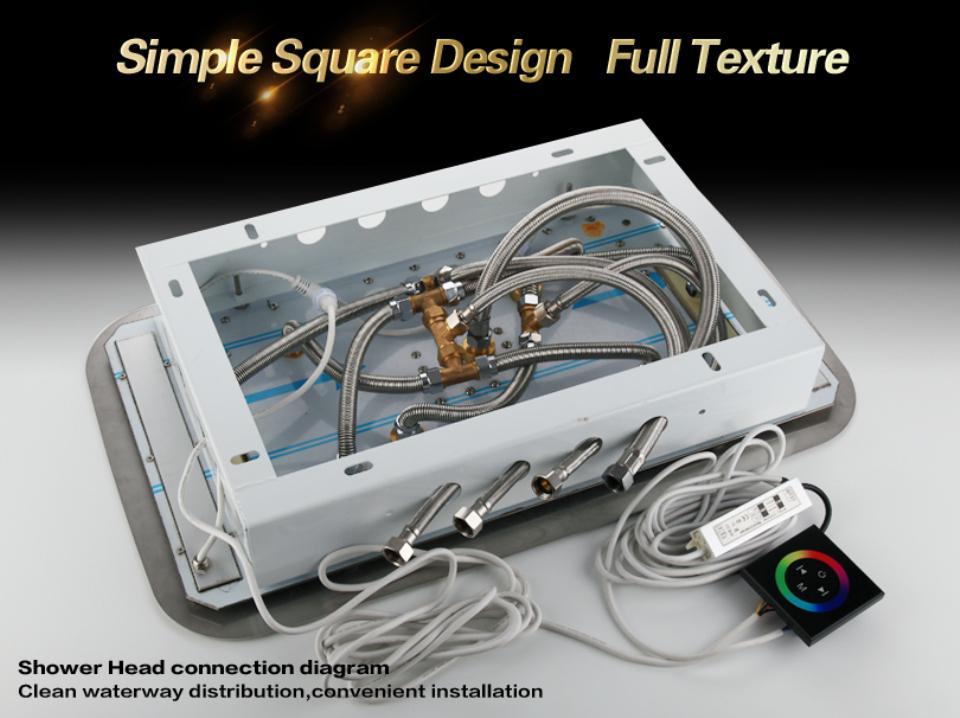

Connecting water hoses and Tee joints and then connect the water hoses to the water inlet pipe connector.
LED Shower Head Installation Instructions
Step 11:
Step 12:
Connecting 4 pcs water hose to 2 Tee joints and G1/2 joints in the middle and then put another side of the shower hoses through the showerhead side holes.
Installing the shower body by plugging the bolts. (As the above picture).
LED Shower Head Installation Instructions
Step 13:
Step 14:
Install the decorative panel and twist the corresponding 8 fixing screws with a SW4 hex wrench.

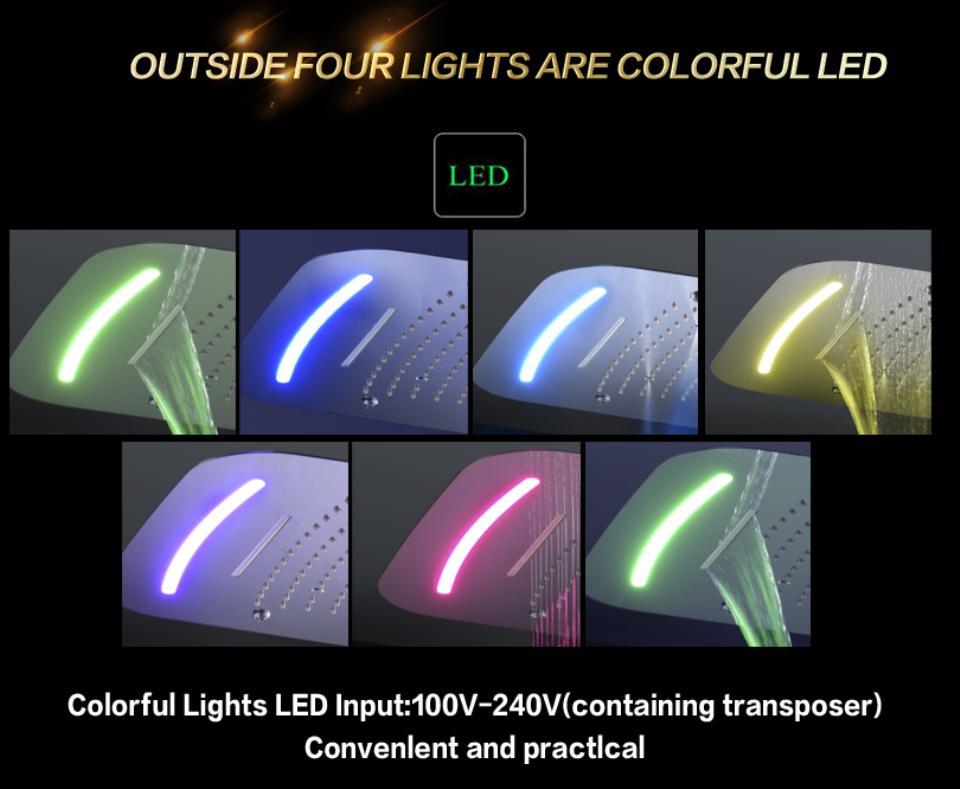

Install 4 LED lights and lamp cups clockwise.
LED Shower Head Installation Instructions
Step 15:
Step 16:
Note: 1. Before connecting water hoses and water pipes, cleaning the water pipes first. It will prevent impurities from clogging the showerhead. 2. When connecting water pipes and hoses, don't forget to put the G1/2 filter net in the water hoses, filtering impurities.
Connect 4 water inlet hoses to the wall-embedded water inlet pipes and then seal the wall.
LED Shower Head Installation Instructions
Step 17:
LED Shower Head Installation Instructions

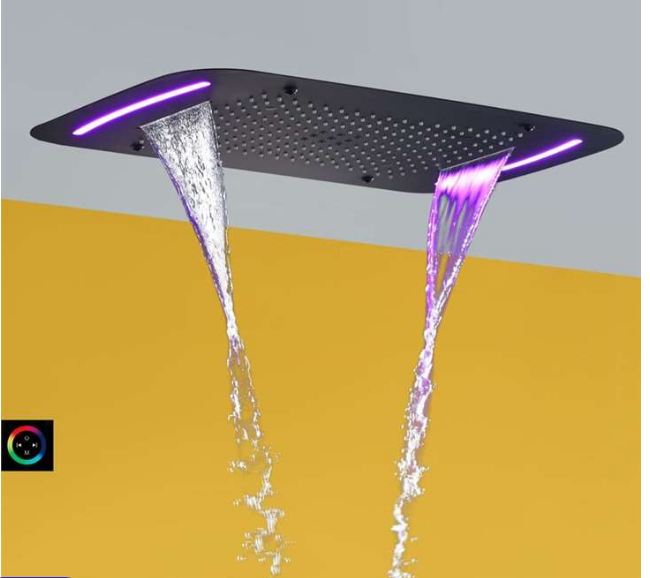

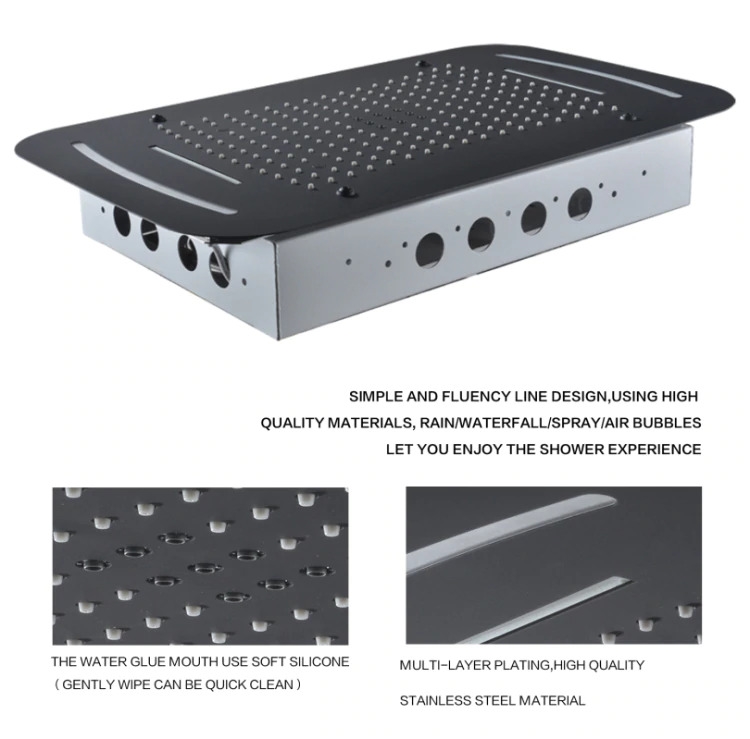

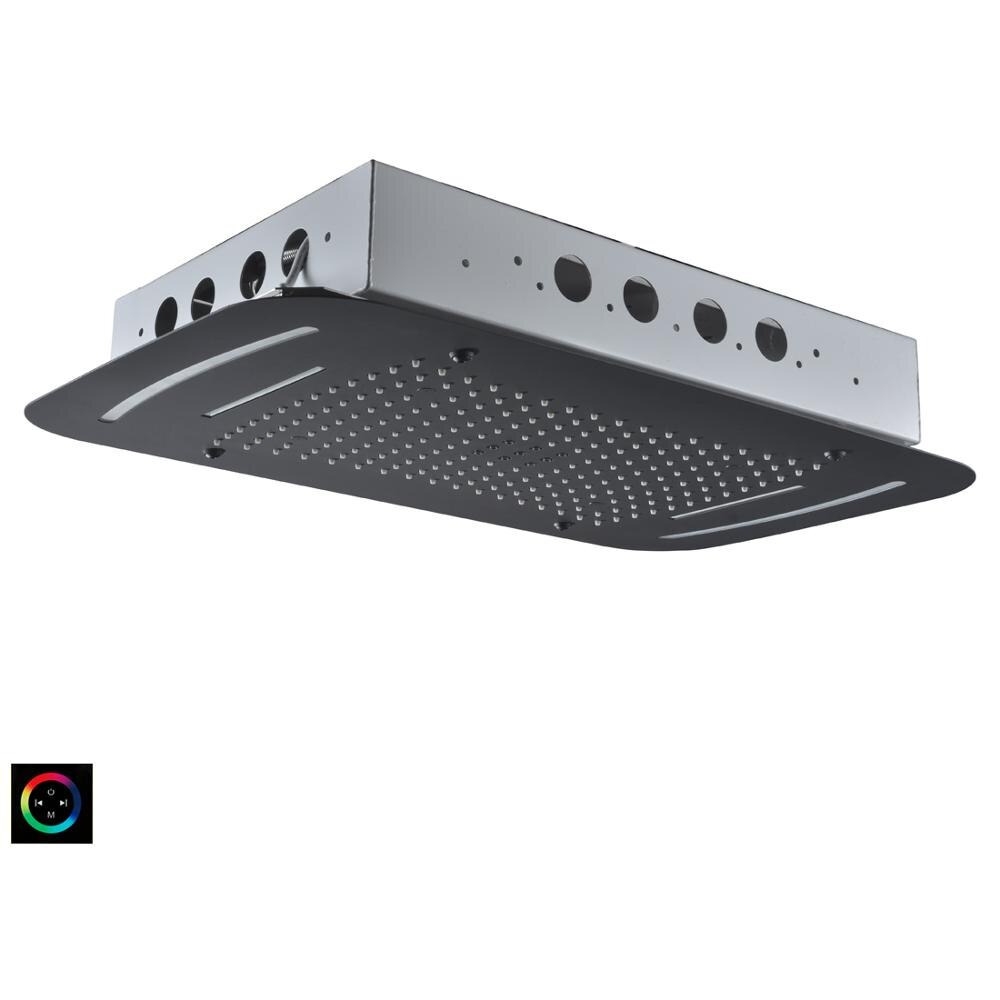

Fontana Le Havre 71x43 cm Large Bathroom Shower Head With LED Touch Panel Controlled

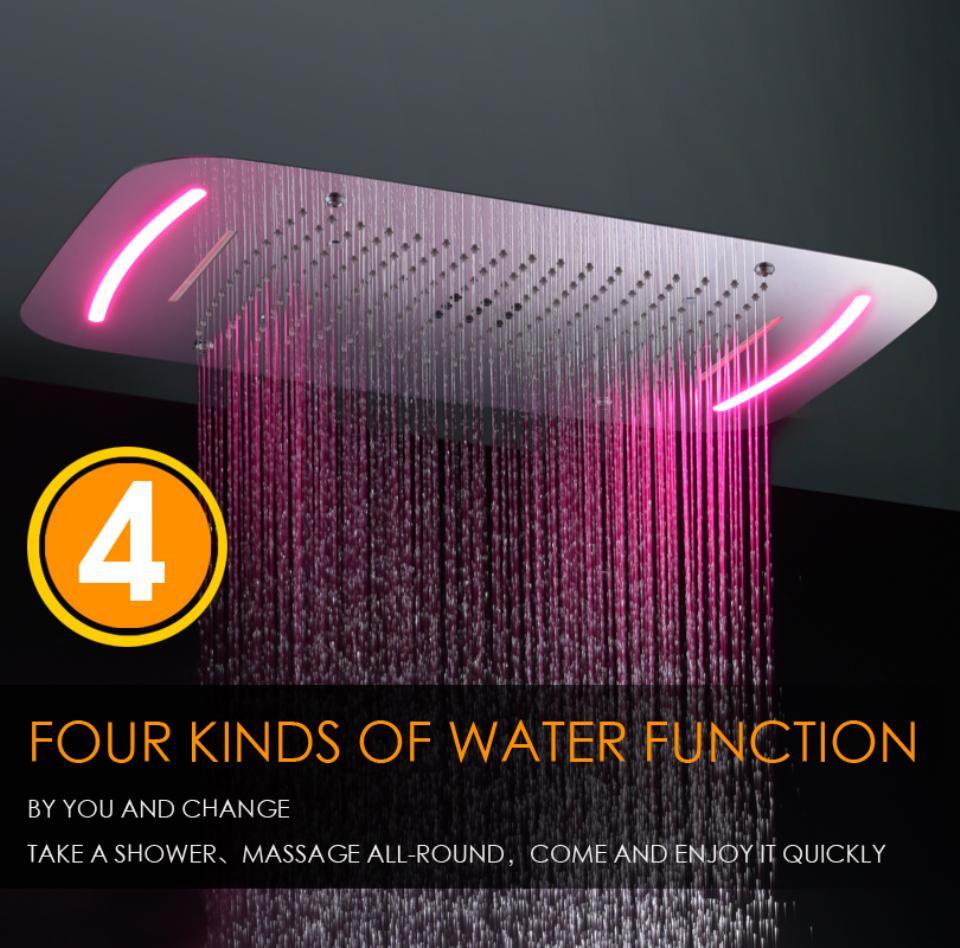

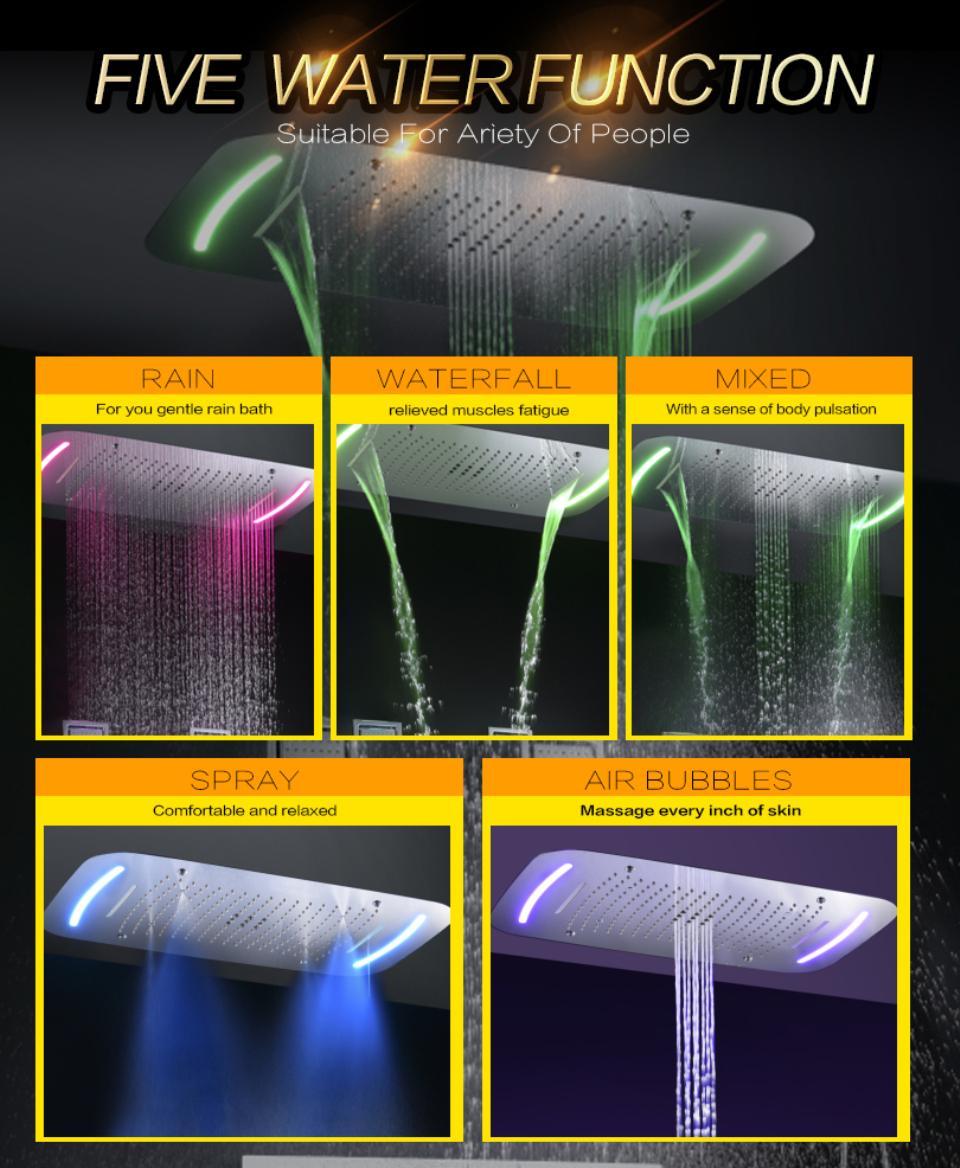

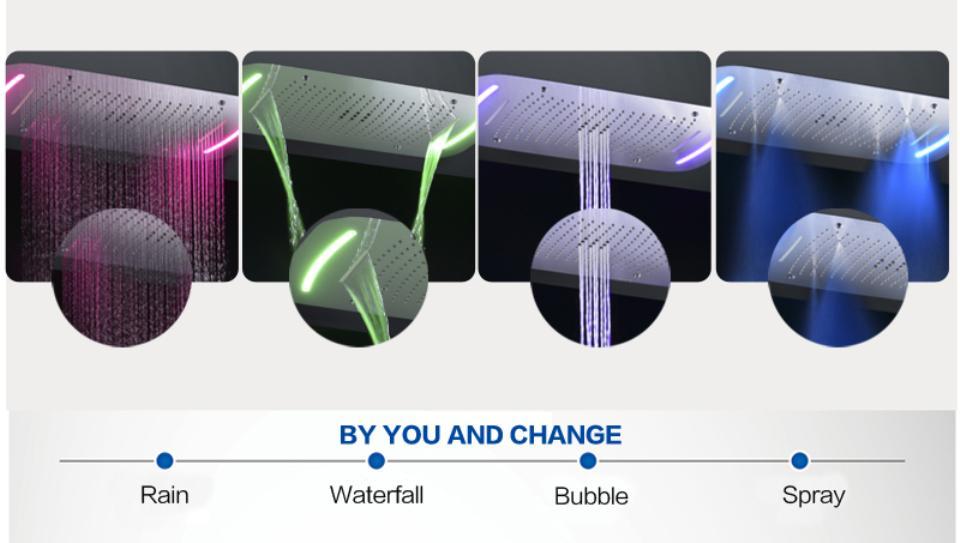

The Fontana Le Havre 71x43 cm Large Bathroom Shower Head With LED Touch Panel Controlled is perfect to complement today's modern home. Built from premium materials and finished with elegance. Its turbo pressure boost nozzle technology maximizes your water pressure output performance and steady water flow to provide you a comfortable shower and prevent clogging. You may even have more time to enjoy your shower with 5 different functions. Easy-to-install and leak-free. The design was inspired by the FontanaShowers. Be sure, when it comes to new bathroom shower set, FontanaShowers is offering shape, finish and styles you're looking for.
