Installation Instructions for Bathroom Shower Set		Visit Product Page
Before you begin, please read the installation instructions below. Observe all local building and safety codes. Unpack and inspect the product for any shipping damages. If you find damages, do not install. Please note all products must be installed by a professional and certified plumber otherwise warranty might be voided.	shower

Shower Head Installation Instructions

Step 1:	shower	Step 2:
Step 3:		Step 4:
Step 5:		Step 6:

Step 8: (LED Control Box)		Step 9:

Spout & Hand Held Shower Installation Instructions

Step 1:		Step 2:
	HandHeld Shower		Hand Held Shower
Handheld Shower
Step 3:		Step 4:

Tub & Hand Shower Outlet Installation • Complete the outlet pipework ensuring it ends in an appropriate 15mm x 1/2" BSP female thread elbow. Note: This fitting is not supplied as variations in installations require the selection of a suitable solder or compression fitting. • Install the 'Wall Outlet', thread long male 1/2" BSP into the appropriate female fitting using PTFE tape to give a watertight joint. Note: The thread can be cut to size if required. Make sure that all debris is removed from the connector and the section that has been cut is dressed correctly, before installation. Shower Wall Holder Installation Decide the position for the shower head holder on the wall within the bath showering area and proceed as follows: • Hold the hand shower head holder fixing plate in a suitable position on the wall, mark out the position of the holder. Mark the two locating holes, these are 17mm center. • Drill and plug the wall. Use an appropriate masonary drill, but if the wall is plasterboard or a soft building block, use special wall plugs and an appropriate drill bit. • Slide the inserts onto the screws in the orientation. Secure the inserts by tightening the screws. • Slide the hand shower head holder body onto the inserts and secure by tightening the grub screw facing down.

Spout & Hand Held Shower Installation Instructions

Step 1:			Step 2:

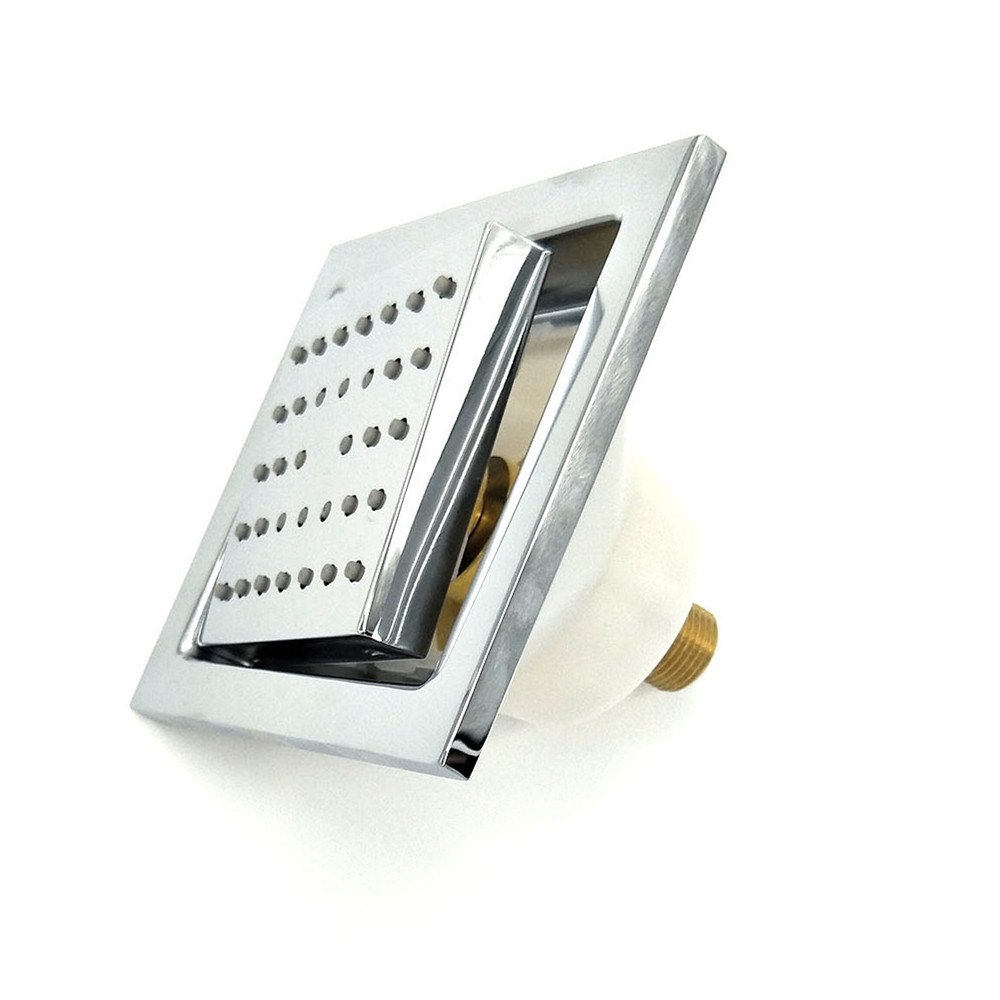

	Body	spray

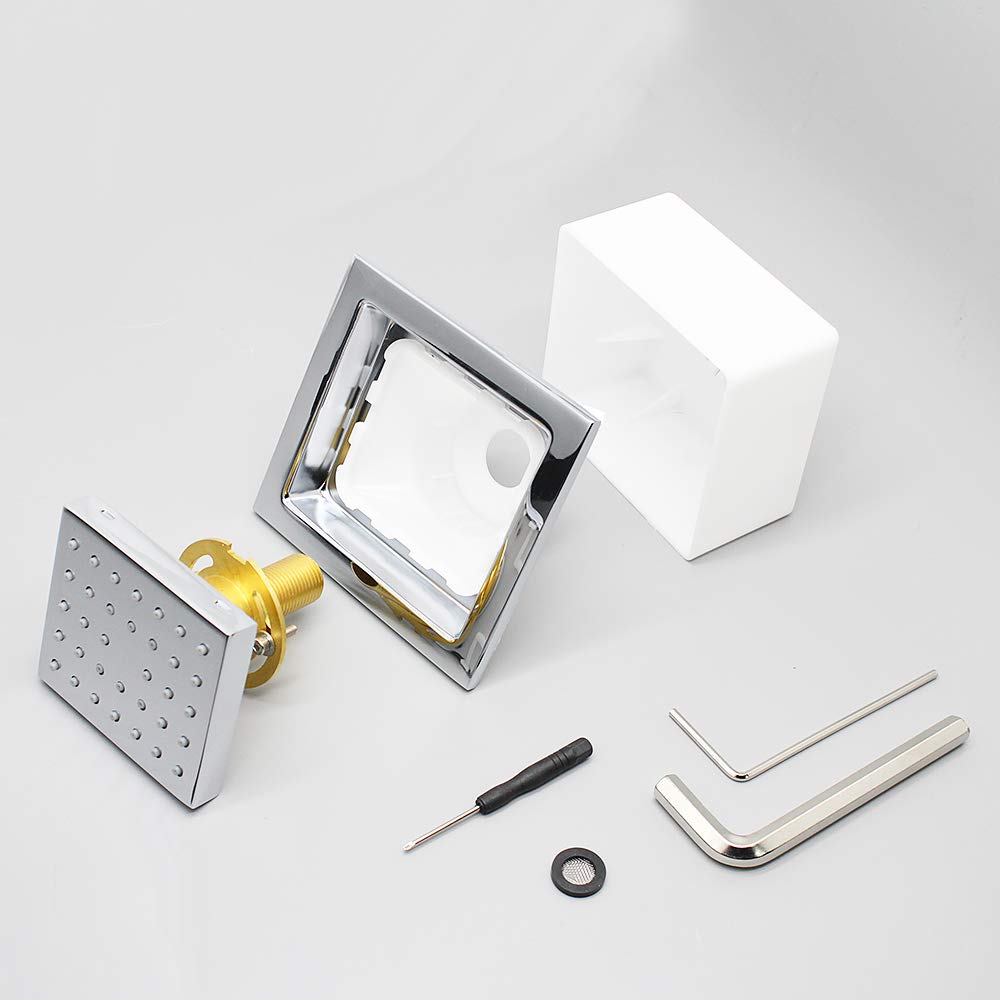

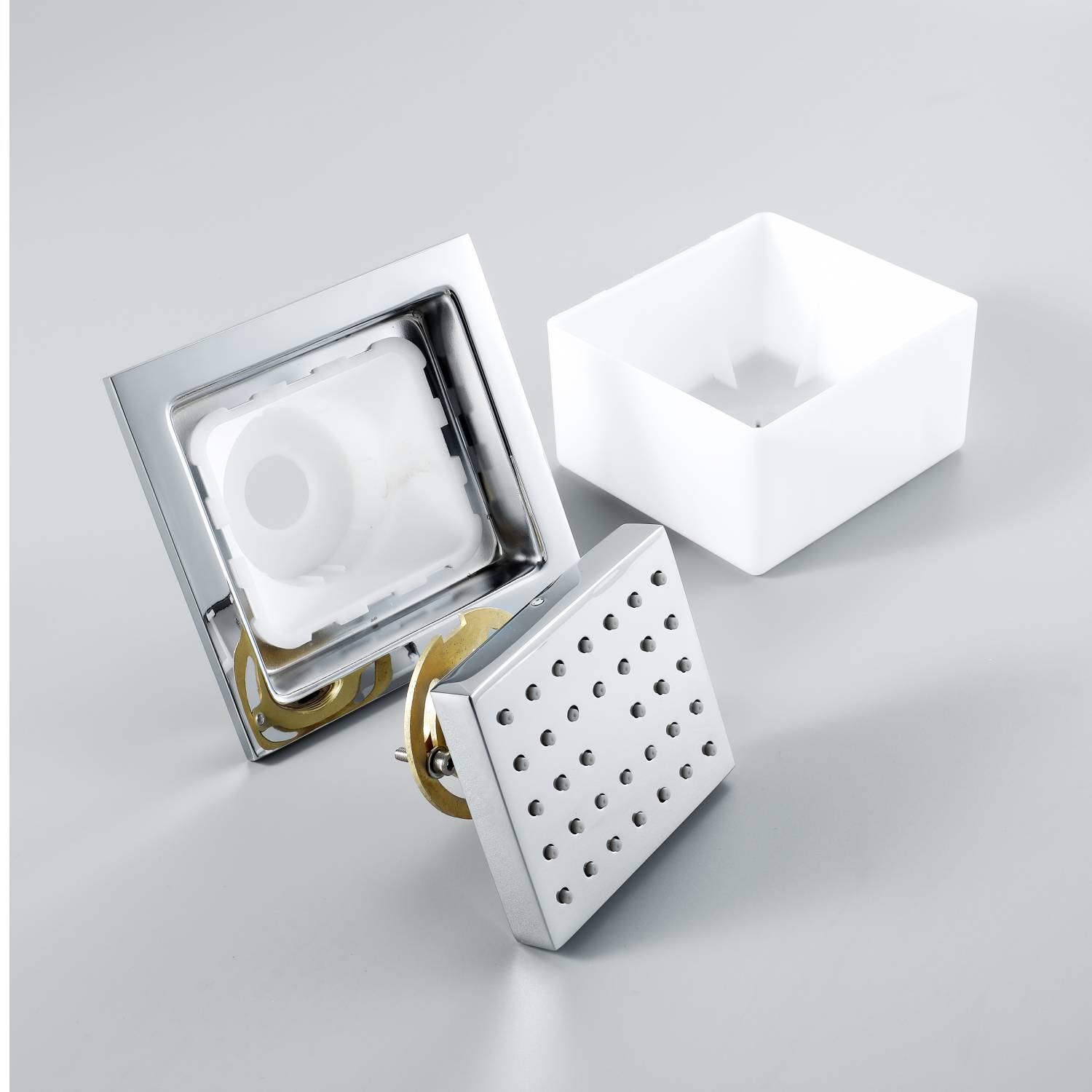

Remove the decorative plate (A) out of the body.			Remove the screws from the outlet face (B) and connector body (C) with the Allen key (D).

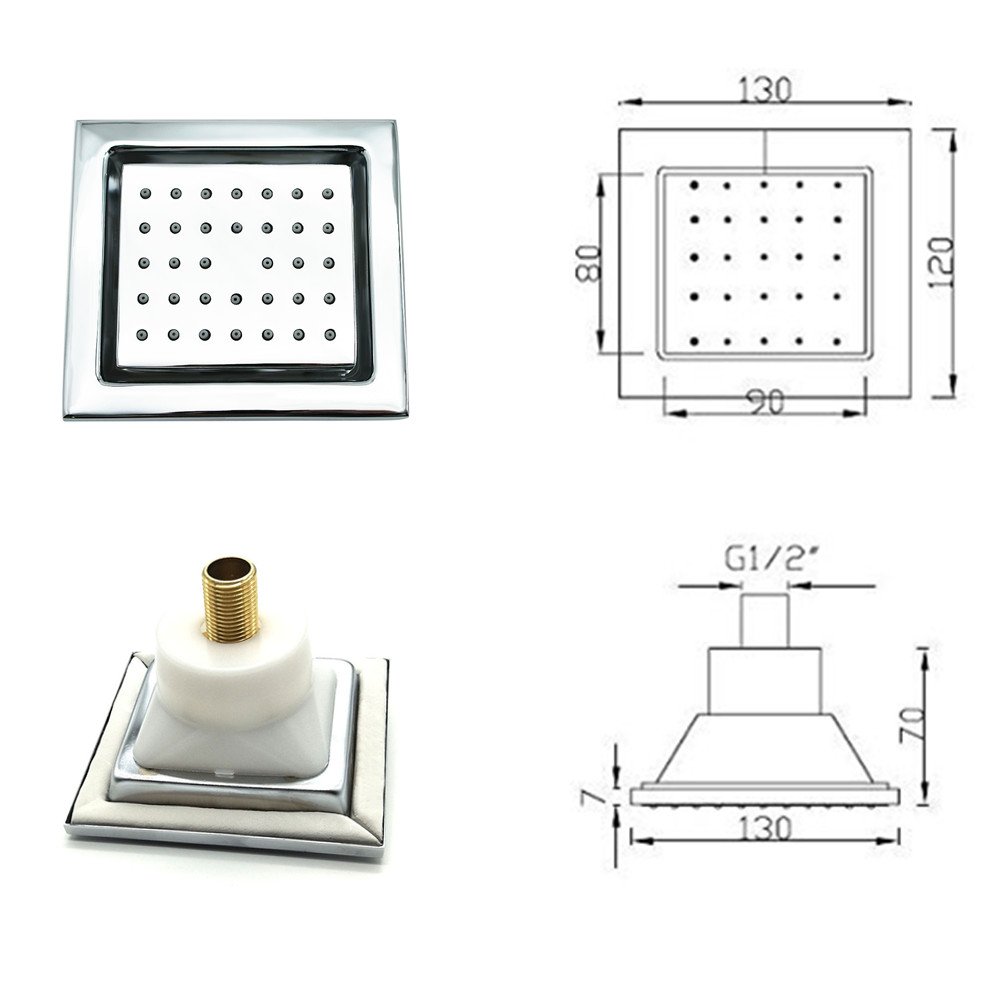

Body Spray Installation Instructions
Step 3:			Step 4:
Screw the threaded pipe (E) to the water supply fittings. Push the plastic box (F) into the wall through the threaded pipe (E). Then, install the decorative plate (I) into the plastic box (F). Make sure the position is correct according to the diagram.			Screw the connector (G) into the threaded pipe (E) with the Allen key (H). Install the connector body (C) to the connector (G). When finish installation, please check to make sure the connection is completed. Then, fix the screws into the body (C) with Allen key (D) and make sure the body (C), connector (G) and decorative plate (I) are tightened. Make sure the one side with the bulge is in the top position.
Body Spray Installation Instructions
Step 5:			Step 6:
Install the outlet face (B) to the body (C). Make sure the connection of body (C) and outlet face (B) are completed. Tighten the screw through the outlet face (B) into the body (C) with the Allen key (D).			Install the decorative plate (A) into the outlet face (B) tightly. Make sure the hole and the raised dot are in the correct position when you push the decorative plate (A) into the outlet face (B).

Shower Thermostatic Mixer Installation Instructions

Step 1:			Step 2:
	Mixer	Valve
Mixer Control Valve Installation Instructions
Step 3:			Step 4:
Mixer Control Valve Installation Instruction
Step 5:			Step 6:
Mixer Control Valve Installation Instruction
Step 7:

- Release Six handwheel levers according to the above directions. - Take apart the embed valve, panel, and handwheel. - Dig the embed space for the pipe on the wall according to the specification of the valve. - Dig 4 holes according to the position of the screws. - Use a hammer to thwack the screws into 4 holes. - Fix the valve body with 4 screws. - Find out the expansion screw heads with washer and spring washer. Use copper sleeve wrench to lock the screw heads with the embed valve body. - After connecting all the pipes and before sealing the wall with concrete, confirm no leaking problem occur when you turn on the water. - Fix the decorative panel on the embedded valve body. - Screw the handwheel arms with the handwheels.

---

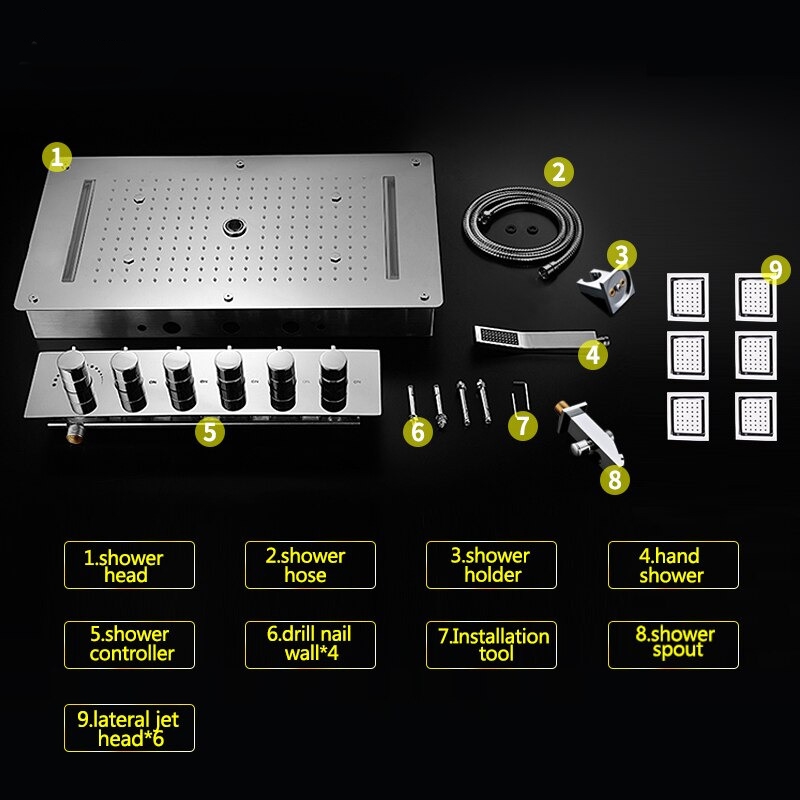

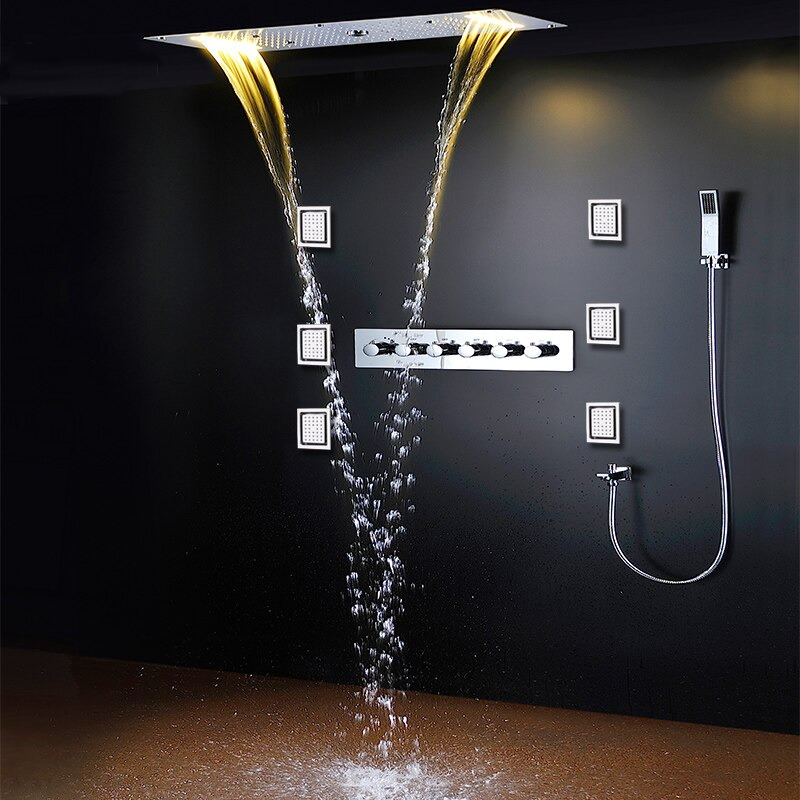

Fontana Toulouse 15x28" Thermostatic LED Ceiling Shower Head With Hand Shower, Body Jets and Spout

The Fontana Toulouse 15x28" Thermostatic LED Ceiling Shower Head with Hand Shower, Body Jets and Spout is perfect to complement today's modern home. Built from premium materials and finished with elegance. Its turbo pressure boost nozzle technology maximizes your water pressure output performance and steady water flow to provide you a comfortable shower and prevent clogging. You may even have more time to enjoy your shower. Easy-to-install and leak-free. The design was inspired by the FontanaShowers. Be sure, when it comes to new bathroom shower set, FontanaShowers is offering shape, finish and styles you're looking for.

Features:

Brand Name: FontanaShowers Model Number: FS15039 Installation Method: Wall Mount Style: Contemporary Type: Fixed Rotatable Type Feature: Thermostatic Faucet LED Light: Temperature Control Cold/Hot Water Control Type: Auto-Thermostat Control Function 1: Rainfall Shower Function 2: Massage Waterfall Function 3: Hand Shower Shower Head Size: 15x28" (380x700mm) Shower Head Shape: Rectangle Surface Finishing: Stainless Steel Surface Treatment: Polished Valve Core Material: Ceramic Color: Silver Nozzle: Silica Connection Type: G1/2" Standard
