How to install Verna Commercial Brushed Nickel Temperature Control Automatic Sensor Faucet | FS-D5146BN

Easy step by steps installation instructions for Commercial Sensor Faucet			Visit Product Page
Before you begin, please read the installation instructions below. Observe all local building and safety codes. Unpack and inspect the products for any shipping damages. If you find damages, do not install. Please note all products must be installed by a professional and certified plumber otherwise warranty might be voided.	sensor

Sensor Faucet Installations Instructions

		Hole Size:

Features: - Cold and Hot integration. It is a mixer with the cold water in the left turning and hot water in the right turning. - Water-saving: Water flows out when your hands approach the induction zone, and stop immediately once you draw back your hands. - Low power,electricity-saving: For DC type, 4pcs AA batteries can be used for about 2 years, if the faucet working 200 times a day. Specification: - Installation Type: Deck Mounted - Installation Holes: One Hole - Valve Type: Ceramic Valve - Temperature of environment:1-45°C (cold & hot water ) - Water Pressure: 0.05 Mpa - 0.7 Mpa - Dia of inlet pipe: G1/2" - Dia of outlet pipe: G1/2" Smart infrared sensor automatically adjusts the distance according to the environment.

Size 1: Deck Mount Installation		Step 2:
	sensor
Step 3: Connect to Power Supply		Step 4:
Step 5:		Step 6: (Correct way for Hose)

Before installing your new mixer, flush through the pipework to ensure removal of debris, turn off the water supply. Ensure the ‘O’ ring is in place at the bottom of the mixer body. Push the control cable down through the hole and position the mixer on the basin. From the underside of the basin fit the rubber washer, metal washer onto the threaded tube followed by the nut. Tighten the nut to clamp the mixer to the basin. Tighten the 2 side screws up onto the washer. CAUTION: Do not over tighten the nut/bolts as this may damage the basin. Screw the two flexible pipes to the mixer body, but do not over tighten, hand tighten only. Connect the water supply to the inlet pipes. The hot water should be connected to the front pipe. Plug together the connectors coming from the mixer to the transformer. Line up the flats on both the plug and socket and firmly push together.
Flexible Connecting Hose Care must be taken when connecting the flexible connection hose from the power supply box to the spout to ensure it does not bend sharply and kink or twist. See above for recommended ways to fit the flexible connecting hose. Important: Failure to follow these guidelines may result in poor performance and damage to the flexible connection hose.

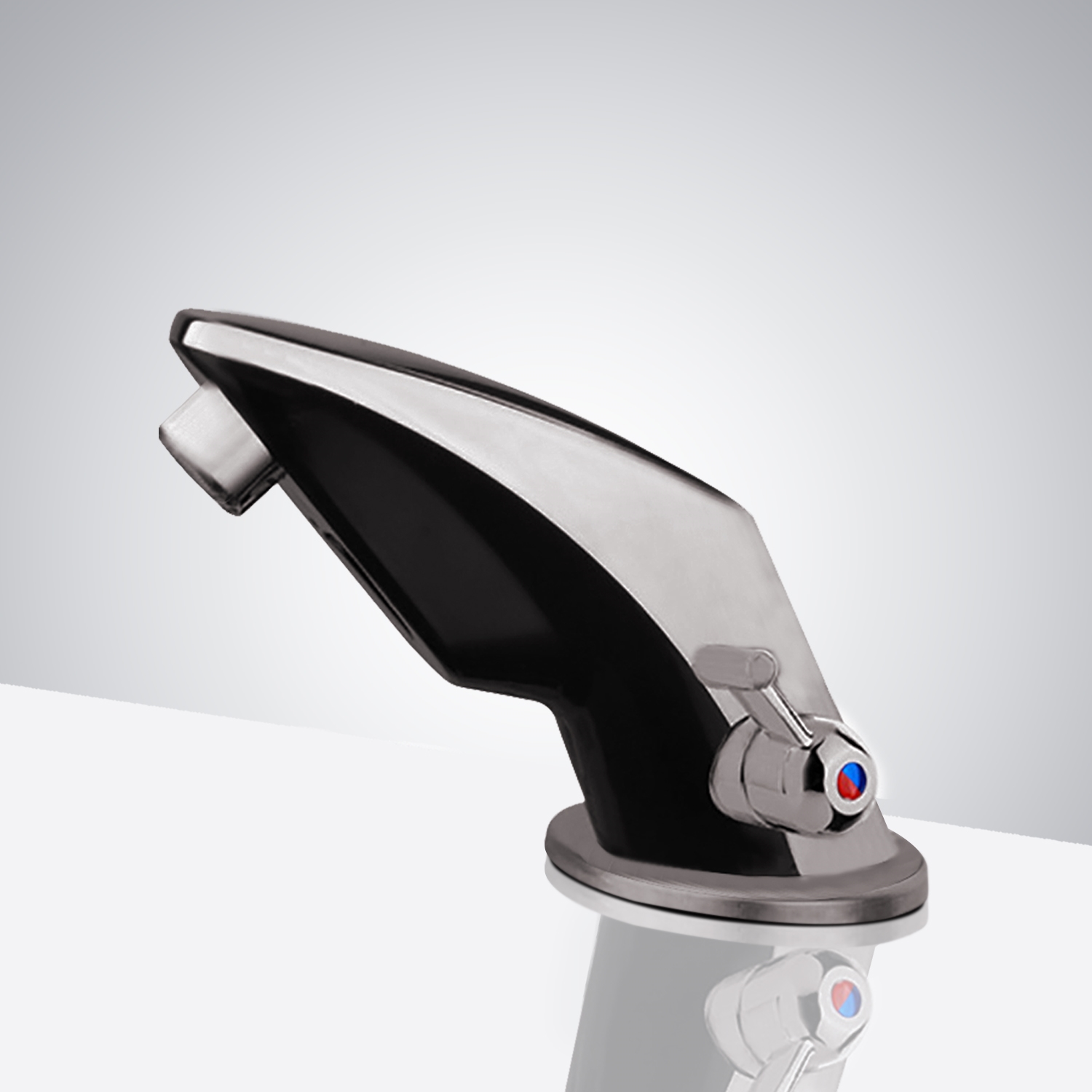

Fontana Verna Commercial Brushed Nickel Temperature Control Automatic Sensor Faucet

All-in-One Parts in one perfect product; Ceramic Cartridge; Built-in check valve; Sensor controlling; Thermostatic faucet (mixer) with advanced infrared sensor technology. This brushed nickel-finished brass electronic faucet reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucets or handles. Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucets or handles. Waterproof sensor, Battery low LED light indicator, Sensing distance adjusted automatically, Long life durable body, Advanced circuit design saves electricity and water. Cut down on water usage by minimizing waste of water while soaping, lathering, scrubbing and drying hands by eliminating unnecessary and unattended water flow.

Features:

Brand Name: FontanaShowers Model Number: FS-D5146BN Type: Automatic Faucet Water Pressure: 0.05Mpa - 0.7Mpa Finish: Brushed Nickel Construction: Solid Brass Power Supply: AC110V And DC6V Batteries Included: Not Mounting Type: Deck Mount Body Material: Brass Style: Contemporary Ambient Temperature: 1 - 45° / 33.8 -113 °F Time delay: 0.5 seconds Operation duration: 60 seconds Usage: Commercial / Residential Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals. Fits all standard US plumbing.
