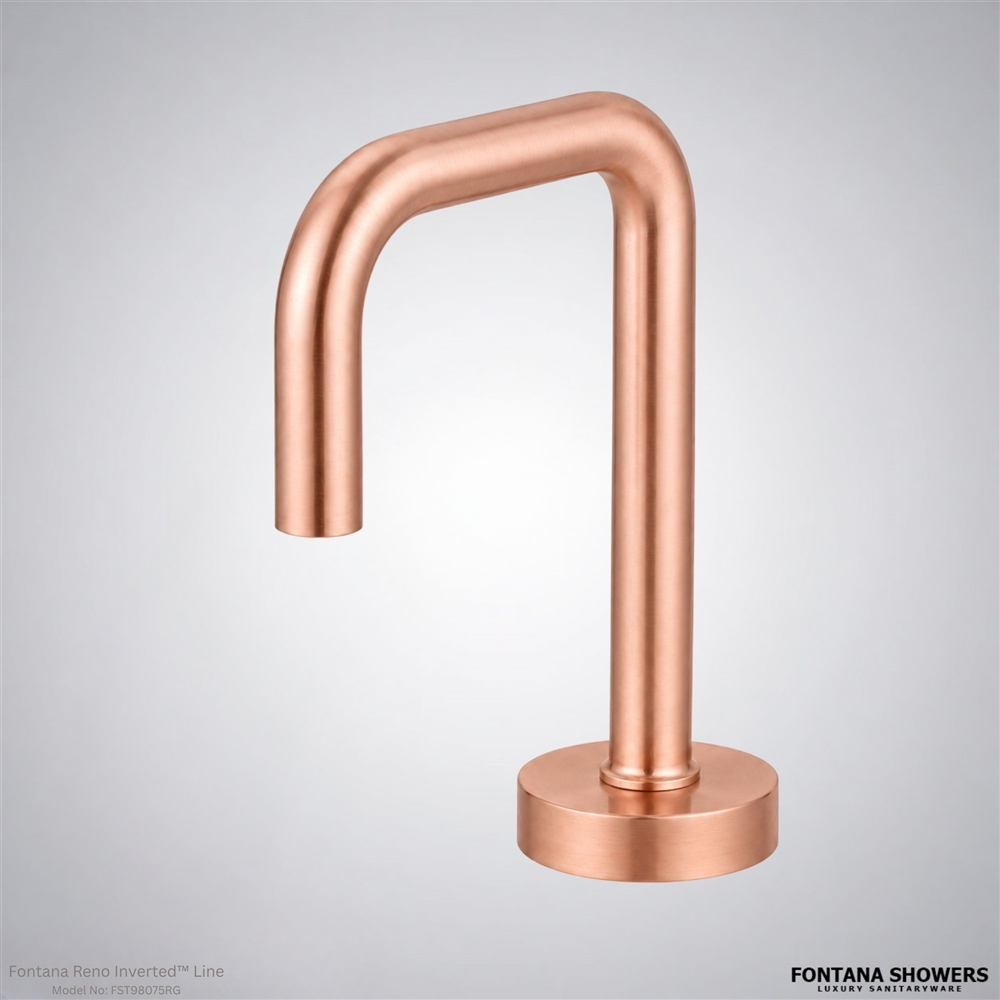

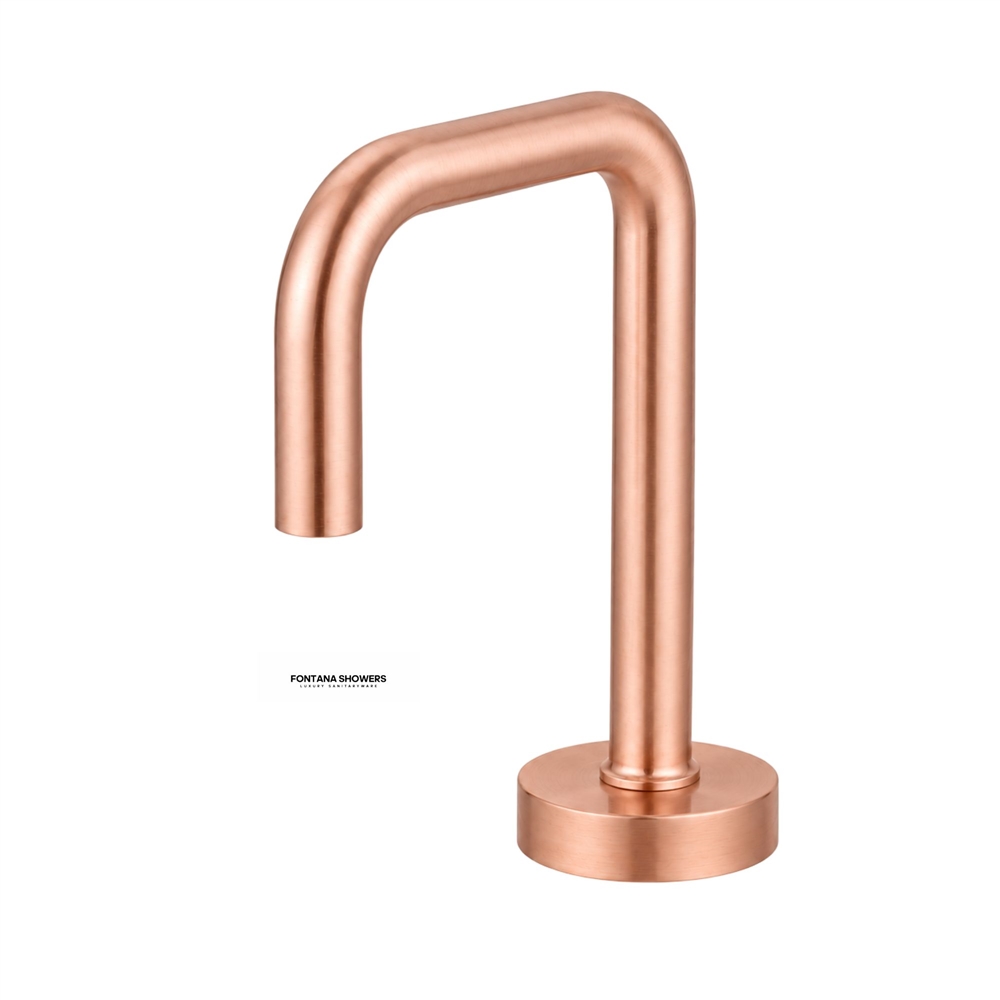

Designed to enhance modern commercial restrooms, the Fontana Reno Inverted™ Line Rose Gold U Shaped Automatic Faucet brings together looks and dependable sensor based performance. That rose gold coloring gives it a refined vibe, and it also helps fend off corrosion, humidity, and general wear, even when it gets heavy foot traffic in busy spaces. The inverted U shaped layout makes the unit stand out as a real centerpiece, which is perfect for luxury hotels, office buildings, medical centers, and high end shopping venues. Using modern infrared technology, the faucet creates a touch free water flow, helping limit the spread of germs, and lowering the risk of cross contamination in shared bathrooms.
It is fabricated from high-grade cast brass, so the unit stays sturdy and performs in a stable way even under nonstop use. Inside, the electronic parts are safeguarded via IP67 sealed protection, so the sensing and control circuits are insulated from moisture, humidity entry, and washdown surroundings, which supports dependable long term functionality.Works with typical US plumbing systems, so installation goes smooth across different renovation projects and new commercial builds. The ADA oriented design encourages accessible use, while still keeping a steady, responsive action, no awkward physical contact needed. The polished surface, tough build quality, and updated automation technology come together to form a hygienic, visually distinctive fixture that fits well in busy workspaces. The Reno Inverted™ Rose Gold edition brings long lasting performance plus that crisp modern look.
RENO INVERTED™ LINE
Fontana Reno Inverted Touchless Faucet FAQs
Commercial inverted-U touchless faucet with solid brass
construction, infrared sensor operation, single-hole deck
mounting, IP67-protected electronics, and controlled water delivery.
✥
Sensor Commissioning Procedure?
+
Complete sensor commissioning after the basin, countertop,
backsplash and surrounding accessories are installed.
Verify reliable hand detection within the intended activation
zone and confirm nearby reflective surfaces do not create
unintended faucet operation.
◇
Hydraulic Checks During Installation?
+
Flush the supply piping before final connection, verify secure
fittings and unrestricted inlet flow, and confirm stable
dynamic pressure before testing automatic valve opening
and complete shutoff.
◯
Operating Water Pressure?
+
The Reno Inverted finish family specifies an operating
pressure range of approximately 0.05–0.8 MPa. Maintain
stable dynamic pressure within this range for dependable
sensor-valve operation and consistent discharge.
↻
Controlled Water Delivery?
+
The product specification identifies controlled water
delivery of approximately 6 liters per operating cycle.
Confirm expected discharge and positive automatic shutoff
during final commissioning.
⌁
Continuous Flow Diagnostics?
+
Clean the infrared sensing area and remove reflective
objects from the activation field. If water continues
flowing, inspect the electronic valve and internal water
passages for debris, obstruction or incomplete valve seating.
⌂
Deck Installation Requirements?
+
The Reno Inverted faucet uses a single-hole deck-mounted
configuration. Verify countertop stability, mounting-hole
location, below-deck clearance, supply routing and future
service access before securing the faucet.
⚡
How Are The Electronics Protected?
+
The Reno Inverted family uses IP67-rated protection around
the sensor and control electronics to help isolate internal
components from moisture, humidity and washdown exposure
in commercial restroom environments.
⌕
Routine Maintenance Requirements?
+
Periodically clean the sensor area and faucet outlet,
inspect supply connections for leakage, remove mineral
accumulation and verify consistent automatic activation
and complete electronic valve shutoff.
‹
›
Rose Gold
♧
6 L Cycle
Controlled Delivery
◇
Solid Brass
Commercial Construction
⌁
Infrared Sensor
Hands-Free Operation
⚙
0.05–0.8 MPa
Pressure Range
◇
Single Hole
Deck Installation
