Fontana Chatou Polished Chrome Rain Shower Head FAQ
1.75 GPM Verification, NPT Joint Sealing & Spray-Face Commissioning

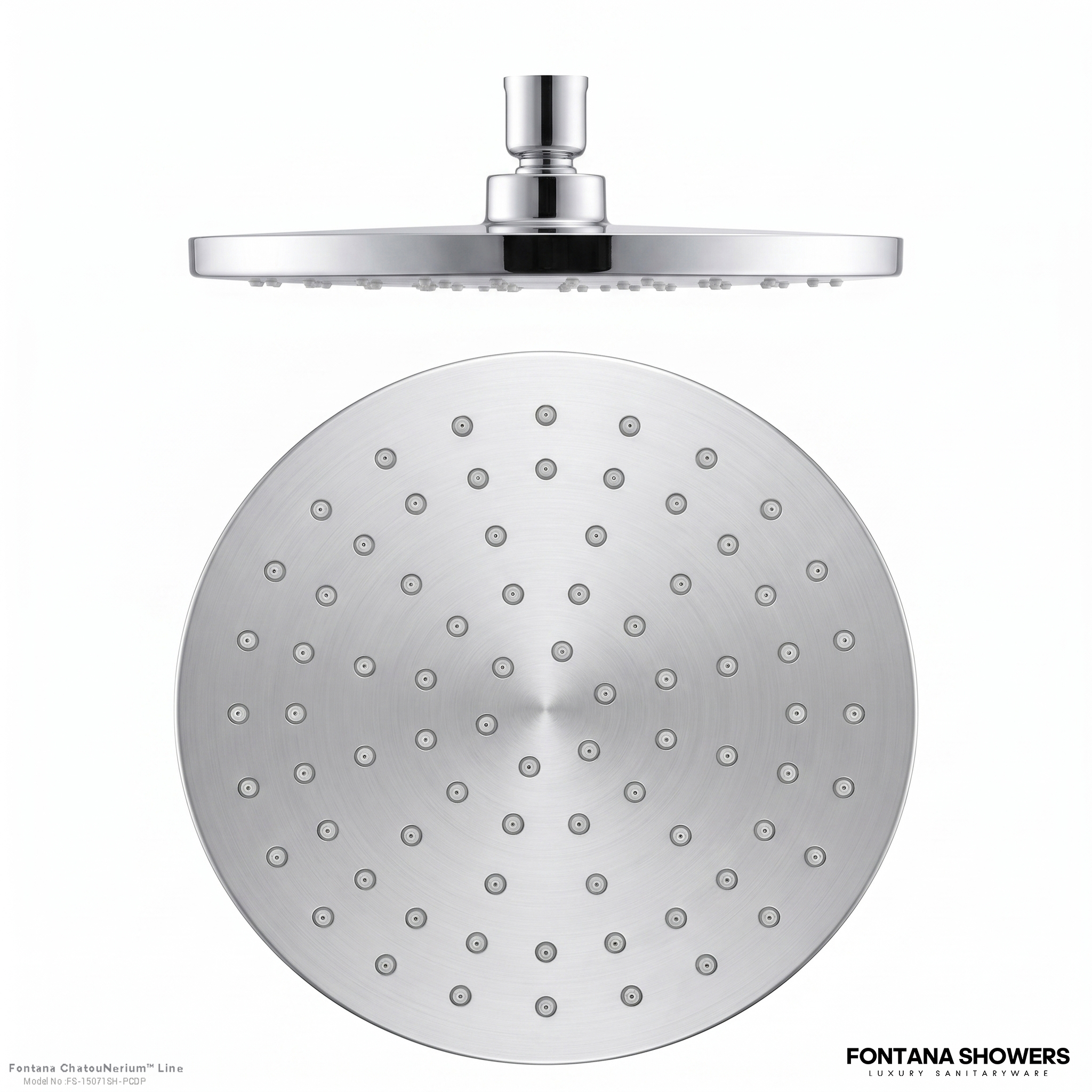

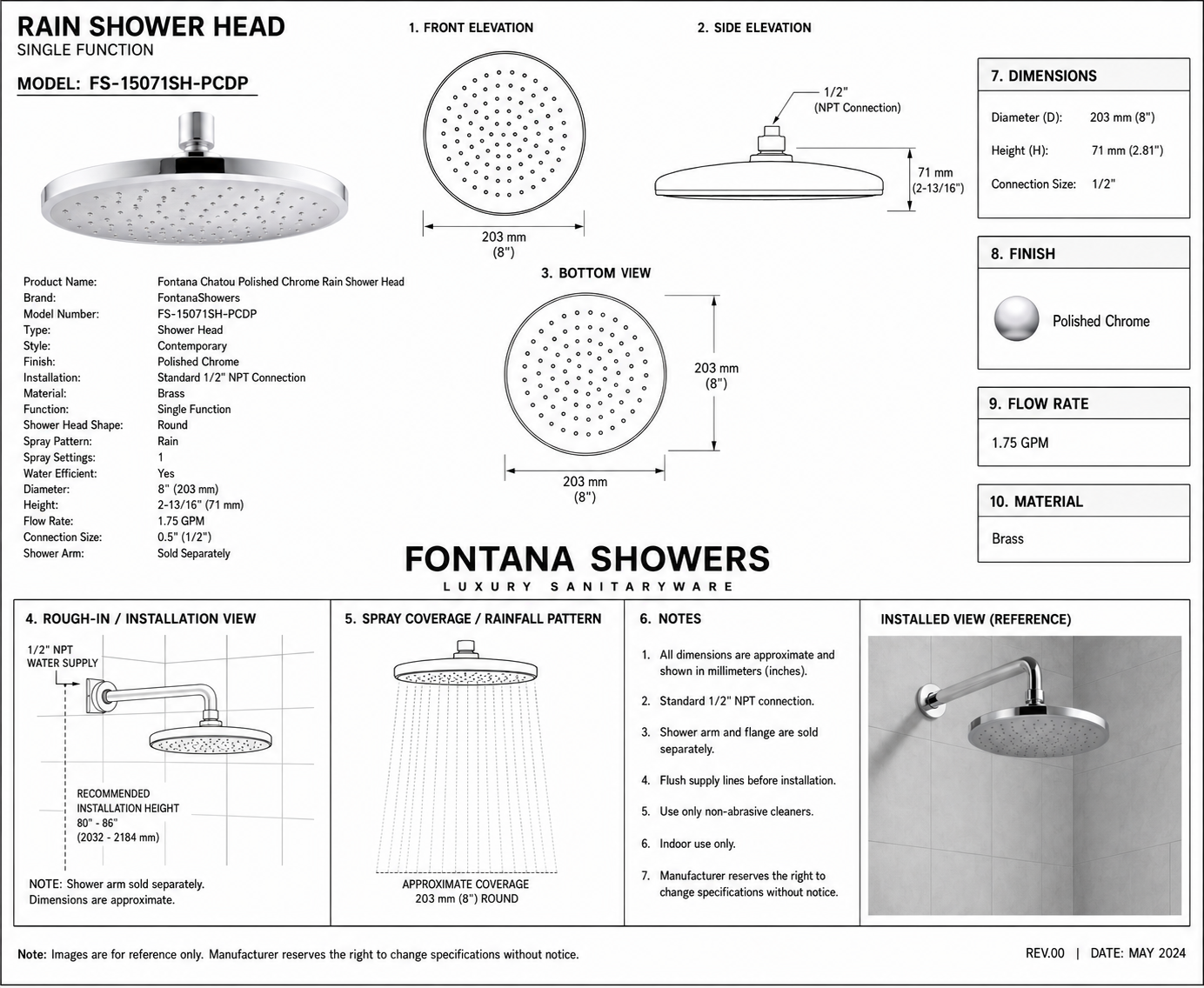

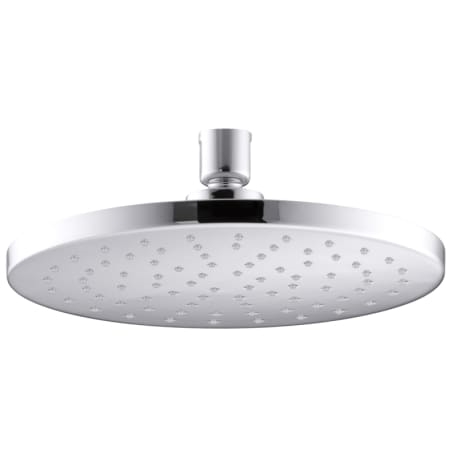

This polished chrome 8-inch round rain shower head combines durable
brass construction, a water-efficient 1.75 GPM single-function spray,
Katalyst air-induction technology, a MasterClean spray face, and a
standard 1/2-inch NPT connection.
How should the concealed shower-arm outlet be prepared before installation?
Confirm that the drop-ear elbow is rigidly anchored, perpendicular
to the finished wall, and positioned at the specified projection.
Flush the branch line and inspect the 1/2-inch NPT threads before
applying an approved thread-sealing compound.
How should the 1.75 GPM discharge be verified during commissioning?
Stabilize the operating pressure, purge trapped air, and perform a
timed volumetric test at the shower head. Reduced delivery may
indicate branch-line pressure loss, construction debris, mineral
accumulation, or restriction at the internal flow-control component.
What confirms balanced hydraulic distribution across the 8-inch spray face?
Verify consistent discharge across the complete nozzle field without
inactive outlets, isolated weak zones, pulsing, lateral jetting, or
irregular droplet formation. Uneven coverage normally requires
branch-line flushing or localized spray-face cleaning.
How should the polished chrome finish and MasterClean outlets be maintained?
Clean the finished surface with a soft cloth and neutral nonabrasive
solution. Gently loosen mineral deposits from the flexible outlets
and flush afterward. Avoid acidic cleaners, abrasive pads, metal
tools, and concentrated descaling chemicals.
