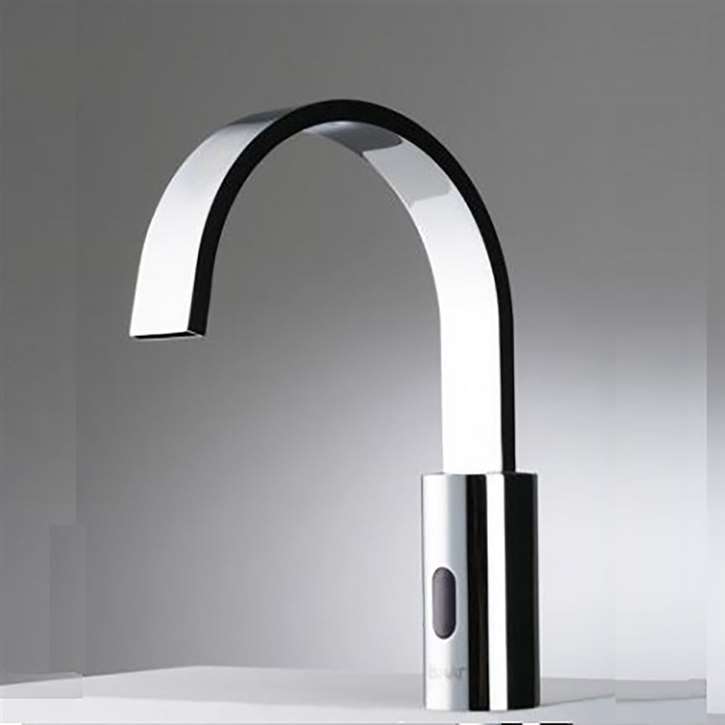

Bravat Infrared Electronic Faucet


The Bravat Infrared Electronic Sensor Activated Touchless Faucet

Minimize waste of water, by using the automatic faucet. Immediately reduces water waste by eliminating unnecessary and unattended water flow.
Fits all standard US plumbing.
Uses 4AA Alkaline Batteries (purchase separately).
Water Pressure: 0.5 - 7.0 KGS/cm, 10-125 psi.

  • Sensor faucet complete motion detection operation.
  • Commercial and residential use.
  • Sensitive Sensor with Infrared AI Smart-Chip
  • Factory set to 30-second Auto Shutoff (can be adjusted).
  • Water Pressure: 0.5 - 7.0 KGS/cm , 10 - 125 psi
  • Solid Brass Construction, Polished Chrome Finish
  • Easy to Install - Instructions Included
  • Water resistant solenoid enclosure
  • Advanced energy saving design for long lasting battery life
  • Comes complete with Hoses & Accessories
  • Power Supply: AC110V And DC6V (batteries not included)
  • AC/DC power option.
  • ADA Compliant
  • Easily can be installed in new or retrofit applications.
  • Comes with 1 Year Manufacturer Warranty



Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucets or handles. Cut down on water usage by minimizing waste of water while soaping, lathering, scrubbing and drying hands by eliminating unnecessary and unattended water flow.

Sensor Activated Faucet Special Features

  • Durable Vandal-Resistant Brass Body; Ideal for Residential as well as commercial high use applications
  • Intelligent: with its micro-computer controlling its action, the faucet will self adjust its best detection zone as per the color and shape of lavatory
  • Flashing light indicator; a diagnostic indicators for power up, low battery, and solenoid function.
  • Meaning of the codes are described in the installation instructions.
  • Convenient to maintain; with built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
  • Faucet can be mounted to any sink surface.
  • ADA Compliant.
  • Batteries life 8,000 cycles per month and with enough water pressure is approx 5 year service life of the batteries.
  • Adjustable sensing range; while the factory range is set about 4"to 5"from the sensor, it can be adjusted.


Diameter of inlet pipe DN15
Diameter of outlet pipe DN15
Water Pressure 0.05Mpa - 0.7Mpa
Power and Voltage DC.6V / AC.220V - 50/60Hz
Power Consumption 0.5MW
Detection Zone Factory set 25cm/10" (based on standard inductive board)
Ambient Temperature 1 - 45 °C / 33.8 -113 °F
Degree of protection by enclosure 1P56
Battery 4 x 'AA' size cells
Operational water pressure range 0.05 - 0.6MPa
Water supply pipe size DN15


  1. Infrared sensor operated, touch-free operation
  2. Water Conserving
  3. Waterproof sensor
  4. Battery low LED light indicator
  5. Advanced circuit design saves electricity and water
  6. Advanced energy saving design for long lasting battery life.
  7. Three-year battery life based on 3,000 hand washes per month
  8. Sensor is not affected by reflections or abnormal lighting
  9. Self-adapting sensors range
  10. Long life durable body
  11. Power Supply Options
  12. Hands-Free Sanitary Operation
  13. ADA Complaint
  14. Vandal-Resistant Aerator
  15. Automatic 30-Second Time Out
  16. Highly-Polished, Chrome Plated Cast Brass Bodies
  17. Low Battery Indicator Light
  18. In-Line Filter
  19. Factory Set Sensor Range
  20. One-Year Warranty

Bravat Infrared Electronic Faucet Installation Instructions
