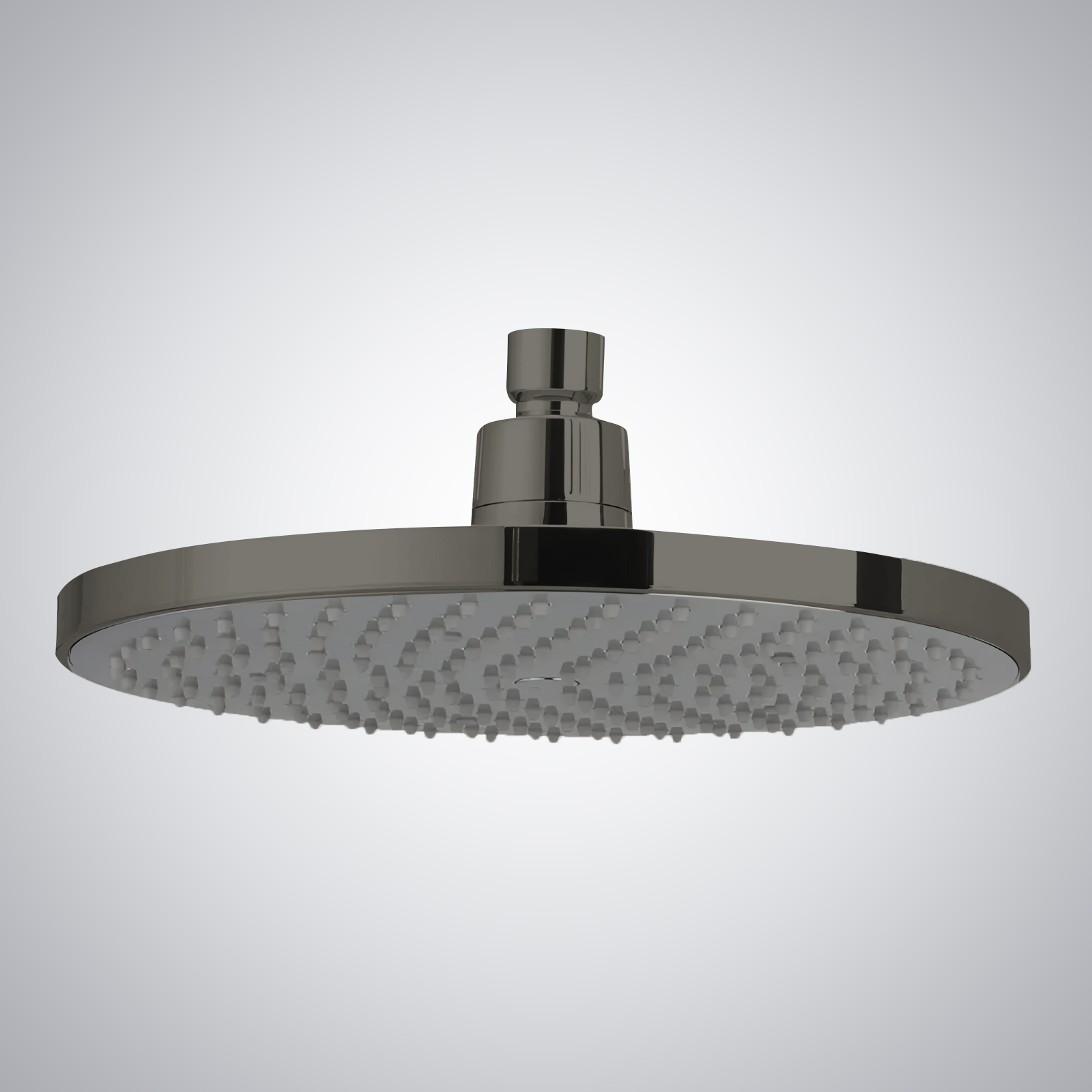

Fontana Dax Round Rain Shower Head with Master Clean Spray Face in Gun Metal Gray Finish
Fontana Dax Round Rain Shower Head with Master Clean Spray Face in Gun Metal Gray Finish

Alternative Views:



Availability: Project Pricing Available Request Quote
Product Code: FS-15074-SHGMG
Request Quote

Description Technical Specs Extended Information


Chrome

Brushed Gold

Oil Rubbed Bronze

Brushed Nickel

Gold

Rose Gold

Champagne

Matte White

Matte Black

Fontana Dax Round Rain Shower Head with Master Clean Spray Face in Gun Metal Gray Finish

Immerse yourself in the ultimate showering luxury with the Fontana Dax Round Rain Shower Head with Master Clean Spray Face in Gun Metal Gray Finish. This shower head boasts a stunning appearance and innovative cleaning technology, ensuring an exceptional showering experience every time. Expertly crafted with meticulous attention to detail, it promises to elevate your daily shower routine to new heights of rejuvenation. The Fontana Dax Round Rain Shower Head with Master Clean Spray Face in Gun Metal Gray Finish showcases a sleek and contemporary design that adds a touch of sophistication to any bathroom decor. Its rounded shape and advanced clean spray face efficiently eliminate mineral buildup and obstructions, ensuring a consistent and enjoyable showering experience. Built to endure, this shower head features durable construction and long-lasting performance, making it a reliable addition to your bathroom for years to come. Whether you're unwinding in the evening or starting your day afresh, the Fontana Dax Round Rain Shower Head with Master Clean Spray Face in Gun Metal Gray Finish promises to envelop you in a soothing cascade of water droplets, delivering ultimate relaxation and rejuvenation.

Fontana Dax Round Rain Shower Head with Master Clean Spray Face in Gun Metal Gray Finish Features:

  • Brand Name: FontanaShowers®
  • Model Number: FS-15074-SHGMG
  • Type: Shower Head
  • Style: Contemporary
  • Flow Rate (GPM): 1.75 GPM
  • Shower Arm Included: No
  • Faucet Type: Shower Faucet
  • Material: Metal
  • Spec: Shower head available in Revit Families and BIM Object
  • Showerhead: Single Function
  • Shower Head Shape: Round
  • Spray Pattern: Rain
  • Spray Settings: 1
  • Water Efficient: Yes
  • Connection Type: NPT
  • Connection Size: .5 inch
  • Height: 2 inch
  • Width: 9.875 in
  • Finish: Gun Metal Gray
  • Size: See options available in many Sizes

Features


Fontana Dax Gun Metal Gray Round Rain Shower Head FAQ

1.75 GPM Field Testing, MasterClean Nozzle Maintenance & NPT Joint Control

This Gun Metal Gray round shower head combines a 9.875-inch metal spray face, single-function 1.75 GPM rainfall delivery, MasterClean easy-service nozzles, an adjustable swivel joint, and a standard 1/2-inch NPT inlet for compatible wall- or ceiling-mounted shower arms.

How should the 1/2-inch NPT supply connection be prepared before installation?
Flush the open shower-arm branch until pipe scale, solder residue, construction debris, and excess sealing material are completely discharged. Verify that the male NPT threads are undamaged and that the shower arm is rigidly supported before installing the finished shower head.
How should the Gun Metal Gray shower head be tightened without damaging its swivel joint?
Apply compatible thread sealant sparingly and transfer tightening force through the inlet connection rather than gripping or rotating the finished spray-face body. Complete the watertight threaded joint first, then position the shower head through the swivel without using it as an installation lever.
How should the specified 1.75 GPM rainfall output be validated during commissioning?
Operate the shower at stable dynamic pressure, purge trapped air, and complete a timed volumetric collection test at the outlet. Reduced discharge can indicate branch-line pressure loss, an undersized supply path, residual installation debris, mineral restriction, or obstruction within the internal flow passage.
What indicates that the MasterClean spray field is operating correctly?
Confirm balanced rainfall coverage across the complete 9.875-inch face without inactive nozzles, weak perimeter zones, pulsing, or concentrated directional streams. Any restricted nozzle should be gently wiped, the branch flushed again, and the complete spray pattern retested under normal operating pressure.
Fontana Dax Gun Metal Gray Round Rain Shower Head with MasterClean Spray Face
Gun Metal Gray
