How to install Fontana RV White Travel Exterior Hand-Shower Kit Metallic With Hot & Cold Feature | FS9470

Easy step by step Installation for RV Travel White Hand Shower With Hot & Cold Mixer

Preparation: Before starting, carefully read the installation instructions and adhere to local building codes.
Inspection: Unpack and check for any shipping damages. If you notice any, refrain from installing it.
Professional Installation: Ensure installation is done by a certified plumber to avoid warranty voidance.

shower

Specs:

Description:

- Fade and impact resistant, UV stabilized and paintable.

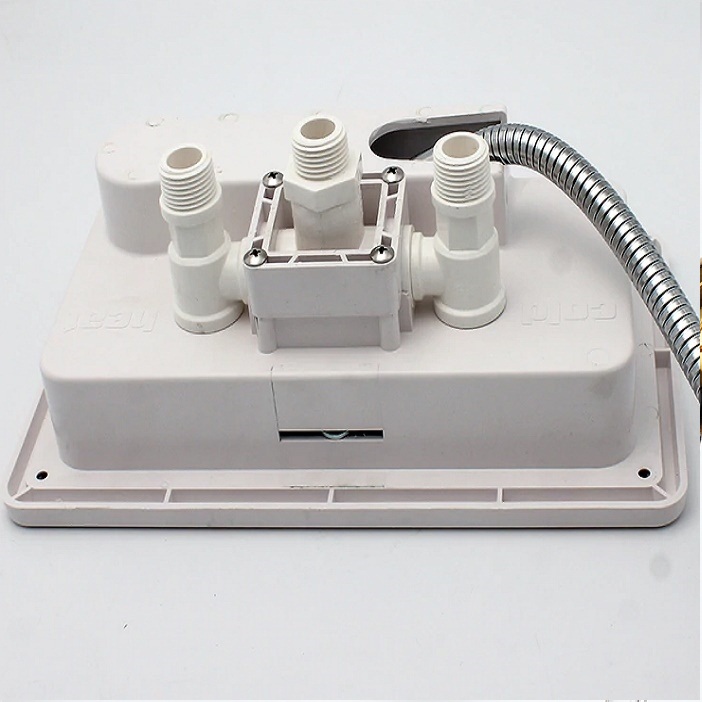

- The unit is screwed into the cutout from the outer face: the screws are covered when the door is closed, the key lock ensures safety.

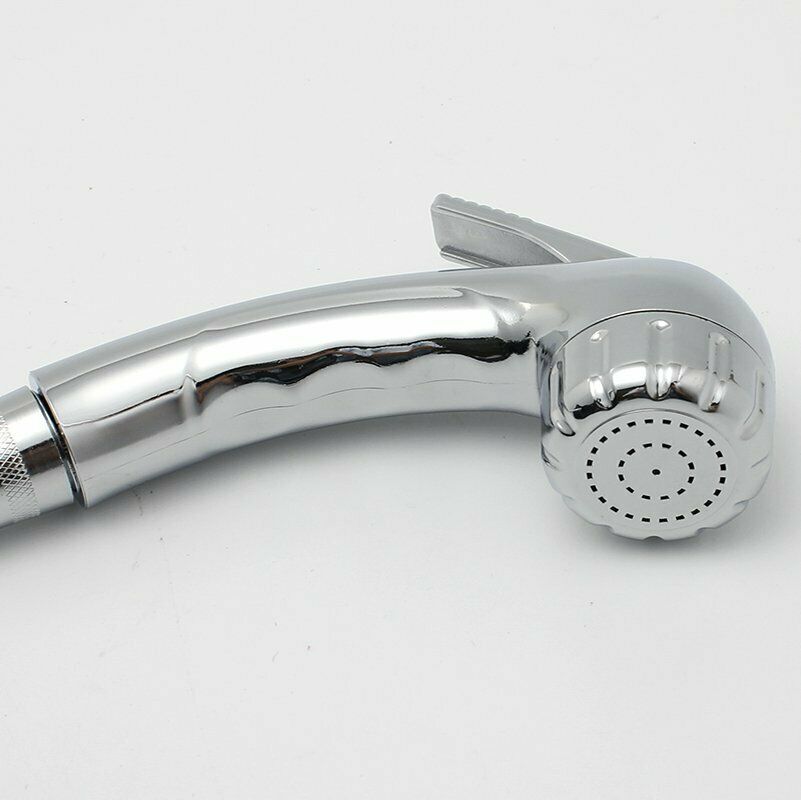

- The shower rose can be hand held or locked in the door.

- It can be installed either horizontally or vertically.

- Universal fit for RV Camper Motorhome Trailer Boat Marine Caravan Yacht.

Specification:

- Material: plastic and metal

- White color

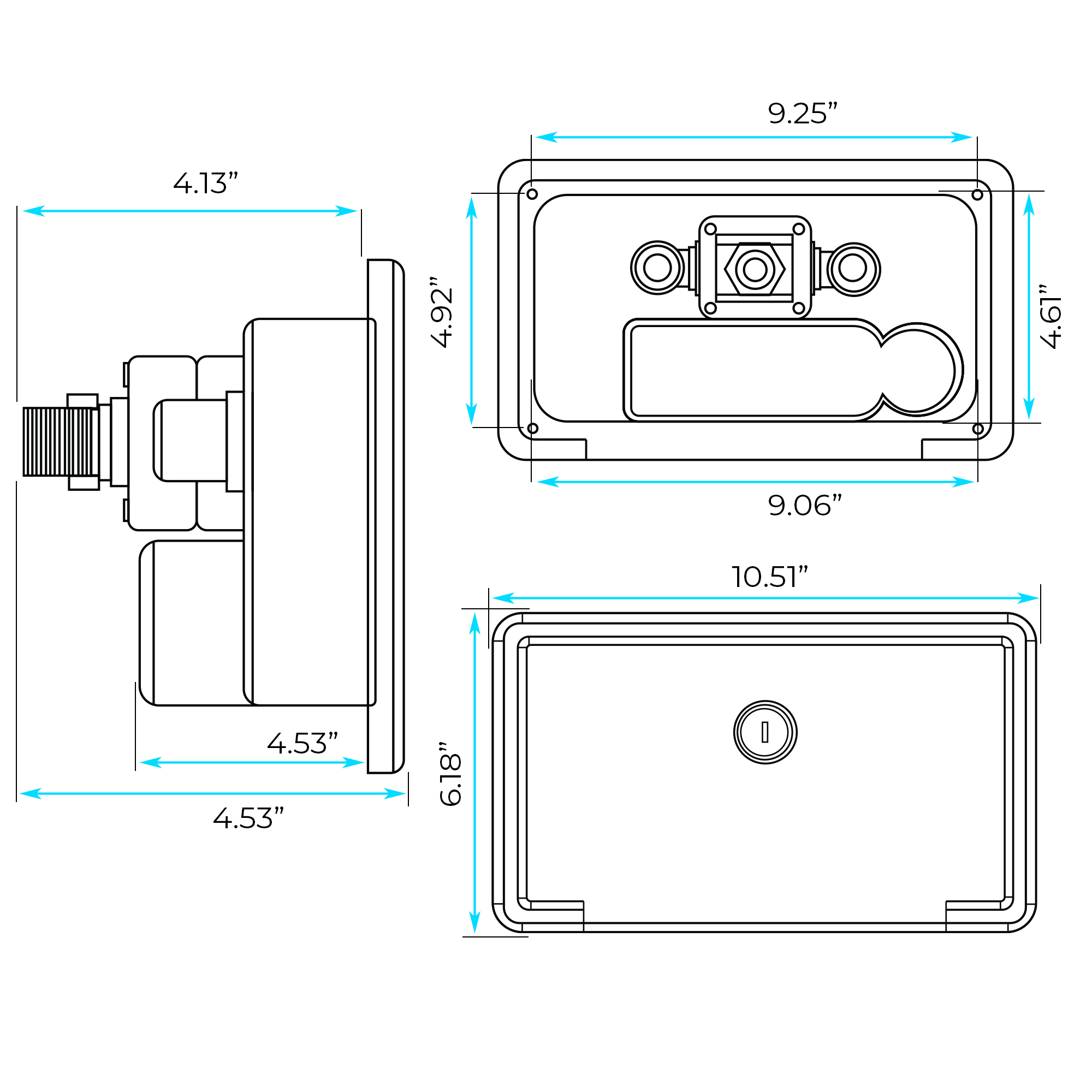

- Size: about 267x157x107mm / 10.51x6.18x4.21 inch

- Cut size: about 231x118mm / 9.09x4.65inch

Note:

Please allow 0.5-1 inch difference due to manual measurement. (1 inch = 2.54cm)

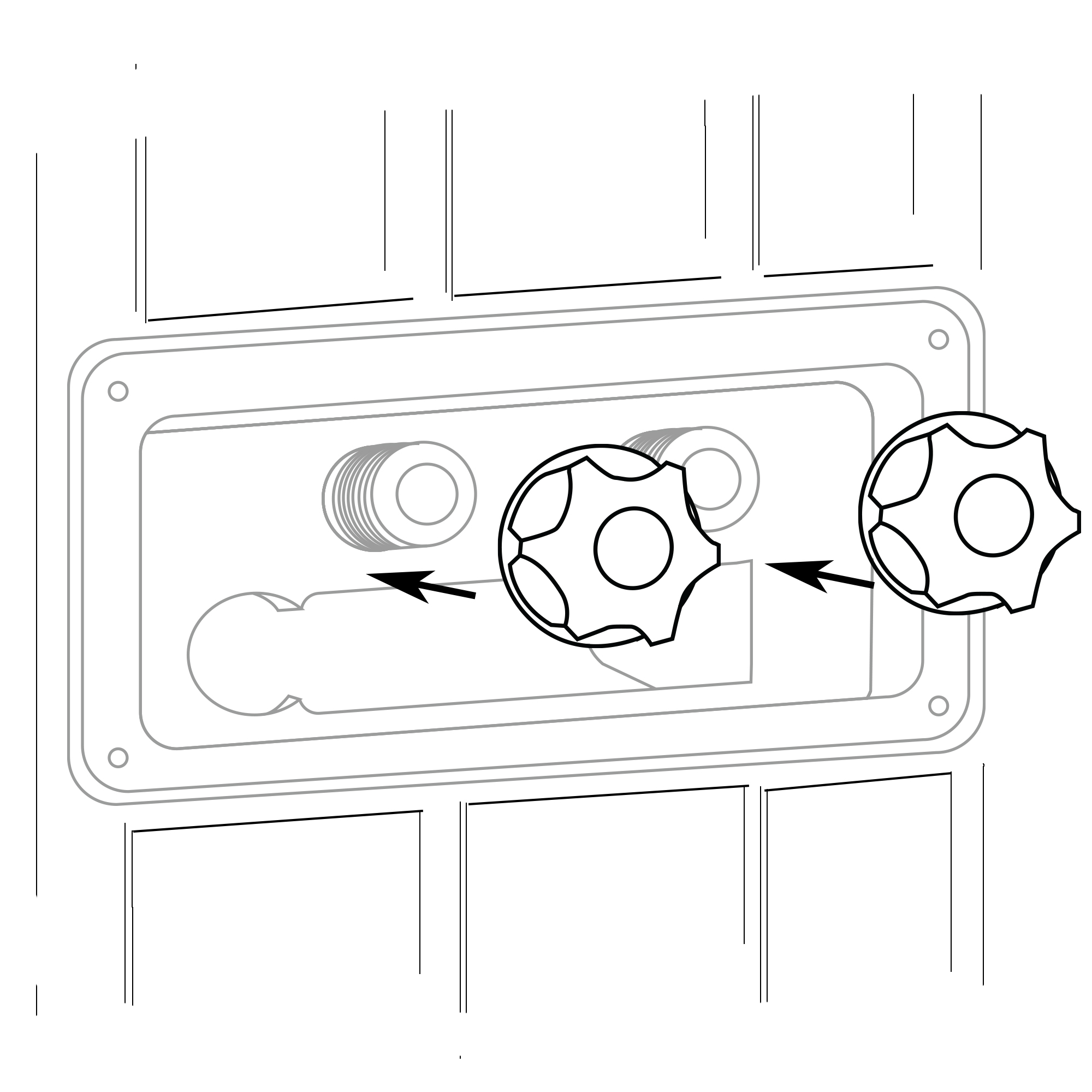

Hand Held Shower Installation Instructions

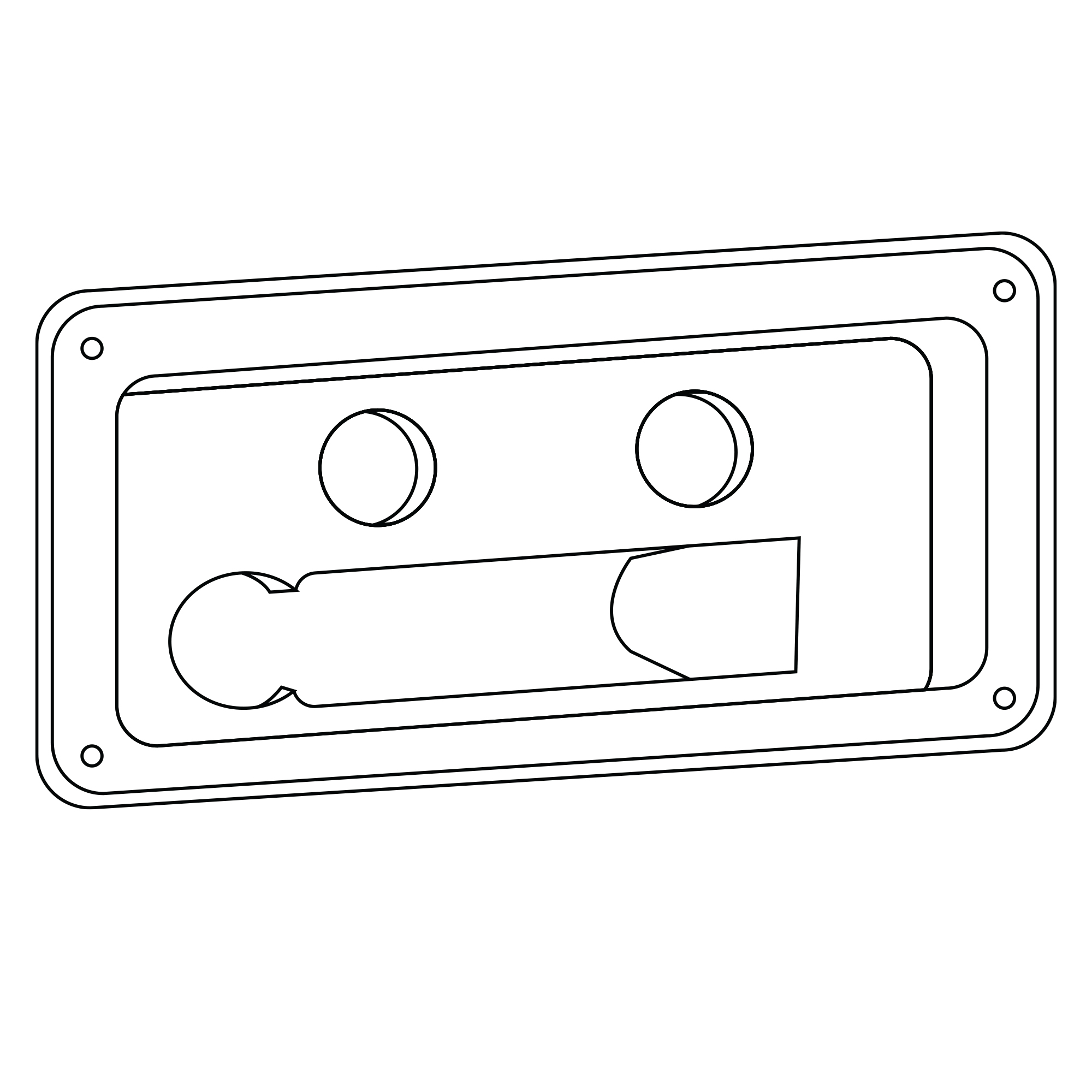

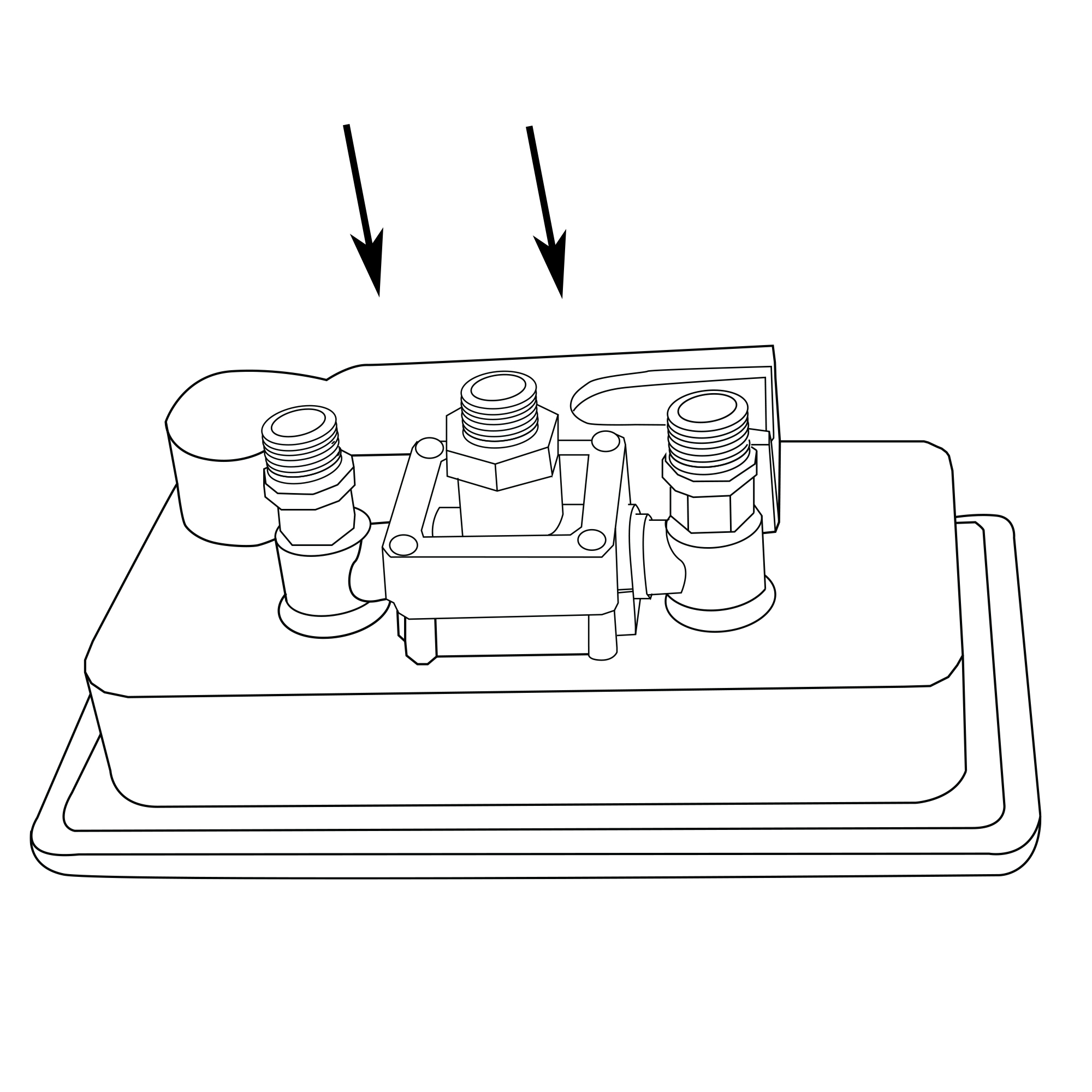

Step 1:		Step 2:
	Hand Held Shower		Hand Held Shower
Handheld Shower

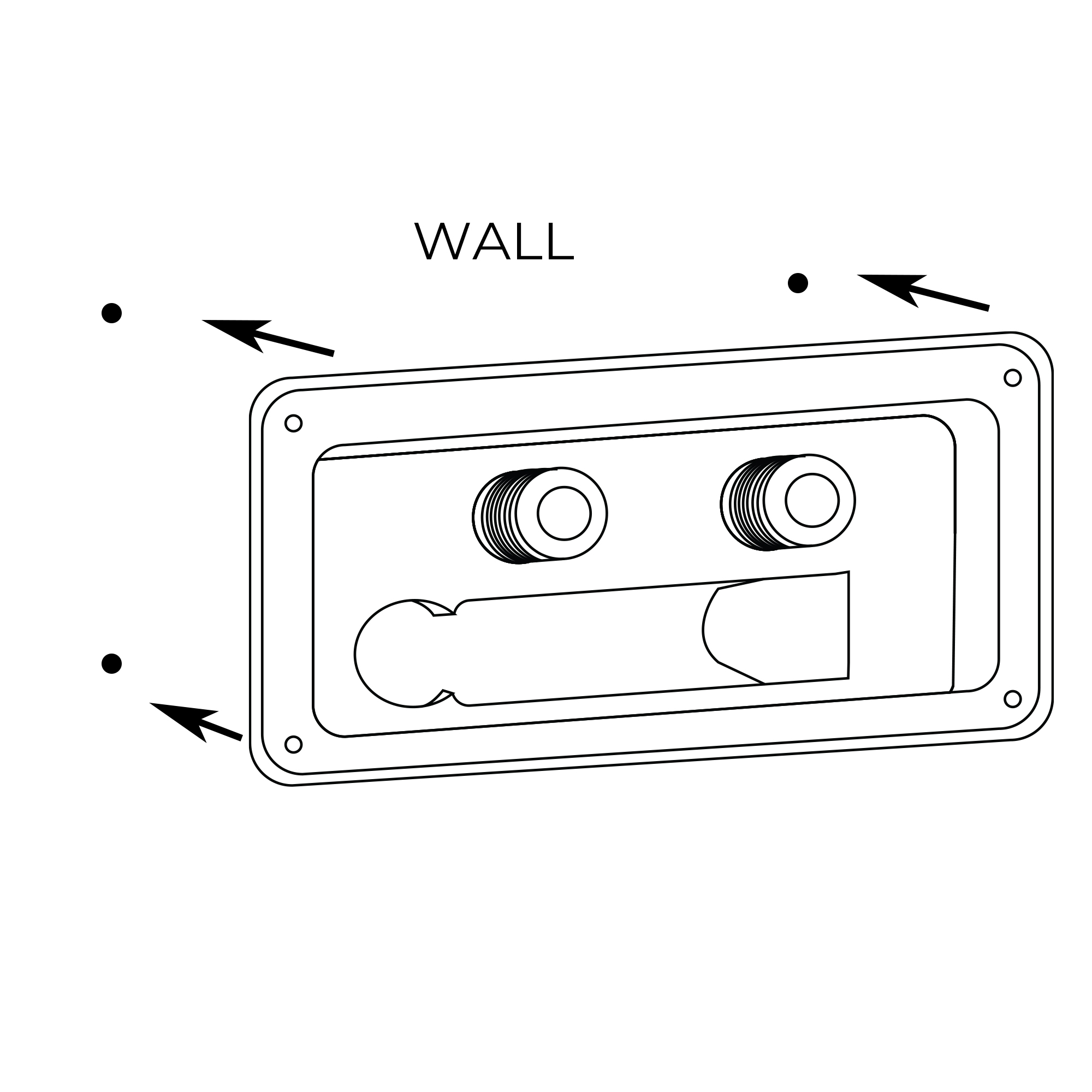

Step 3:		Step 4:

Handheld Shower
Step 5:		Step 6:
