Fontana Boldmere Brushed Gold Ceiling Shower FAQ
Ceiling Rough-In Coordination, Thermostatic Control & Dual-Function Hydraulics

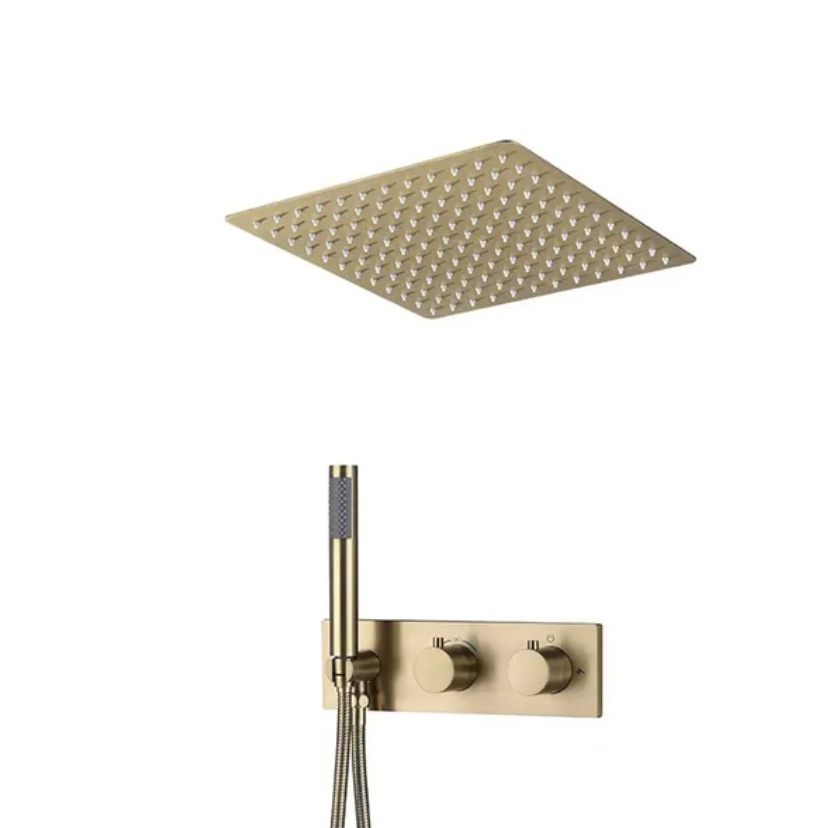

The Fontana Boldmere Brushed Gold concealed shower system combines a
flush ceiling-mounted square rain shower, wall-mounted hot-and-cold
waterfall mixer, brass construction, and two-function thermostatic
control for modern residential and hospitality bathrooms.
What must be coordinated before closing the ceiling around the concealed rain shower head?
The installer should confirm structural backing, centered supply alignment, finished-ceiling elevation, access to threaded connections, and clearance from lighting, ductwork, and framing before the ceiling surface is permanently closed.
Why should the hot and cold branch pressures be checked under flowing conditions?
A thermostatic mixer responds to the pressure available while water is moving, not only static pressure. Dynamic verification helps prevent temperature drift, uneven outlet performance, and reduced flow when other fixtures operate simultaneously.
How should the two shower functions be tested during final commissioning?
Each function should be operated independently through the full control range while checking spray uniformity, mixer response, complete shutoff, connection integrity, and whether switching functions causes pressure shock or residual cross-flow.
What service provision is essential for a concealed ceiling shower installation?
The concealed mixer, supply unions, and ceiling-head connection should remain reachable through planned access panels so cartridge servicing, leak inspection, flushing, and future component replacement do not require destructive ceiling removal.
