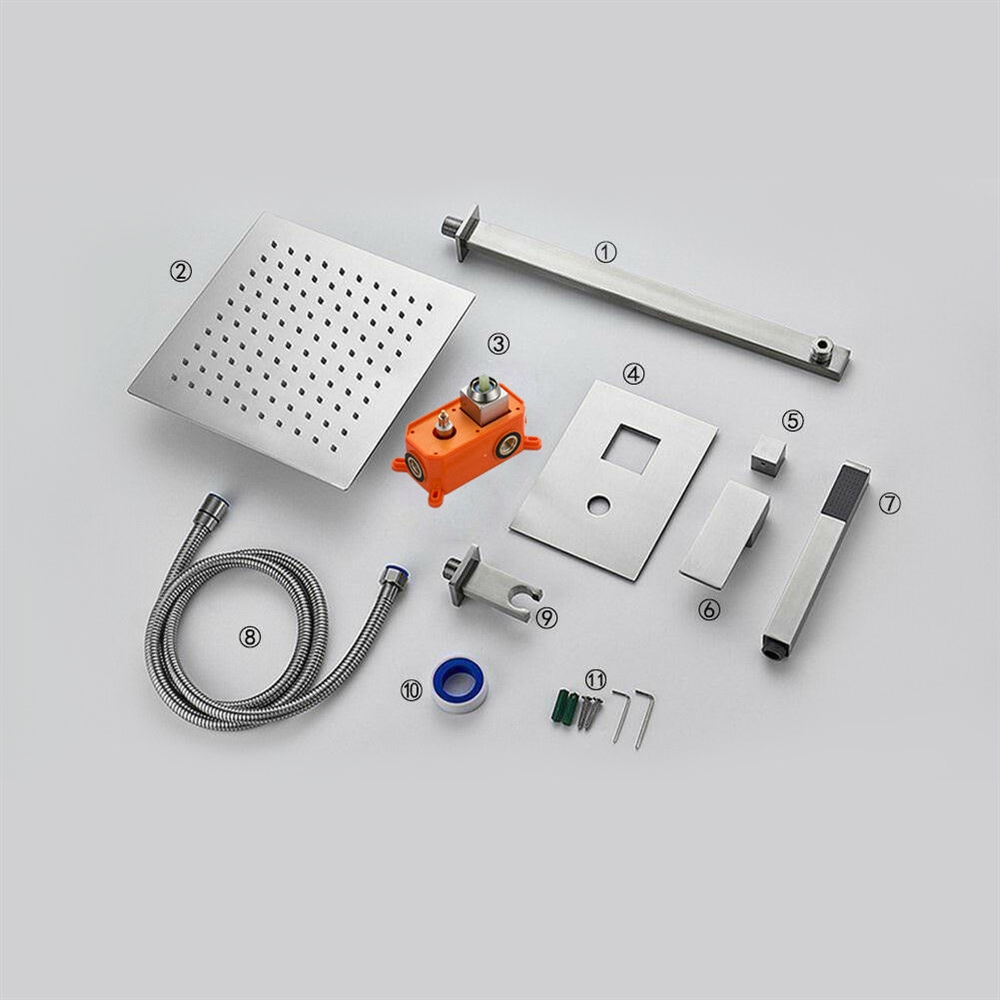

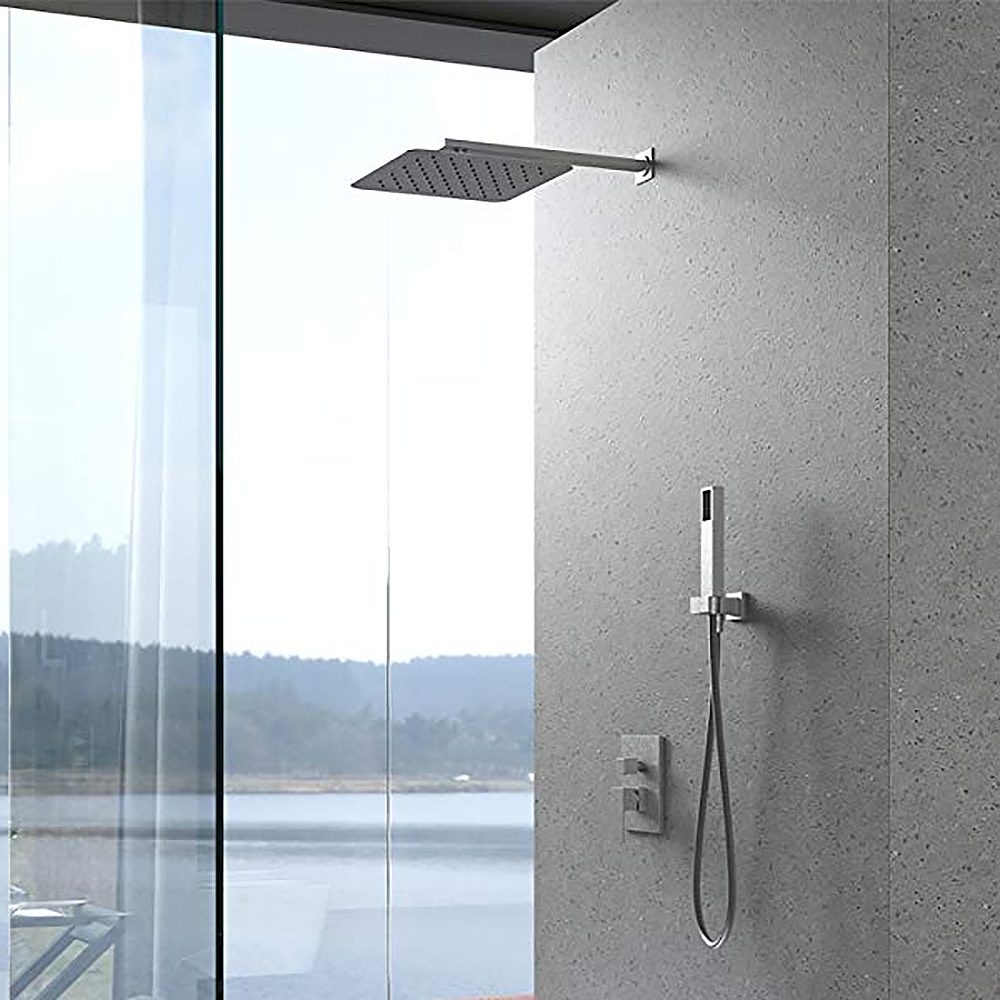

How to install Fontana Showers LED Brushed Nickel Single Handle Wall Mount Square Rainfall Shower Set | FS1515
Installation Instructions for Bathroom Shower Set
Before you begin, please read the installation instructions below. Observe all local building and safety codes.
Unpack and inspect the product for any shipping damages. If you find damages, do not install.
Please note all showers must be installed by a professional and certified plumber otherwise warranty might be voided.
shower
Wall Mount Shower Head Installation Instructions
Step 1:
shower
Step 2:
Step 3:
Step 4:
Step 5:
Step 6:
Step 7:
Step 8:
1. Apply plumber's tape to the threads on both ends of the shower arm and slide on the decorative escutcheon.
2. Insert the new arm into the fitting in the wall and twist to tighten. Finish tightening with your adjustable wrench. Wrap a dry cloth around the shower arm to protect the finish while tightening with an adjustable wrench.
3. Thread the new showerhead onto the arm and hand-tighten. Hold the shower arm in place with groove joint pliers and finish tightening the shower head with your adjustable wrench. Wrap both in a dry cloth to protect the finish.
4. Before securing the decorative escutcheon, turn on the water supply to make sure that all connections are tight and there is no leaking. If no leaks are detected, continue with the installation. If leakage does occur, use your adjustable wrench to tighten the connections as necessary.
5. Apply a bead if silicone sealant to the back of the escutcheon and press firmly into place against the installation surface. Wipe away any excess sealant with your damp cloth.
Hand Held Shower Installation Instructions
Fontana LED Brushed Nickel Shower Installation
Coordinate the Square Rainfall Shower
Explore related guidance for the wall-mounted LED showerhead, single-handle valve, supply rough-in and system testing.
What should be checked before installing the shower arm?
Confirm that the wall outlet is securely supported, level, properly sealed and positioned at the required height and projection.
Open Product Guide

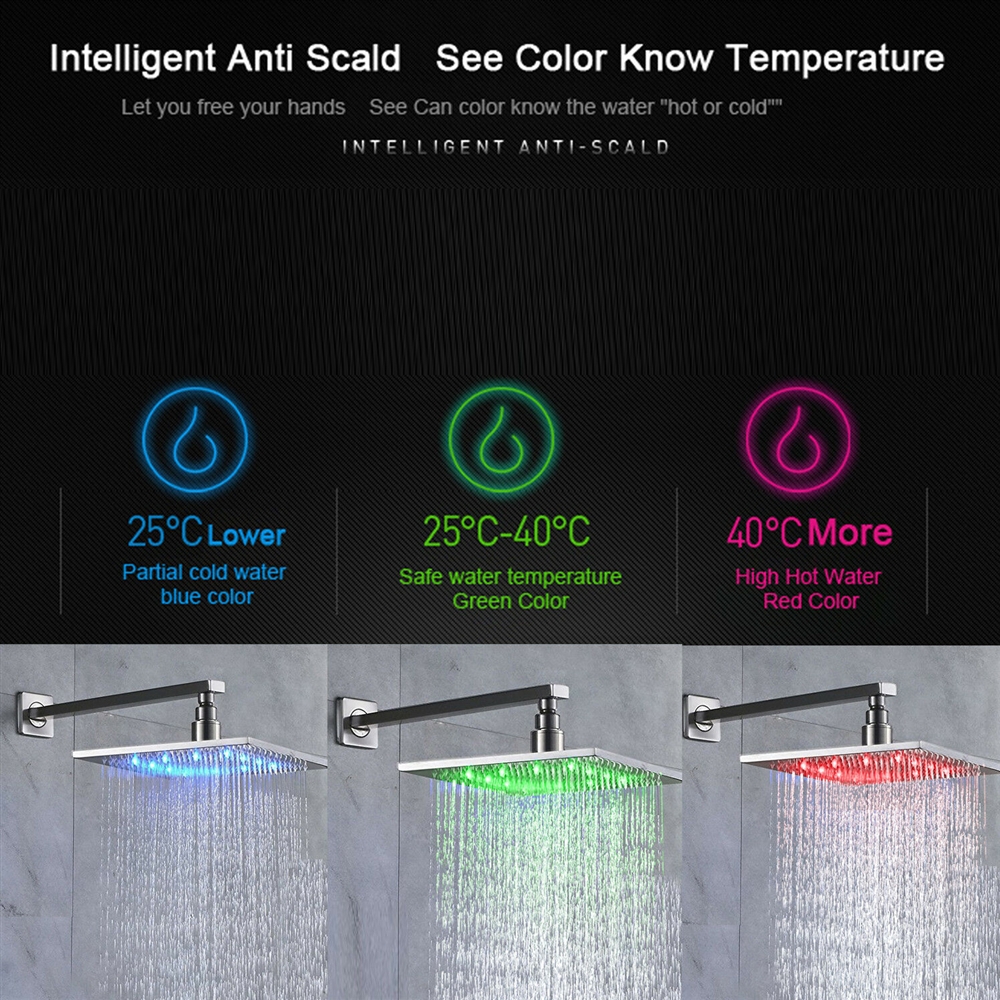

Does the LED showerhead require separate power?
Check the exact product instructions before rough-in. Never assume the power method from the appearance of the showerhead or another model’s specifications.
Verify LED Requirements
When should the wall connections be tested?
Flush and pressure-test the valve and shower-arm connection before installing inaccessible finishes and again after attaching the showerhead.
