1. Remove your existing shower head with a wrench.
2. Set the wrench in place and turn the nut to the left to loosen it.
3. Have a hand ready to catch the shower head when it falls so that the metal doesn’t crack your shower floor.
4. Clean the threads of the base of the shower head steel wool.
5. Be sure to remove any debris that had collected around the threads.
6. Wrap the threads with Teflon tape, This tape comes with almost all new shower faucets and heads and provides traction for the new hardware.
7. Place a rubber “O”-ring inside the new shower head and water connection, this prevents any leaks and improves water pressure.
8. Tighten the LED shower head.
9. Test the Temperature Controlled Shower Head to make sure there are no leaks and that everything is working properly.
10. Now you have a huge improvement in your bathroom for a minimal amount of cost and effort.

Hand-Held Shower Instructions

5. HOLE LOCATIONS FOR WALL MOUNT

Remove Front Cover (5A) from Wall Mount (5B). Use Wall Mount Screw Holes (5C) to place the desired location. Using a punch or awl, tap the screw hole locations. Holes must be vertically aligned.

6. ANCHOR INSTALLATION

Drill two 1/4” dia. Holes (6A). If installing into a studs drill two 1/8” dia. holes and do not use Anchors (6B). Insert Anchors (6B) into Holes (6A) and tap flush with wall.

7. WALL MOUNT INSTALLATION

Place Wall Mount (7A) into wall and inset Mounting Screws (7B) through Wall Mount Holes (7C) and tighten until Wall Mount (7A) is flush with the wall. Do Not Over Tighten! Insert Front Cover (7D) into Wall Mount (7A)

8. DROP ELBOW & HOSE INSTALLATION

Apply PTFE plumbers tape on both ends of Pipe Nipple (8A) (not included). Screw Pipe Nipple (8A) into the elbow inside the wall. The Pipe Nipple (8A) is to project 1/4” – 3/4” from the finished wall. Screw Drop Elbow (8B) onto Pipe Nipple (8A) and tighten until Drop Elbow (8B) is property positioned and flush to the finished wall.

Place Rubber Seal (8C) inside Hex Hose Fitting (8D). Connect Hex Hose Fitting (8D) into Drop Elbow Outlet (8E) by turning Hex Hose Fitting (8D).

9. UNIT STARTUP

Turn on hot and cold water supplies, and check all connections for leaks.

10. FINAL FLUSHING

For final flushing, turn the valve on and allow water to run through the Hose (10A) for several minutes. Allow water to run for several minutes until all foreign matter clears the line.

11. SHOWER ARM INSTALLATION
Place Rubber Seal (11A) inside Tapered Hose Fitting (11B). Conned Hand Shower (11C) to Hose (11D) by turning Tapered Hose Fitting (118) clockwise.

1. Basic-size, according to the embedded box to open the hole on solid wall, should consider installing the metope of the distance between 60-75mm, for example, after blank wall in the shop, the ceramic tile surface to increase the thickness of the 20 mm, so PiQiang in the depth of the hole should be chosen 40 to 55 mm.
2. Hole bottom should remain flat so that subsequent adjustment embedded box of vertical and horizontal convenient installation for the principle
3. Pay attention to the direction of the up and down or so embedded box, on the left by hot water pipes, right after the cold water pipes, pick up and down the mixed water pipes.
4. After the pipe connection, according to the pipeline arrangement, and open the corresponding channel slot tube in the blank wall.
5. Embedded box fixed before, to embed box and trial test and pipe water clean connection pipe, and test before mixing water channels should be open.
6. Test, before opening the switch valve core, open the water to test around inlet pipe, is connected closely with no leakage and the water pipe test after dosing open state, whether to test on the mixed water pipe connection without leakage. At the same time clean tube foreign bodies in case of influencing water control valve function.

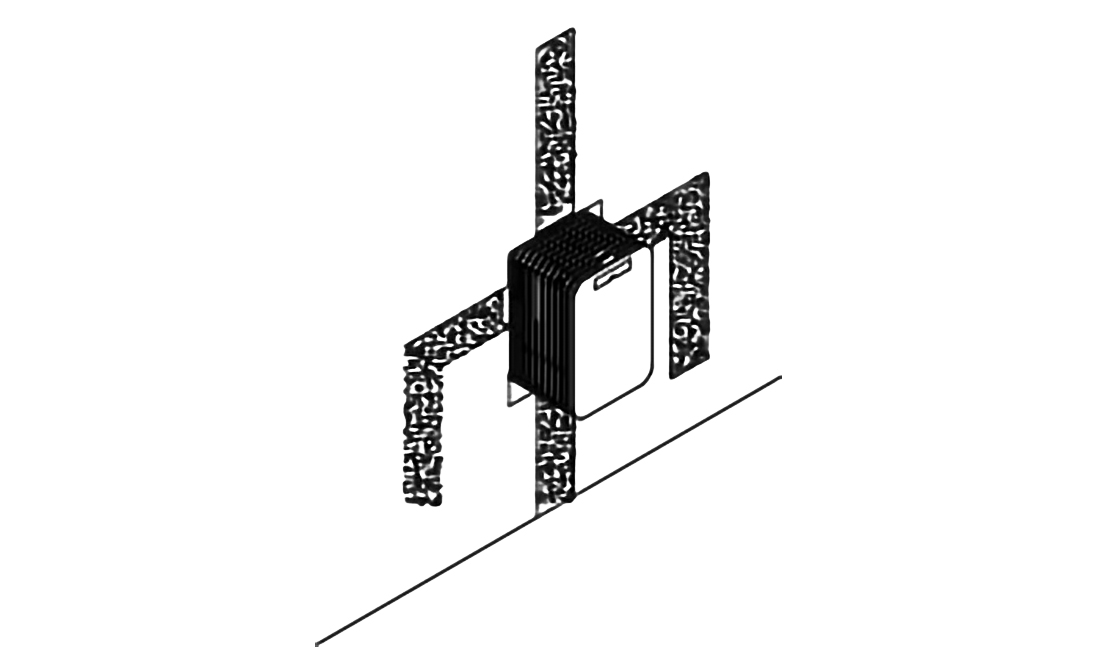

7. It will be embedded in a box into the solid wall with a self-tapping screw that is fixed on the wall.
8. With parallel ruler for correction of the embedded box of horizontal and vertical direction to embed box into a level with the ground, and metope as 90°. In the absence of good correction will influence the control panel installation effect.

Once again confirm the pipe connection is correct, try no leakage, water shower other embedded with the packing box and pipe joint is fixed

Solid wall embedded box is installed, laid our behind the wall can be a follow-up control valve installation

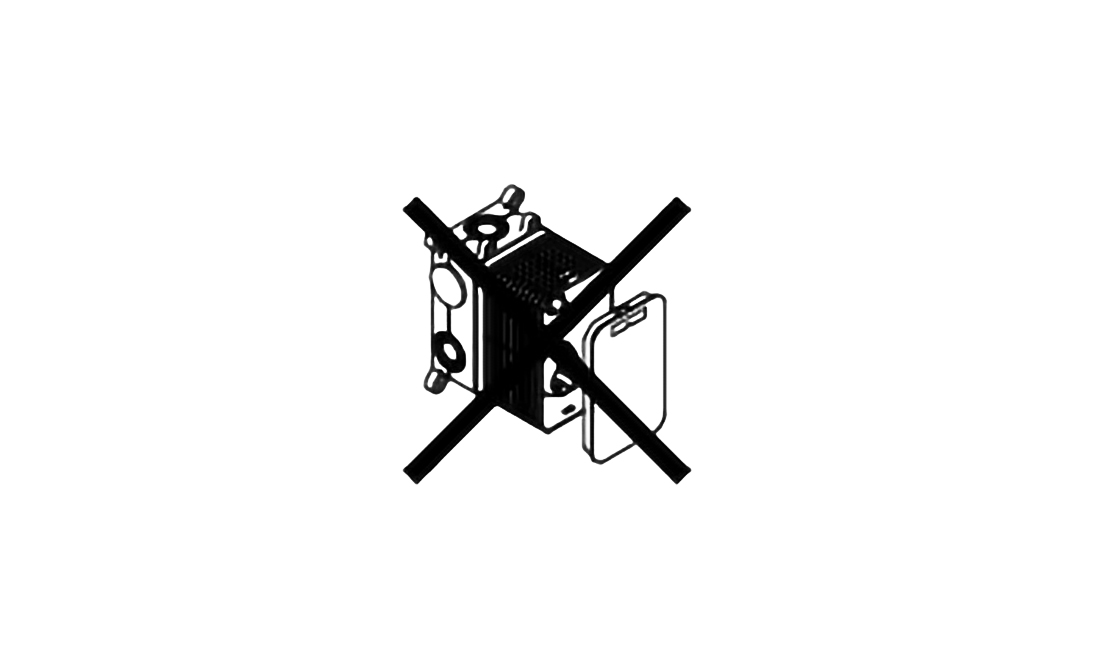

The lying of the wall not to embed box is open, lest the box into the packing after solidification effect of control valve installation

Control valve set surface for plating and smooth surface should be kept inside the original packaging before installation to prevent scratches, corrosion, and lost.

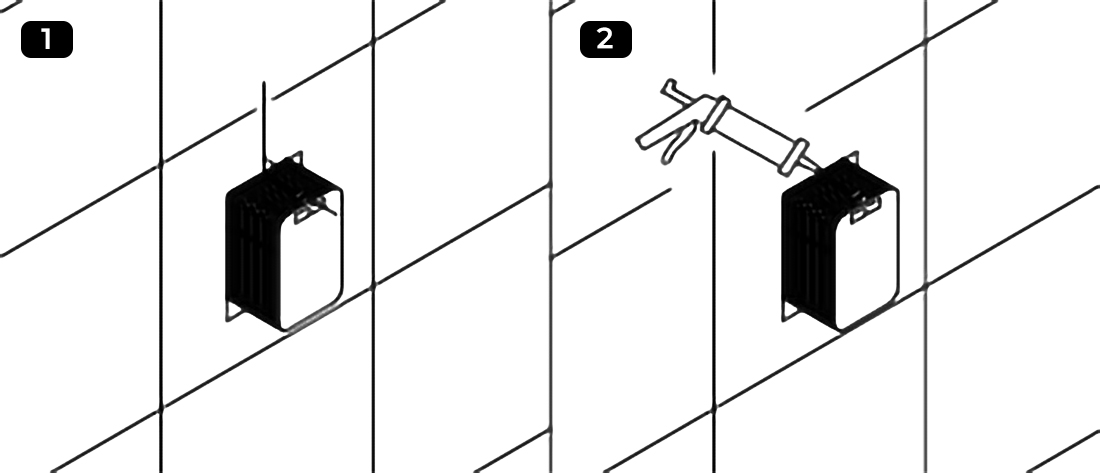

1. Laid metope ceramic tile or other adornment metope, keep the metope smooth, with the embedded box into 90″ vertically

2. Along with the embedded highlights, the glass on the edge glue, embedded box to improve waterproof performance prolongs service life.

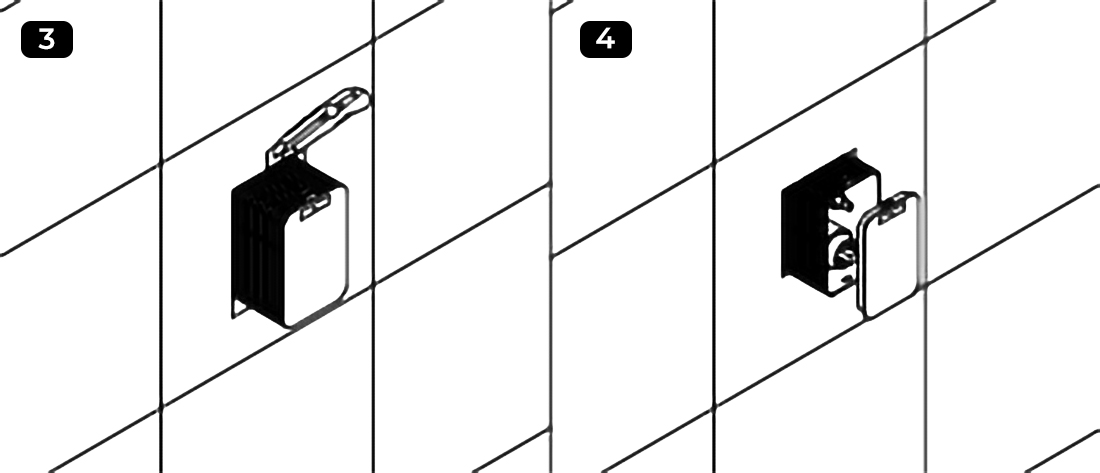

3. Cut oof using a cutting tool embedded box of highlightings, keep away from the wall 2-4mm highly advisable.

4. Try yo remove embedded lifted the lid plate and water components

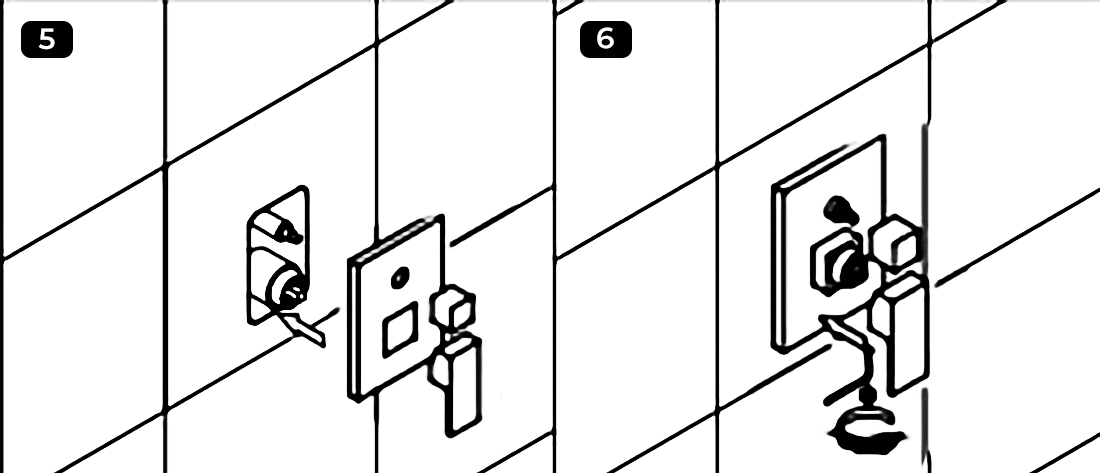

5. Installed control panel, check on panel hole protecting glue before set cut, such as unprotected glue set directly into the panel is easy to scratch panel

6. Install the switch handle, with packing with small hexagonal wrench clockwise to switch handle is fixed on a main valve spool control valve in, install decorative rubber plugs.
