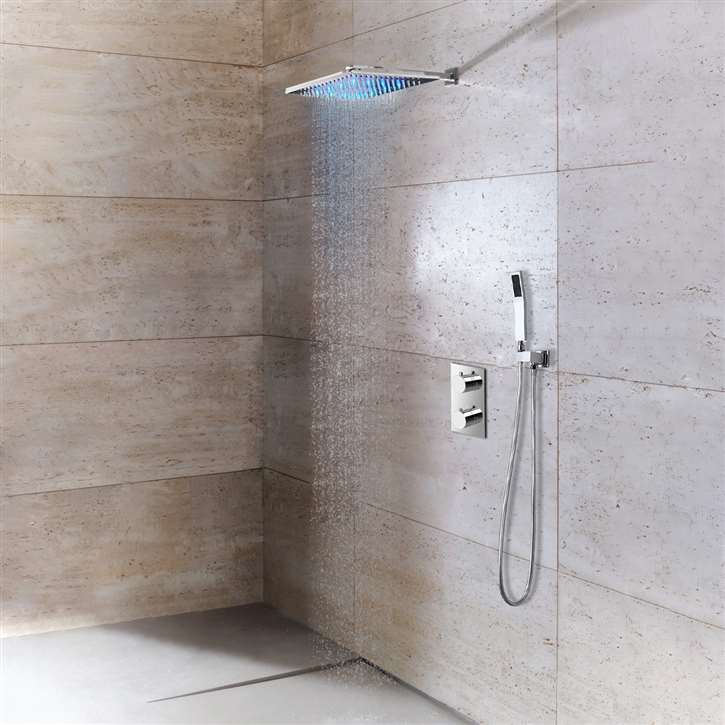

Fontana Sagua Wall Mount LED Shower Set

With our Sagua shower head you can enjoy the pleasure of a rainfall shower even in small shower enclosures. Installation is very easy, it is wall mount and it can easily replace an existing shower head. It comes with a complimentary hand held shower and a thermostatic valve to ensure you have the best possible shower experience. You can choose the shower head size - 10" or 12". The LED lights with create a warm glowing atmosphere and in the same time they will give you an indication of the water temperature, as they change colors accordingly. No electrical connection is necessary, they are powered by the water flow. Only the best materials have been used – the valve comes with ceramic core material for a long lasting life time. It comes complete with accessories and installation instructions.

Fontana Sagua Wall Mount LED Shower Set Features:

Brand Name: FontanaShowers

Model Number: FS133SWM

Type : Shower Set

Cold / Hot Water Control Type: Self-control thermostat

Size: 7.9x11.8 inch (20.1-30) cm

Style: Contemporary

Number of Handles: Dual Handle

Finish: Polished Chrome

Exposed Shower Faucet Feature: without straight guide

Type: Fixed rotatable type

Valve Core Material: Ceramic

Surface Finish: Brass

Shower Faucet Type: Exposed Shower Faucets

Feature: Thermostatic Faucets, LED light

Installation Type: Wall Mount

Size: 10 inch

Water Pressure: 0.1-0.5Mpa

LED Power: Water Flow

LED Color: Water Temperature

FontanaShowers® Product Warranty Information

Before You Begin, Please Read The Installation Instructions Below. Observe All Local Building And Safety Codes.
Unpack And Inspect The Product For Any Shipping Damages. If You Find Damages, Do Not Install.
Please Note All Showers Must Be Installed By A Professional And Certified Plumber Otherwise Warranty Might Be Voided.

shower

Shower Head Installation Instructions


Step 1:	shower	Step 2:



Step 3:		Step 4:



Step 5:

1. Apply plumber's tape to the threads on both ends of the shower arm and slide on the decorative escutcheon. 2. Insert the new arm into the fitting in the ceiling and twist to tighten. Finish tightening with your adjustable wrench. Wrap a dry cloth around the shower arm to protect the finish while tightening with an adjustable wrench. 3. Thread the new shower head onto the arm and hand-tighten. Hold the shower arm in place with groove joint pliers and finish tightening the shower head with your adjustable wrench. Wrap both in a dry cloth to protect the finish. 4. Before securing the decorative escutcheon, turn on the water supply to make sure that all connections are tight and there is no leaking. If no leaks are detected, continue with the installation. If leakage does occur, use your adjustable wrench to tighten the connections as necessary. 5. Apply a bead if silicone sealant to the back of the escutcheon and press firmly into place against the installation surface. Wipe away any excess sealant with your damp cloth.

Hand Held Shower Installation Instructions

Step 1:		Step 2:
	Hand Held Shower

Step 3:

Hand Shower Outlet Installation • Complete the outlet pipework ensuring it ends in an appropriate 15mm x 1/2" BSP female thread elbow. Note: This fitting is not supplied as variations in installations require the selection of a suitable solder or compression fitting. • Install the 'Wall Outlet', thread long male 1/2" BSP into the appropriate female fitting using PTFE tape to give a watertight joint. Note: The thread can be cut to size if required. Make sure that all debris is removed from the connector and the section that has been cut is dressed correctly, before installation.

Thermostatic Mixer Installation Instructions

Step 1:			Step 2:
	Mixer	Valve

Mixer Control Valve Installation Instructions
Step 3:			Step 4:


Mixer Control Valve Installation Instruction
Step 5:			Step 6:

How To Install The Shower Set With Showerhead, Hand Shower, And Shower Mixer
