What deck conditions are required for the single-hole installation?

The mounting surface must be rigid, level, and capable of supporting the 12.99-inch-tall faucet without flexing. The single mounting hole should allow full shank engagement while leaving sufficient clearance below the deck for supply hoses, sensor components, and service access.

How should the infrared sensing field be evaluated after basin installation?

The sensor should be tested from several hand-entry angles after the basin, backsplash, mirror, and nearby accessories are installed. This confirms reliable activation without false detection from reflective surfaces or objects inside the surrounding sensing zone.

Why should the hot and cold supply pressures be hydraulically balanced?

Comparable dynamic inlet pressure improves temperature adjustment and maintains a stable outlet stream. Large pressure differences can cause inconsistent mixing, reduced flow from one supply, and noticeable temperature changes during automatic activation.

What flushing procedure protects the ceramic valve core and sensor-controlled waterways?

Flush both supply branches before connecting the faucet and control components. Removing pipe scale, solder residue, thread sealant, and construction debris helps prevent ceramic valve damage, restricted flow, solenoid contamination, and incomplete automatic shutoff.

How should the faucet be tested for static and dynamic leakage?

Pressurize the system without triggering flow and inspect all supply, mixing, and control-box connections for static leakage. Then activate the faucet repeatedly and recheck the same joints under dynamic flow and shutoff conditions.

What diagnostic sequence applies when the faucet activates inconsistently?

Clean the sensor window, verify the power source, check all electrical connections, remove reflective objects from the sensing area, and confirm adequate supply pressure. Persistent irregular activation may require sensor recalibration or inspection of the control module.

How should the antique brass finish and vandal-resistant outlet be maintained?

Clean the faucet with a soft cloth and diluted pH-neutral cleaner, then rinse and dry it. Periodically inspect the tamper-resistant outlet for mineral buildup while avoiding abrasive pads, acidic descalers, bleach, ammonia, and metal-polishing compounds.

Which commissioning procedure verifies complete FS-33CM-ATB touchless faucet performance?

Commissioning should verify rigid single-hole mounting, flushed hot and cold supplies, balanced inlet pressure, leak-free static and dynamic testing, secure power and control connections, reliable sensor activation, correct temperature adjustment, uniform outlet flow, automatic shutoff, absence of false triggering, and repeatable performance through multiple operating cycles.

Fontana Codroipo Antique Brass Touchless Sink Faucet

Alternative Views:

List Price $1,495.63

Sale Price: $759.34

Savings: $736.29

Availability: Usually Ships in 1 to 2 Weeks

Product Code: FS-33CM-ATB

Qty:

Description

Technical Specs

Extended Information

Chrome

Polished Gold

Matte Black

Rose Gold

Gun Metal Gray

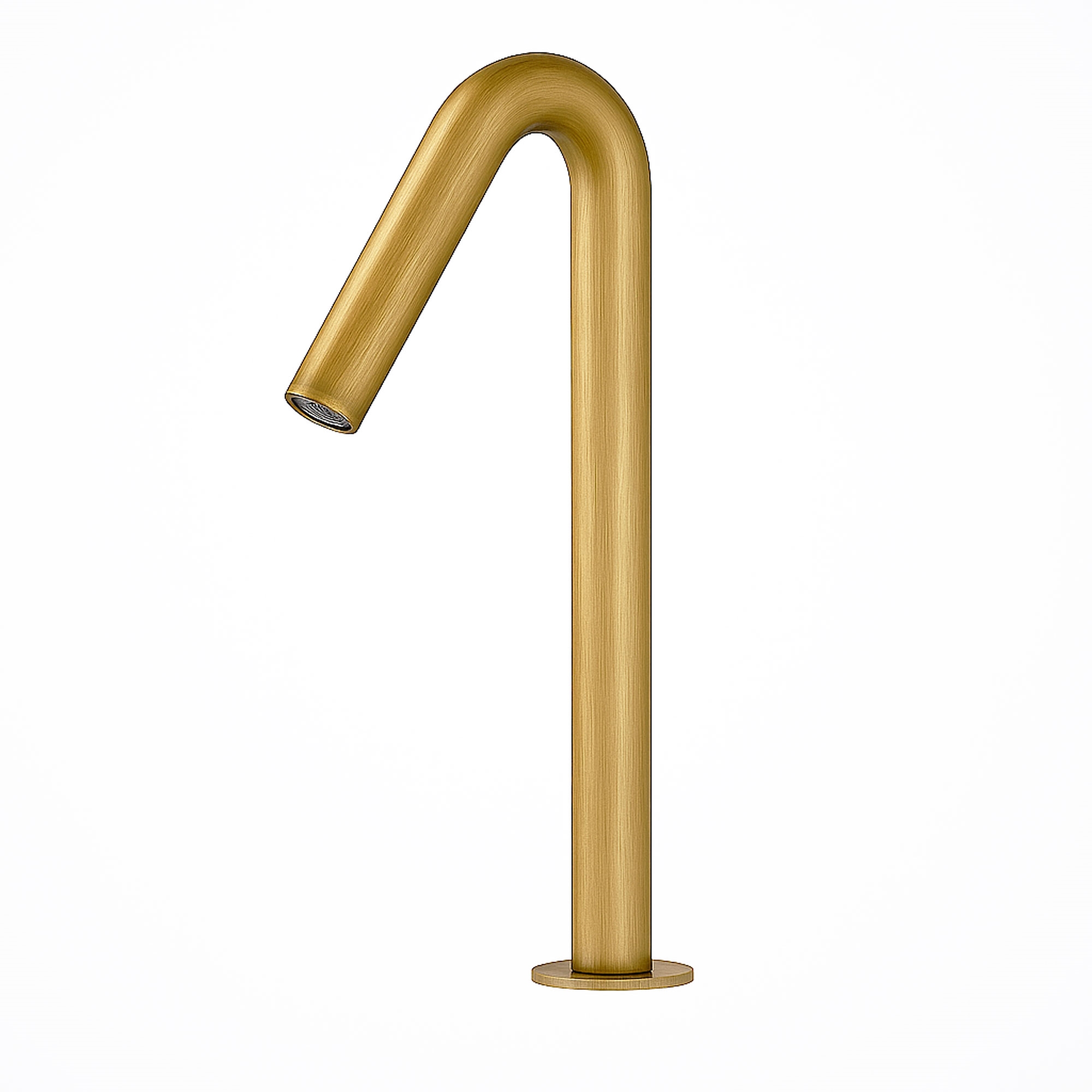

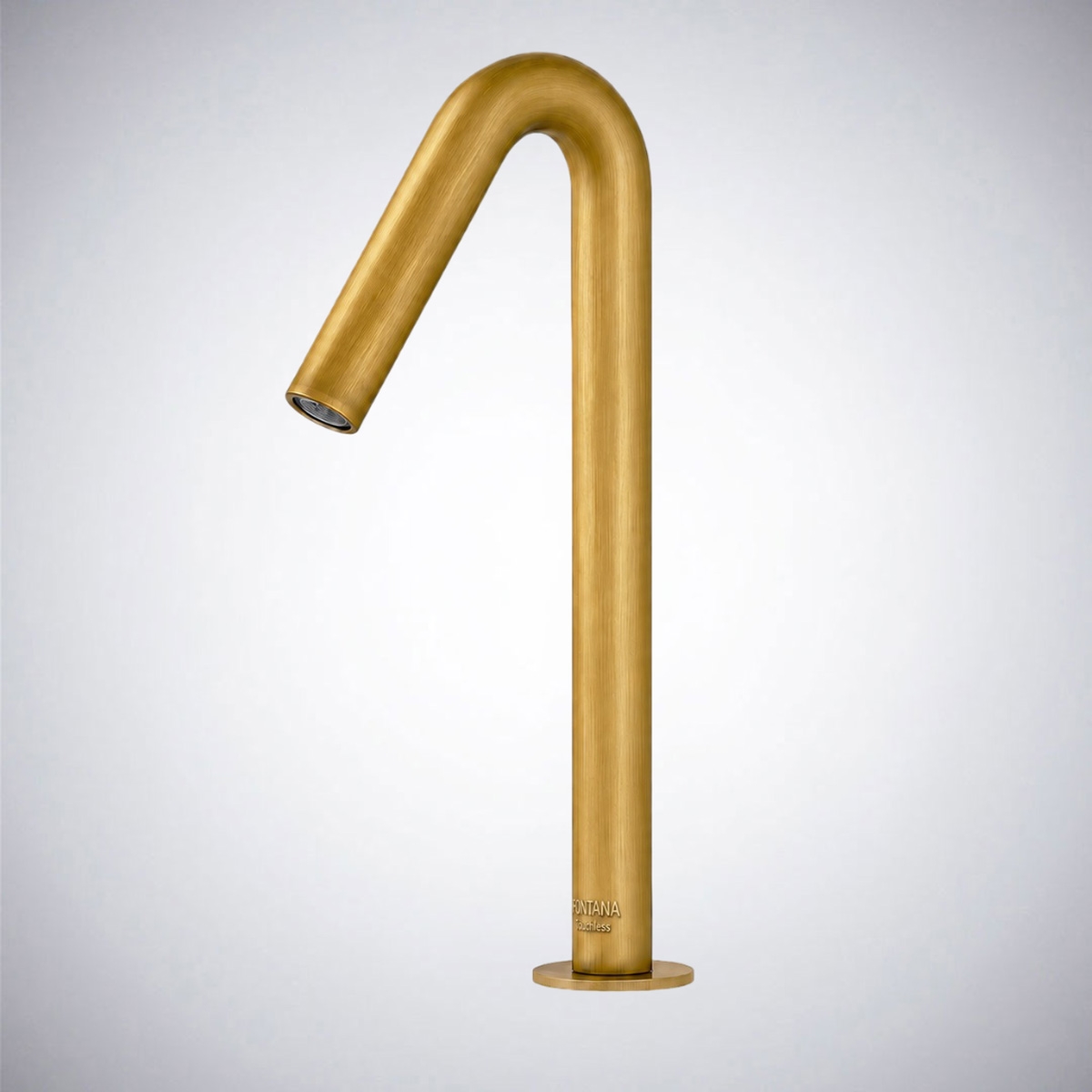

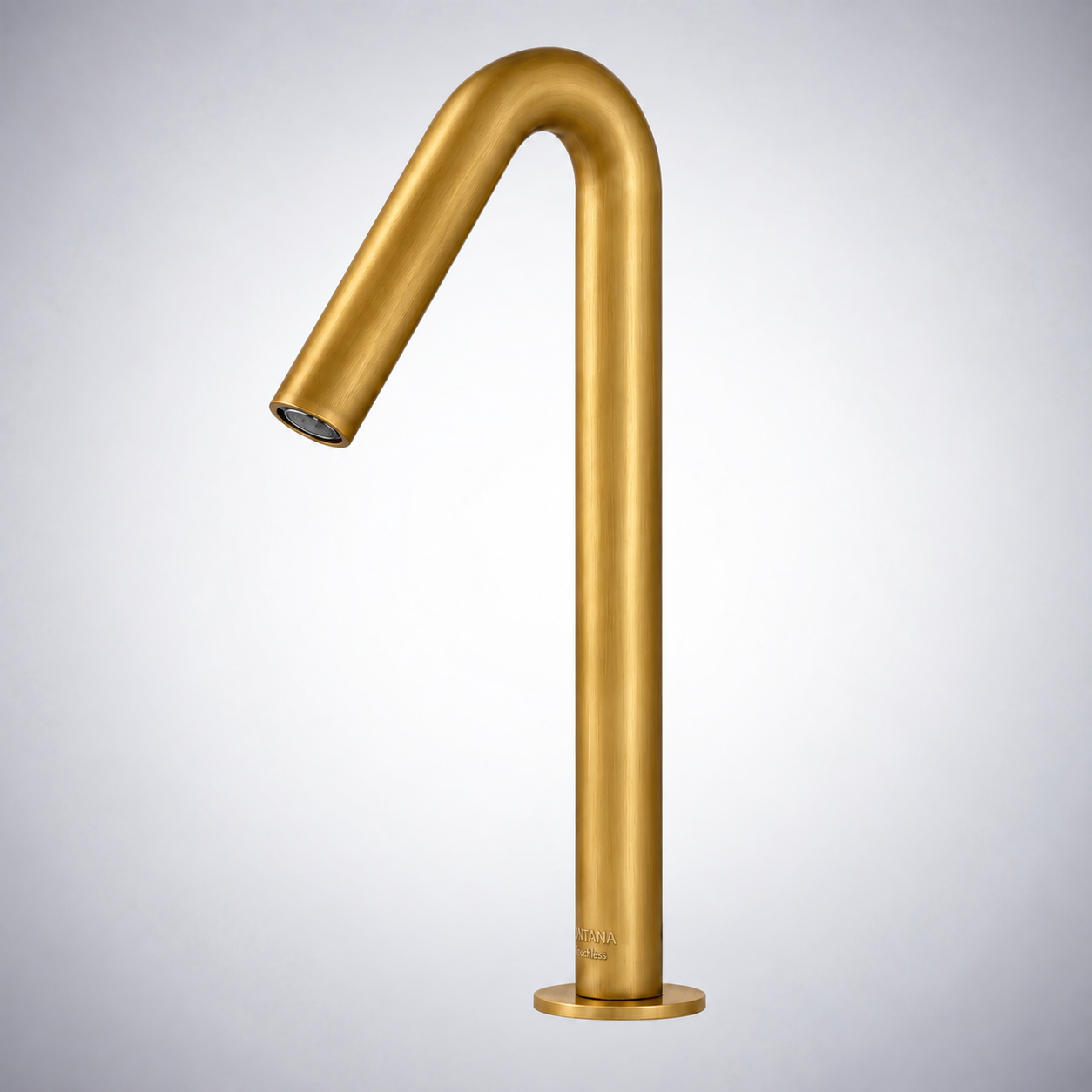

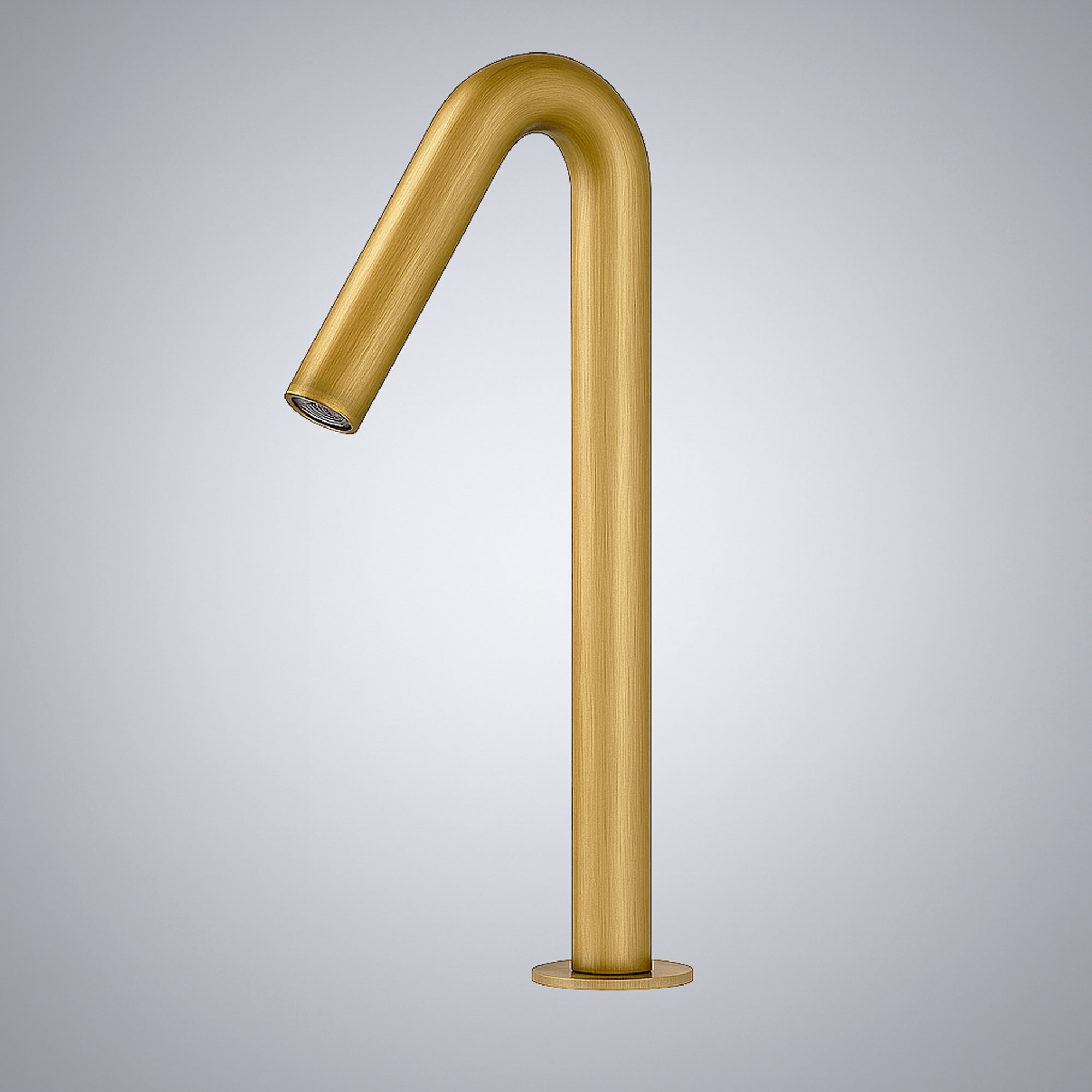

Fontana Codroipo Antique Brass Touchless Sink Faucet

Tamper-Resistant Touch-Free Faucet; Built with protected internal components, vandal-proof aerators, and reliable hands-free performance for commercial restrooms. Get ready to embrace a perfect blend of design and functionality with the Fontana Codroipo Antique Brass Touchless Sink Faucet. This faucet is sure to upgrade your space and enhance your experience, providing ultimate functionality with the added attraction of an antique brass finish.

The Fontana Codroipo is designed with a sleek, deck mounted style and with its single-hole design, takes up less room to allow you to enjoy your space more! This is made using only the best components with a ceramic valve core to provide long-lasting and dependable durability, along with the advantage of smooth flow control. The Fontana Codroipo Faucet is not just a statement faucet, it becomes a temperature-adjustable touchless faucet as well! Despite the modern touchless function, the Fontana Codroipo aptly balances luxury and function. Imagine a sink that retains its historic charm while creatively providing contemporary luxury. Invoke a calming wash area with a stylish and socially conscious, functional and fashionable faucet.

Fontana Codroipo™ Antique Brass Touchless Sink Faucet FAQ

Infrared Touchless Activation, Ceramic Valve Control; 12.99" High-Arc Profile & Antique Brass Surface Protection

The Fontana Codroipo™ Antique Brass Touchless Sink Faucet combines contemporary high-arc geometry with hands-free sensor activation in a single-hole deck-mounted configuration. The faucet features a ceramic valve core, hot-and-cold water capability, a 12.99-inch overall height, and an Antique Brass finish designed to coordinate touchless technology with traditional and heritage-inspired commercial washroom interiors.

How should the infrared touchless sensor be commissioned after installation?

Complete sensor commissioning only after the basin, countertop, mirror, lighting, backsplash, and surrounding restroom accessories are fully installed. Perform repeated hand-entry and withdrawal cycles from normal washing positions and verify prompt water activation followed by complete automatic shutoff. Check mirrors, polished stone, metallic accessories, and other reflective surfaces for unintended infrared interaction before placing the faucet into regular service.

How should the 12.99-inch high-arc faucet be coordinated with the basin?

Establish the single-hole mounting location relative to the actual basin before drilling or final tightening. Because the faucet has a 12.99-inch overall high-arc profile, verify adequate clearance below mirrors, shelving, and wall accessories while confirming that the outlet directs water into the primary handwashing zone. Basin depth and stream landing position should be checked during commissioning to reduce splash outside the bowl.

What should be checked if flow regulation or automatic shutoff becomes inconsistent?

Flush the hot and cold supply lines before final connection and confirm that service connections are unrestricted. Inspect the water path, outlet, sensor area, and ceramic valve core for debris or mineral accumulation. If infrared detection remains reliable but flow becomes weak, delayed, or fails to stop completely, troubleshoot the hydraulic and ceramic-valve components separately from the electronic sensing system before replacing control hardware.

How should the Antique Brass finish and sensor area be maintained?

Clean the exposed Antique Brass surfaces with a soft damp microfiber cloth and dry them after cleaning to minimize soap film, fingerprints, and mineral residue. Keep the infrared sensing area and water outlet free from buildup that could affect activation or flow. Use diluted pH-neutral cleaner when necessary and avoid abrasive pads, steel wool, acidic descalers, bleach, ammonia, aggressive metal polish, and concentrated chemicals that may alter the aged appearance of the finish.

Antique Brass

Codroipo Touchless Faucet Details

Brand Name: FontanaShowers®
Model Number: FS-33CM-ATB
Type: Basin Faucets
Installation Type: Deck-Mounted
Finish: Antique Brass
Number of Holes: Single Hole
Style: Contemporary
Valve Core Material: Ceramic
Hot & Cold Water: Yes
Height: 12.99"

Average Rating: Average Rating: 4 of 5

4 of 5 Total Reviews: 1 Write a review »

1 of 1 people found the following review helpful:

Space Constraints Eliminated	June 26, 2026
Reviewer: Caleb Cole, Specialist from Columbia, SC

This antique bronze commercial faucet maximized usable sink space while maintaining convenient service access for maintenance personnel. The installation improved maintenance efficiency without affecting daily restroom availability.
