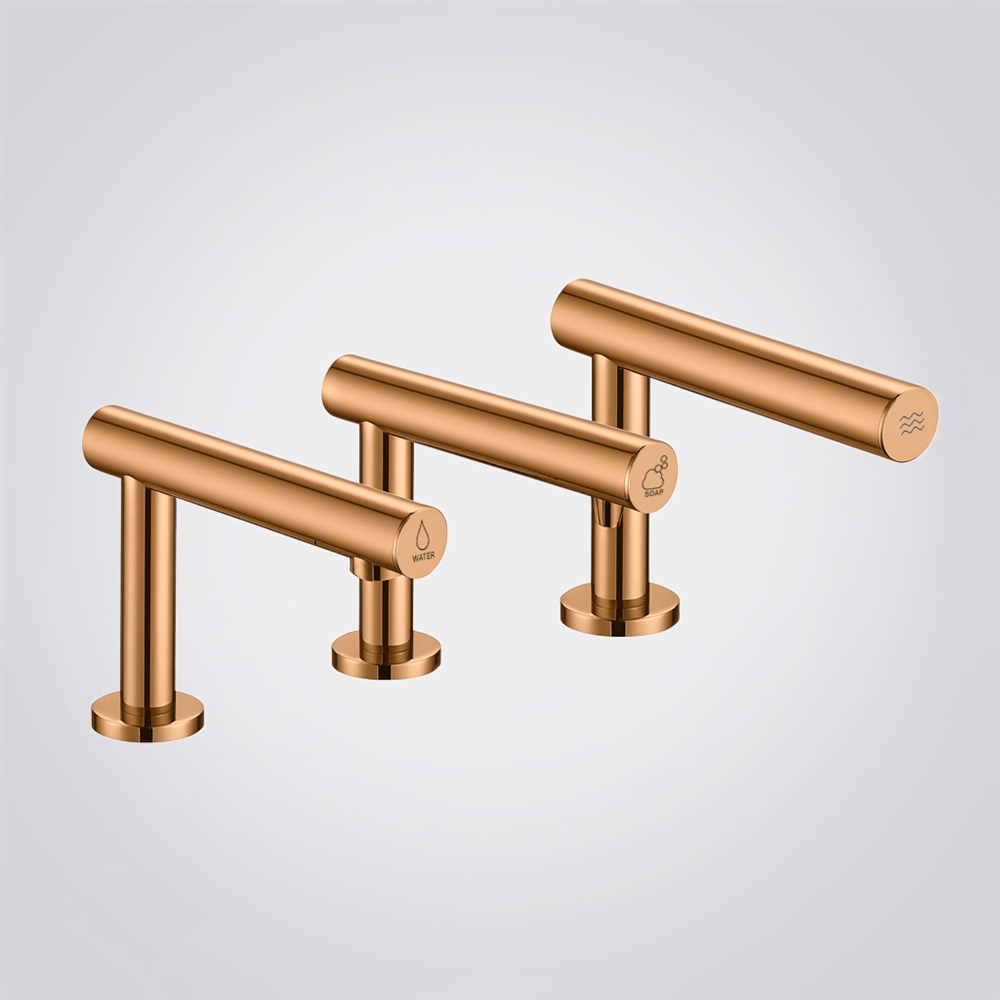

FontanaAquaHarmony Rose Gold 3-in-1 Touchless Faucet, Auto Soap Dispenser & Hand Dryer
While hues of class radiate from it, the FontanaAquaHarmony™ Rose Gold 3-in-1 System binds together the faucet, automatic soap dispenser, and hand dryer-one unblemished, touchless experience. Made of brass and polished with rose gold, this fantastic fixture lends warmth and beauty to high-tech hygiene in any modern setting.
The deck-mounted design with undercounter installation sees the end of clutter while offering efficiency unmatched. The air is propelled by a brushless motor at 38,000RPM and 90 m/s, drying within 10-15 seconds. HEPA filtration cleanses the airflow to increase sanitation in busy environments. Combining high performance with intelligent energy saving, the dryer uses a total of 1300W and consumes only 1W during standby mode, and the operating temperatures range between 30 and 40°C. At 75 dB, noise is one of the comforts for speed-dry users. Being waterproof, as rated by IP24, ensures final durability along with luxury and convenience. The fixture enjoys a fitting placement in corporate-level venues with the aim of promoting style, sustainability, and intelligent engineering to the handwashing process.
FontanaAquaHarmony™ Rose Gold 3-in-1 Touchless System FAQ
Undercounter Coordination, Sensor Isolation; Rose Gold Finish Protection
The FontanaAquaHarmony™ Rose Gold system integrates a touchless water faucet, automatic soap dispenser, and high-speed hand dryer with polished brass deck-mounted fixtures, a 38,000 RPM brushless motor, 90 m/s airflow, HEPA filtration, and IP24-rated protection.
How should the undercounter components be arranged to maintain service accessibility?
Position the soap reservoir, pump, water-control components, power supply, HEPA filter housing, and dryer motor so each can be accessed without removing the countertop fixtures. Keep tubing, wiring, and air connections separated from sharp edges, moving hardware, and potential plumbing leaks.
How can cross-activation between the soap, water, and dryer sensors be prevented?
Complete sensor testing after the basin, mirror, backsplash, and countertop accessories are installed. Verify each function independently from normal hand-entry angles and adjust fixture spacing or detection positioning if movement beneath one outlet triggers either adjacent sensor.
What should be inspected if the dryer becomes louder than its rated 75 dB level?
Check the motor enclosure mounting, HEPA filter, intake path, outlet connection, and surrounding cabinetry for vibration or restriction. A loaded filter, loose air connection, inadequate ventilation, or contact between the enclosure and cabinet panels can increase operating noise and reduce airflow.

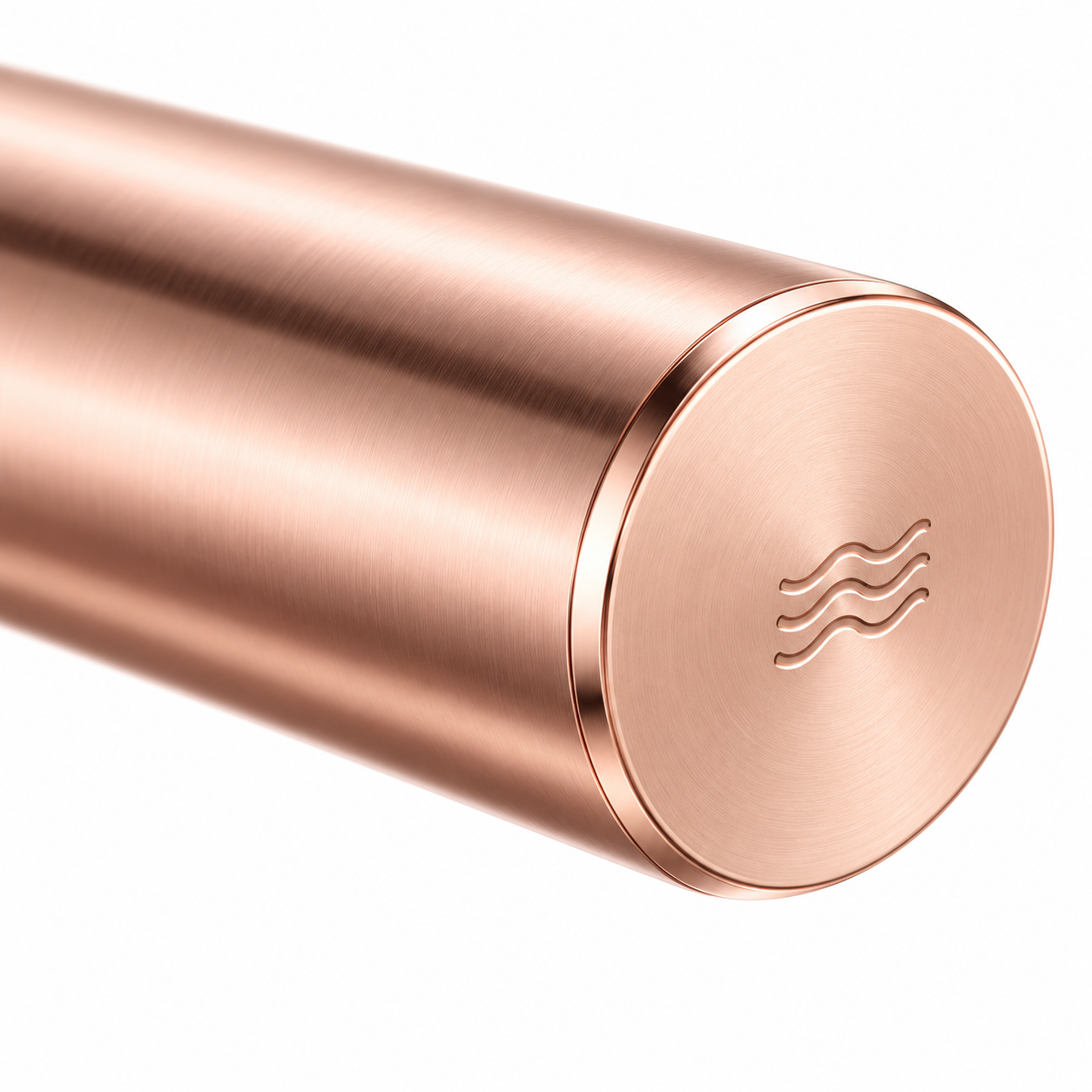

How should the polished Rose Gold finish be cleaned without affecting its reflective tone?
Remove soap residue, fingerprints, and water spots using a soft damp microfiber cloth, then dry each fixture immediately. Use diluted pH-neutral soap only and avoid abrasive pads, acidic descalers, bleach, ammonia, steel wool, metal polish, and concentrated disinfectants.
Read More
- Brand Name: FontanaShowers®
- Model Number: FS10510RG
- Type: Touchless Faucet, Dispenser & Dryer
- Main Material: Brass
- Finish: Rose Gold
- Mount Type: Undercounter
- Installatron Type: Deck Mounted
- Surface Treatment: Polished
- Motor: Brushless
- Voltage: 220-240 V
- Frequency: 50Hz
- Total Power: 1300W
- Standby Power: 1W
- RPM: 38000
- Hand Dryer Air Speed: 90m/s
- Temperature: 30-40degrees
- Noise Level: 75dB
- Waterproof: IP24
- Filter: HEPA
- Hand Dryer Dry Time: 310-15s
- Tap Height: Dispenser: 140.5mm, Water Tap: 140.5mm, Hand Dryer: 170mm
- Tap Width: Dispenser: 32mm, Water Tap: 42mm, Hand Dryer: 40mm
- Tap Depth: Dispenser: 191.5mm, Water Tap: 191.5mm, Hand Dryer: 223mm
- Motor Case Height: 290mm
- Moto Case Width: 210mm
- Motor Case Depth: 190mm
