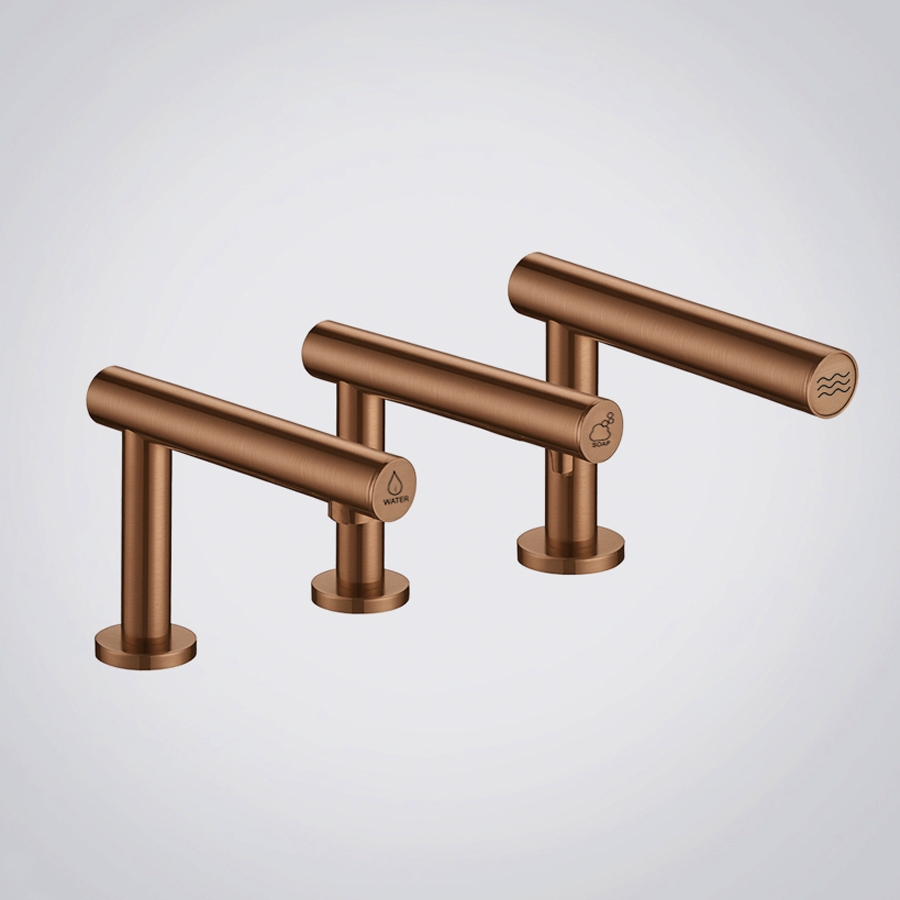

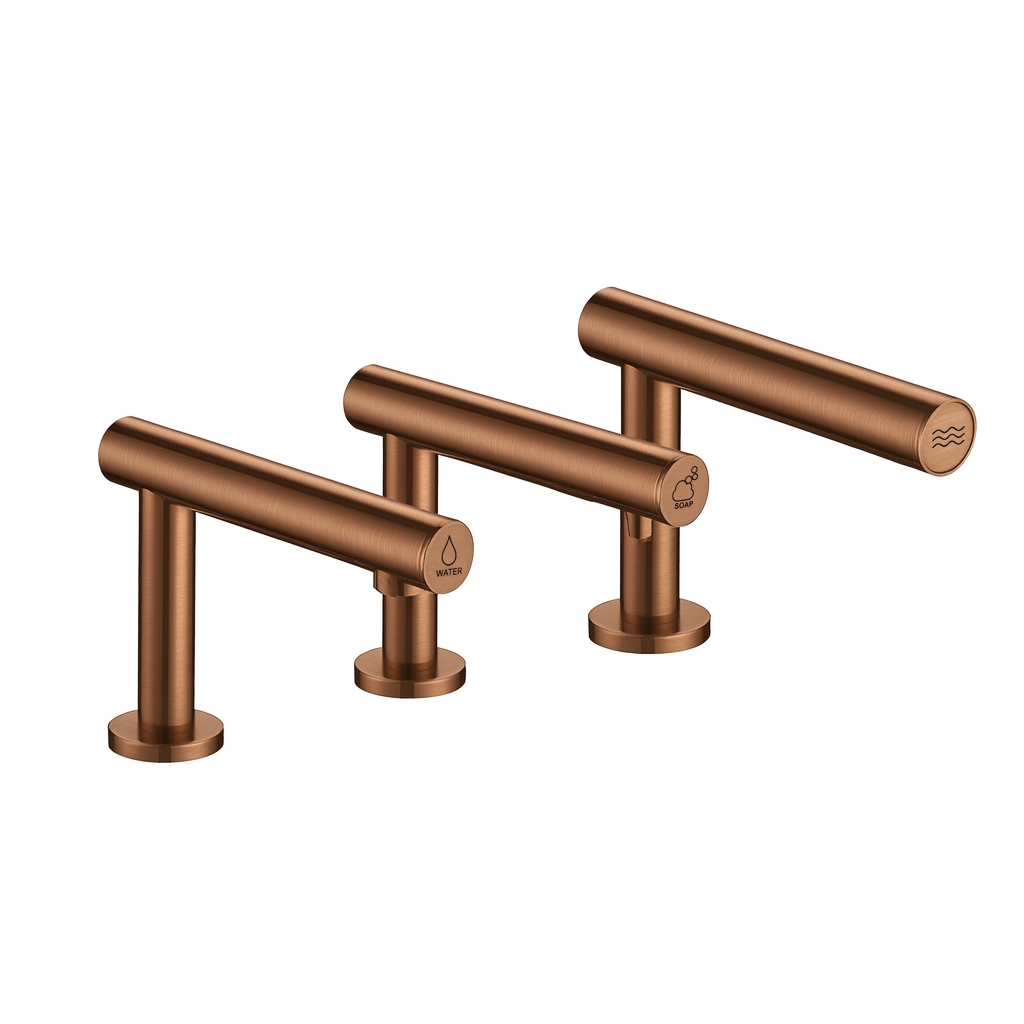

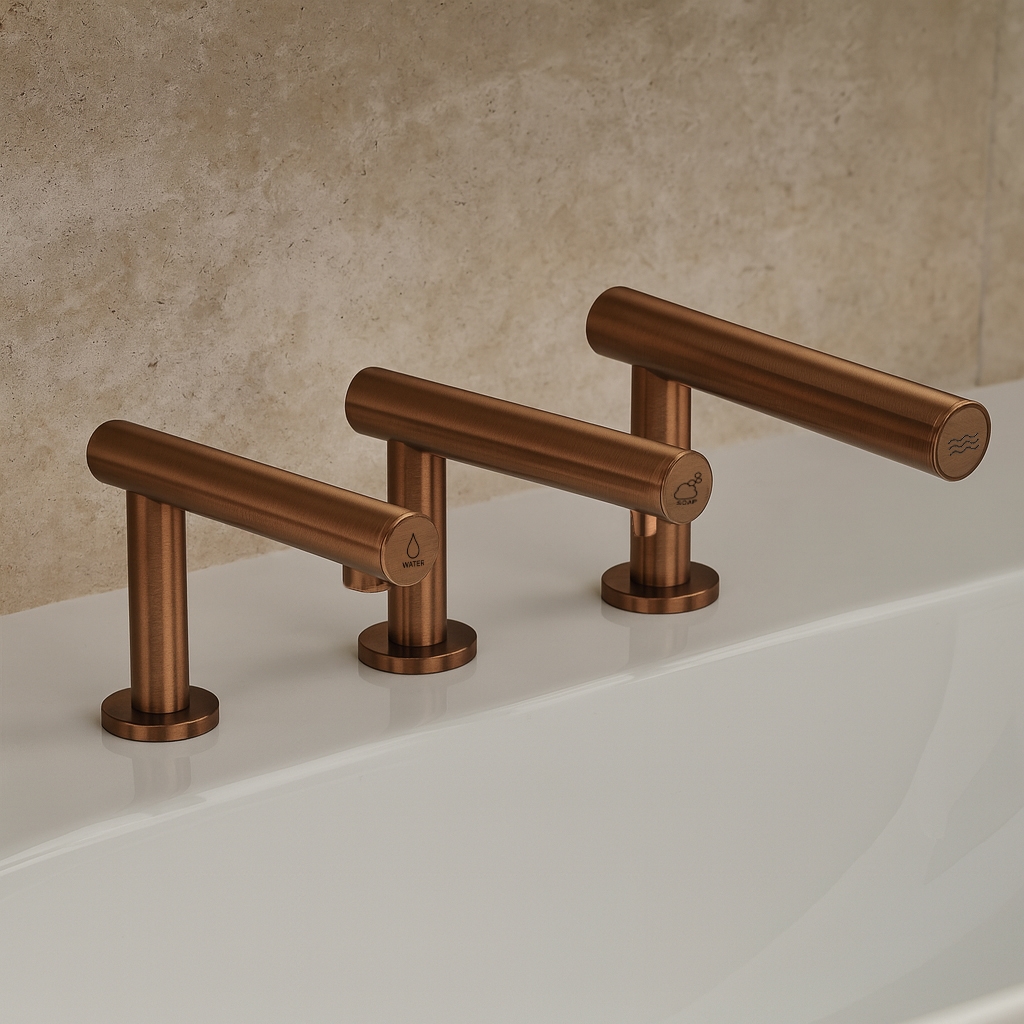

FontanaZerithra Brushed Copper Touchless Faucet, Dispenser & Dryer 3-in-1
A masterpiece of refined craftsmanship, the FontanaZerithra™ Brushed Copper Edition unites faucet, soap dispenser, and dryer into one sleek center feature. Its brushed copper finishes send warm vibes that bring high-class ambience into the highest-end interiors. It was built of sturdy brass for undercounter installation, deck mounting, and ensured the permanence of style and strength.
With optional motion-sensing, water outflow, soap presentation, and high-velocity air activation can occur immediately without touching, thus enhancing hygiene. Thanks to a brushless motor for its 38,000 revolutions per minute, it guarantees huge reliability. Operating parameters state 220-240V at 50Hz, with an overall consumption of 1300 watts and standby power just under 1 watt. At 90 m/s, the air process speed makes drying fast within 10-15 seconds and quite comfortable at 30-40°C. Waterproof protection stands at IP24, noise performance is 75 decibels, and some HEPA filtration has been introduced, so the whole design synergizes safety, cleanliness, and efficiency. Great walking spaces require such a design, folding smart functionality with luxuries.
FontanaZerithra™ Brushed Copper 3-in-1 Touchless Faucet, Soap Dispenser & Hand Dryer FAQ
38,000 RPM Brushless Drying, 90 m/s Airflow;
HEPA Filtration & Brushed Copper Surface Protection
The FontanaZerithra™ Brushed Copper 3-in-1 system combines a touchless
water faucet, automatic soap dispenser, and high-speed hand dryer in a
coordinated undercounter deck-mounted configuration. It features durable
brass construction, motion-sensor operation, a 38,000 RPM brushless motor,
90 m/s airflow, HEPA filtration, IP24 protection, 1300W total power,
1W standby consumption, 30–40 °C drying air, and approximately
10–15 second hand-drying performance.
How should the faucet, soap dispenser, and dryer sensor zones be commissioned?
Complete commissioning only after the basin, countertop, mirror, lighting,
partitions, and surrounding restroom accessories are fully installed.
Test the water faucet, soap dispenser, and hand dryer independently from
normal user hand positions and confirm that each sensor activates only
its intended function. Verify prompt water shutoff, controlled soap
dispensing, and reliable dryer activation without cross-triggering between
adjacent sensor zones or interference from reflective basin and countertop
surfaces.
What should be checked if drying performance exceeds the specified 10–15 seconds?
Inspect the HEPA filter, air intake, dryer outlet, undercounter motor
enclosure, and connecting air path for accumulated dust or restriction.
The dryer uses a 38,000 RPM brushless motor producing approximately
90 m/s airflow with 30–40 °C drying air. A loaded filter, obstructed
intake, restricted outlet, loose air connection, or insufficient
ventilation around the motor enclosure can reduce drying performance
even when the motor continues operating.
How should the undercounter motor and service components be coordinated?
Maintain accessible clearance around the motor enclosure, soap reservoir,
control electronics, sensor wiring, plumbing connections, and air-routing
components. The motor case measures approximately 290 mm high, 210 mm
wide, and 190 mm deep. Route hoses and cables without sharp bends,
crushing, or excessive tension and protect electrical components from
possible water or soap leakage. Maintain adequate ventilation around the
1300W dryer assembly and access for HEPA filter and motor servicing.
How should the Brushed Copper finish and exposed sensor surfaces be maintained?
Clean the exposed Brushed Copper surfaces with a soft damp microfiber
cloth and dry them after cleaning to minimize fingerprints, soap film,
water spots, and mineral residue. Keep sensor windows, soap outlets,
water outlets, dryer air openings, and intake areas free from buildup.
Use diluted pH-neutral soap when required and avoid abrasive pads,
steel wool, acidic descalers, bleach, ammonia, aggressive metal polish,
and concentrated chemical cleaners that may scratch, discolor, or alter
the Brushed Copper surface.
Read More
- Brand Name: FontanaShowers®
- Model Number: FS10510BC
- Type: Touchless Faucet, Dispenser & Dryer
- Main Material: Brass
- Finish: Brushed Copper
- Mount Type: Undercounter
- Installatron Type: Deck Mounted
- Motor: Brushless
- Voltage: 220-240 V
- Frequency: 50Hz
- Total Power: 1300W
- Standby Power: 1W
- RPM: 38000
- Hand Dryer Air Speed: 90m/s
- Temperature: 30-40degrees
- Noise Level: 75dB
- Waterproof: IP24
- Filter: HEPA
- Hand Dryer Dry Time: 310-15s
- Tap Height: Dispenser: 140.5mm, Water Tap: 140.5mm, Hand Dryer: 170mm
- Tap Width: Dispenser: 32mm, Water Tap: 42mm, Hand Dryer: 40mm
- Tap Depth: Dispenser: 191.5mm, Water Tap: 191.5mm, Hand Dryer: 223mm
- Motor Case Height: 290mm
- Moto Case Width: 210mm
- Motor Case Depth: 190mm
