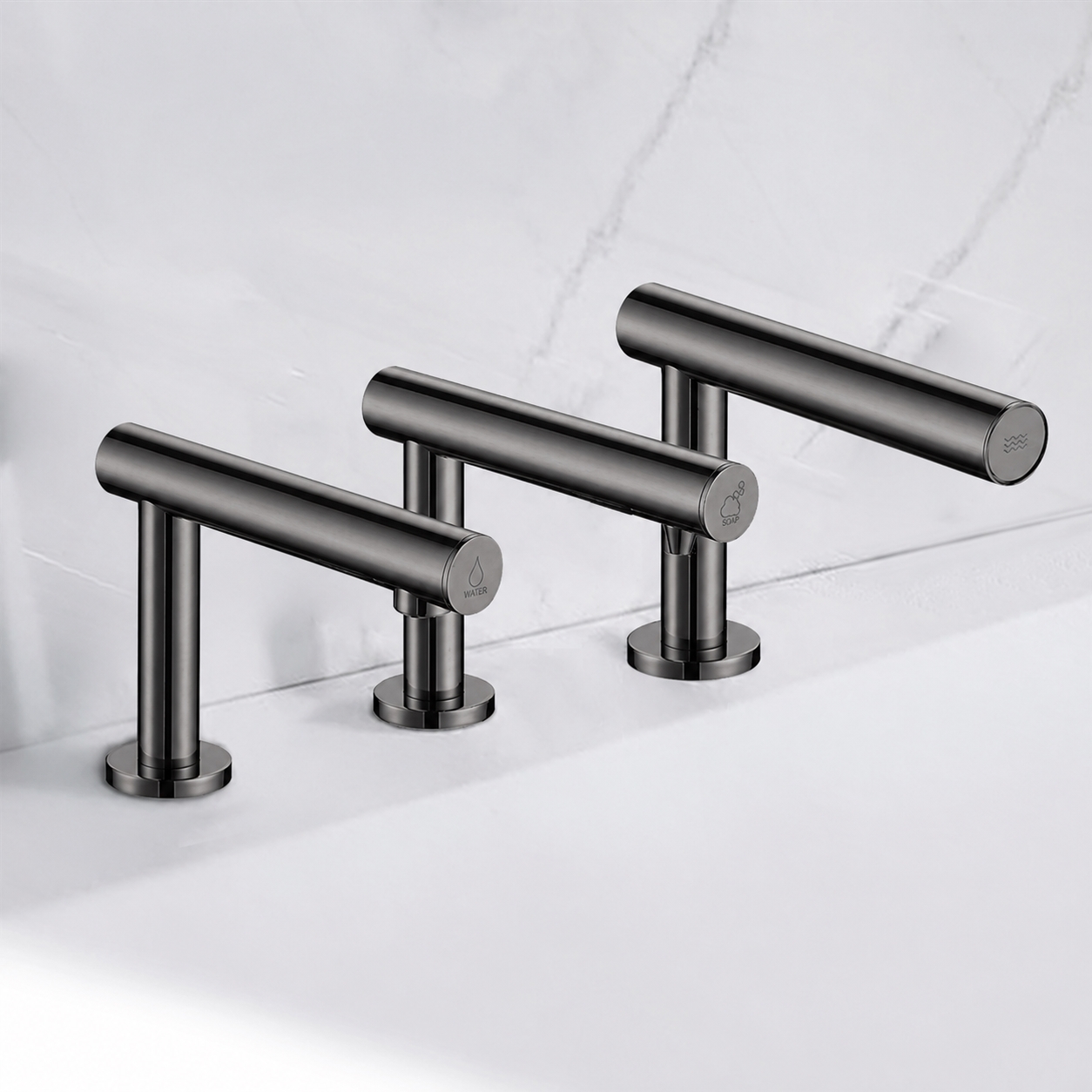

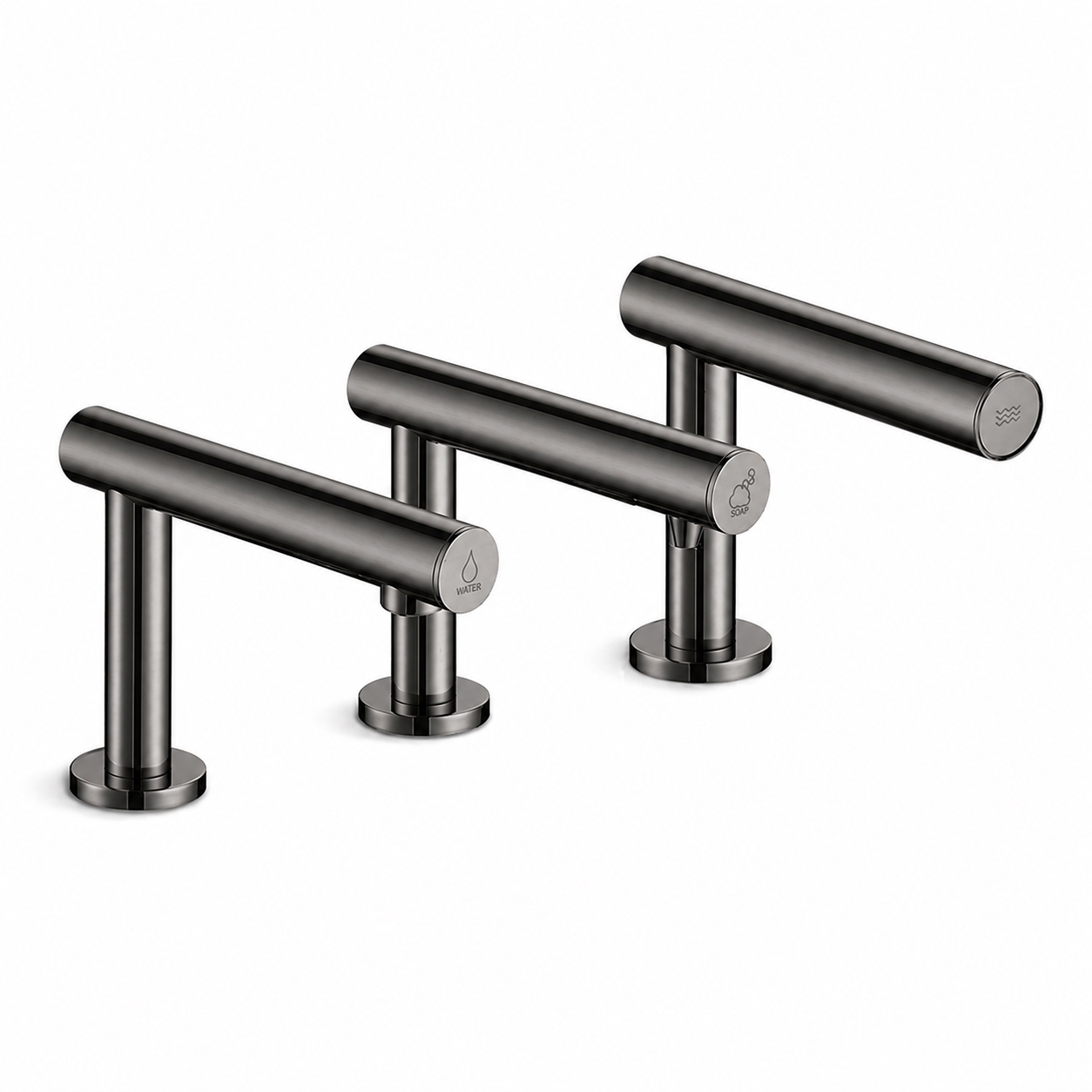

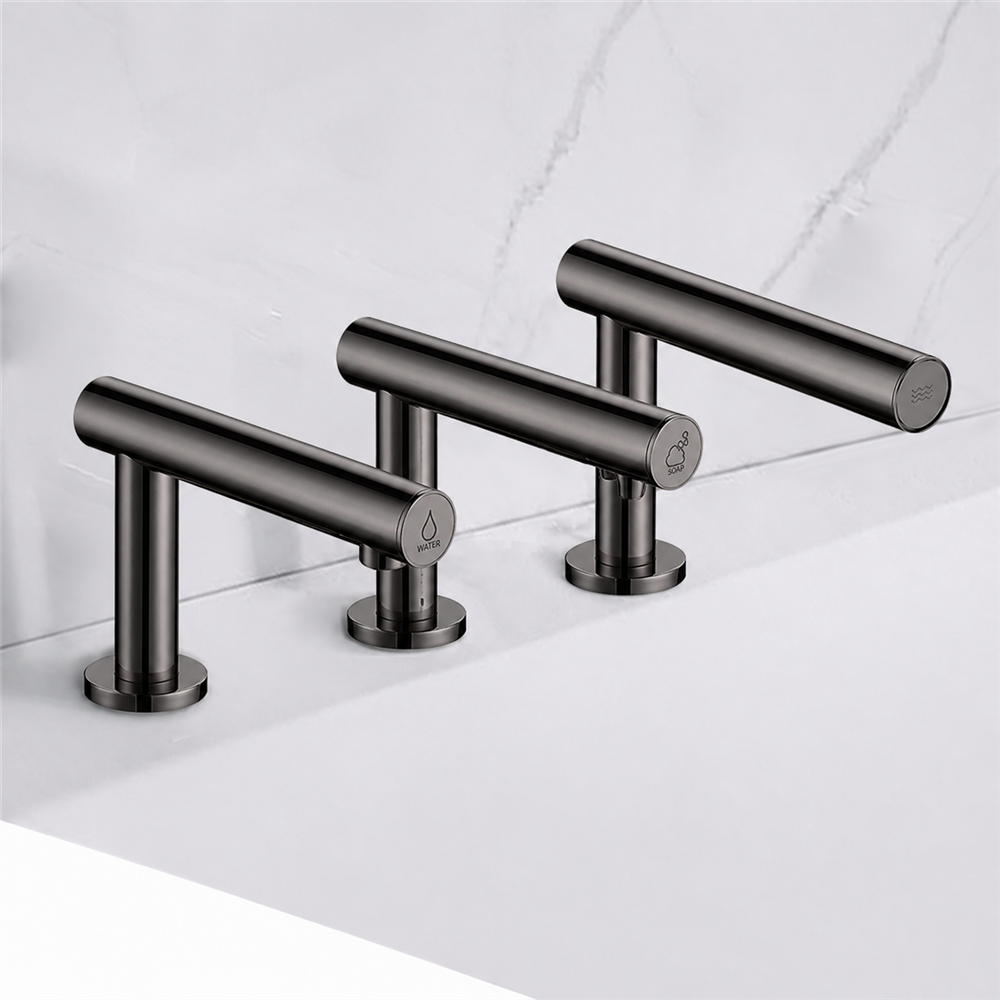

Welcome to the next generation in cleansing and convenience with Fontana Varzo Gun Metal Gray 3-in-1 Touchless Faucet-a true all-in-one solution combines an automatic water tap, sensor soap dispenser, and high-powered hand dryer into one sleek space-saving design. Elegant in production and finish, designed for upscale commercial washrooms, hospitality venues, or high-traffic modern facilities, maximizes cleanliness, and user efficiency.
Hands-free operation eliminates the spread of germs while accelerating the handwashing process from soap dispensing and water flow to drying. The brushless motor with a speed of 90m/s ensures efficient drying within 10–15 seconds, while the airflow is kept clean by the HEPA filter. Operating voltage is 220-240 V and power of 1300 W; energy efficiency is second to none when it comes to performance and reliability. A deck-mounted faucet makes the installation somewhat straightforward. The IP24 waterproof rating keeps low noise output of 75dB on its heels with compact undercounter motor housing.
With an advanced motion sensor, Mouse City algorithm, and a very slim footprint, the Fontana Varzo Gun Metal Gray 3-in-1 Faucet turns any public or commercial restroom into a fully hygienic, user-friendly, and contemporary establishment. It's a smart innovation investment.
Fontana Varzo Gun Metal Gray 3-in-1 System FAQ
Three-Zone Sensor Coordination, Dryer Airflow & Undercounter Service Engineering
The Fontana Varzo Gun Metal Gray 3-in-1 touchless system integrates an
automatic soap dispenser, sensor-operated water tap, and high-speed hand
dryer into three coordinated deck-mounted outlets with a compact
undercounter motor assembly for hygienic, high-traffic commercial
washroom operation.
How should the three independent sensing zones be commissioned to prevent cross-activation?
Each outlet should be tested individually and then in sequence to confirm that hand movement beneath the soap dispenser does not activate the water or dryer circuits. Correct spacing, sensor orientation, and basin-edge positioning maintain distinct detection fields throughout the complete wash cycle.
What ducting and clearance conditions are required for stable 90 m/s dryer airflow?
The dryer outlet must remain connected to the undercounter motor housing without compressed tubing, abrupt bends, or obstructed intake space. Maintaining clear airflow pathways allows the 38,000 RPM brushless motor to deliver rated velocity while controlling heat buildup and drying time.
Why must the HEPA filter remain accessible after the vanity and basin are installed?
The filter requires scheduled inspection and replacement to preserve airflow quality and motor efficiency. A dedicated access panel should expose the filter and motor enclosure without removing the countertop, disconnecting plumbing, or disturbing the three deck-mounted outlets.
How should electrical loading and moisture protection be coordinated during installation?
The 220–240 V, 1300 W dryer circuit should be installed on a properly protected branch supply with accessible isolation and grounding. The IP24-rated enclosure must remain in its intended orientation and clear of leaks from soap, water, or drain connections beneath the basin.
