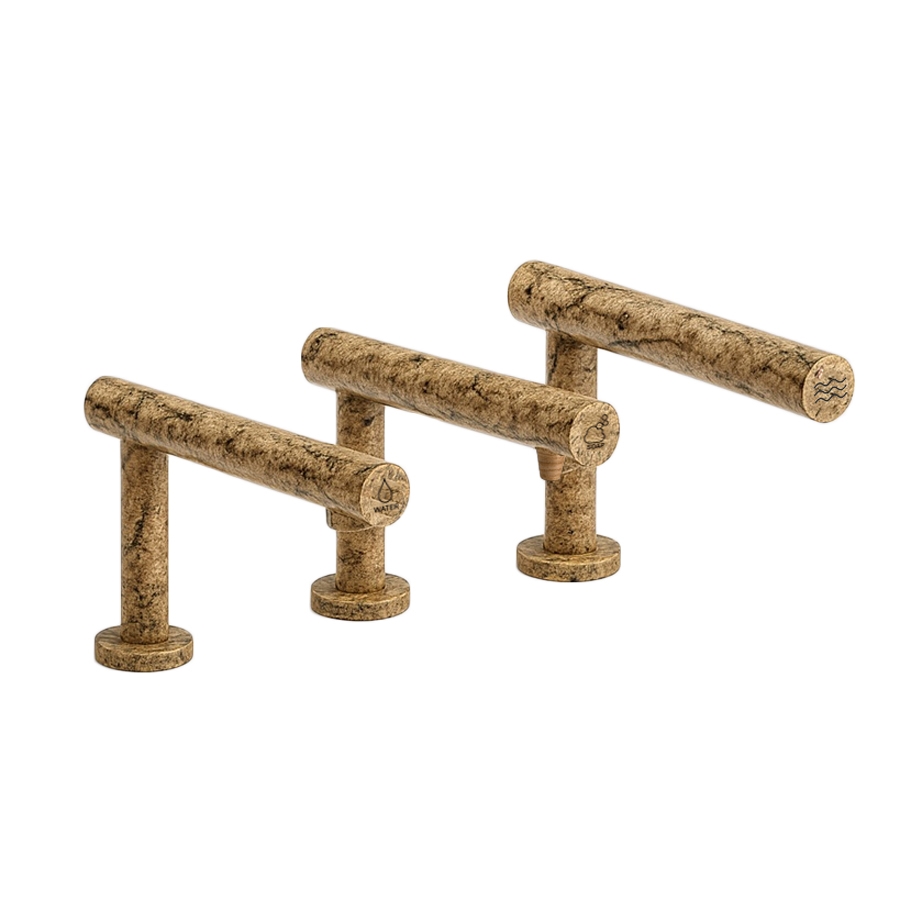

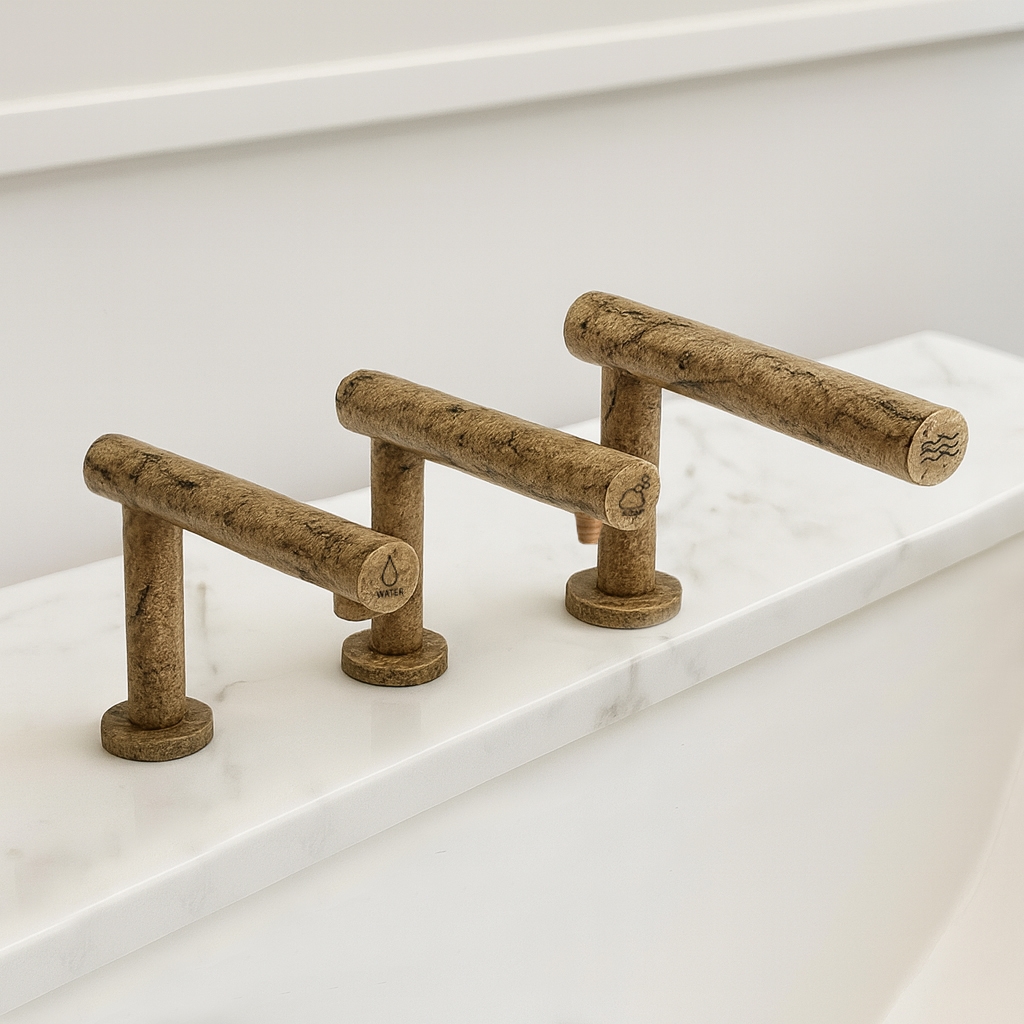

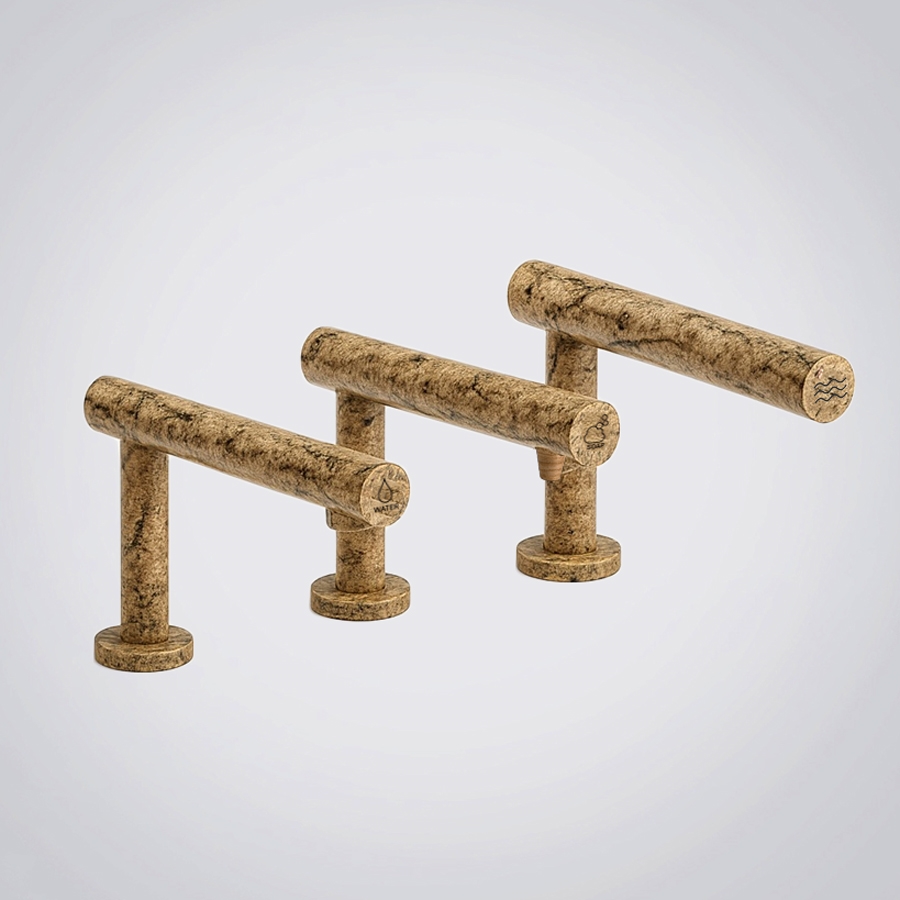

FontanaAveris Golden Granite Stone 3-in-1 Touchless Soap Dispenser, Faucet & Hand Dryer
The FontanaAveris™ Golden Granite Edition is one of those rare products that brings an air of lavishness to modernized toilet environments. The Golden Granite surface warms with natural color tones, elevating interiors with timeless dignity. Waterproof IP24 protection and a noise rating capped at 75 dB guarantee durability, safety, and trust. Perfect harmony of poshness and performance.
A water jet, soap dispensers, and dryers are instantly actuated by precisely fitted motion sensors that guarantee hands-free, hygienic operation while minimizing wastage. Under-counter deck-mounted, high-grade solid brass construction renders structural strength to this beautiful system. Fame lies in the brushless motor, offering the highest performance at 38,000 RPM, outputting 220-240 Volts at 50Hz. It consumes power rated 1300 watts in operating mode, with 1 watt on standby, emphasizing eco-friendliness. The air is propelled at 90 meters per second, drying palms dry in 10 to 15 seconds at a temperature rated to be comfortably around 30° to 40°C. The HEPA filtration purifies this air before being blown out, helping maintain a rigorous level of cleanliness.
FontanaAveris™ Golden Granite Stone 3-in-1 Touchless System FAQ
Sensor Coordination, HEPA Airflow Performance; Golden Granite Stone Surface Protection
The FontanaAveris™ Golden Granite Stone 3-in-1 system combines a touchless water faucet, automatic soap dispenser, and high-speed hand dryer in an undercounter deck-mounted brass configuration featuring a 38,000 RPM brushless motor, 90 m/s airflow, HEPA filtration, IP24 protection, and 10–15 second drying performance.
How should the water, soap, and hand-dryer sensor zones be commissioned?
Complete commissioning after the basin, countertop, backsplash, mirror, lighting, and surrounding accessories are installed. Test each sensor independently and confirm that hand movement beneath the water outlet activates only the faucet, movement beneath the soap outlet activates only the dispenser, and the drying zone starts only the hand dryer without cross-triggering adjacent functions.
What should be inspected if drying performance exceeds the normal 10–15 second cycle?
Inspect the HEPA filter, air intake, outlet path, undercounter ventilation, and motor enclosure for restriction. A loaded filter, blocked intake, loose air connection, or inadequate cabinet ventilation can reduce the designed 90 m/s airflow even while the 38,000 RPM brushless motor continues operating.
How should the undercounter components be arranged for reliable servicing?
Maintain clear access to the water-control assembly, soap reservoir and pump, sensor wiring, HEPA filter, motor enclosure, and electrical connections. Keep hoses and cables free from sharp bends and tension, provide adequate ventilation around the 1300W dryer motor, and position electrical components away from potential plumbing leaks.
How should the Golden Granite Stone finish be maintained without affecting its textured appearance?
Remove fingerprints, soap residue, and water deposits with a soft damp microfiber cloth, then dry the exposed surfaces immediately. Use diluted pH-neutral soap only and avoid abrasive pads, acidic descalers, bleach, ammonia, steel wool, polishing compounds, metal polish, and concentrated disinfectants that may alter the Golden Granite Stone surface.
Read More
- Brand Name: FontanaShowers®
- Model Number: FS10510GGS
- Type: Touchless Faucet, Dispenser & Dryer
- Main Material: Brass
- Finish: Golden Granite Stone
- Mount Type: Undercounter
- Installatron Type: Deck Mounted
- Motor: Brushless
- Voltage: 220-240 V
- Frequency: 50Hz
- Total Power: 1300W
- Standby Power: 1W
- RPM: 38000
- Hand Dryer Air Speed: 90m/s
- Temperature: 30-40degrees
- Noise Level: 75dB
- Waterproof: IP24
- Filter: HEPA
- Hand Dryer Dry Time: 310-15s
- Tap Height: Dispenser: 140.5mm, Water Tap: 140.5mm, Hand Dryer: 170mm
- Tap Width: Dispenser: 32mm, Water Tap: 42mm, Hand Dryer: 40mm
- Tap Depth: Dispenser: 191.5mm, Water Tap: 191.5mm, Hand Dryer: 223mm
- Motor Case Height: 290mm
- Moto Case Width: 210mm
- Motor Case Depth: 190mm
