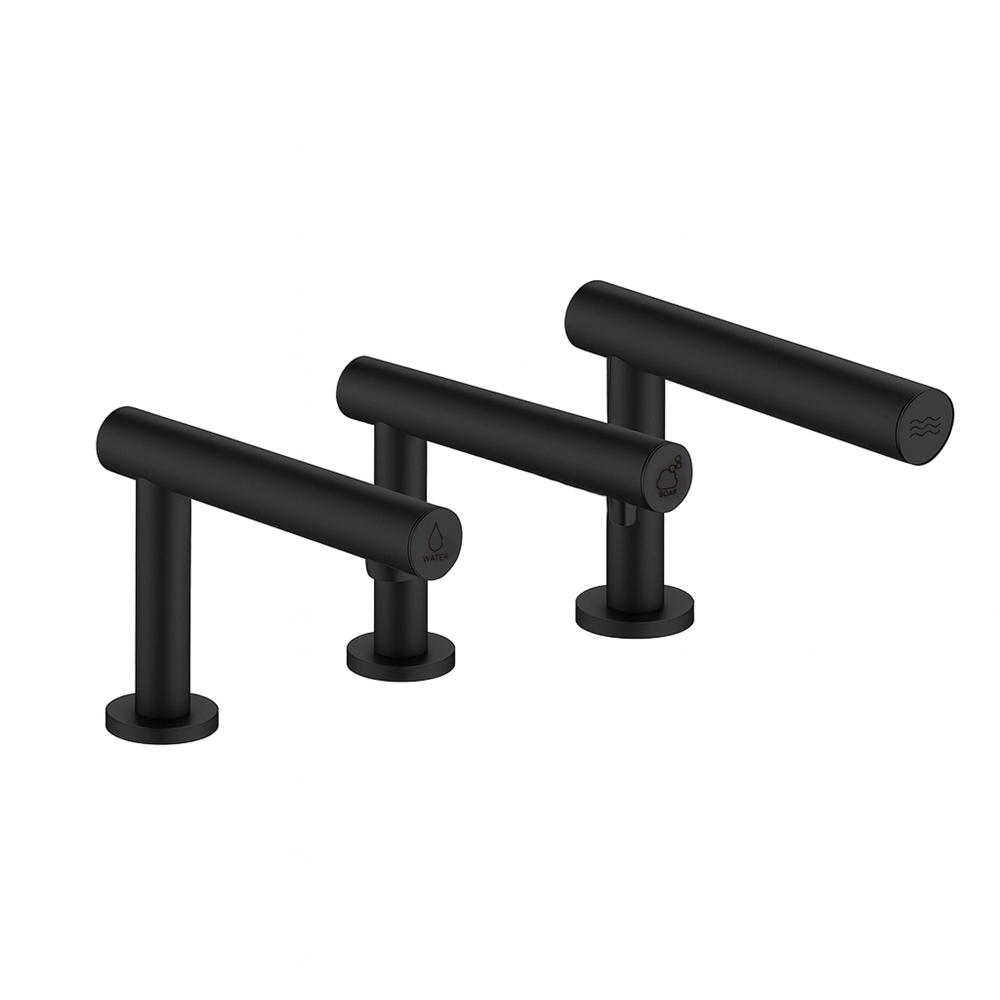

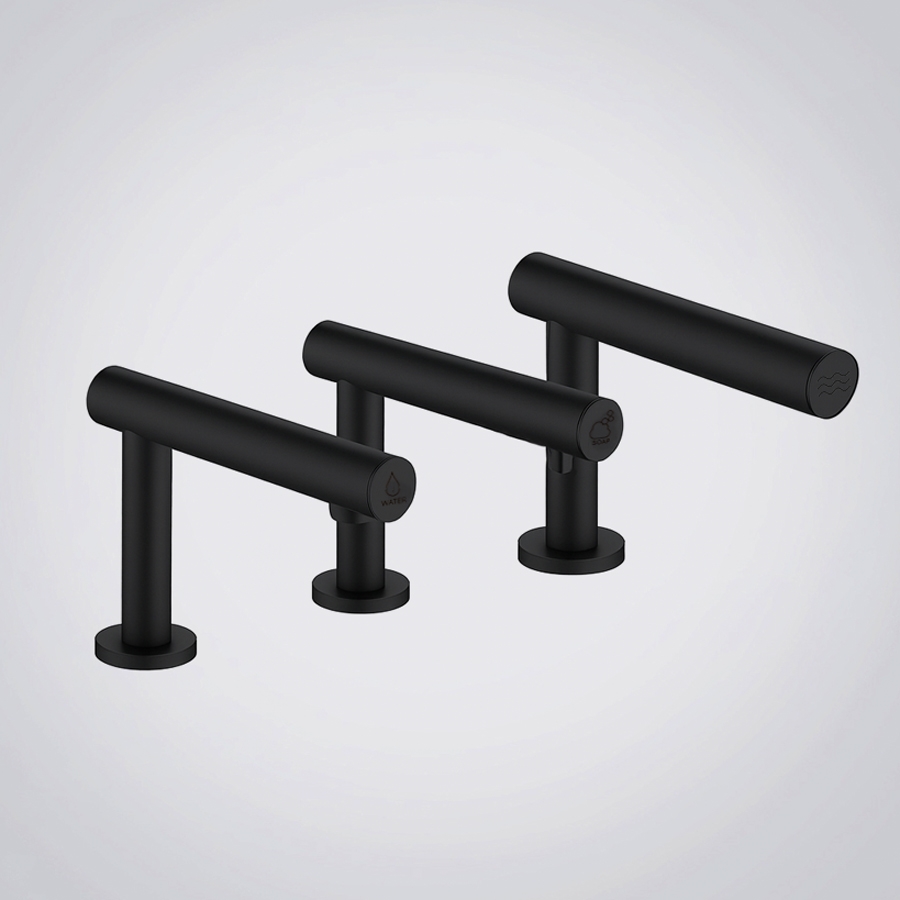

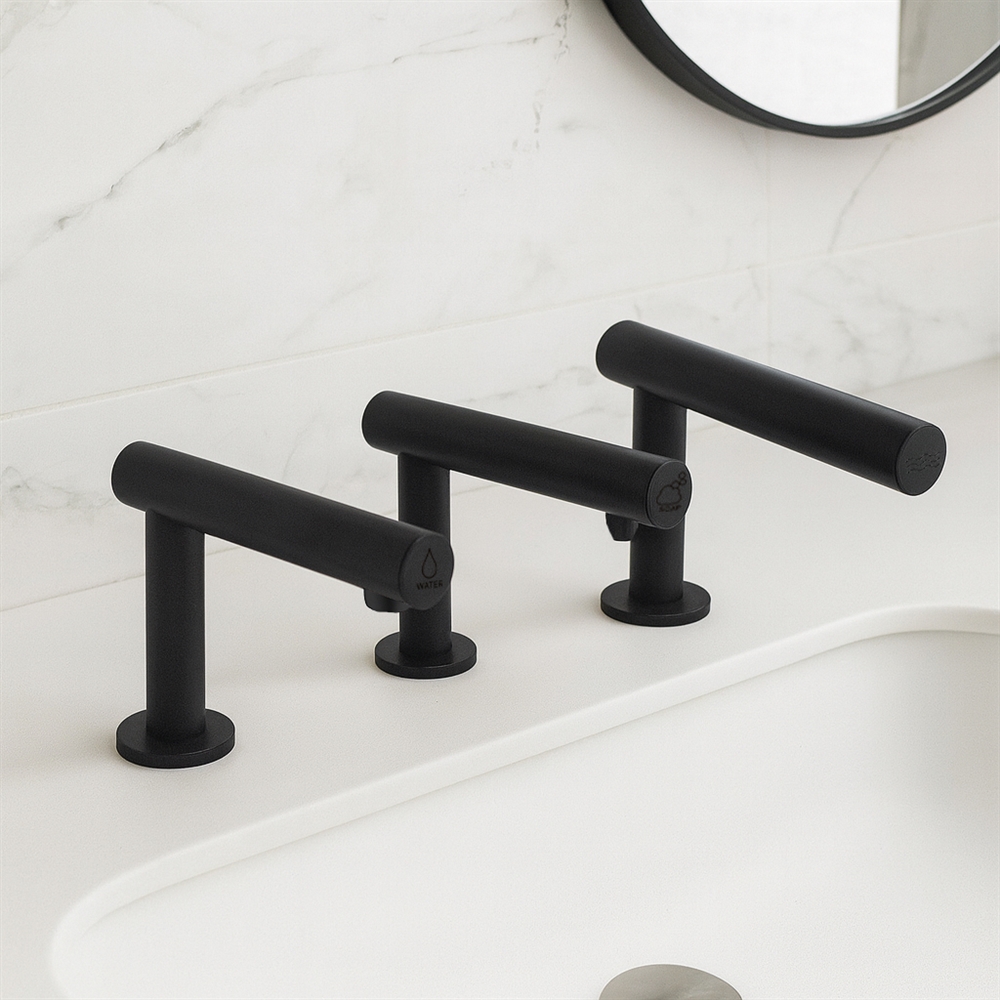

FontanaVelthara Matte Slate Black 3-in-1 Touchless Faucet, Soap Dispenser & Hand Dryer
The FontanaVelthara™ Slate Black Edition embodies contemporary elegance through a boldly matte finish that resists fingerprints and is yet simultaneously durable. Creating a confluence of faucet, soap dispenser, and dryer within one unit, it imposes elegance and functionality on commercial washroom spaces. Situated below the counter and mounted on the deck from solid brass, this style prefers sensor activation while enabling hands-free operation.
Efficiency under performance is glorified while maintaining reliability initiated by a brushless motor running at 38,000 rpm. Operating at a voltage rating of 220–240 and an electric frequency of 50Hz, the hand dryer is endowed with the capability of not foregoing power efficiency, drawing a mere 1W during standby. Consumption capacity stands at 1300 watts for long production performance. The velocity of air stands at 90 km/s, drying hands in 10–15 seconds at 30–40°C, thus avoiding discomfort when drying. Noise level stays below 75dB, whereas its waterproof rating of IP24 seals its long-lived reliability. HEPA filtration ensures social safety by cleansing all air ejected. The strength-Hygiene-Interaction, which requires neat work, has been perfectly blended as an innovative solution for raised pressure areas.
FontanaVelthara™ Matte Slate Black 3-in-1 Touchless Faucet, Soap Dispenser & Hand Dryer FAQ
38,000 RPM Brushless Drying, HEPA Filtration;
Matte Slate Black Surface Protection
The FontanaVelthara™ Matte Slate Black 3-in-1 system combines a touchless
water faucet, automatic soap dispenser, and high-speed hand dryer in a
coordinated undercounter deck-mounted configuration. It features solid-brass
construction, sensor activation, a 38,000 RPM brushless motor, 90 m/s airflow,
HEPA filtration, IP24 protection, 1300W total power, 1W standby consumption,
and approximately 10–15 second hand-drying performance.
How should the faucet, soap dispenser, and dryer sensor zones be commissioned?
Complete commissioning only after the basin, countertop, mirror, lighting,
partitions, and surrounding restroom accessories are fully installed.
Test the water faucet, soap dispenser, and hand dryer independently from
normal user hand positions and verify that each sensor activates only its
intended function. Confirm prompt water shutoff, consistent soap delivery,
and reliable dryer activation without cross-triggering between adjacent
sensor zones or interference from reflective basin and countertop surfaces.
What should be checked if drying performance exceeds the specified 10–15 seconds?
Inspect the HEPA filter, air intake, discharge passages, undercounter motor
enclosure, and connecting air path for restriction. The dryer uses a
38,000 RPM brushless motor and approximately 90 m/s airflow, so a loaded
filter, obstructed intake, restricted outlet, loose air connection, or
inadequate ventilation around the motor case can reduce effective drying
performance even while the motor continues to operate.
How should the undercounter motor and service components be arranged?
Maintain accessible clearance around the 290 mm high by 210 mm wide by
190 mm deep motor case, soap reservoir, control electronics, sensor wiring,
plumbing connections, and air-routing components. Route hoses and cables
without sharp bends, crushing, or excessive tension and keep electrical
equipment protected from possible water or soap leakage. Preserve airflow
around the 1300W dryer assembly and access for HEPA filter and motor service.
How should the Matte Slate Black finish and exposed sensor surfaces be maintained?
Remove fingerprints, soap film, water deposits, and surface residue using
a soft damp microfiber cloth and dry the exposed Matte Slate Black surfaces
after cleaning. Keep sensor windows, soap outlets, dryer air openings, and
water outlets free from buildup that could affect operation. Use diluted
pH-neutral soap when required and avoid abrasive pads, steel wool, acidic
descalers, bleach, ammonia, aggressive metal polish, and concentrated
chemicals that may burnish, scratch, or alter the matte finish.
Read More
- Brand Name: FontanaShowers®
- Model Number: FS10510MSB
- Type: Touchless Faucet, Dispenser & Dryer
- Main Material: Brass
- Finish: Matte Slate Black
- Mount Type: Undercounter
- Installatron Type: Deck Mounted
- Motor: Brushless
- Voltage: 220-240 V
- Frequency: 50Hz
- Total Power: 1300W
- Standby Power: 1W
- RPM: 38000
- Hand Dryer Air Speed: 90m/s
- Temperature: 30-40degrees
- Noise Level: 75dB
- Waterproof: IP24
- Filter: HEPA
- Hand Dryer Dry Time: 310-15s
- Tap Height: Dispenser: 140.5mm, Water Tap: 140.5mm, Hand Dryer: 170mm
- Tap Width: Dispenser: 32mm, Water Tap: 42mm, Hand Dryer: 40mm
- Tap Depth: Dispenser: 191.5mm, Water Tap: 191.5mm, Hand Dryer: 223mm
- Motor Case Height: 290mm
- Moto Case Width: 210mm
- Motor Case Depth: 190mm
