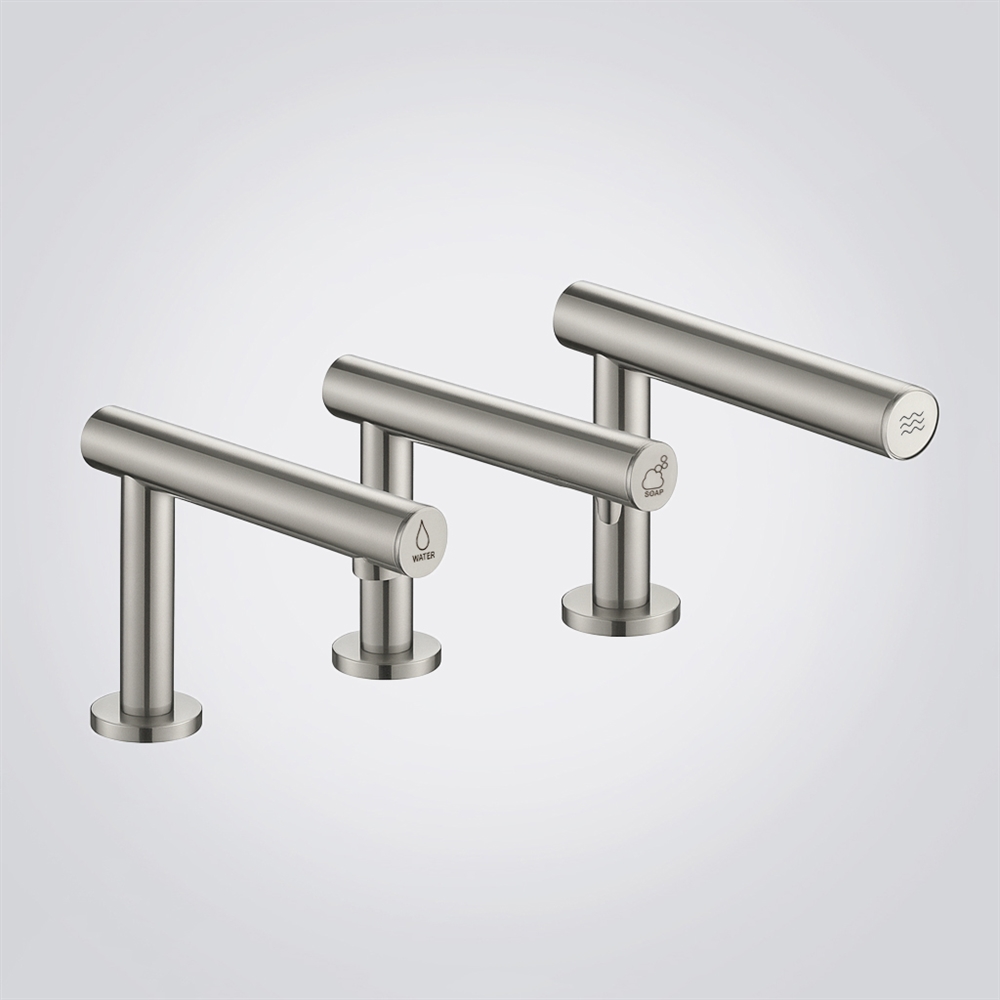

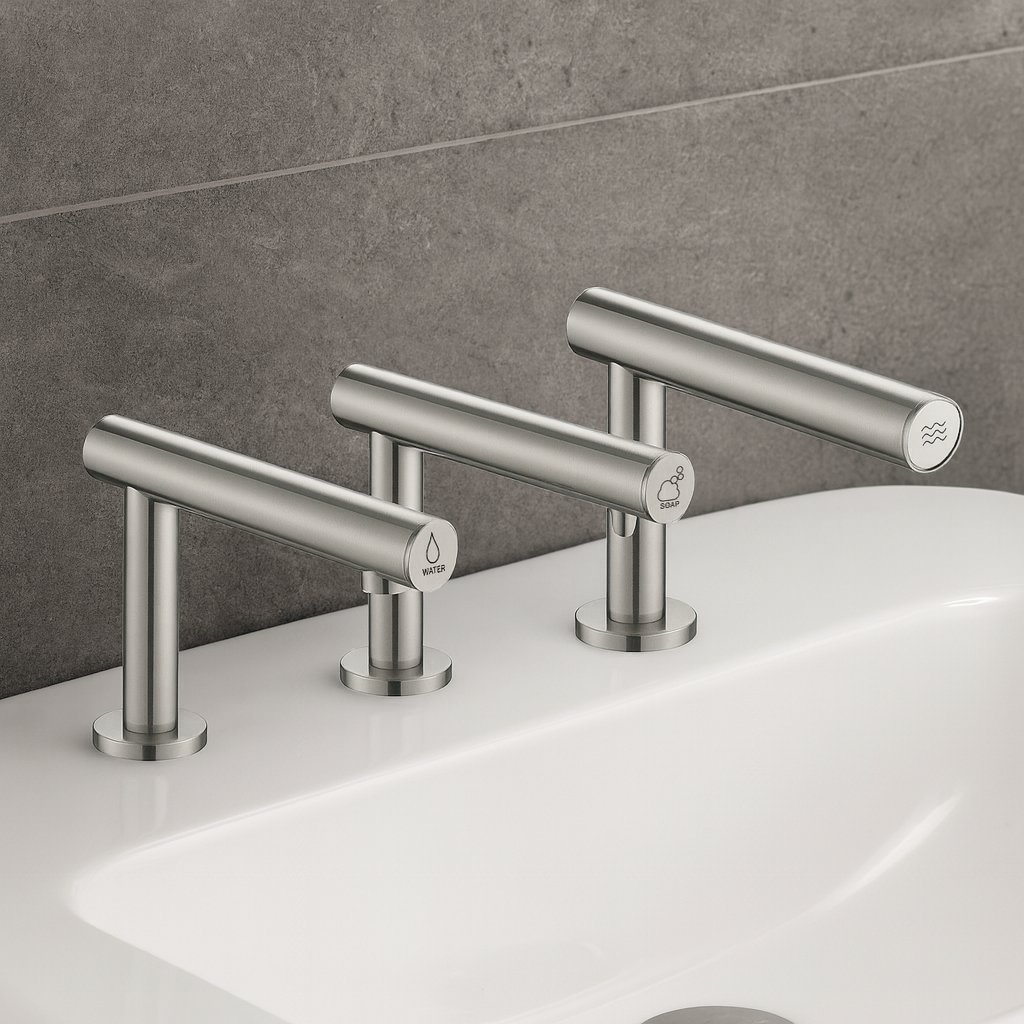

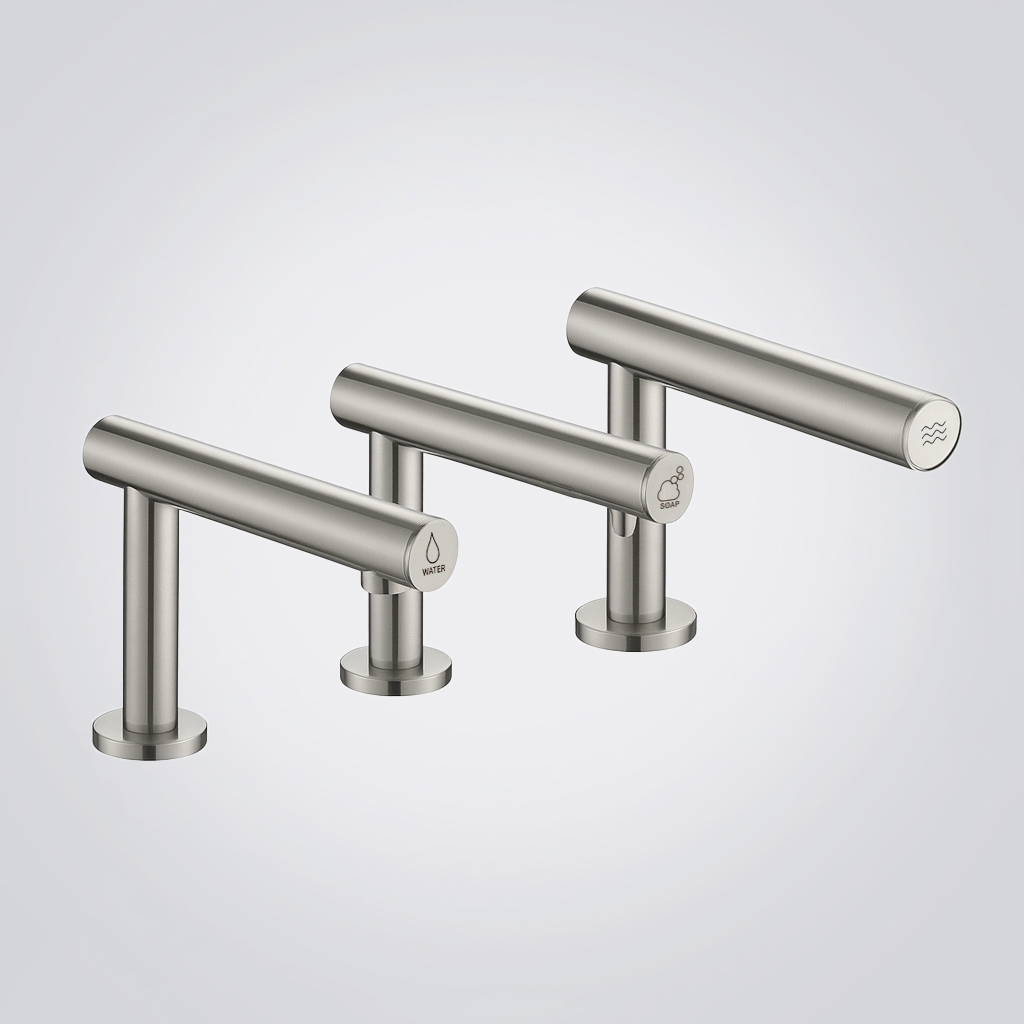

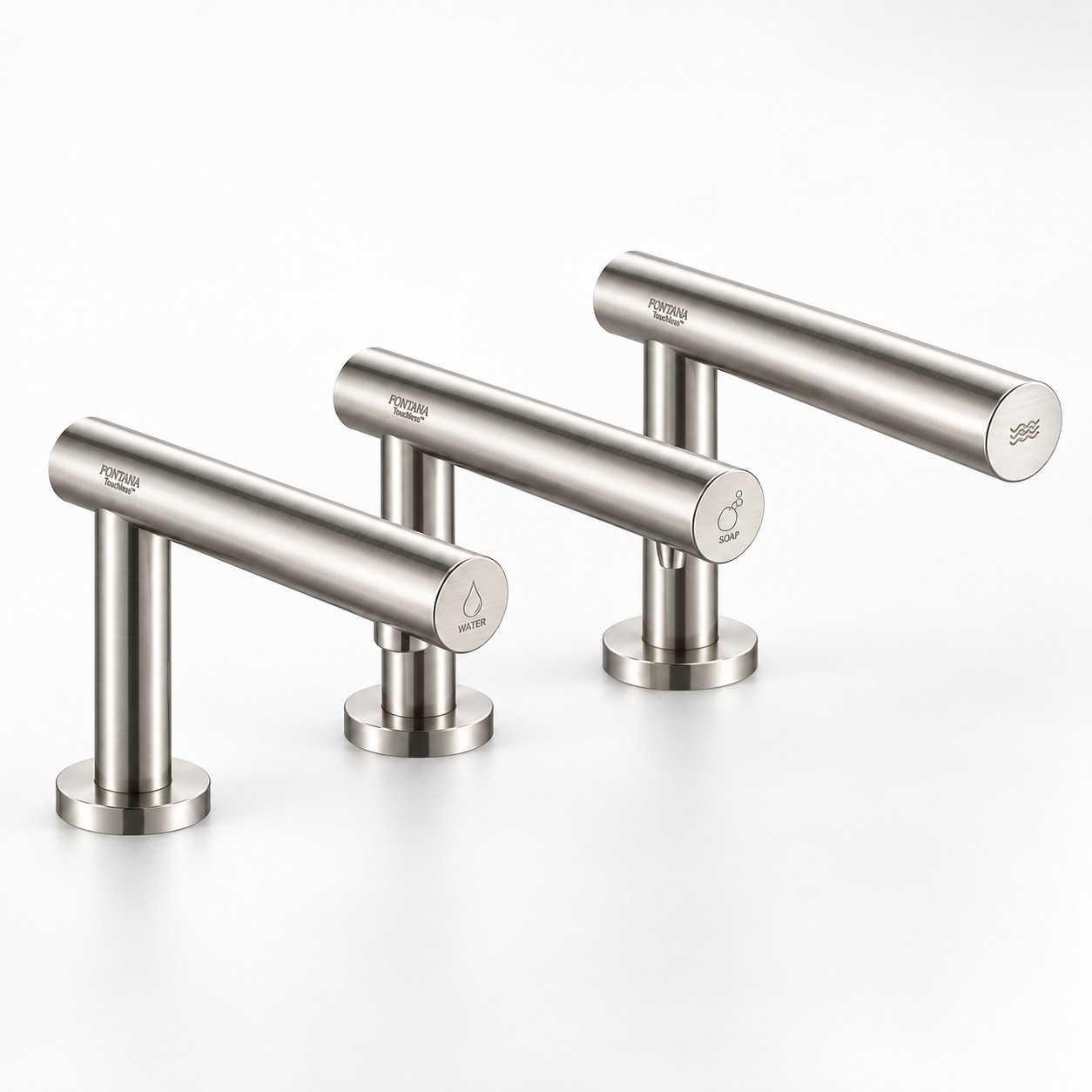

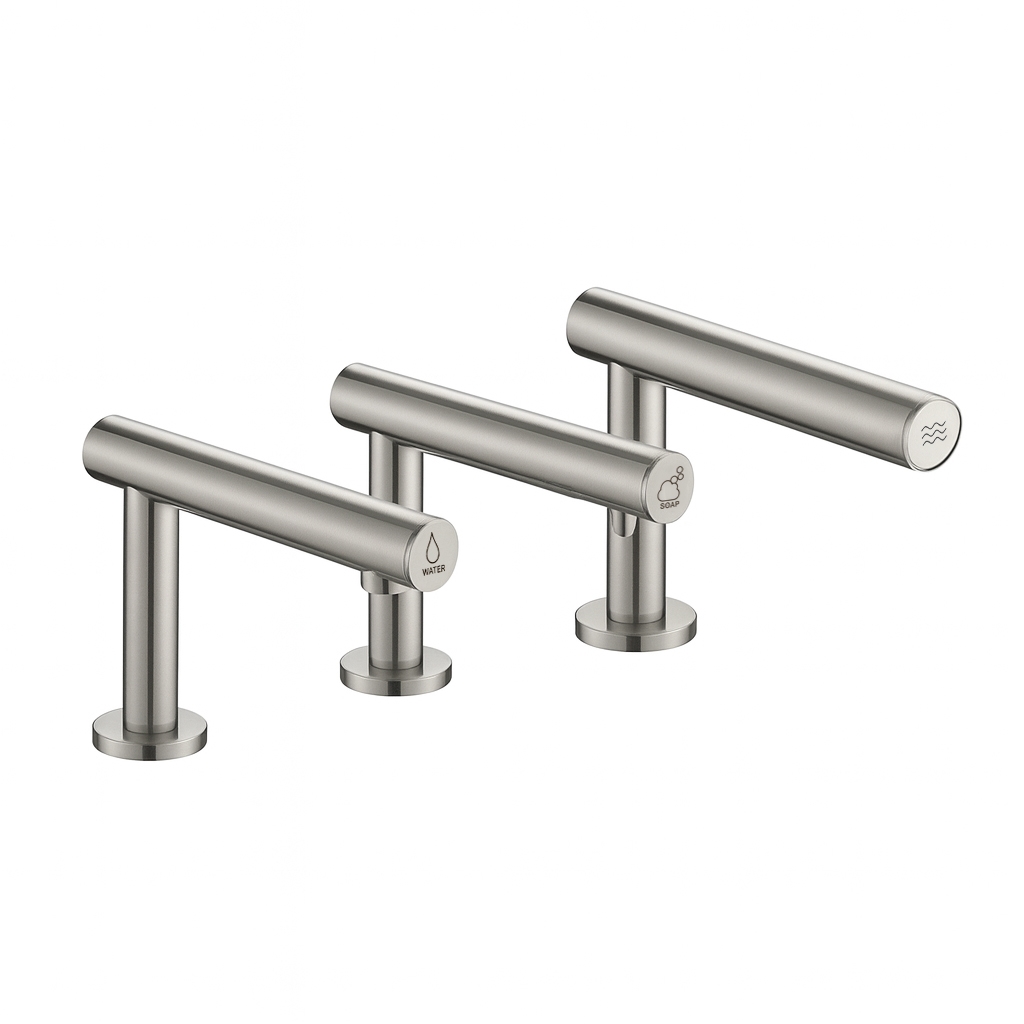

FontanaEcoSphere Brushed Nickel 3-in-1 Touchless Faucet, Soap Dispenser & Hand Dryer
Reshaping the restroom concept, this exclusive 3-in-1 touchless faucet, soap dispenser, and hand dryer embodies the Linphenodrome for utmost efficiency, sustainability, and modern elegance. Cast in brass, with an exquisite brushed nickel finish, this three-in-one model glazes over sanitation and preservation with a veneer of elegance and poise. Concealed undercounter elements hide all the workings underneath the deck, which sports a sleek, minimalist finish.
A brushless motor with 38,000 RPM drying speed at 90 m/s finishes drying in just about 10-15 seconds, saving on energy consumption. It comes with HEPA filtration, allowing purified air to further support hygiene in crowded environments. At 1300W max, 1W standby consumption, and a stripping temperature of 30-40 °C, it remains very efficient and reliable. Noise is maintained at 75Db, ensuring a fairly decent noise comfort level. Waterproof with an IP 24 rating and touchless technology that is very user-friendly, one can be sure that this device is built for durability, hygiene, and ease of use. FontanaEcoSphere™ is indeed the new age of sustainable bathroom solution, a perfect combination of practicality and style.
FontanaEcoSphere™ Brushed Nickel 3-in-1 Touchless Faucet, Soap Dispenser & Hand Dryer FAQ
38,000 RPM Brushless Drying, HEPA Filtration;
Brushed Nickel Surface Protection
The FontanaEcoSphere™ Brushed Nickel 3-in-1 system combines a touchless
water faucet, automatic soap dispenser, and high-speed hand dryer in a
coordinated undercounter deck-mounted configuration. It features brass
construction, precision touchless activation, a 38,000 RPM brushless motor,
90 m/s airflow, HEPA filtration, IP24 protection, 1300W maximum power,
and approximately 10–15 second drying performance.
How should the faucet, soap dispenser, and dryer sensor zones be commissioned?
Complete commissioning only after the basin, countertop, mirror, lighting,
and surrounding restroom accessories are fully installed. Test the water,
soap, and dryer functions independently from normal handwashing positions
and verify that each sensor activates only its intended component. Confirm
prompt water shutoff, controlled soap dispensing, and reliable dryer
activation without cross-triggering between the three adjacent touchless
zones or interference from reflective basin and countertop surfaces.
What should be checked if drying performance exceeds the specified 10–15 seconds?
Inspect the HEPA filter, air intake, outlet passages, undercounter motor
enclosure, and air connections for restrictions. The dryer uses a 38,000 RPM
brushless motor with airflow rated at approximately 90 m/s, so a loaded filter,
obstructed intake, restricted outlet, loose air connection, or insufficient
cabinet ventilation can increase drying time even while the motor continues
operating. Maintain adequate service clearance around the 1300W dryer assembly.
How should the undercounter components be arranged for electrical and plumbing service?
Maintain accessible clearance around the dryer motor housing, soap reservoir,
control electronics, sensor wiring, water connections, and air-routing
components. Route hoses and cables without sharp bends, crushing, or tension,
and separate electrical equipment from potential plumbing or soap leakage.
Because the dryer operates at 220–240 V and carries an IP24 protection rating,
electrical connections should remain protected while still allowing access
for HEPA filter replacement, motor service, and routine inspection.

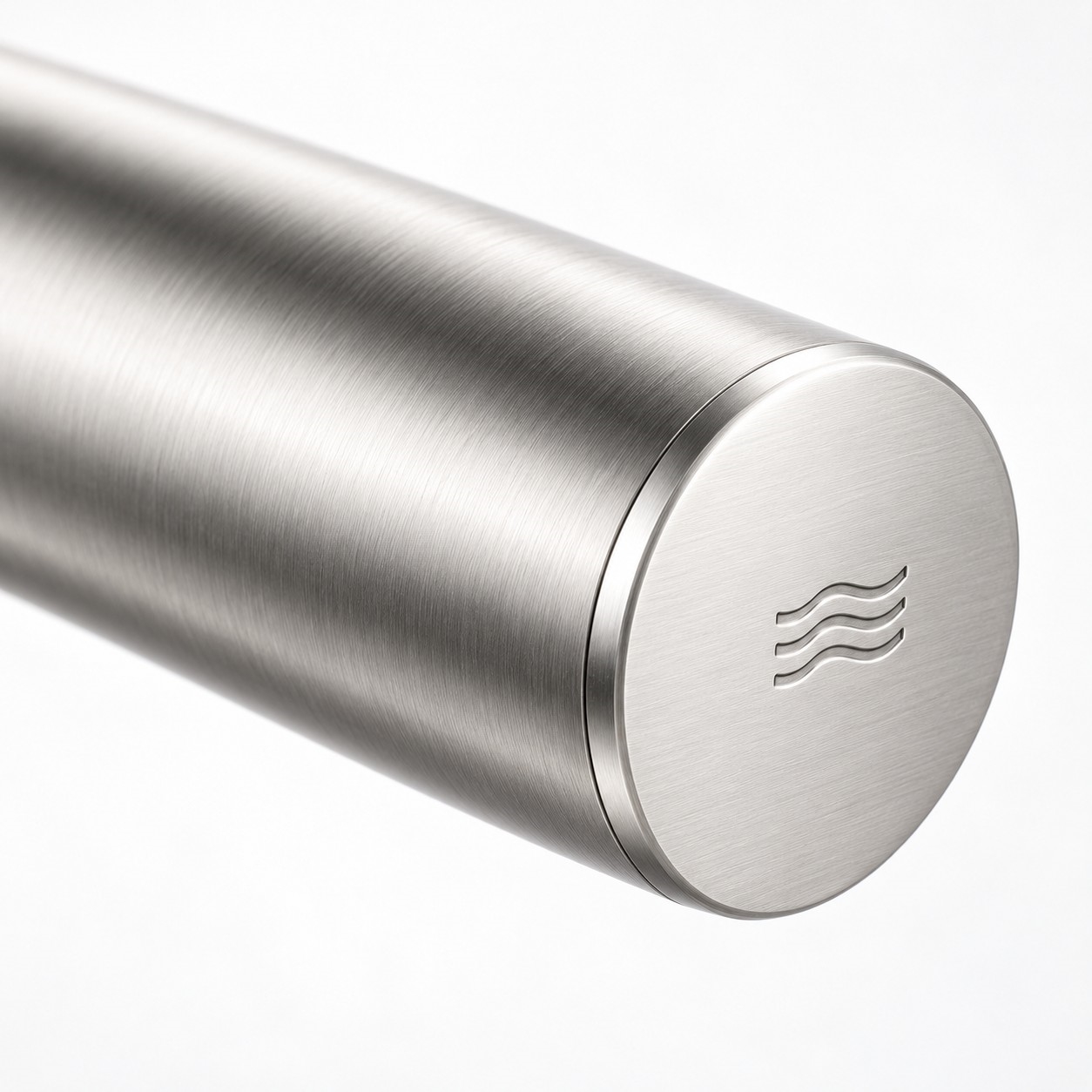

How should the Brushed Nickel finish and exposed sensor surfaces be maintained?
Remove fingerprints, soap film, and mineral deposits using a soft damp
microfiber cloth and dry the exposed Brushed Nickel surfaces after cleaning.
Keep all sensor windows and dispensing outlets free from residue that could
interfere with touchless activation. Use diluted pH-neutral soap when needed
and avoid abrasive pads, steel wool, acidic descalers, bleach, ammonia,
aggressive metal polish, and concentrated chemical cleaners that may scratch,
discolor, or alter the Brushed Nickel finish.
Read More
- Brand Name: FontanaShowers®
- Model Number: FS10510BN
- Type: Touchless Faucet, Dispenser & Dryer
- Main Material: Brass
- Finish: Brushed Nickel
- Mount Type: Undercounter
- Installatron Type: Deck Mounted
- Surface Treatment: Polished
- Motor: Brushless
- Voltage: 220-240 V
- Frequency: 50Hz
- Total Power: 1300W
- Standby Power: 1W
- RPM: 38000
- Hand Dryer Air Speed: 90m/s
- Temperature: 30-40degrees
- Noise Level: 75dB
- Waterproof: IP24
- Filter: HEPA
- Hand Dryer Dry Time: 310-15s
- Tap Height: Dispenser: 140.5mm, Water Tap: 140.5mm, Hand Dryer: 170mm
- Tap Width: Dispenser: 32mm, Water Tap: 42mm, Hand Dryer: 40mm
- Tap Depth: Dispenser: 191.5mm, Water Tap: 191.5mm, Hand Dryer: 223mm
- Motor Case Height: 290mm
- Moto Case Width: 210mm
- Motor Case Depth: 190mm
